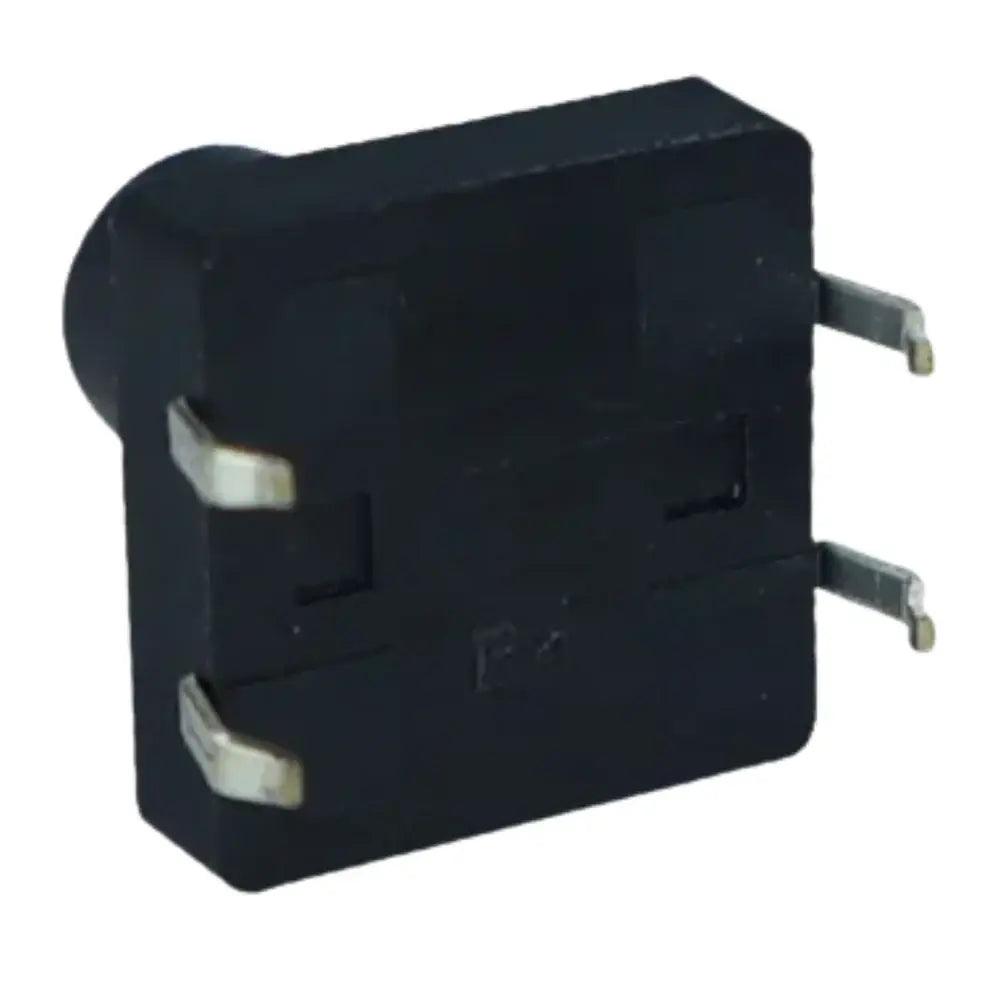

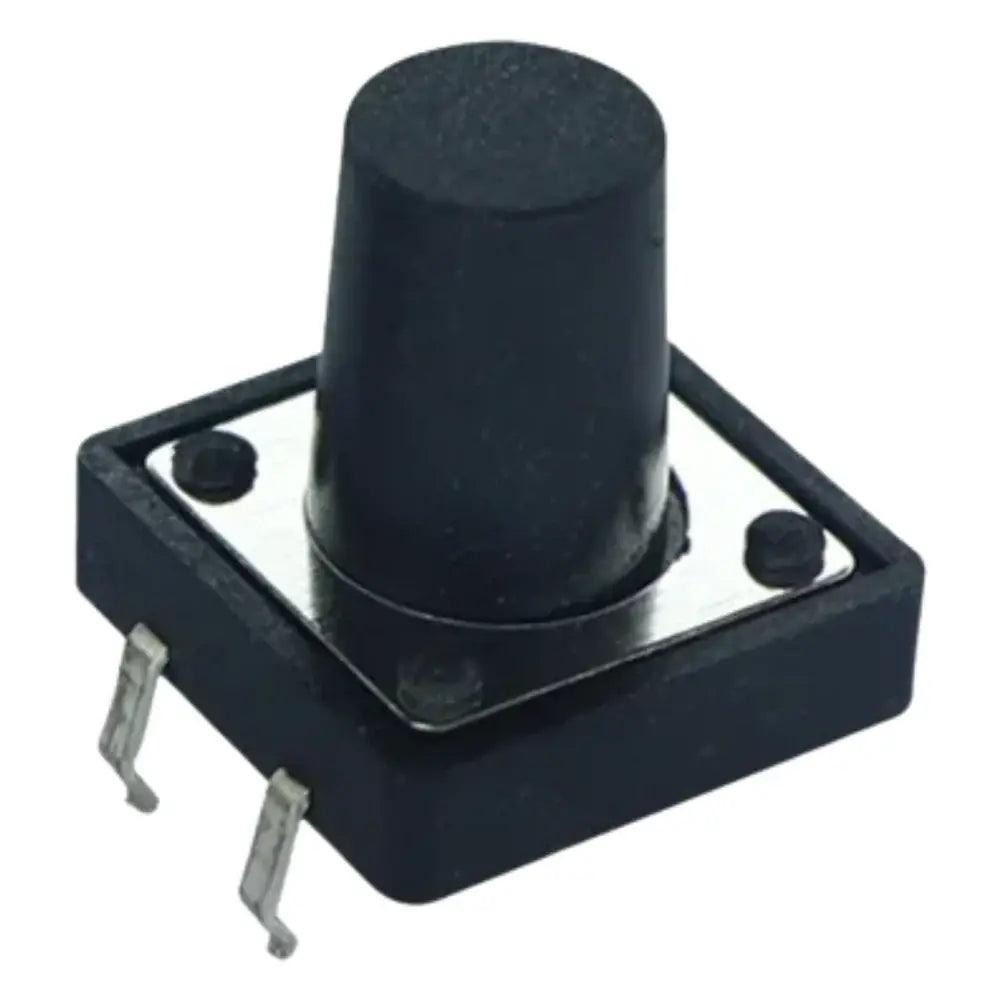

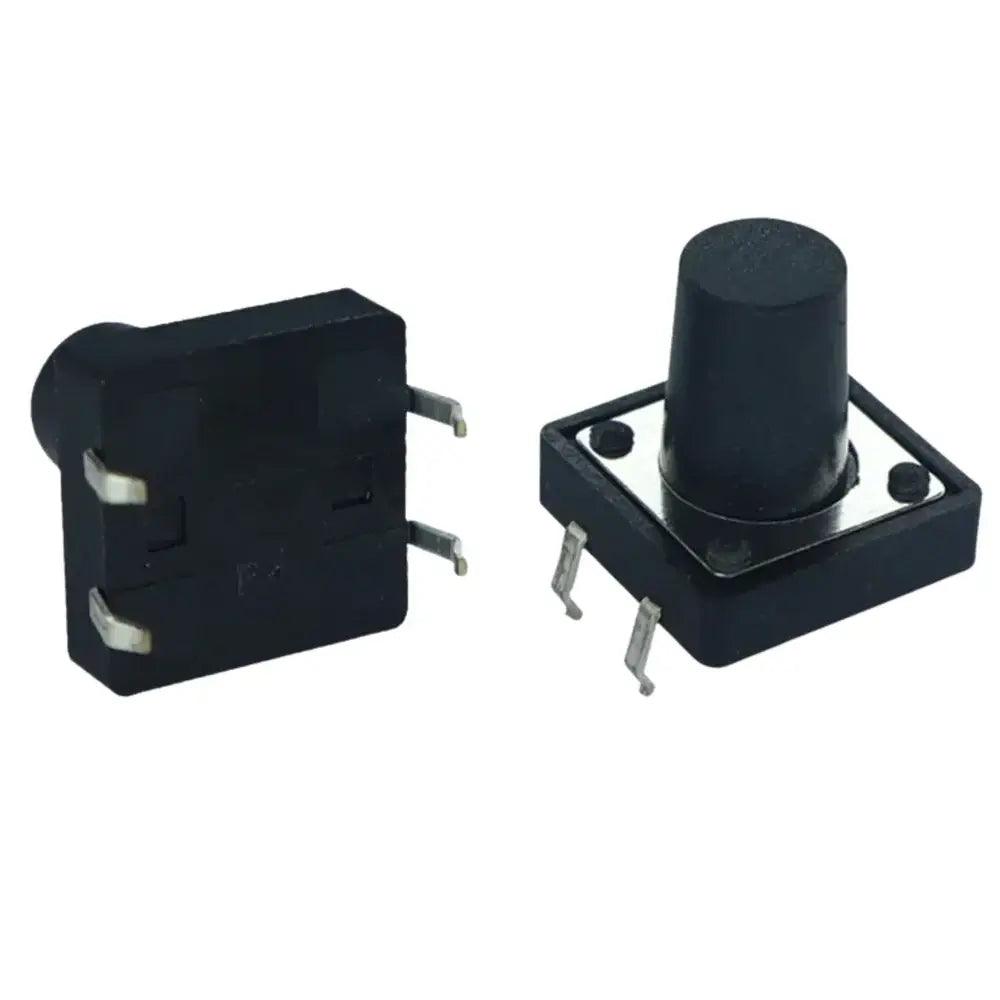

Tactile Push Button Switch 6X6X11mm

SKU: EX6024V7T9
The 6×6×11mm Tactile Push Button Switch is a compact momentary contact switch designed for reliable and precise input control in electronic circuits. It operates on a normally open (NO) configuration, meaning the circuit remains open until the button is pressed and closes only during actuation. With its 11mm actuator height, this switch offers a balanced design between low-profile and tall...
Rs. 6.00
Rs. 9.00 Rs. 6.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Switch Type: Tactile Push Button (Momentary)
Operation Mode: Normally Open (NO)
Dimensions: 6mm × 6mm × 11mm
Mounting Type: Through-hole PCB mount
Number of Pins: 4 (internally paired contacts)
Operating Voltage: 12V DC (typical)
Operating Current: 50mA max
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Actuation Force: 1.6N – 3.5N (approx.)
Travel Distance: ~0.25mm – 1.0mm
Mechanical Life: 100,000 – 300,000 cycles
Body Material: Thermoplastic (PA/Nylon)
Contact Material: Metal alloy

Additional Resources

Tactile Push Button.PDF

FAQ

1. What is a 6×6×11mm tactile push button switch used for?

It is used as a momentary input device in electronic circuits such as Arduino projects, embedded systems, consumer electronics, and control panels.

2. How does the 6×6×11mm tactile switch work?

It operates on a normally open (NO) mechanism. The circuit is completed only while the button is pressed and opens again when released.

3. What is special about the 11mm height version?

The 11mm height provides a balanced actuator length, making it suitable for both PCB mounting and panel applications where moderate button reach is needed.

4. Can this switch be used in PCB-based designs?

Yes, it is designed for through-hole PCB mounting and is widely used in PCB assemblies, prototypes, and electronic devices.

5. Is this switch suitable for DIY and Arduino projects?

Yes, it is highly suitable for Arduino, Raspberry Pi, and DIY electronics projects due to its reliability, compact size, and consistent tactile response.

View full product details

The 6×6×11mm Tactile Push Button Switch is a compact momentary contact switch designed for reliable and precise input control in electronic circuits. It operates on a normally open (NO) configuration, meaning the circuit remains open until the button is pressed and closes only during actuation.

With its 11mm actuator height, this switch offers a balanced design between low-profile and tall variants, making it suitable for PCB applications where moderate protrusion is required for easy access through panels or enclosures. It provides a crisp tactile response, ensuring accurate switching performance in consumer electronics, embedded systems, Arduino projects, and industrial control devices.

Key Features

  • Standard 6×6mm compact footprint with 11mm height actuator
  • Momentary ON (Normally Open) switching action
  • Clear and reliable tactile feedback
  • Ideal for PCB and panel-mounted applications
  • Through-hole mounting design for strong mechanical stability
  • Long operational life with consistent performance
  • Low contact resistance for stable electrical signal
  • Compatible with Arduino, IoT, and embedded systems
