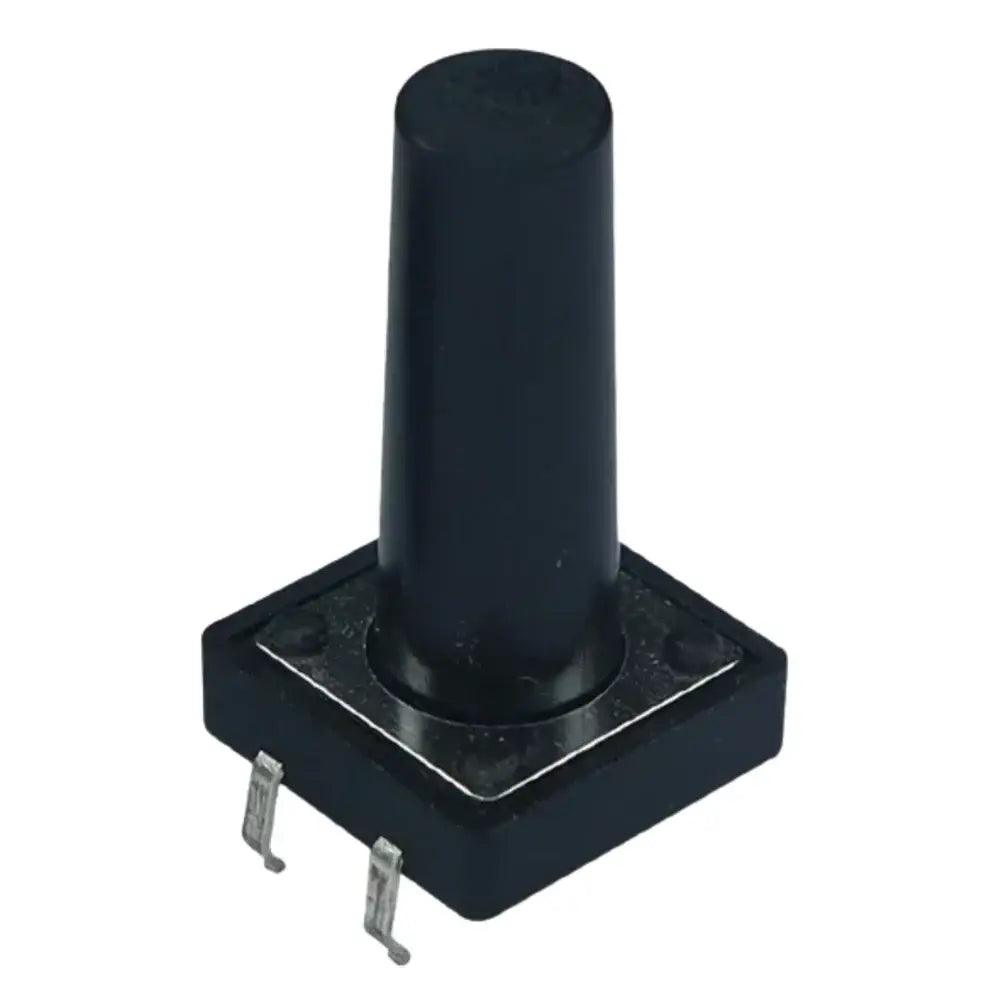

• 1_4_Pin_Tactile_Push_Button_Switch_12X12X21mm_Pack_of_5_1000x_522642a2-956f-47de-a1c6-e405474a6a46 - Roboracter

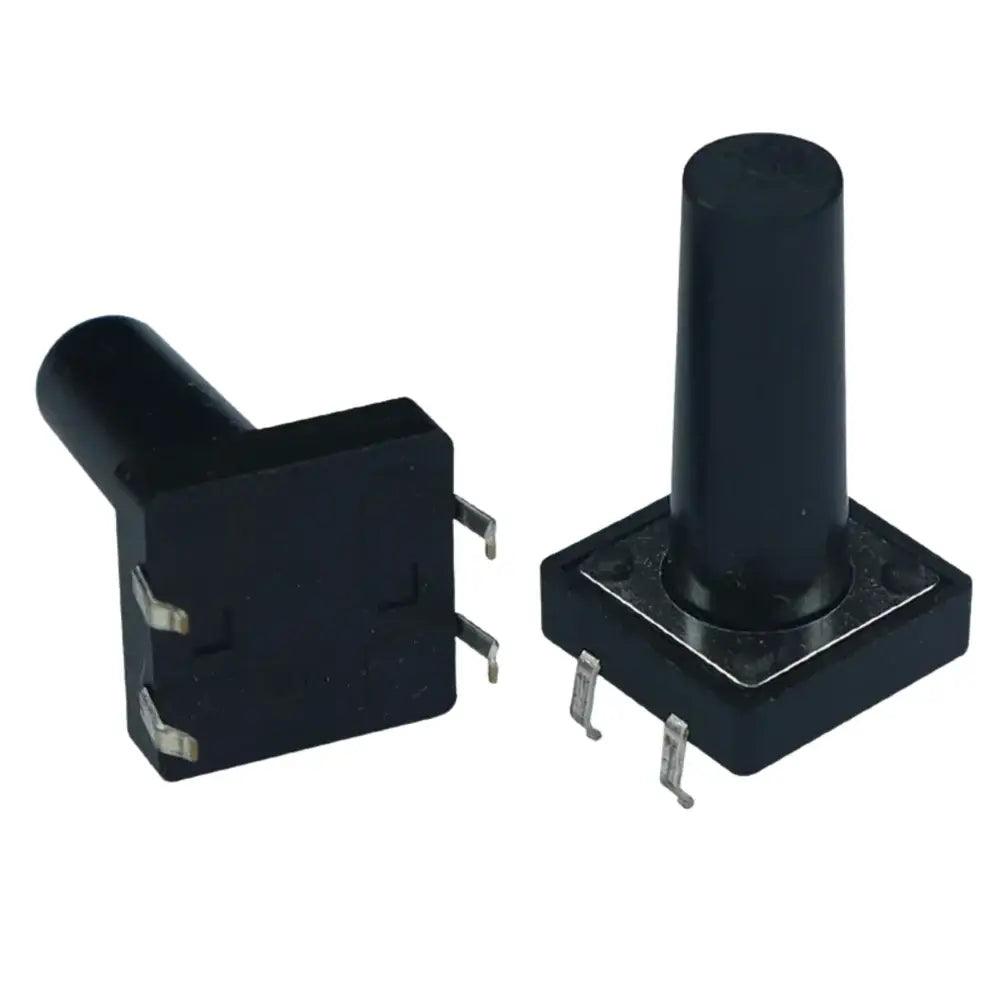

  • 4_Pin_Tactile_Push_Button_Switch_12X12X21mm_Pack_of_5_1000x_b8dc9f75-b67c-492a-bce0-9fb4cba1f5ab - Roboracter

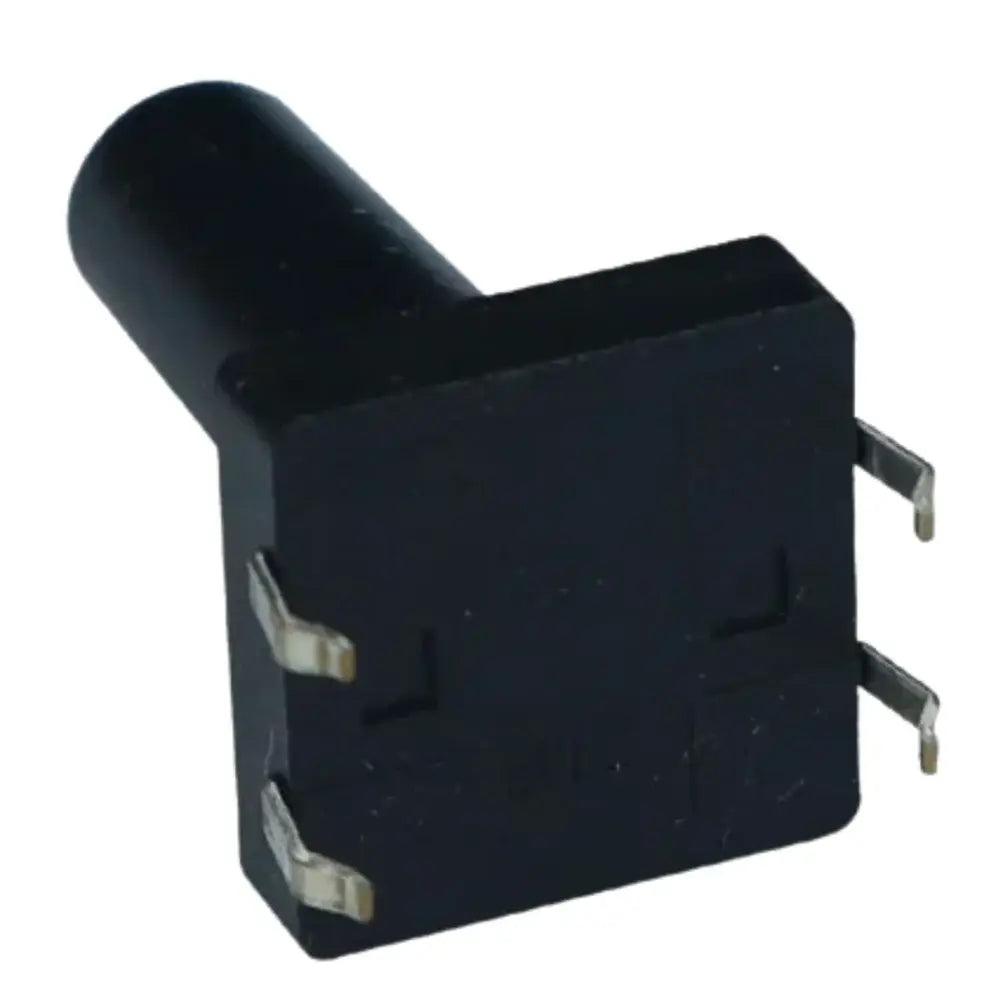

  • 2_4_Pin_Tactile_Push_Button_Switch_12X12X21mm_Pack_of_5_1000x_8cdccd3f-93b9-4ac3-8cee-ff08e9f3de9d - Roboracter
1 3

Tactile Push Button Switch 6X6X13mm

SKU: 5W0AJKQJRP
The 6×6×13mm Tactile Push Button Switch is a compact momentary contact switch designed for reliable user input in electronic circuits. It operates on a normally open (NO) configuration, meaning the circuit is only completed while the button is pressed and returns to its default open state when released. With its tall 13mm actuator height, this switch is ideal for applications...
Rs. 6.00
Rs. 11.00 Rs. 6.00
Save Rs. 5
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Switch Type: Tactile Push Button (Momentary)
Operation Mode: Normally Open (NO)
Dimensions: 6mm × 6mm × 13mm
Mounting Type: Through-hole PCB mount
Number of Pins: 4 (internally paired contacts)
Operating Voltage: 12V DC (typical)
Operating Current: 50mA max
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Actuation Force: 1.6N – 3.5N (approx.)
Travel Distance: ~0.25mm – 1.0mm
Mechanical Life: 100,000 – 300,000 cycles
Body Material: Thermoplastic (PA/Nylon)
Contact Material: Metal alloy

Additional Resources

Tactile Push Button.PDF

FAQ

1. What is a 6×6×13mm tactile push button switch used for?

It is used as a momentary input switch in electronic devices such as control panels, Arduino projects, embedded systems, and industrial electronics.

2. How does a 6×6×13mm tactile switch operate?

It works on a normally open (NO) mechanism. The circuit is completed only when the button is pressed and returns to open state when released.

3. Why choose a 13mm tactile switch over lower height versions?

The 13mm height provides better accessibility, making it ideal for thick panels, enclosures, or applications where the button needs to protrude more for easy pressing.

4. Can this switch be mounted on a PCB?

Yes, it is designed for through-hole PCB mounting and is commonly used in PCB-based electronic assemblies and prototyping boards.

5. Is this switch suitable for Arduino and DIY projects?

Yes, it is highly suitable for Arduino, Raspberry Pi, and other DIY electronics projects due to its reliable performance and strong tactile feedback.

View full product details

The 6×6×13mm Tactile Push Button Switch is a compact momentary contact switch designed for reliable user input in electronic circuits. It operates on a normally open (NO) configuration, meaning the circuit is only completed while the button is pressed and returns to its default open state when released.

With its tall 13mm actuator height, this switch is ideal for applications requiring easy access through thick panels or enclosures. It provides a strong and crisp tactile feedback, making it suitable for industrial control panels, consumer electronics, embedded systems, DIY projects, and Arduino-based applications where higher actuator reach is required.

Key Features

  • Standard 6×6mm footprint with 13mm actuator height
  • Momentary ON (Normally Open) operation
  • Strong and clear tactile feedback
  • Ideal for panel-mounted and enclosure-based designs
  • Through-hole PCB mounting type
  • High durability and long mechanical life
  • Stable electrical performance with low contact resistance
  • Compatible with Arduino, IoT, and embedded systems
