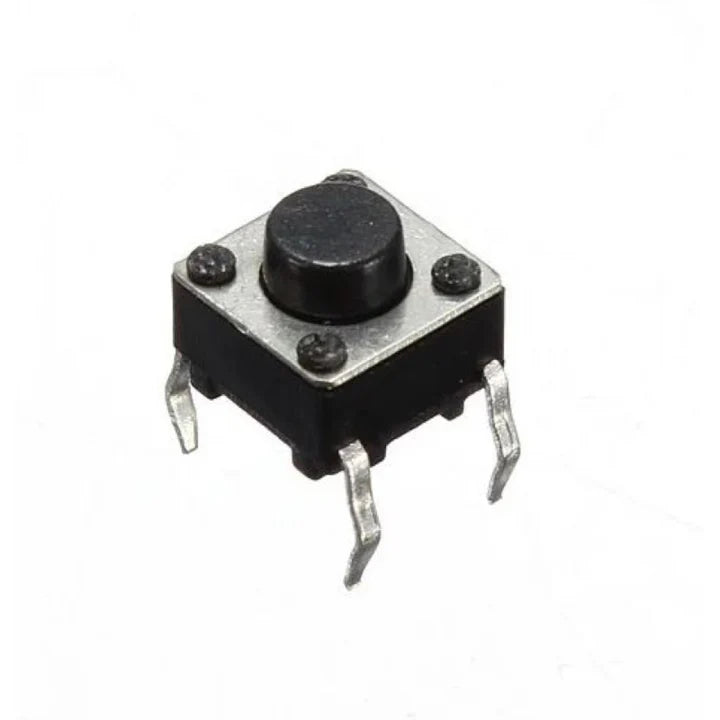

Tactile Push Button Switch 6x6x5mm

SKU: 3H3ZMR67TI
★★★★ ★ ★
4.7 (148 reviews)
The 6×6×5mm Tactile Push Button Switch is an ultra-low-profile momentary switch designed for compact electronic circuits requiring minimal height and space-saving design. It operates on a normally open (NO) configuration, meaning the circuit remains open until the button is pressed and closes only during actuation. With its very low 5mm actuator height, this switch is ideal for slim devices, compact...
Rs. 5.00
Rs. 9.00 Rs. 5.00
Save Rs. 4 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 6×6×5mm Tactile Push Button Switch is an ultra-low-profile momentary switch designed for compact electronic circuits requiring minimal height and space-saving design. It operates on a normally open (NO) configuration, meaning the circuit remains open until the button is pressed and closes only during actuation.

With its very low 5mm actuator height, this switch is ideal for slim devices, compact PCB layouts, handheld electronics, and applications where space constraints are critical. It delivers precise tactile feedback, ensuring reliable input performance in consumer electronics, embedded systems, Arduino projects, and other DIY or industrial applications.

Key Features

  • Ultra-low profile 6×6mm footprint with 5mm height
  • Momentary ON (Normally Open) operation
  • Compact design ideal for space-constrained PCBs
  • Clear and reliable tactile feedback
  • Through-hole PCB mounting type
  • High durability with consistent performance
  • Low contact resistance for stable switching
  • Suitable for Arduino, IoT, and embedded systems

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Operating Voltage: 12V DC
Maximum Operating Current: 50 mA
Switch Function: Push-to-ON
Switch Type: Momentary
Mounting Type: Through-hole (DIP)
Contact Material: Brass
Contact Resistance: 50 mΩ
Insulation Resistance: 100 MΩ
Operating Temperature Range: -20°C to 70°C
Operating Force: 1.56 ± 0.5 N
Travel (Stroke): 0.25 mm (+0.2 / -0.1 mm)
Body Material: Plastic
Mechanical & Electrical Life: Up to 50,000 cycles
Protection Rating: IP65
Dimensions: 6 × 6 × 5 mm
Weight: Approximately 1 gram per piece

Additional Resources

Tactile Push Button.PDF

FAQ

1. What is a 4-pin tactile push button switch?

A 4-pin tactile push button switch is a small momentary switch commonly used in electronic circuits. It has four terminals, where two pairs of pins are internally connected. When pressed, it completes the circuit temporarily, and when released, it disconnects automatically.

2. Why does the switch have 4 pins instead of 2?

Although it has 4 pins, they are internally connected in pairs (2 + 2). This design provides better mechanical stability on PCBs and allows flexible mounting in different circuit layouts.

3. What does “momentary” mean in this switch?

“Momentary” means the switch only stays ON while being pressed. Once you release the button, it returns to its original OFF state automatically.

4. What are the common applications of this tactile switch?

These switches are widely used in:

  • Arduino and microcontroller projects
  • Keypads and input controls
  • Consumer electronics (TV remotes, toys, calculators)
  • Prototyping and breadboard circuits

5. Can this switch be mounted on a PCB?

Yes, it is designed for through-hole PCB mounting and is commonly used in prototype boards and compact electronic assemblies.
