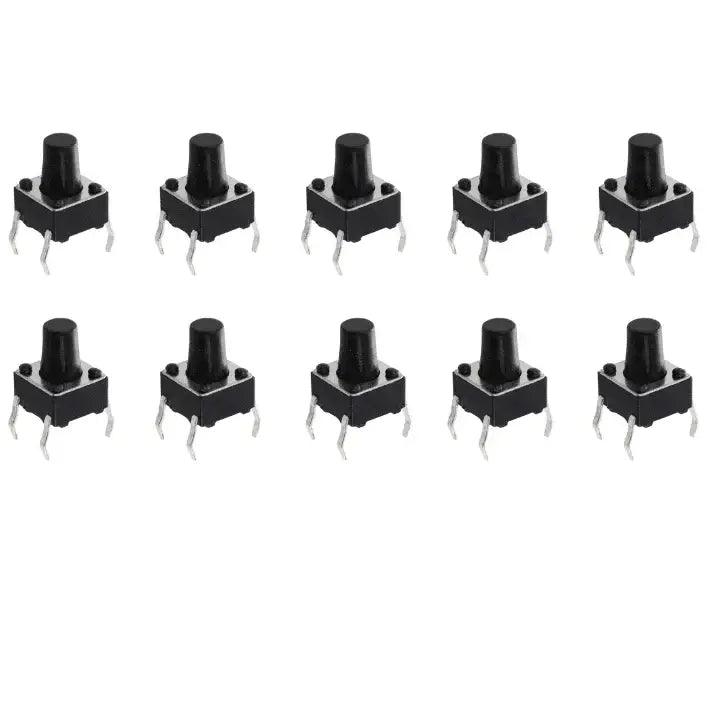

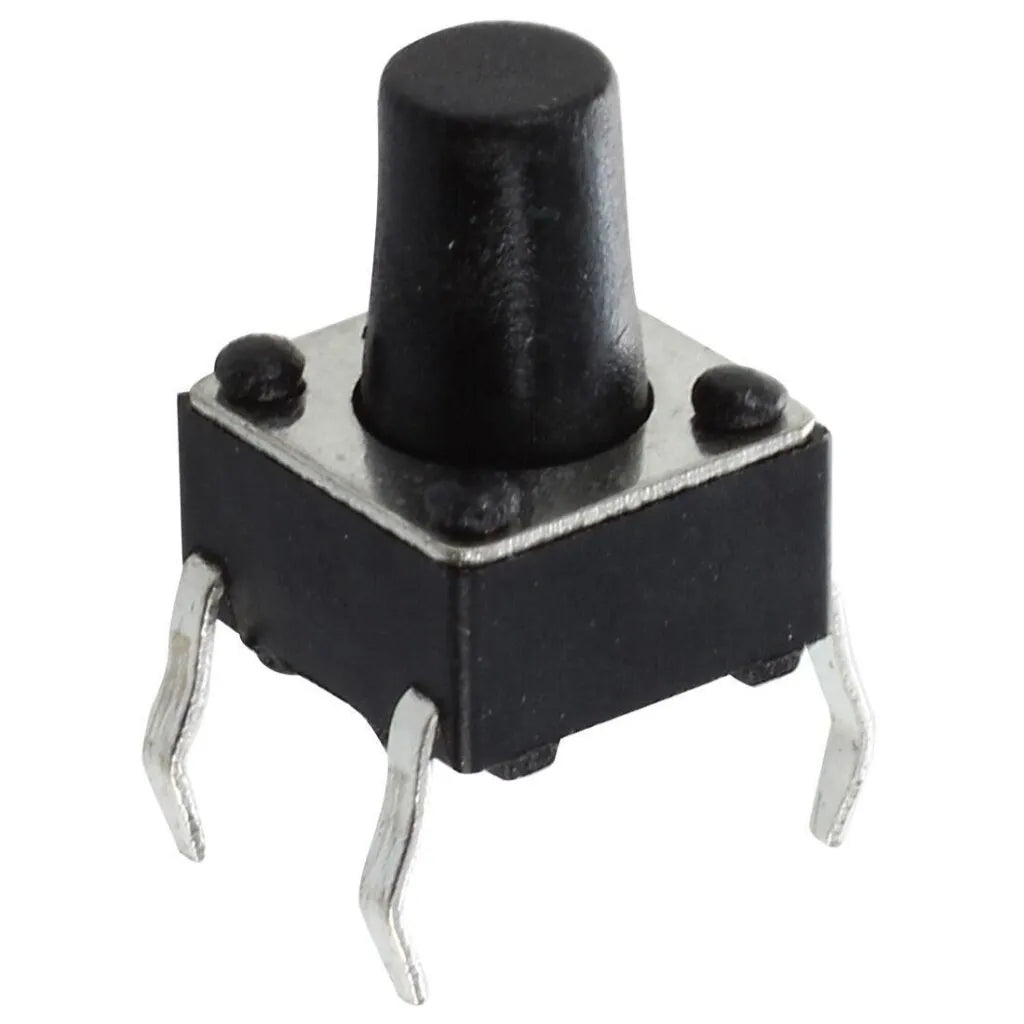

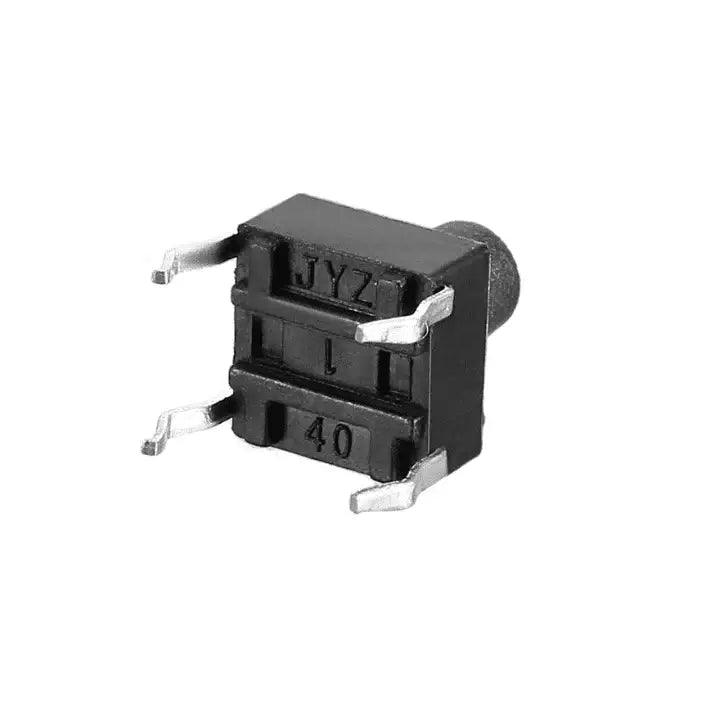

Tactile Push Button Switch 6X6X9mm

SKU: LXL7KIMYHJ
★★★★ ★ ★
4.9 (62 reviews)
The 6×6×9mm Tactile Push Button Switch is a compact, momentary contact switch widely used in electronic circuits for user input and control applications. It operates on a normally open (NO) mechanism, meaning the circuit is completed only while the button is pressed and immediately breaks when released. With its 6mm × 6mm footprint and 9mm height, this switch is ideal...
Rs. 6.00
Rs. 12.00 Rs. 6.00
Save Rs. 6 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 6×6×9mm Tactile Push Button Switch is a compact, momentary contact switch widely used in electronic circuits for user input and control applications. It operates on a normally open (NO) mechanism, meaning the circuit is completed only while the button is pressed and immediately breaks when released.

With its 6mm × 6mm footprint and 9mm height, this switch is ideal for PCB mounting, prototyping boards, and embedded systems. It provides a crisp tactile feedback, ensuring reliable operation in consumer electronics, DIY projects, and industrial control panels. These switches are known for their long operational life and stable electrical performance.

Key Features

  • Compact 6×6mm standard footprint
  • Momentary ON (Normally Open) operation
  • Strong tactile feedback for reliable user input
  • Through-hole PCB mounting design
  • High durability and long mechanical life
  • Suitable for breadboard and PCB prototyping
  • Low contact resistance for stable performance
  • Available in multiple actuation force variants

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Switch Type: Tactile push button (momentary)
Operation Mode: Normally Open (NO)
Dimensions: 6mm × 6mm × 9mm
Mounting Type: Through-hole (PCB mount)
Number of Pins: 4 (internally paired contacts)
Operating Voltage: 12V DC (typical)
Operating Current: Up to 50mA
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Operating Force: 1.6N – 3.5N (approx.)
Stroke Distance: ~0.25mm – 1.0mm
Mechanical Life: Up to 100,000 – 300,000 cycles
Body Material: Thermoplastic (nylon/PA)
Contact Material: Alloy metal

Additional Resources

Tactile Push Button.PDF

FAQ

1. What is a 6×6×9mm tactile push button switch used for?

It is used as a momentary input device in electronic circuits, commonly found in devices like remote controls, Arduino projects, DIY electronics, and control panels.

2. How does a tactile push button switch work?

It works on a normally open (NO) mechanism. When pressed, it temporarily completes the circuit and allows current flow; when released, the circuit opens again.

3. Can this switch be used on a PCB?

Yes, it is designed for through-hole PCB mounting and is widely used in printed circuit board designs and prototyping boards.

4. What is the life expectancy of this switch?

It typically supports around 100,000 to 300,000 mechanical operations depending on usage conditions and operating force.

5. Is this switch suitable for Arduino and DIY projects?

Yes, it is highly suitable for Arduino, Raspberry Pi, and other microcontroller-based projects due to its compact size and reliable tactile response.
