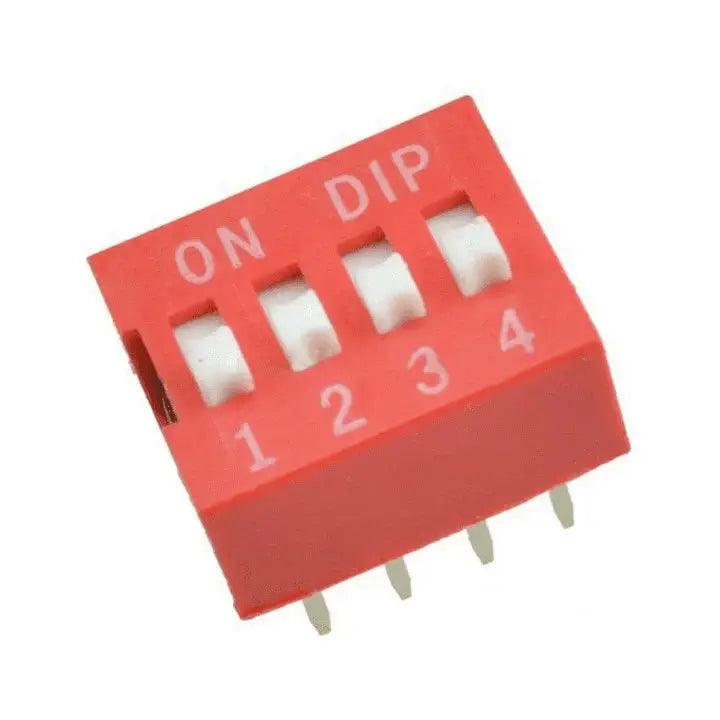

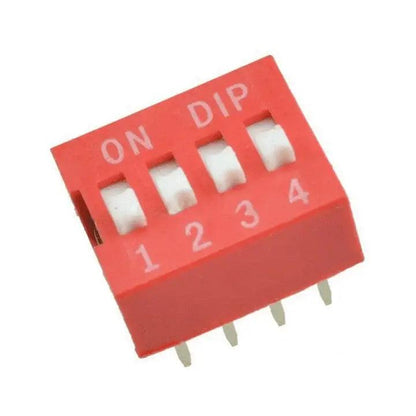

4 Way Slide Switch 2.54mm Pitch

SKU: 1N14UE86RH
The 4-way DIP switch is designed for reliable operation with a secure snap-in mechanism. It is commonly mounted on printed circuit boards (PCBs) along with other electronic components and is used to customize or configure the behavior of electronic devices for specific applications. It is widely used in data processing systems, communication equipment, remote controls, and anti-theft alarm systems, where...
Rs. 17.00
Rs. 21.00 Rs. 17.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Rated Voltage: 30V DC
Operating Current: 0.15 A
Number of Pins: 4
Pin Pitch: 2.54 mm
Mounting Type: Through-hole
Operating Temperature Range: -40°C to 85°C
Mechanical & Electrical Life: ≥ 2000 cycles
Dimensions: 6.6 × 9.8 × 6.5 mm
Weight: Approximately 2 grams (each)

Additional Resources

4 Way Slide Switch 2.54mm Pitch.PDF

FAQ

1. What is a 4 Way Slide Switch?

A 4 Way Slide Switch is a compact DIP switch module that contains four individual switches in a single package, allowing users to control multiple circuit inputs independently.

2. What does 2.54 mm pitch indicate?

The 2.54 mm pitch refers to the standard spacing between the pins, making the switch compatible with most PCBs and breadboards used in electronics.

3. How does this slide switch work?

Each of the four switches can be toggled between ON and OFF positions. When switched ON, the circuit is completed; when OFF, the circuit is open.

4. Where is this switch commonly used?

It is widely used in:

  • PCB and electronics projects
  • Microcontroller configuration settings
  • Communication devices
  • Embedded systems and control panels

5. What are the advantages of this switch?

  • Compact and space-saving design
  • Easy manual configuration of circuits
  • Reliable and stable performance
  • Standard pin spacing for easy integration

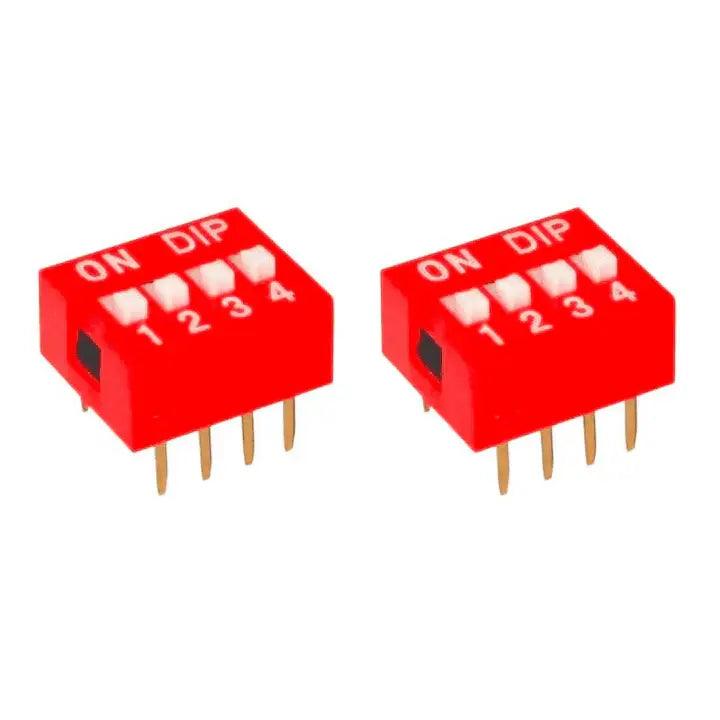

  • Comes in a pack of 2 for multiple uses
View full product details

The 4-way DIP switch is designed for reliable operation with a secure snap-in mechanism. It is commonly mounted on printed circuit boards (PCBs) along with other electronic components and is used to customize or configure the behavior of electronic devices for specific applications. It is widely used in data processing systems, communication equipment, remote controls, and anti-theft alarm systems, where manual configuration or programming is required.

This device features 4 individual switches (4-position or 4-in-1) housed in a compact Dual In-Line Package (DIP). Each switch functions as an SPDT (Single Pole Double Throw) slide switch, allowing the user to select between two connections. At any time, the switch connects to only one terminal, ensuring that both terminals are never connected simultaneously.

Designed for easy mounting on PCBs, the DIP switch provides a convenient way to set input configurations or control signals in electronic circuits. Users can quickly adjust settings by sliding the individual switches as needed.

Applications:

  • Used in circuit boards, breadboards, and PCB-based projects
  • Ideal for configuration settings and control inputs
  • Suitable as a toggle or ON/OFF switch in electronics projects
