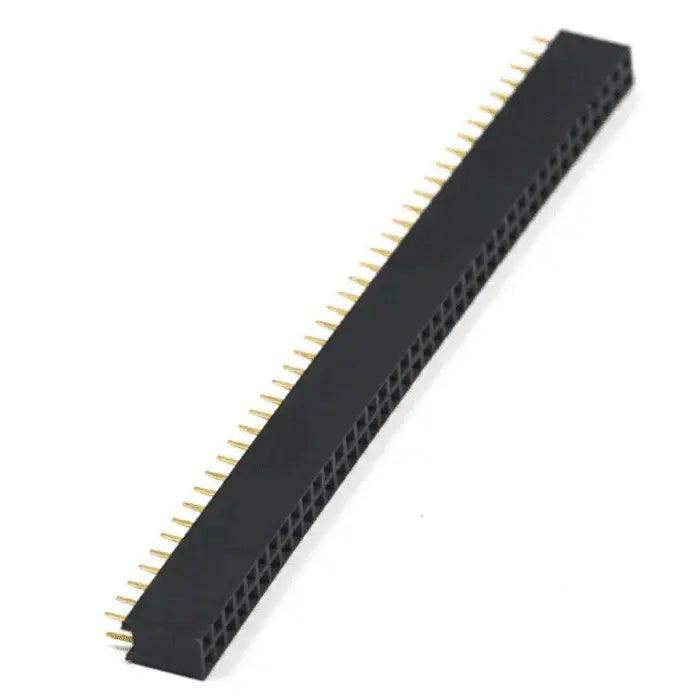

• 40x2FemaleBergStrip_1000x_e797dc78-489e-40fe-a8f4-cf11f0d04cf9 - Roboracter

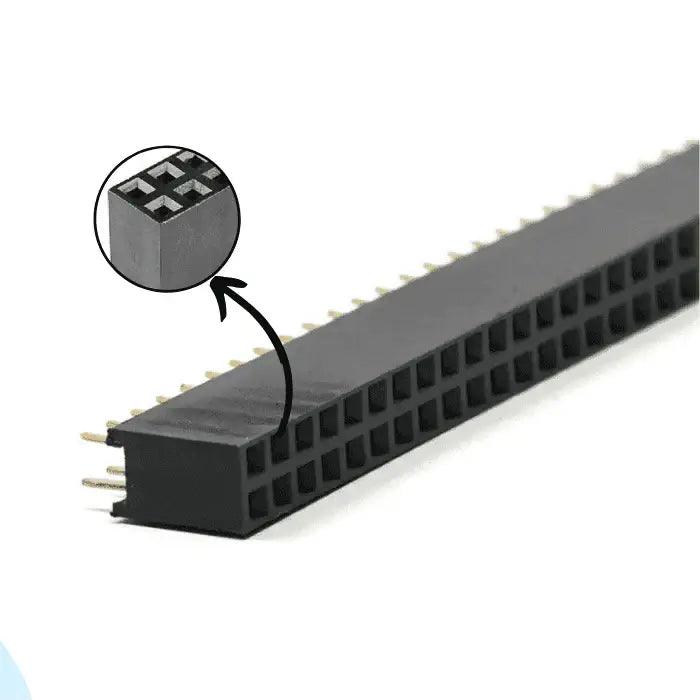

  • 40x2FemaleBergStrip_2_1000x_c5ca13f4-84f1-45bb-86c2-4663eae7944d - Roboracter

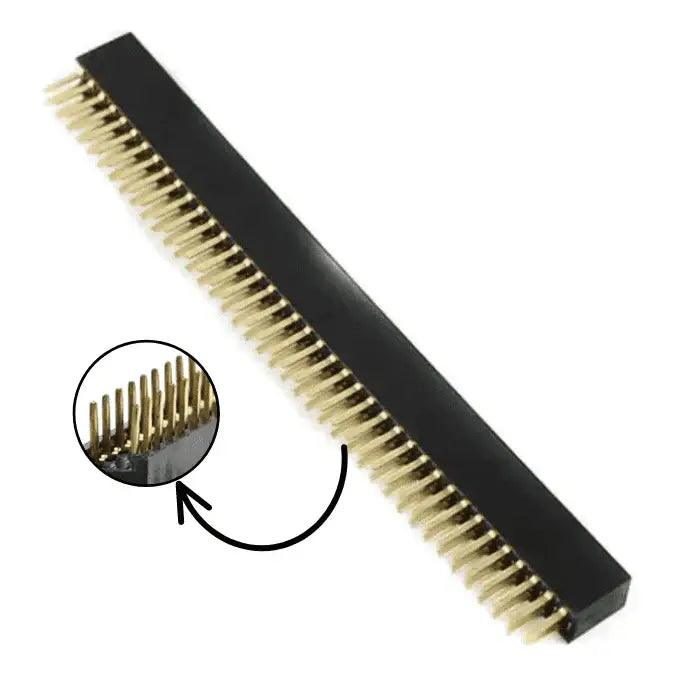

  • 40x2FemaleBergStrip_1_1000x_7a214cdc-e3c2-40ba-8b94-91da53ce912f - Roboracter

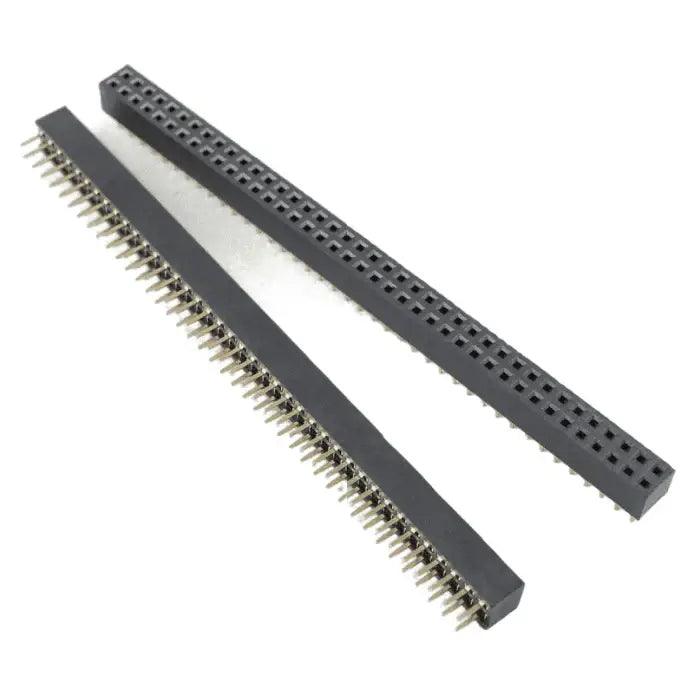

  • 40x2FemaleBergStrip_4_1000x_713c2f6d-bb01-419d-9d74-461bdf24c4f1 - Roboracter
1 4

40x2 Female Berg Strip

SKU: 2877EW968I
This 40×2 Female Berg Strip features the industry-standard 2.54mm pitch and is designed for direct soldering onto printed circuit boards (PCBs). It is ideal for extending the pins of microcontrollers, ICs, and other electronic components, making it highly versatile for a range of applications. The connector is widely used with custom PCBs and general-purpose headers. It can be easily cut...
Rs. 17.00
Rs. 19.00 Rs. 17.00
Save Rs. 2
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Number of Pins: 40
Connector Type: 40×2 Female Berg Strip
Pin Pitch: 2.54 mm
Pin Height: 2 mm
Dimensions: 11.2 × 15 × 0.3 mm

Additional Resources

40x2 Female Berg Strip.PDF

FAQ

1: What is a 40×2 Female Berg Strip used for?

It is used to create dual-row socket connections on PCBs, allowing easy interfacing with male headers, microcontrollers, ICs, and modules.

2: What does “40×2” mean in this connector?

It refers to two rows of 40 pins each, providing a total of 80 connection points in a compact dual-row layout.

3: Is this connector compatible with standard pin headers?

Yes, with a 2.54mm pitch, it is fully compatible with standard male headers, breadboards, and most electronic components.

4: Can the 40×2 Female Berg Strip be customized?

Yes, the strip can be cut into smaller sections to match the required number of pins for specific applications.

5: What are the advantages of using a dual-row female header?

Dual-row female headers provide higher connection density, secure fitting, and better organization, making them ideal for compact and complex PCB designs.

View full product details

This 40×2 Female Berg Strip features the industry-standard 2.54mm pitch and is designed for direct soldering onto printed circuit boards (PCBs). It is ideal for extending the pins of microcontrollers, ICs, and other electronic components, making it highly versatile for a range of applications.

The connector is widely used with custom PCBs and general-purpose headers. It can be easily cut into smaller sections to match the required number of pins. Its standard pitch ensures compatibility with breadboards, computer circuits, and integrated circuit boards. Additionally, this 40×2 female Berg strip is suitable for use with LCD, OLED, VFD modules, or any PCB that requires standard pin headers.

Applications:

  • Connecting PCB prototypes to breadboards

  • Docking small modules or boards onto a breadboard

  • Serving as a stackable header on PCBs for modular designs
