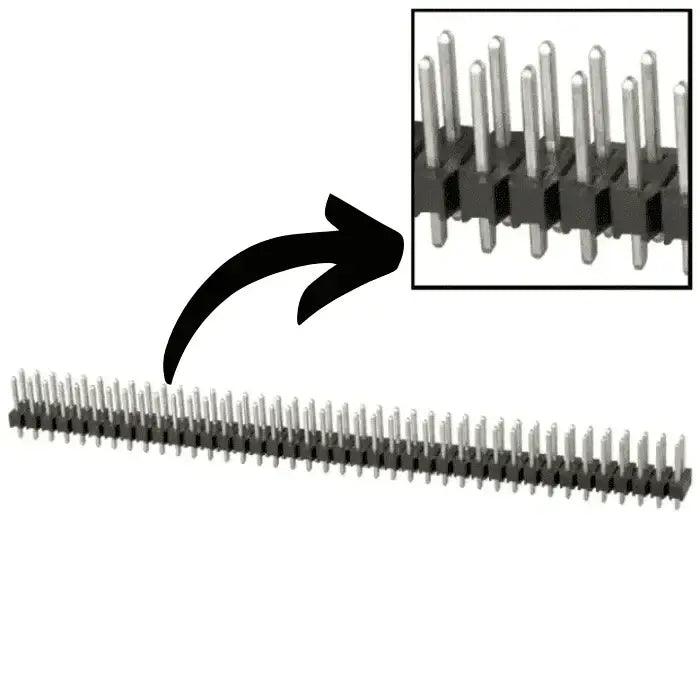

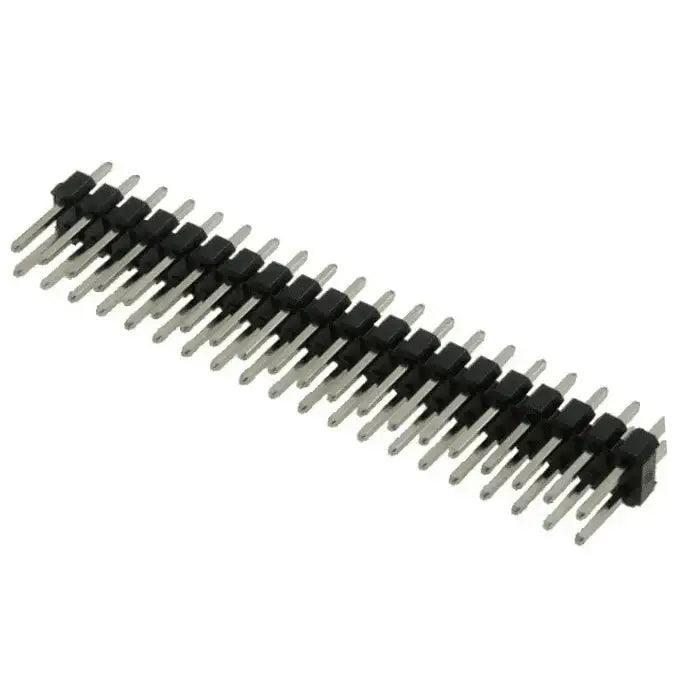

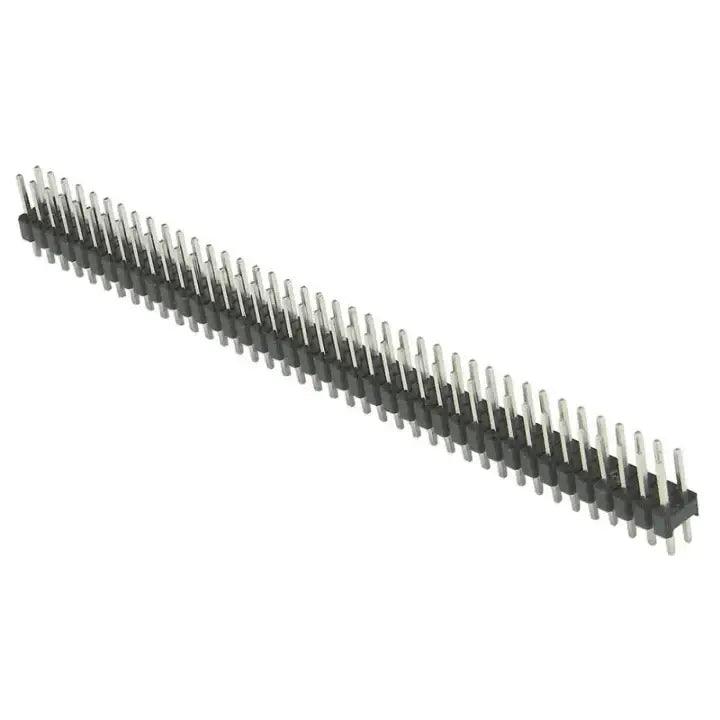

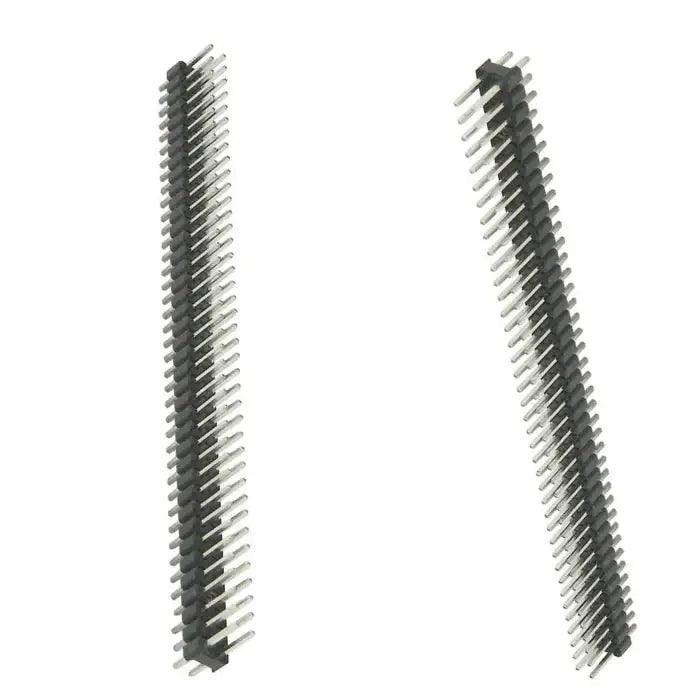

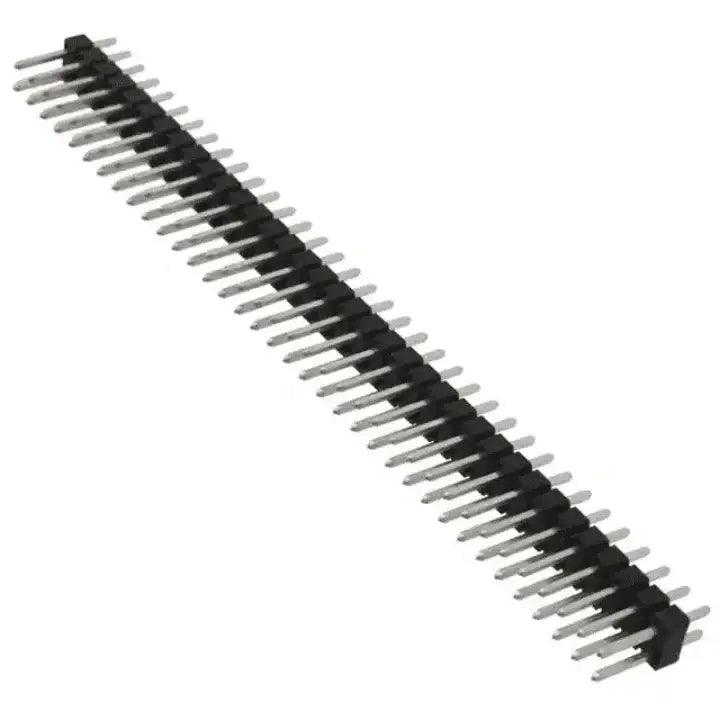

40x2 Pin 2.54mm Pitch Male Berg Strip

SKU: XUFUBLC30T
This 40Ɨ2 Pin Male Berg Strip Connector features the industry-standard 2.54mm pitch and is designed for direct soldering onto printed circuit boards (PCBs). It is ideal for extending connections of microcontrollers, ICs, and other electronic components, making it a versatile choice for various applications. The dual-row (40Ɨ2) configuration makes it suitable for use in custom PCBs and general-purpose header connections....
Rs. 29.00
Rs. 39.00 Rs. 29.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Number of Pins: 40 Ɨ 2 (Dual Row)
Connector Type: Male Header
Pin Pitch: 2.54 mm
Pin Height: 4 mm
Contact Material: Phosphor Bronze
Contact Resistance: 20 mĪ©
Mounting Type: Through-Hole
Dimensions: 11.2 Ɨ 15 Ɨ 0.3 mm

Additional Resources

40x2 Pin 2.54mm Pitch Male Berg Strip.PDF

FAQ

1: What is a 40Ɨ2 Pin Male Berg Strip used for?

It is used to create dual-row connections on PCBs, commonly for interfacing microcontrollers, ICs, modules, and expansion boards.

2: What does ā€œ40Ɨ2ā€ mean in this connector?

It refers to two rows of 40 pins each, making a total of 80 pins arranged in a dual-row configuration.

3: Is this connector compatible with standard electronics components?

Yes, with a 2.54mm pitch, it is compatible with most breadboards, PCBs, and standard electronic modules.

4: Can the strip be customized to a smaller size?

Yes, the strip can be cut into smaller sections to match the required number of pins for your application.

5: What type of mounting does it require?

It is designed for through-hole mounting, meaning it must be soldered onto a PCB for secure and reliable connections.

View full product details

This 40Ɨ2 Pin Male Berg Strip Connector features the industry-standard 2.54mm pitch and is designed for direct soldering onto printed circuit boards (PCBs). It is ideal for extending connections of microcontrollers, ICs, and other electronic components, making it a versatile choice for various applications.

The dual-row (40Ɨ2) configuration makes it suitable for use in custom PCBs and general-purpose header connections. The strip can be easily cut into smaller sections to meet specific pin requirements, providing flexibility in different circuit designs. It is widely used in electronics, including computer hardware, breadboard setups, and prototyping projects.

With its 2.54mm pin spacing, this connector is compatible with a wide range of modules such as LCD, OLED, and VFD displays, as well as any PCB requiring standard pin headers.

Applications:

  • Connecting PCB prototypes to breadboards

  • Interfacing small modules with development boards

  • Used as a stackable header on PCBs

  • General-purpose connections in embedded systems and electronics projects
