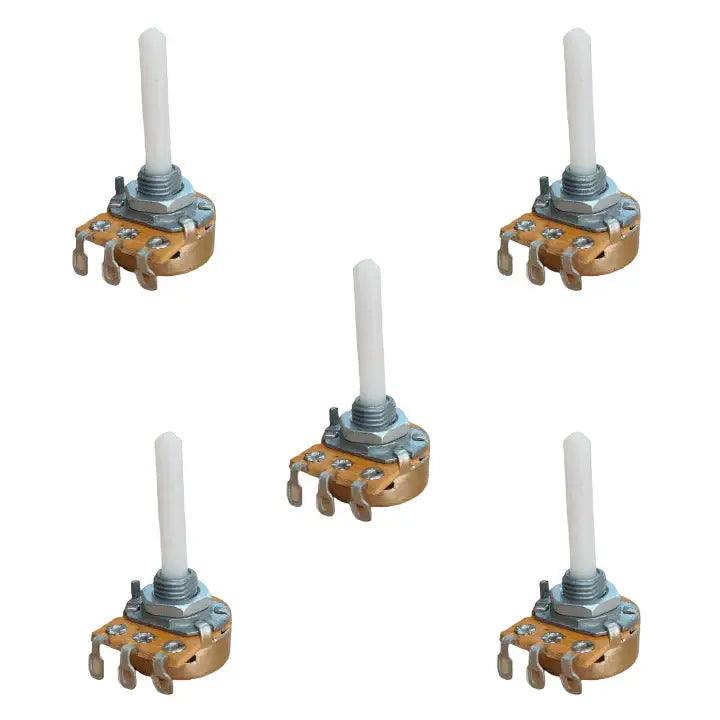

470K 16mm Rotary Pot(Pack of 5)

SKU: OJ8TEEN36J
Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 470K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes. This is a carbon track, single turn, adjustable resistances, of value 470KOhm Knob potentiometer. It is...
Rs. 89.00
Rs. 99.00 Rs. 89.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 470 kΩ
Total Rotational Angle: 300° ± 5°
Withstand Voltage: AC 500V for at least 1 minute
Total Resistance Tolerance: ±20% (±30% for values above 1 MΩ)
Length: 16 mm

Additional Resources

470K 16mm Rotary Pot.PDF

FAQ

1. What is the resistance value of this potentiometer?

Each potentiometer has a resistance of 470KΩ, suitable for signal control and voltage adjustment applications.

2. What type of potentiometer is included in this pack?

It is a single-turn rotary potentiometer with a carbon track, designed for smooth and linear resistance variation.

3. What is the rotational range of the potentiometer?

It offers a rotational angle of approximately 300° ± 5°, allowing precise manual control.

4. Where can this 470K rotary potentiometer be used?

It is commonly used in audio circuits, voltage dividers, Arduino projects, signal tuning, and calibration applications.

5. Is this potentiometer suitable for panel mounting?

Yes, it is designed for panel mounting and can be fitted with a knob for convenient operation

View full product details

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 470K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes.

This is a carbon track, single turn, adjustable resistances, of value 470KOhm Knob potentiometer. It is meant for mounting on panel and is supplied complete with a knob. The knob is affixed on the plastic spindle of the potentiometer and turns the spindle which changes the resistance. The variation of resistance is linearly proportion to the degree of rotation. Potentiometer, in electronic parlance, is a manually variable resistance. Because its most common consumer application is for controlling volume/tone of sound in broadcast receivers, it is loosely referred to as "volume" or ''tone''. It is not a meter with scale and needle. Potentiometers look different depending on size, power handled, application, value and type of material used. There is, however, a common feature-there is wiper which sweeps over a length of resistive material. The two ends of the resistive material as also the wiper are available to the user as electrical terminations. The user gets a variable resistance between the wiper and the two ends.
