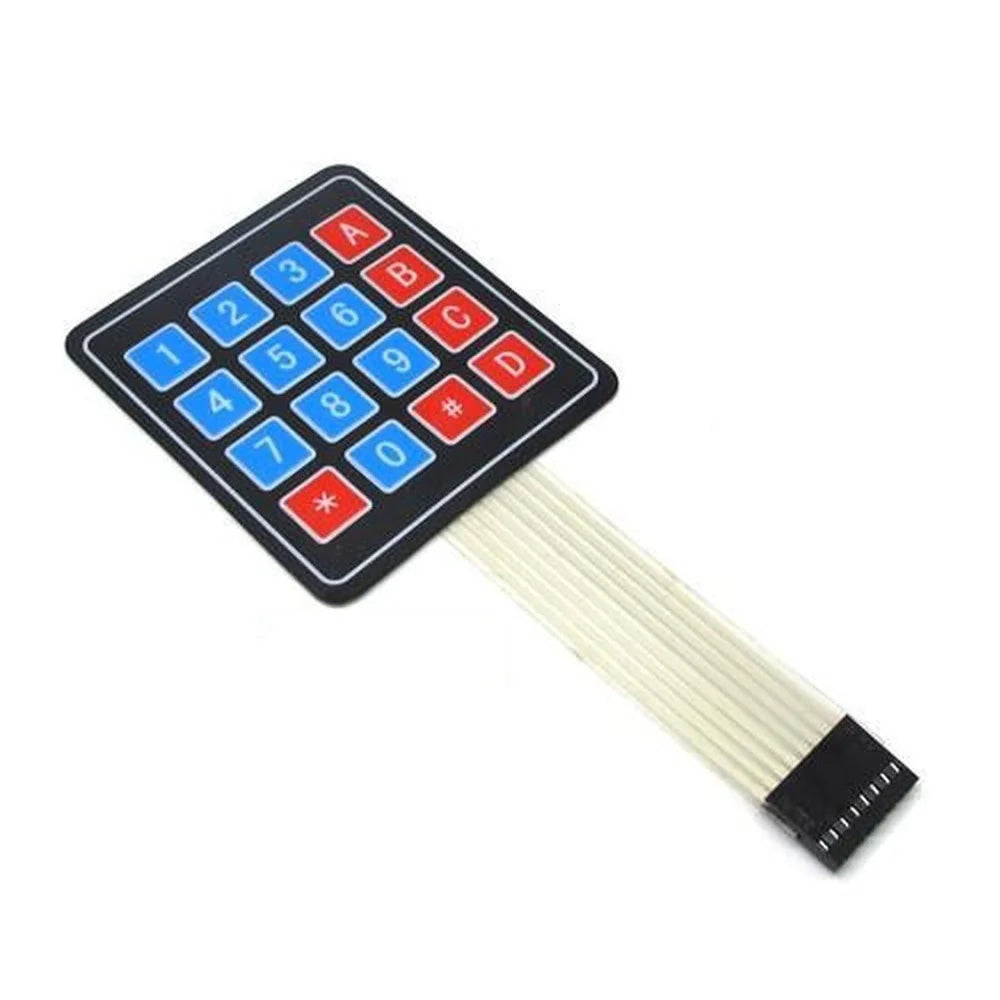

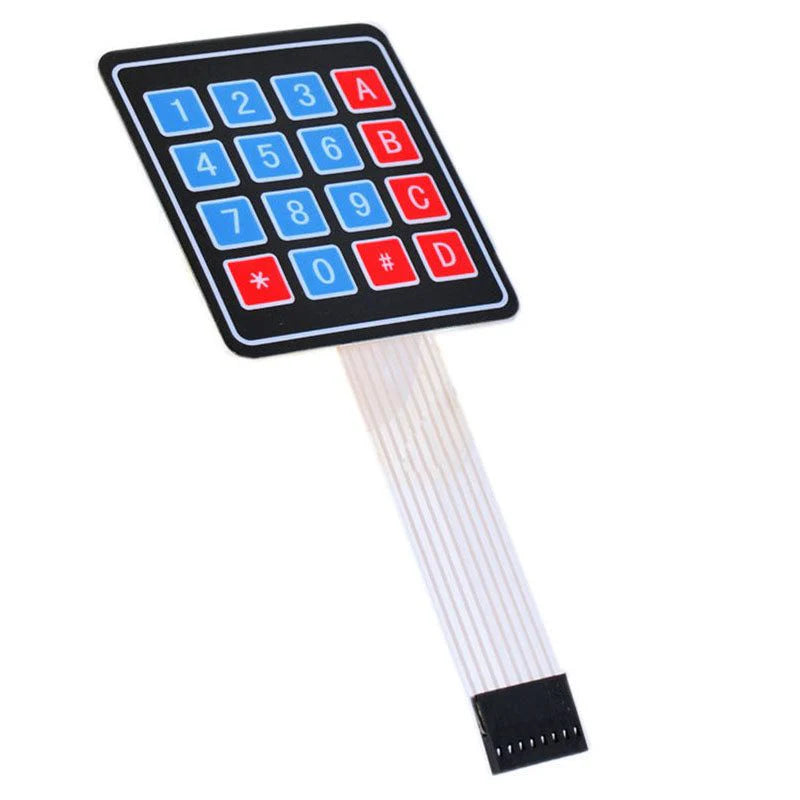

4x4 Membrane Keypad

SKU: 7M3A6XTH2F
The 4x4 Membrane Keypad is a compact and lightweight input device commonly used in embedded systems, Arduino projects, security systems, and industrial control applications. It features 16 keys arranged in a 4-row by 4-column matrix layout, making it suitable for numeric input, password entry, menu navigation, and user interaction systems. Designed with flexible membrane technology, the keypad provides reliable key...
Rs. 49.00
Rs. 69.00 Rs. 49.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Membrane Matrix Keypad
Key Configuration: 4×4 Matrix
Total Keys: 16
Interface Type: Row and Column Matrix
Compatible with Digital I/O Pins
Low Voltage Operation
Suitable for Microcontroller-Based Systems
Flexible Membrane Material
Flat Ribbon Cable Connector
Compact and Portable Design

Additional Resources

4x4 Membrane Keypad.PDF

FAQ

Q1. What is a 4x4 Membrane Keypad?

A 4x4 Membrane Keypad is a flexible input device consisting of 16 buttons arranged in a 4-row by 4-column matrix layout, commonly used for numeric and command input in electronic systems.

Q2. How does a 4x4 membrane keypad work?

The keypad works using a row-and-column matrix system. When a key is pressed, it connects a specific row and column, allowing a microcontroller to detect the pressed key.

Q3. What are the common applications of a 4x4 membrane keypad?

It is widely used in password locks, security systems, calculators, Arduino projects, menu navigation systems, vending machines, and embedded electronics applications.

Q4. Is the 4x4 membrane keypad compatible with Arduino and Raspberry Pi?

Yes, the keypad is compatible with Arduino, ESP32, Raspberry Pi, NodeMCU, and other microcontroller platforms using digital input pins and keypad libraries.

Q5. What are the advantages of using a membrane keypad?

Membrane keypads are compact, lightweight, cost-effective, easy to mount, and require fewer microcontroller pins due to their matrix-based design.

View full product details

The 4x4 Membrane Keypad is a compact and lightweight input device commonly used in embedded systems, Arduino projects, security systems, and industrial control applications. It features 16 keys arranged in a 4-row by 4-column matrix layout, making it suitable for numeric input, password entry, menu navigation, and user interaction systems.

Designed with flexible membrane technology, the keypad provides reliable key operation while maintaining a slim and durable structure. Its matrix configuration reduces the number of microcontroller pins required, making it an efficient input solution for electronics and DIY projects.

Features

  • 16-button keypad layout (4 Rows × 4 Columns)
  • Flexible membrane design
  • Compact and lightweight structure
  • Easy interfacing with microcontrollers
  • Durable and reliable key response
  • Low power operation
  • Adhesive backing for easy mounting
  • Suitable for DIY and embedded electronics projects
