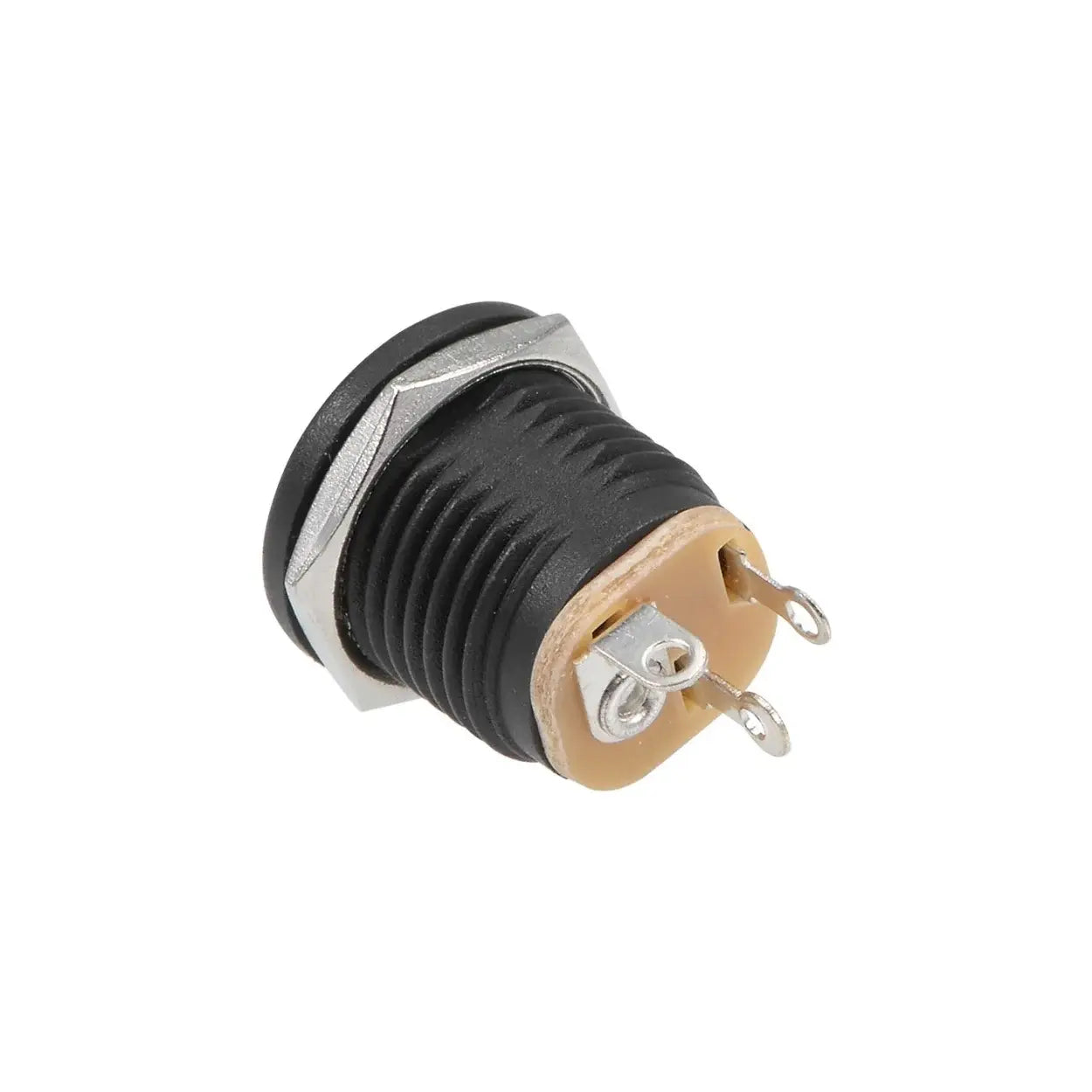

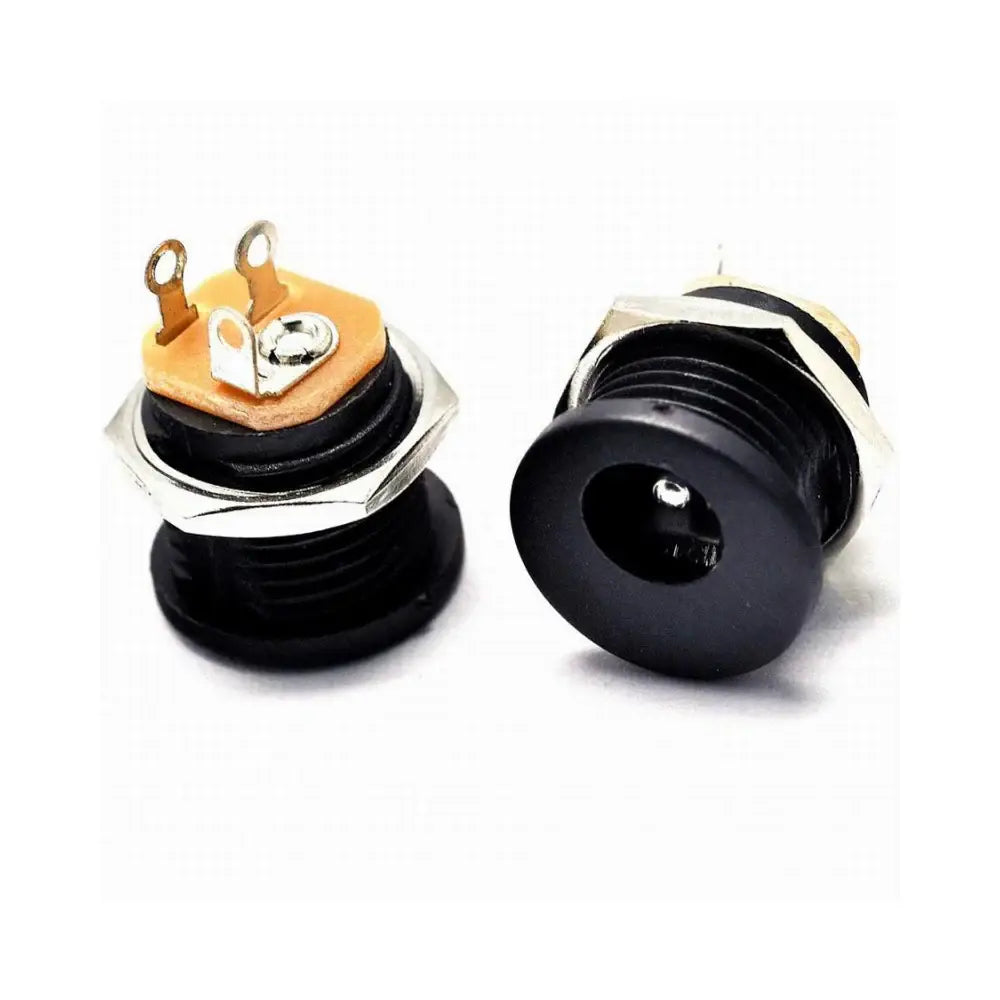

5.5×2.1mm DC Power Jack Female Socket Panel Flush Mount

SKU: EXFZBDWIH8
DC Power Connector, Jack, Male, Panel Mount, bulkhead, Through Hole, straight, Unshiled,5.5*2.1mm. The contact material is a silver-plated copper alloy, these materials combined have the advantages of conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides high corrosive resistance. This product knows as DC...
Rs. 8.00
Rs. 10.00 Rs. 8.00
Save Rs. 2
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Power Rating: 2A at 30V
Operating Voltage: Supports up to 30V DC
Connector Type: Female socket
Compatible Plug Size: 5.5mm (outer) × 2.1mm (inner) DC jack
Current Capacity: Up to 2A (for current carrying)
Insulation Resistance: Minimum 1,000 M
Dielectric Strength: Withstands up to 500V AC for 1 minute
Color: Black

Additional Resources

5.5×2.1mm DC Power Jack Female Socket Panel Flush Mount.PDF

FAQ

1. What is a 5.5×2.1mm DC Power Jack Female Socket?

It is a panel-mount connector designed to receive a 5.5mm outer diameter and 2.1mm inner diameter DC plug. It is widely used to supply power to electronic devices like Arduino boards, LED strips, CCTV cameras, and DIY circuits.

2. What does “panel flush mount” mean in this socket?

Panel flush mount means the socket is installed through a hole in a panel or enclosure so that its front surface sits neatly flush with the outer surface. This provides a clean look and secure mechanical support.

3. What are the typical applications of this DC power socket?

This socket is commonly used in:

  • Arduino and embedded systems projects
  • Power supply units
  • LED lighting systems
  • CCTV and security devices
  • Robotics and DIY electronics enclosures

4. How is the 5.5×2.1mm DC socket wired?

The socket usually has three terminals:

  • Positive (center pin)
  • Negative (outer sleeve)
  • Switch terminal (optional) – disconnects internal power when a plug is inserted

5. What are the advantages of using this DC power jack?

  • Standard and widely compatible size
  • Easy to mount on panels or enclosures
  • Provides secure and stable power connection
  • Durable and suitable for repeated use
  • Helps in organized and professional circuit design
View full product details

DC Power Connector, Jack, Male, Panel Mount, bulkhead, Through Hole, straight, Unshiled,5.5*2.1mm. The contact material is a silver-plated copper alloy, these materials combined have the advantages of conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides high corrosive resistance. This product knows as DC Jack Female Socket Type 2.1 x 5.5mm,2.1×5.5mm DC Power Jack Socket Panel Mount, DC Power Jack Female Socket Panel Mount, Female DC Power Jack For Panel Mount, Panel Mount DC Power Jack Female Socket.

Application:

  • Audio / Video product
  • Digital devices
  • Remote control
  • Communication products
  • Household electrical appliance
  • Security Products
  • Toy
  • Computer products
  • Fitness equipment
  • Medical Equipment
