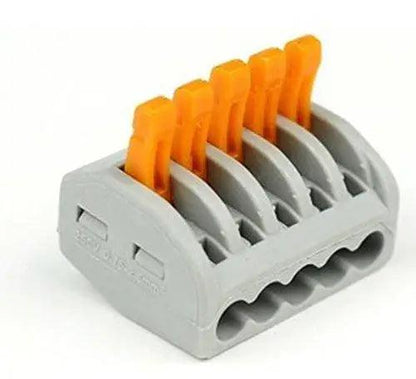

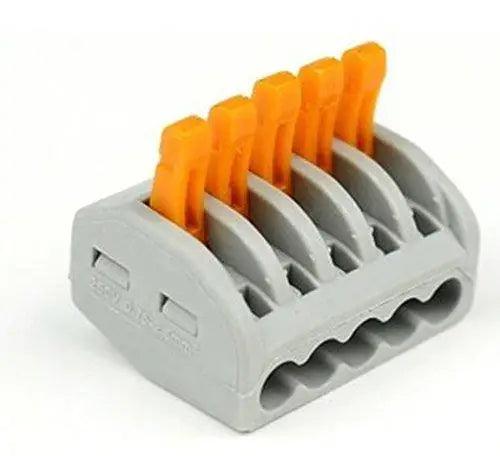

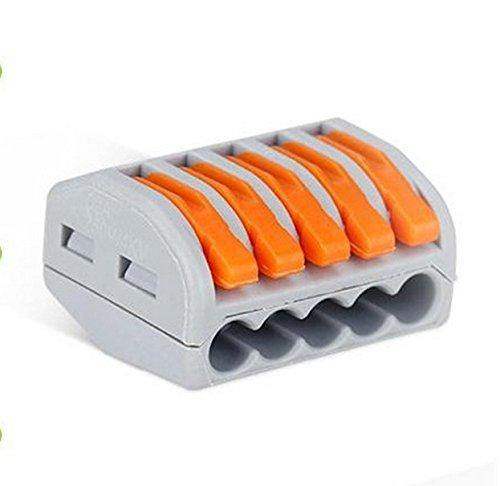

5 Pin Push in Conductor

SKU: 7XJ6BA38DL
Wire Cross Section: Supports 0.08–2.5 mm² for single solid wires and 0.08–4 mm² for multi-stranded flexible wires.The 222-412A connector is compatible with wire sizes ranging from 0.08–2.5 mm² (solid) and 0.08–4 mm² (stranded). The block terminal lever nut connector has a rated current of 32A and a rated power of 7 kW. The 5-pin lever nut connector is designed for...
Rs. 29.00
Rs. 39.00 Rs. 29.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Rated Voltage: 400VIm
pulse Voltage: 4 kV
Number of Pins: 5
Dimensions: 11 × 9 × 5 cm
Weight: 100 g

Additional Resources

5 Pin Push in Conductor.PDF

FAQ

1. What is a 5 Pin Push-in Conductor?

A 5 Pin Push-in Conductor is a compact electrical connector designed to join up to five wires quickly without the need for screws. It uses a push-in mechanism that securely holds conductors in place for reliable electrical connections.

2. How does a push-in conductor work?

The connector contains internal spring clamps. When a stripped wire is pushed into the terminal, the spring automatically grips the conductor, ensuring a firm and stable connection without additional tools.

3. What are the advantages of using a 5 Pin Push-in Conductor?

  • Quick and tool-free installation
  • Strong and vibration-resistant connection
  • Compact size for tight spaces
  • Reusable in many designs
  • Reduces wiring time and errors

4. Where are 5 Pin Push-in Conductors commonly used?

They are widely used in electrical wiring systems such as:

  • Lighting installations
  • Junction boxes
  • Control panels
  • Home and industrial wiring projects

5. What type of wires can be used with a 5 Pin Push-in Conductor?

Most 5 Pin push-in conductors are suitable for solid and sometimes stranded wires within a specified gauge range (commonly 0.5 mm² to 2.5 mm²). Always check the product specifications to ensure compatibility.

View full product details

Wire Cross Section: Supports 0.08–2.5 mm² for single solid wires and 0.08–4 mm² for multi-stranded flexible wires.
The 222-412A connector is compatible with wire sizes ranging from 0.08–2.5 mm² (solid) and 0.08–4 mm² (stranded).

The block terminal lever nut connector has a rated current of 32A and a rated power of 7 kW.

The 5-pin lever nut connector is designed for a rated voltage of 400V and can withstand an impulse voltage of 4 kV. It is constructed using modified nylon (PA66) for durability, while phosphor copper is used for the contact material to ensure reliable conductivity.
