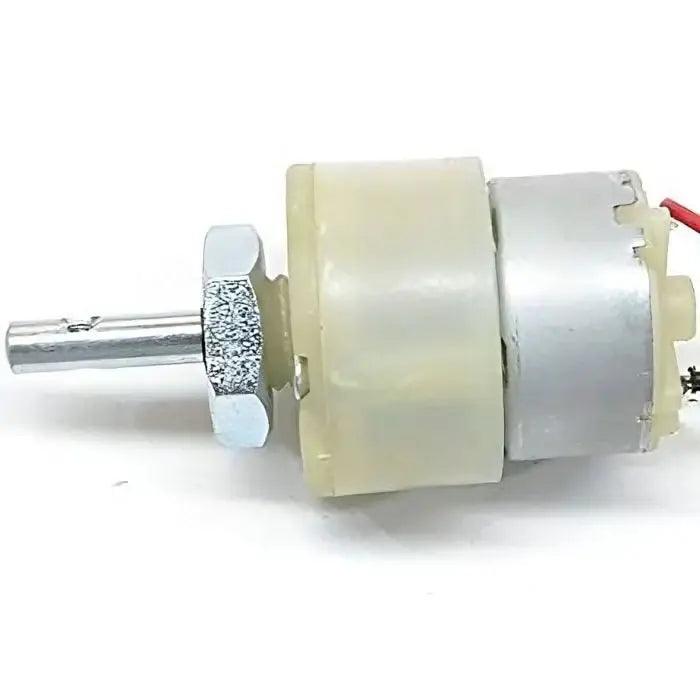

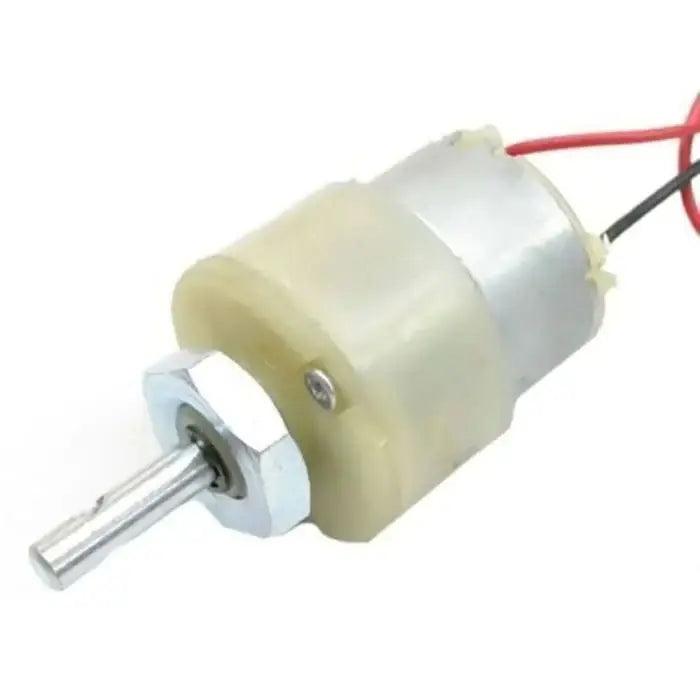

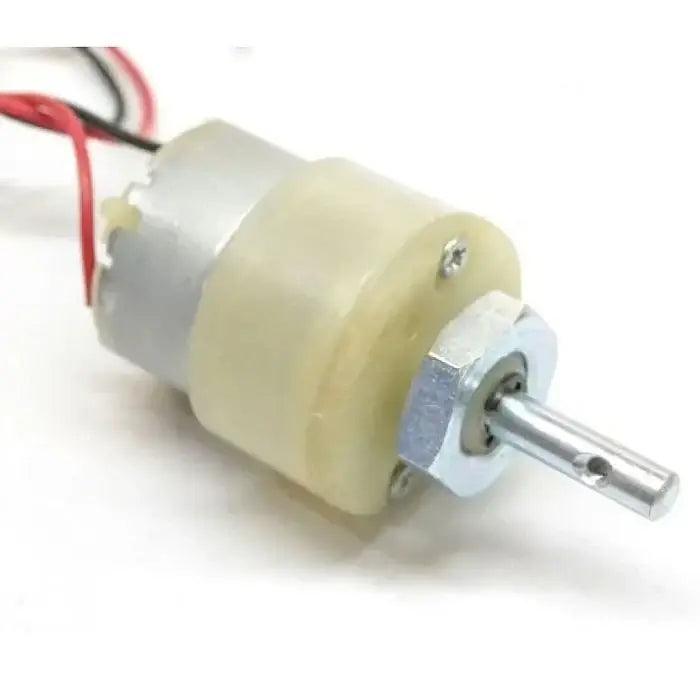

500 RPM Geared Motor

SKU: L8OGUB2SYX
This is the 500RPM 12V DC Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the centre of their gearbox assembly. These standard size DC motors are very easy to use. Also, you don’t have to spend a...
Rs. 169.00
Rs. 219.00 Rs. 169.00
Save Rs. 50
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Speed: 500 RPM output speed
Voltage: Operates on 12V DC
Phase: Designed as a single-phase motor
Shaft Diameter: Equipped with a 6 mm shaft
Torque: Provides 0.7 kg-cm torque

Additional Resources

500 RPM Geared Motor.PDF

FAQ

1. What is a 500 RPM geared motor?

A 500 RPM geared motor is a DC motor with an attached gearbox that reduces speed and increases torque, providing an output speed of up to 500 revolutions per minute.

2. Where is a 500 RPM geared motor commonly used?

It is used in fast-moving robotic vehicles, DIY smart cars, automation systems, and projects where higher speed with moderate torque is required.

3. What is the typical operating voltage of a 500 RPM geared motor?

Most 500 RPM geared motors operate within a range of 6V to 12V DC, depending on the design and manufacturer.

4. How does a 500 RPM motor compare to a 200 RPM motor?

A 500 RPM motor offers higher speed but lower torque compared to a 200 RPM motor, making it suitable for applications where speed is more important than load capacity.

5. What are the advantages of using a 500 RPM geared motor?

It provides faster movement, compact design, easy integration with motor drivers, and is ideal for projects requiring quick response and mobility.

View full product details

This is the 500RPM 12V DC Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the centre of their gearbox assembly.

These standard size DC motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Ardunio or compatible board. TheL298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.

This DC Motor – 500RPM – 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the Wheels or any other mechanical assembly.

Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These DC Geared motors with robust metal/Plastic gearbox for heavy-duty applications,  and ideally suited for robotics and industrial applications.

Applications:

  • Toy cars
  • Windmill projects
  • Basic Electronics projects
