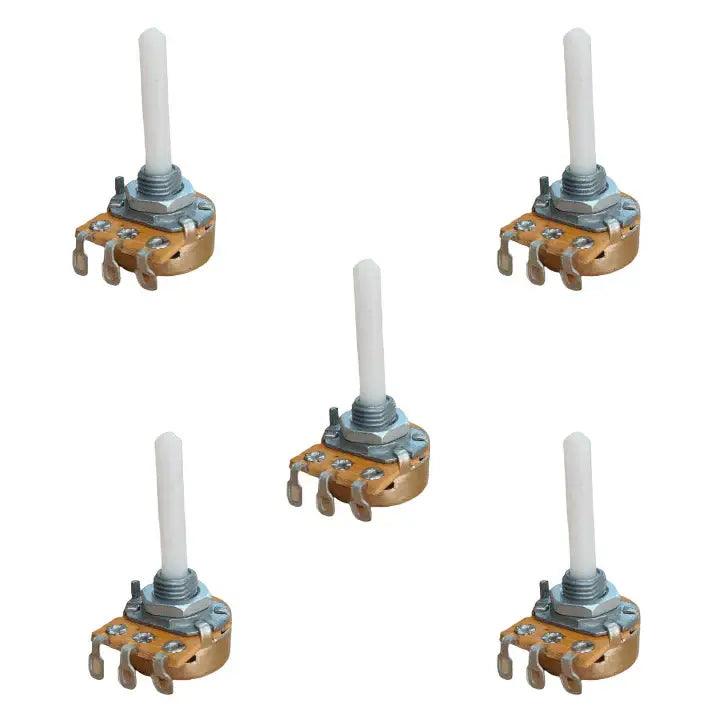

5K ohm 16mm Rotatory Variable Potentiometer (Pack of 5)

SKU: MRRASQ34JI
★★★★ ★ ★
4.1 (140 reviews)
Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 1K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes. This is a carbon track, single turn, adjustable resistances, of value 1KOhm Knob potentiometer. It is...
Rs. 69.00
Rs. 99.00 Rs. 69.00
Save Rs. 30 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 1K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes.

This is a carbon track, single turn, adjustable resistances, of value 1KOhm Knob potentiometer. It is meant for mounting on panel and is supplied complete with a knob. The knob is affixed on the plastic spindle of the potentiometer and turns the spindle which changes the resistance. The variation of resistance is linearly proportion to the degree of rotation. Potentiometer, in electronic parlance, is a manually variable resistance. Because its most common consumer application is for controlling volume/tone of sound in broadcast receivers, it is loosely referred to as "volume" or ''tone''. It is not a meter with scale and needle. Potentiometers look different depending on size, power handled, application, value and type of material used. There is, however, a common feature-there is wiper which sweeps over a length of resistive material. The two ends of the resistive material as also the wiper are available to the user as electrical terminations. The user gets a variable resistance between the wiper and the two ends.

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 5 kΩ
Total Rotational Angle: 300° ± 5°
Withstand Voltage: Can endure AC 500V for 1 minute or longer
Total Resistance Tolerance: ±20% (for resistances above 1 MΩ, ±30%)

Additional Resources

5K ohm 16mm Rotatory Variable Potentiometer.PDF

FAQ

1. What is a 5K ohm rotary potentiometer used for?

 A 5K ohm rotary potentiometer is used to control voltage, current, or signal levels in electronic circuits, commonly in audio control, dimming, and speed regulation applications.

2. What does the 16mm size indicate?

 The 16mm refers to the diameter of the potentiometer body, making it a standard size suitable for panel mounting and general-purpose applications.

3. How does a 5K potentiometer work?

 It works as a variable resistor with three terminals. Rotating the shaft moves the internal wiper along the resistive track, changing the resistance and output voltage.

4. Where is a 5K potentiometer commonly used?

 It is widely used in volume controls, LED brightness adjustment, motor speed control, and user input interfaces in electronic devices.

5. What are the advantages of using a 5K potentiometer?

 A 5K value provides good control for medium-low resistance applications, offering smooth operation, reliable performance, and easy integration into circuits.
