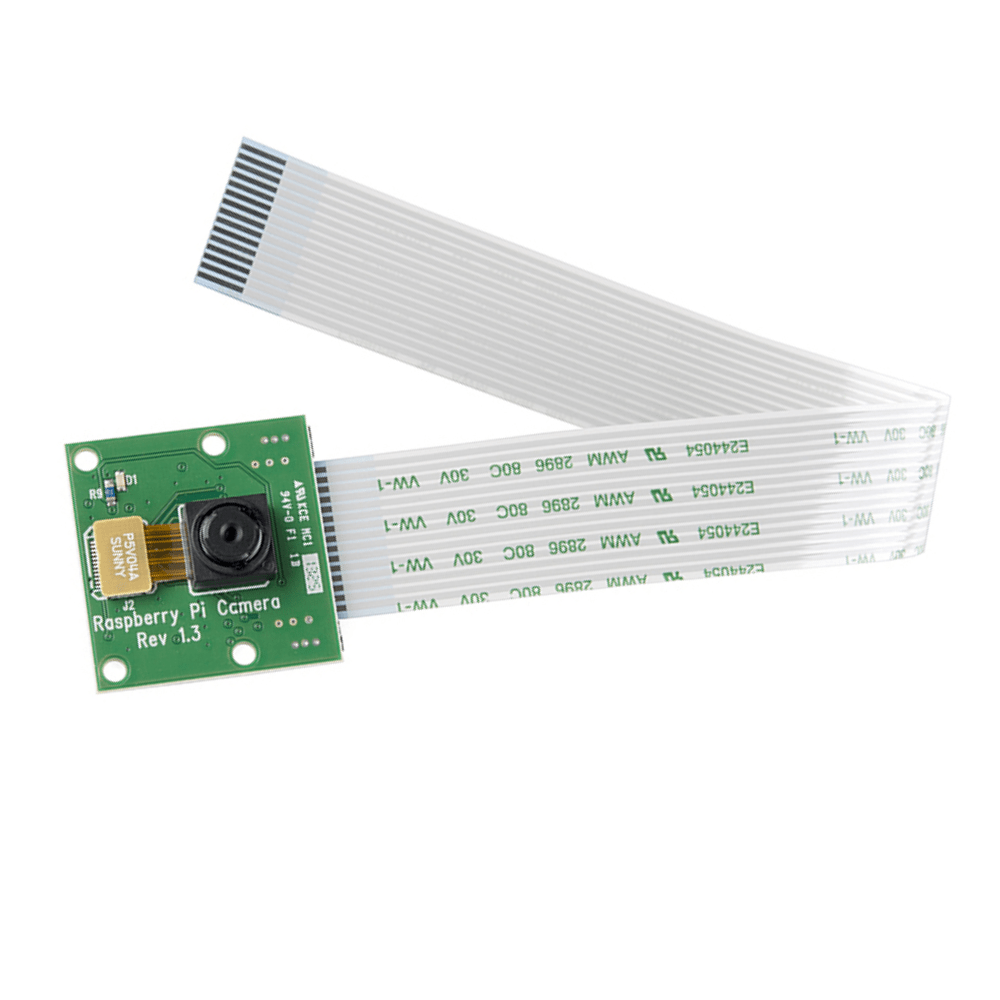

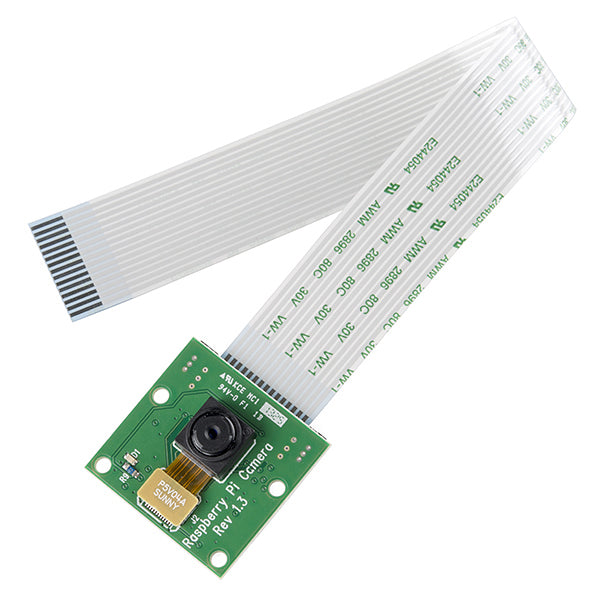

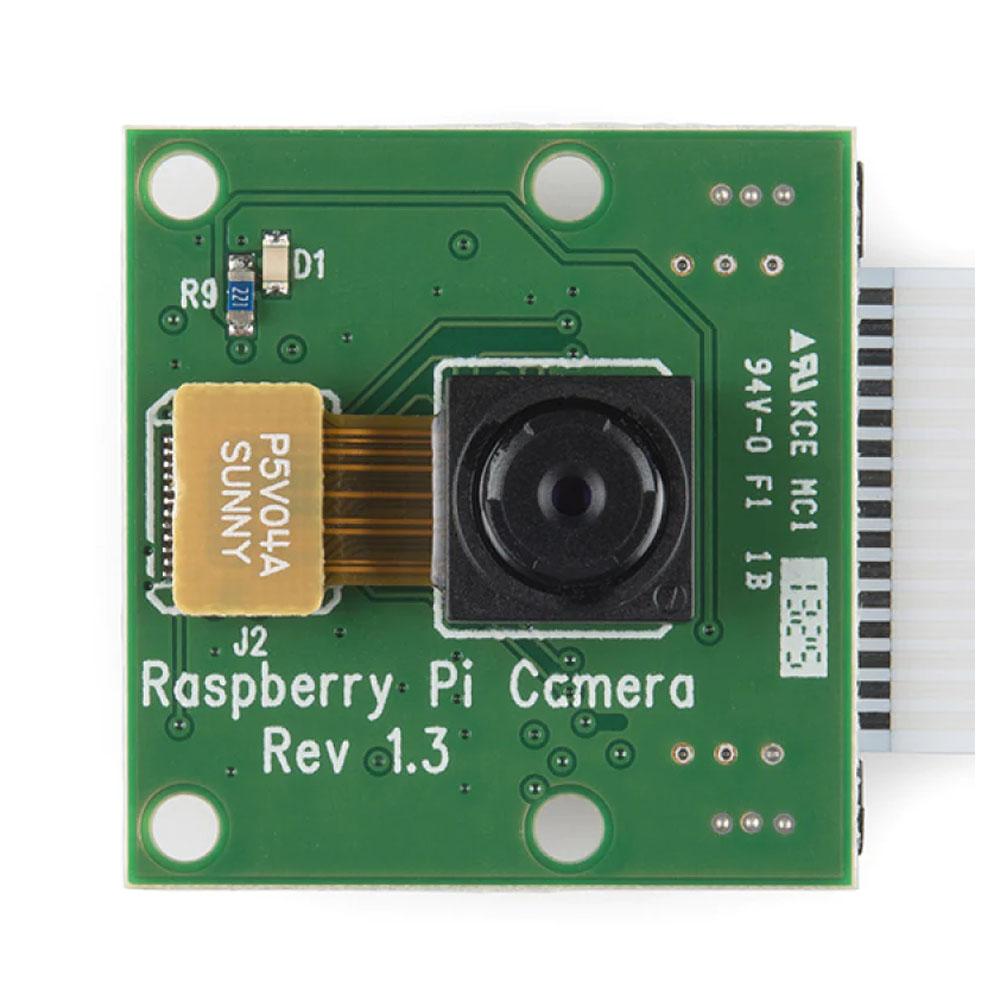

5MP Raspberry Pi 3 Model B Camera Module Rev 1.3 with Cable

SKU: KUBRFMJYCI
The 5MP Raspberry Pi Camera Module Rev 1.3 with Cable is a compact and powerful camera designed specifically for Raspberry Pi boards. Equipped with the OmniVision OV5647 5-megapixel image sensor, this camera module enables users to capture high-quality photographs and record HD videos directly from their Raspberry Pi. Its small size, lightweight design, and easy integration make it an ideal...
Rs. 399.00
Rs. 439.00 Rs. 399.00
Save Rs. 40
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Sensor: OmniVision OV5647
Resolution: 5 Megapixels
Still Image Resolution: 2592 × 1944 pixels
Video Resolution:1080p at 30 fps720p at 60 fps640 × 480 at 90 fps
Interface: CSI (Camera Serial Interface)
Focus Type: Fixed Focus
Cable Included: Yes

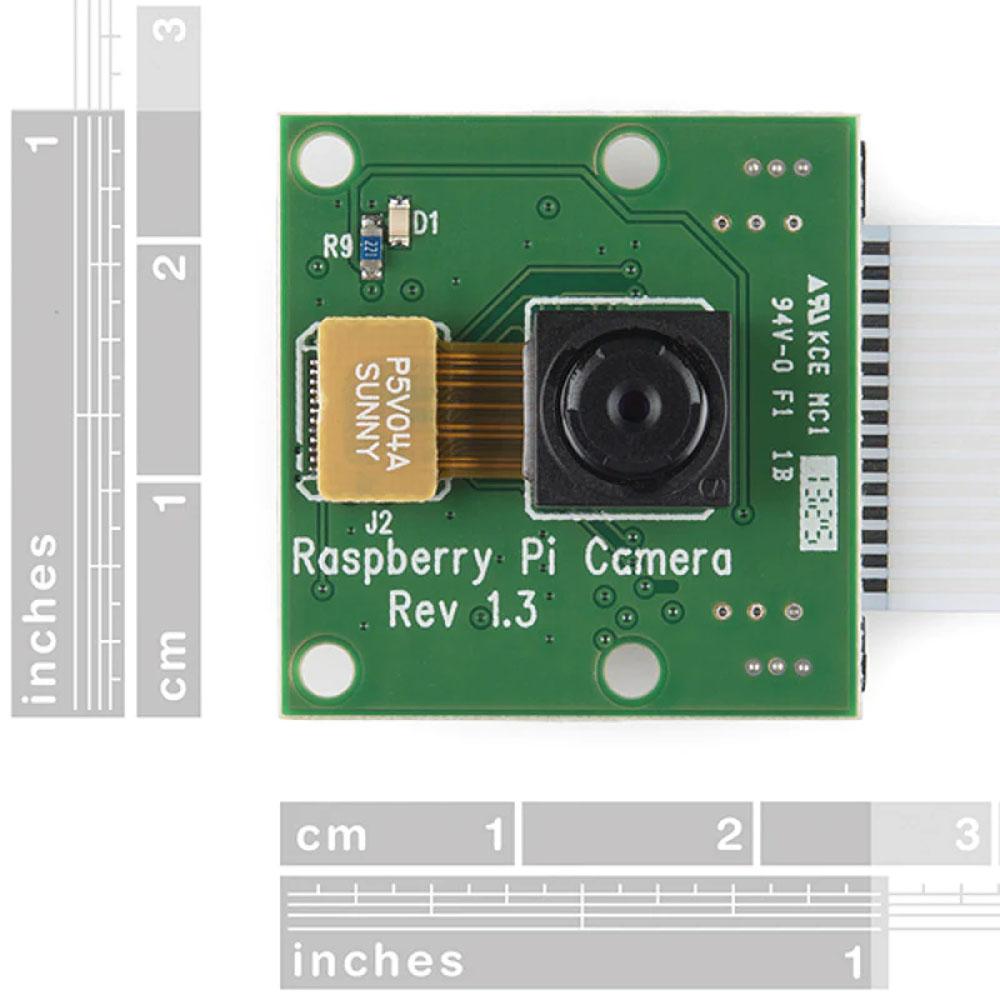

Board Dimensions: Approximately 25mm × 24mm × 9mm
Operating Voltage: Powered directly from Raspberry Pi

Additional Resources

5MP Raspberry Pi 3 Model B Camera Module Rev 1.3 with Cable.PDF

FAQ

1. What is the 5MP Raspberry Pi Camera Module Rev 1.3?

 The 5MP Raspberry Pi Camera Module Rev 1.3 is an official camera module designed for Raspberry Pi boards. It features a 5-megapixel OmniVision OV5647 sensor and can capture high-quality images and HD videos for photography, surveillance, robotics, and computer vision projects.

2. What video resolutions does the 5MP Raspberry Pi Camera Module support?

 The camera supports video recording at multiple resolutions, including:

  • 1080p HD at 30 fps
  • 720p HD at 60 fps
  • VGA (640×480) at 90 fps

This makes it suitable for both high-quality recording and high-speed video applications.

3. How does the camera connect to a Raspberry Pi?

 The camera connects through the Raspberry Pi's CSI (Camera Serial Interface) port using the included ribbon cable. This direct connection provides faster image transfer and lower CPU usage compared to USB webcams.

4. What are some common applications of the Raspberry Pi Camera Module?

 Common applications include:

  • Security and surveillance systems
  • Time-lapse photography
  • Face recognition projects
  • Robotics vision systems
  • Wildlife monitoring
  • DIY smart home projects

5. Is the 5MP Raspberry Pi Camera Module compatible with all Raspberry Pi models?

 The camera is compatible with most Raspberry Pi boards that feature a CSI camera connector, including Raspberry Pi 3 Model B, Raspberry Pi 2, Raspberry Pi Zero (with adapter), and Raspberry Pi 4. Proper software configuration and camera interface enabling may be required before use.

View full product details

The 5MP Raspberry Pi Camera Module Rev 1.3 with Cable is a compact and powerful camera designed specifically for Raspberry Pi boards. Equipped with the OmniVision OV5647 5-megapixel image sensor, this camera module enables users to capture high-quality photographs and record HD videos directly from their Raspberry Pi. Its small size, lightweight design, and easy integration make it an ideal choice for robotics, surveillance, machine vision, and DIY electronics projects.

The camera connects directly to the Raspberry Pi through the dedicated CSI (Camera Serial Interface) port using the included ribbon cable, providing fast data transfer and efficient performance compared to standard USB cameras.
