5V 1 Channel Relay Module

SKU: 1NWE7LNM0Z

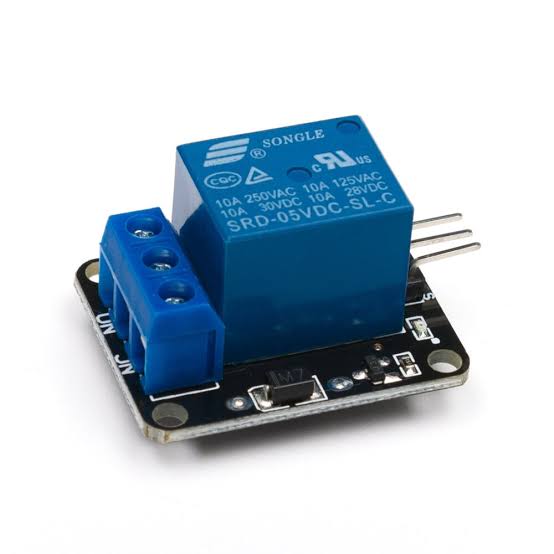

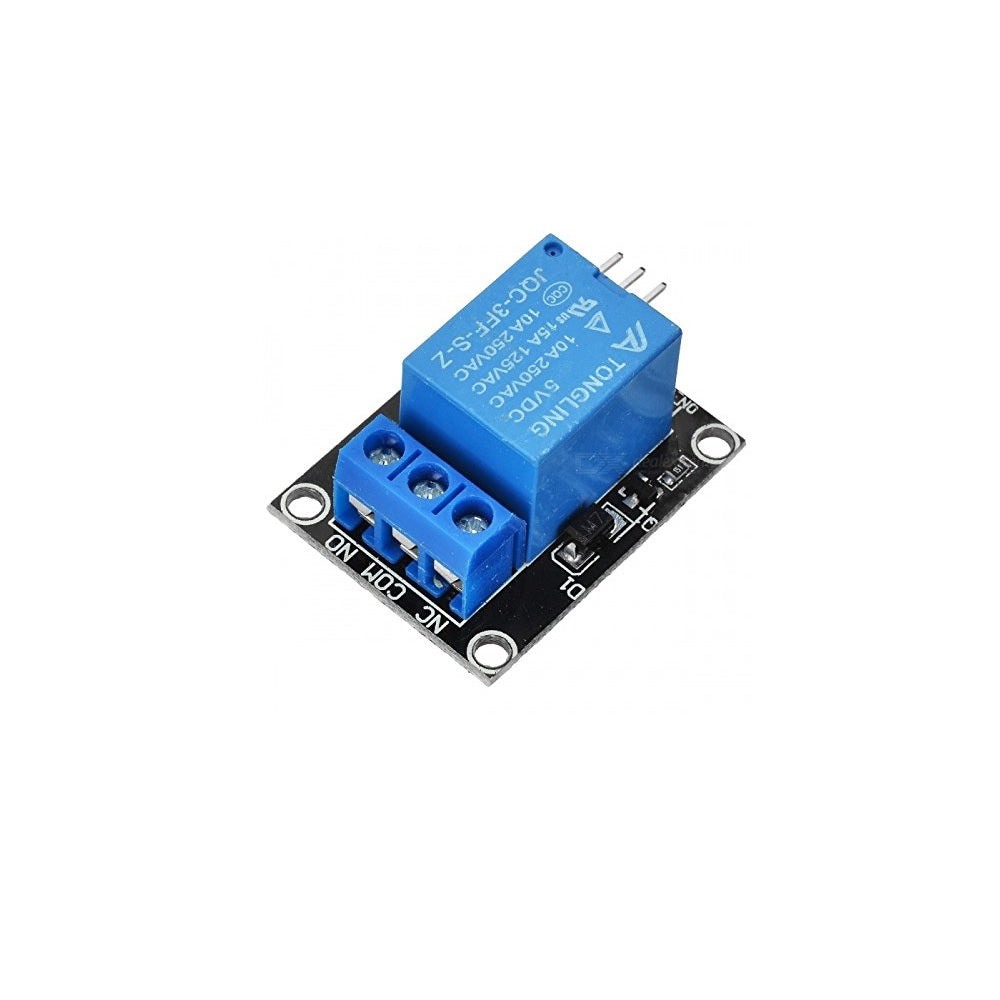

The 5V 1 Channel Relay Module is an electromechanical switching module designed to allow low-voltage microcontrollers and development boards to safely control high-voltage AC or DC loads. Featuring a high-quality 5V relay, transistor driver circuitry, and status indication LEDs, the module provides a simple and reliable interface for switching electrical appliances and electronic devices. The module can be directly controlled...
Rs. 49.00
Rs. 59.00 Rs. 49.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Single Channel Relay Module
Relay Voltage: 5V DC
Number of Channels: 1
Control Signal Voltage: 3.3V to 5V Logic Compatible
Relay Type: SPDT (Single Pole Double Throw)
Trigger Method: Digital Input
Operating Current: Approximately 70mA
Relay Contact Rating (AC): 250V AC, 10A Maximum
Relay Contact Rating (DC): 30V DC, 10A Maximum

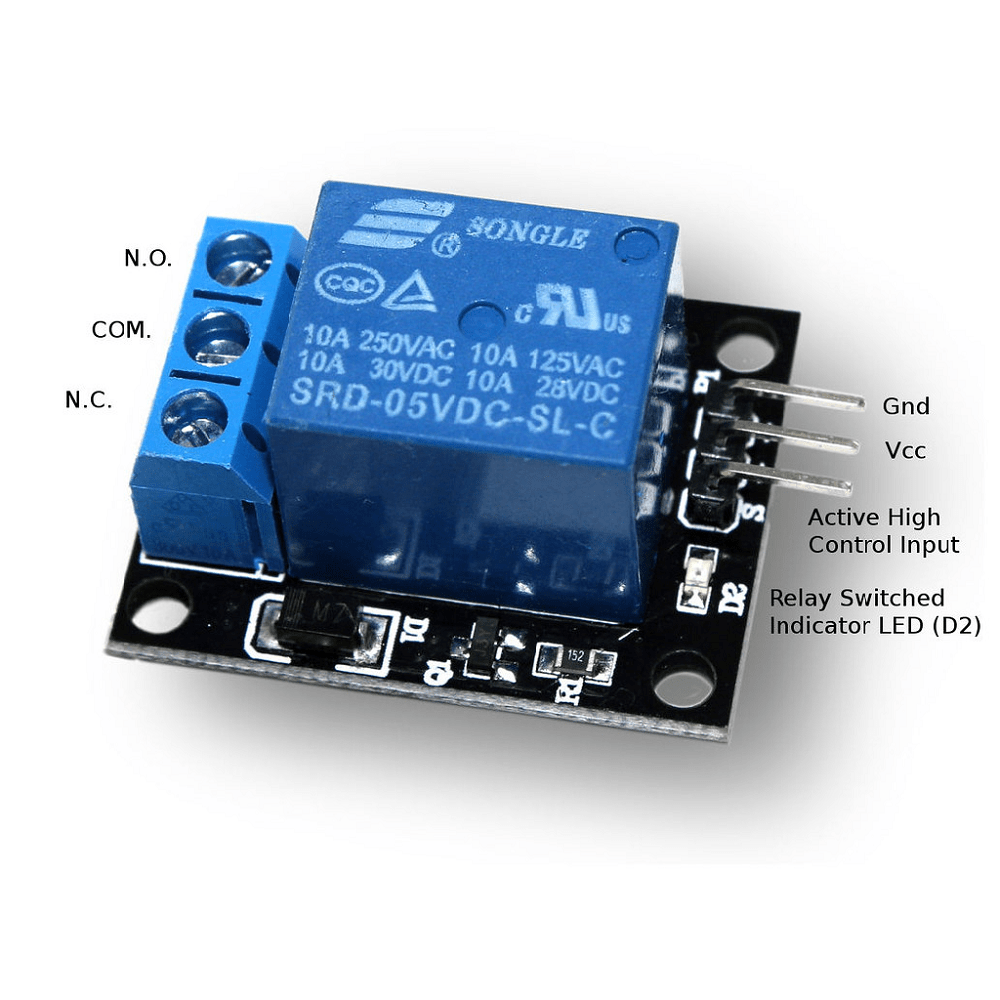

Contact Configuration: COM, NO, NC
Isolation Method: Transistor Driver Circuit
Status Indicator: Power LED and Relay Status LED
Response Time: Less Than 10ms
Interface Pins: VCC, GND, IN
Terminal Type: Screw Terminals
PCB Material: FR4
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Module Dimensions: Approximately 50mm × 26mm × 18mm
Weight: Approximately 20g

Additional Resources

Relay.PDF

FAQ

1. What is a 5V 1 Channel Relay Module used for?

The module is used to control high-voltage or high-current AC/DC devices using low-voltage microcontrollers such as Arduino, ESP32, and STM32.

2. Can the relay module be controlled using Arduino?

Yes, the module can be directly controlled using a digital output pin from Arduino and other microcontroller platforms.

3. What is the maximum load the relay can switch?

The relay typically supports switching up to 10A at 250V AC or 10A at 30V DC.

4. What do the COM, NO, and NC terminals mean?

COM is the common terminal, NO (Normally Open) connects to COM when the relay is activated, and NC (Normally Closed) connects to COM when the relay is not activated.

5. Is the relay module suitable for home automation projects?

Yes, it is widely used in home automation systems for controlling lights, fans, pumps, appliances, and other electrical devices.

View full product details

The 5V 1 Channel Relay Module is an electromechanical switching module designed to allow low-voltage microcontrollers and development boards to safely control high-voltage AC or DC loads. Featuring a high-quality 5V relay, transistor driver circuitry, and status indication LEDs, the module provides a simple and reliable interface for switching electrical appliances and electronic devices.

The module can be directly controlled using digital output pins from Arduino, ESP32, STM32, Raspberry Pi Pico, NodeMCU, and other microcontrollers. It offers electrical isolation between the control circuit and the load, making it suitable for home automation, industrial control, robotics, and IoT applications.

With its compact design and easy-to-use screw terminals, the relay module is ideal for controlling lights, fans, pumps, motors, solenoids, and other electrical equipment.

Key Features

  • Single-channel relay module
  • Operates from a 5V DC supply
  • Controls AC and DC loads
  • High-current relay switching capability
  • Compatible with Arduino, ESP32, STM32, and Raspberry Pi
  • Built-in transistor driver circuit
  • Onboard status indicator LED
  • Easy screw terminal connections
  • TTL-compatible control input
  • Reliable electromechanical switching
  • Fast response time
  • Compact PCB design
  • Suitable for automation and control applications
  • Easy installation and integration
