Specifications:

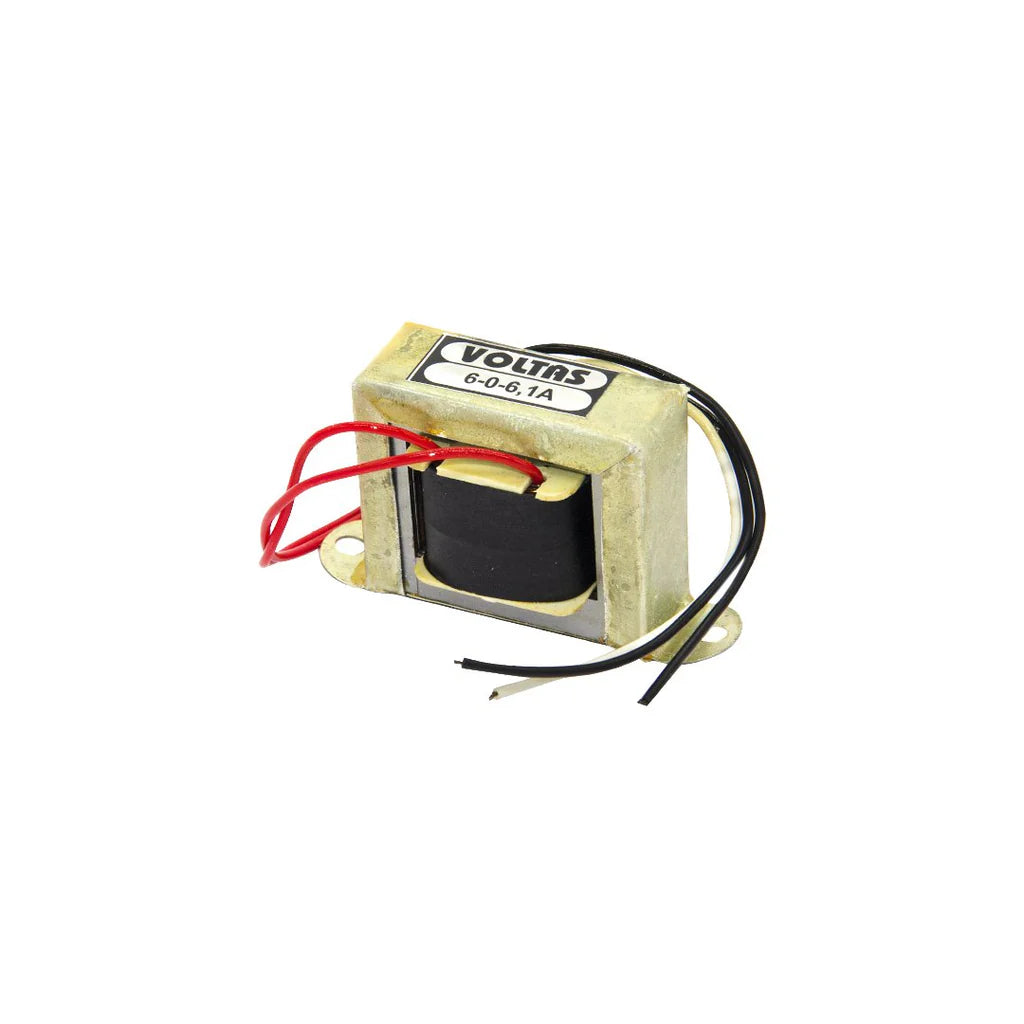

Transformer Type: Center-Tapped Step-Down Transformer
Primary Voltage: 220V–240V AC (Typical)
Secondary Voltage: 6V-0V-6V AC
Output Voltage Across Outer Terminals: 12V AC
Rated Output Current: 1A
Power Rating: 12VA
Frequency: 50Hz / 60Hz
Insulation Class: Class B or Equivalent
Isolation: Primary-to-Secondary Electrical Isolation
Core Type: Laminated EI Core
Winding Material: Copper
Mounting Type: Chassis Mount
Terminal Type: Wire Leads or Solder Lugs
Cooling Method: Natural Air Cooling

1. What is a 6-0-6 1A Center Tapped Step-Down Transformer?

The 6-0-6 1A Center Tapped Transformer is a power transformer that reduces high AC mains voltage to a lower AC voltage output of 6V-0V-6V. It can deliver up to 1 Ampere of current and is commonly used in low-voltage power supply applications.

2. What does the “6-0-6” specification mean?

The “6-0-6” designation indicates a center-tapped secondary winding. The voltage between either outer terminal and the center tap is 6V AC, while the voltage across the two outer terminals is 12V AC.

3. What are the common applications of a 6-0-6 1A transformer?

This transformer is widely used in regulated power supplies, battery chargers, audio circuits, microcontroller power supplies, LED driver circuits, educational electronics projects, and dual-voltage DC power supply designs.

4. Can the transformer provide both 6V and 12V outputs?

Yes. By using one outer terminal and the center tap, you can obtain 6V AC. By connecting across both outer terminals, you can obtain 12V AC, making the transformer versatile for different voltage requirements.

5. What are the advantages of using a center-tapped transformer?

A center-tapped transformer offers multiple output voltage options, simplifies full-wave rectifier circuit design, enables dual-polarity power supplies, provides electrical isolation from the mains supply, and delivers reliable performance for various electronic applications.
