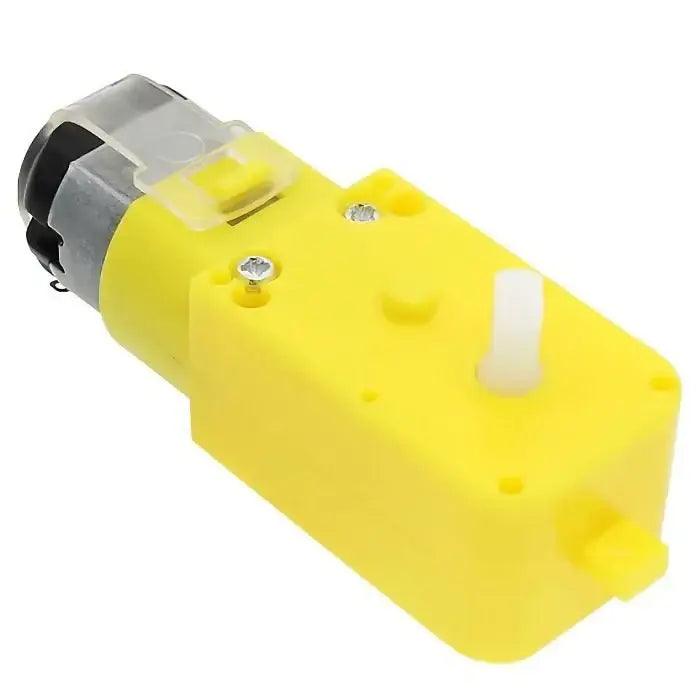

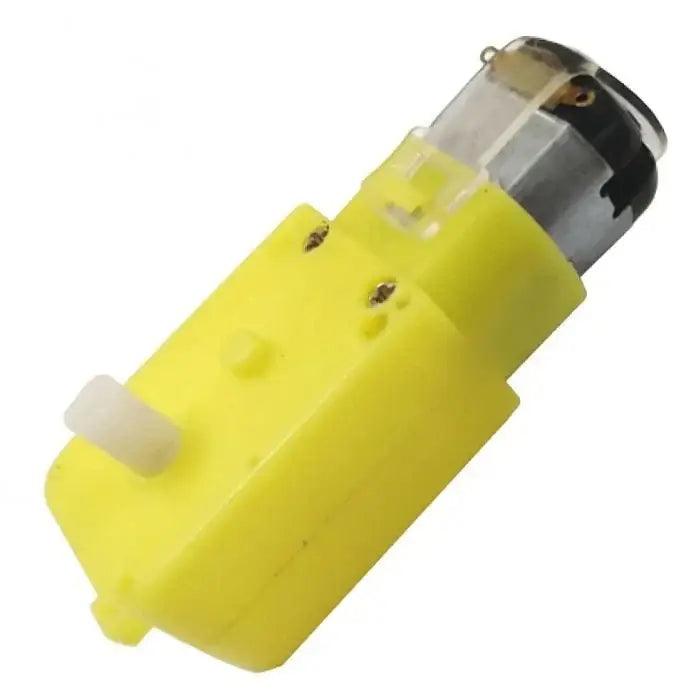

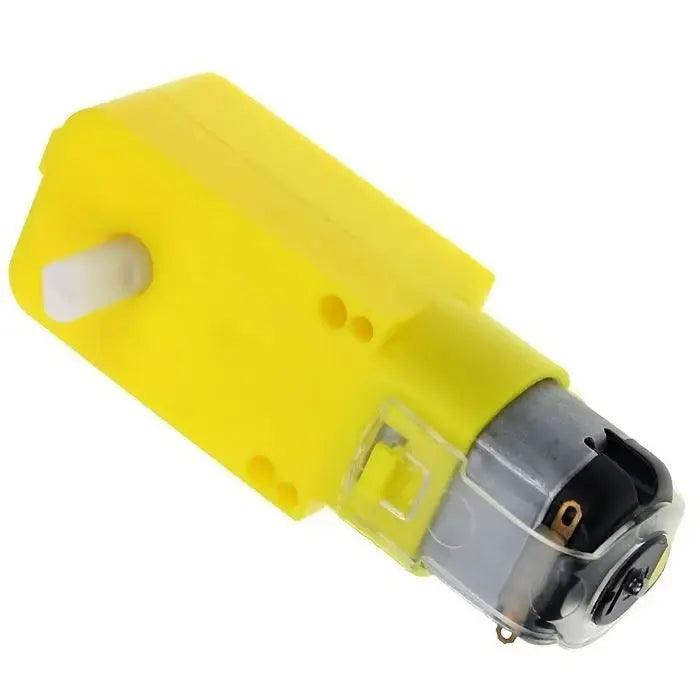

60 RPM- STRAIGHT SINGLE SHAFT

SKU: SXCZI4J7TE
The 60 RPM Straight Single Shaft BO Motor delivers reliable torque and speed even at low operating voltages, making it a key advantage of these BO motors. Its compact shaft, compatible with small wheels, allows for an optimized design suitable for robotics applications. With mounting holes on the body and a lightweight construction, it is easy to integrate directly into...
Rs. 59.00
Rs. 79.00 Rs. 59.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

 Specifications:

Voltage Range: 3V to 12V DC
Rotation Speed: 60 RPM
No-Load Current: 40mA to 180mA
Shaft Length: 8.5mm
Shaft Diameter: 5.5mm
Shaft Style: Double D-type (dual flats)

Additional Resources

60 RPM- STRAIGHT SINGLE SHAFT.PDF

FAQ

1. What is a 60 RPM straight single shaft motor?

 A 60 RPM straight single shaft motor is a low-speed DC geared motor that rotates at 60 revolutions per minute and has a straight output shaft, making it suitable for driving wheels, gears, or other mechanical components.

2. What are the typical applications of this motor?

 It is commonly used in robotics, small conveyors, automated toys, DIY projects, and precise low-speed drive mechanisms.

3. What voltage does a 60 RPM single shaft motor operate at?

 These motors typically operate on DC voltage, often in the range of 3V to 12V, depending on the specific model and manufacturer.

4. What is meant by "single shaft"?

 “Single shaft” means the motor has one output shaft extending from the gearbox or motor body, as opposed to dual-shaft motors which have shafts on both ends.

5. Why is 60 RPM significant for this motor?

 A 60 RPM rating indicates low-speed, high-torque operation, making it ideal for applications requiring precise movement and strong mechanical control rather than high-speed rotation.

View full product details

The 60 RPM Straight Single Shaft BO Motor delivers reliable torque and speed even at low operating voltages, making it a key advantage of these BO motors. Its compact shaft, compatible with small wheels, allows for an optimized design suitable for robotics applications. With mounting holes on the body and a lightweight construction, it is easy to integrate directly into your circuit or robot chassis.

This BO motor is a cost-effective geared DC motor, serving as an economical alternative to metal-gear DC motors. Operating at 3–12V, it is ideal for small to medium robotics projects and perfect for DIY enthusiasts. The motor is compact, lightweight, easy to install, and well-suited for mobile robot cars. To use this 60 RPM BO motor in your projects, you’ll need basic components such as batteries, switches, wires, soldering tools, and compatible wheels.

Features:

  • Operating Voltage: 3–12V DC
  • Shaft Length: 8.5 mm
  • Shaft Diameter: 5.5 mm (D-type)
  • No-Load Current: 40–180 mA
  • Rated Speed: 60 RPM
  • Output Torque: 1 kg·cm
  • Dimensions: 55 x 48 x 23 mm
  • Weight: ~30 grams
  • Cost-Effective: Manufactured using injection molding to reduce cost
  • Lightweight: Low density and inertia
  • Durable: Absorbs shock and vibration due to elastic compliance
  • Lubrication: Operates with minimal or no lubrication
  • Low Friction: Smooth operation with low wear
  • Corrosion-Resistant: No plating or protective coating needed
  • Quiet Operation: Designed for silent performance

Applications:

  • Robotics: Suitable for small and medium robots for controlled motion
  • DIY Projects: Ideal for hobbyists building mechanical systems
  • Mobile Robot Cars: Commonly used in 2WD robotic platforms
  • Conveyor Belts: Works for small-scale conveyor systems requiring moderate torque
  • Windmill Projects: Suitable for educational or small-scale windmill setups
  • Toy Cars: Powers toy vehicles efficiently
  • Line Follower Robots: Offers precise control for low-speed line-following robots
