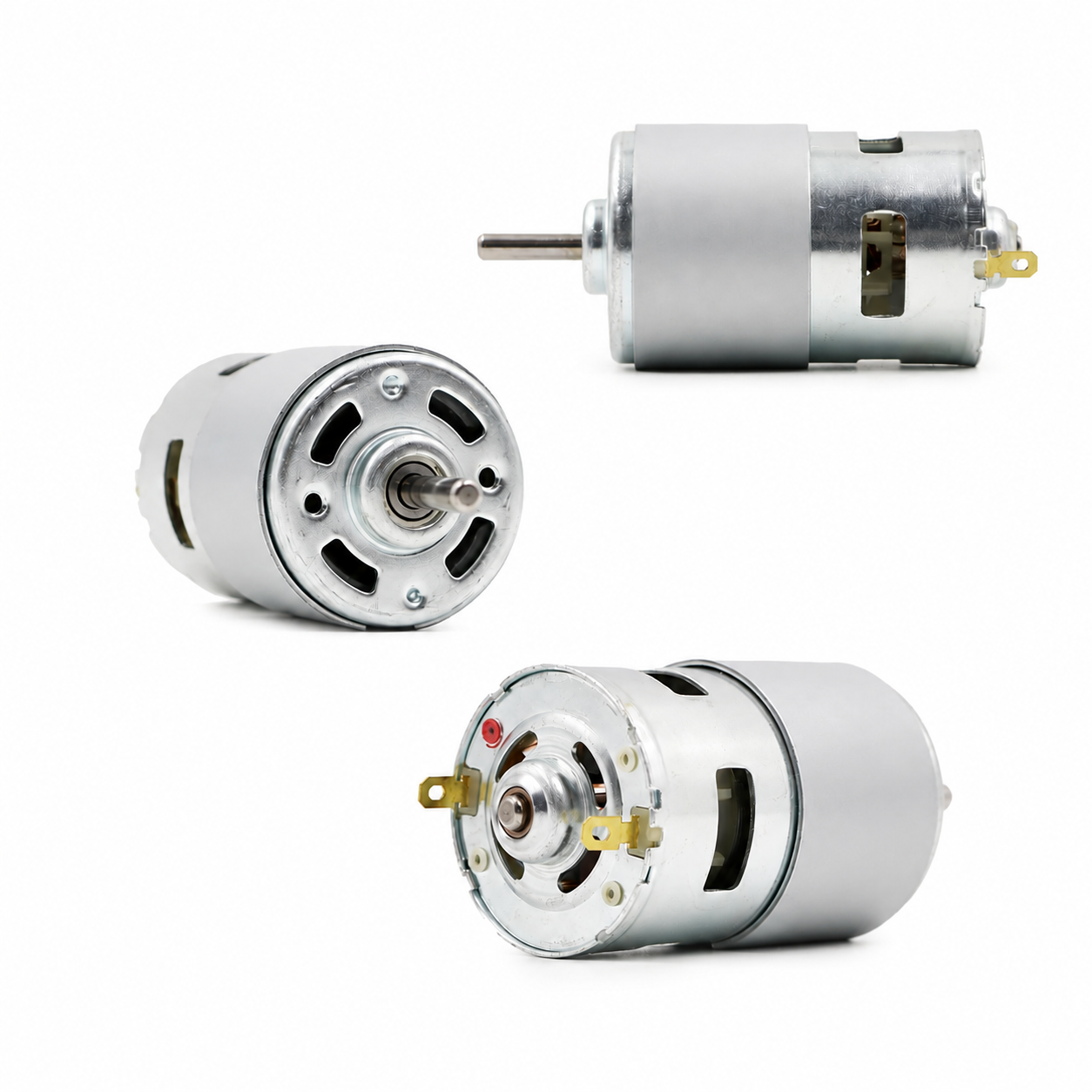

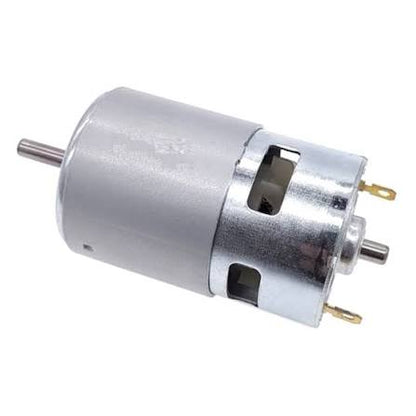

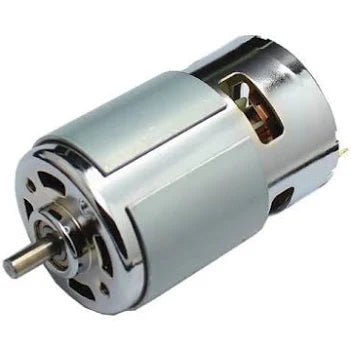

775 DC Motor With Bush Bearing- 12V

SKU: 5YAW2BW8XH
The 775 DC Motor – 12V is a powerful and versatile brushed DC motor widely used in high-speed and high-power applications. Known for its robust construction and excellent performance, the 775 motor is capable of delivering high rotational speeds, strong torque, and reliable operation, making it suitable for DIY tools, robotics, automation systems, pumps, fans, and industrial projects. Operating on...
Rs. 199.00
Rs. 219.00 Rs. 199.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Brushed DC Motor
Model: 775 Motor
Operating Voltage: 12V DC
Voltage Range: 6V – 18V DC
Rated Voltage: 12V DC
No-Load Speed: Approximately 8,000 – 12,000 RPM
No-Load Current: Approximately 0.8A – 1.5A
Rated Current: Approximately 2A – 5A
Stall Current: Up to 15A – 20A (Model Dependent)
Motor Type: Brushed DC Motor
Shaft Diameter: 5mm
Shaft Length: Approximately 15–20mm
Body Diameter: Approximately 42mm
Body Length: Approximately 66–68mm
Bearing Type: Ball Bearing / Sleeve Bearing (Varies by Model)
Rotation Direction: Reversible (CW / CCW)
Housing Material: Metal
Cooling Method: Ventilated Housing
Operating Temperature: -10°C to +60°C
Weight: Approximately 280g – 350g

Additional Resources

755 Motor.PDF

FAQ

1. What is the 775 DC Motor used for?

The 775 DC Motor is commonly used in robotics, DIY tools, pumps, CNC machines, automation systems, conveyors, and other applications requiring high speed and power.

2. What voltage does the 775 motor operate on?

The motor is designed for a nominal operating voltage of 12V DC and typically works within a range of 6V to 18V DC.

3. Can the direction of the motor be reversed?

Yes, the motor's rotation direction can be changed by reversing the polarity of the power supply connections.

4. Can the speed of the 775 motor be controlled?

Yes, the motor speed can be controlled using PWM motor controllers or suitable DC motor driver circuits.

5. Why is the 775 motor popular in DIY and industrial projects?

The 775 motor offers a combination of high speed, strong torque, durability, and affordability, making it suitable for a wide range of mechanical, robotic, and power tool applications.

View full product details

The 775 DC Motor – 12V is a powerful and versatile brushed DC motor widely used in high-speed and high-power applications. Known for its robust construction and excellent performance, the 775 motor is capable of delivering high rotational speeds, strong torque, and reliable operation, making it suitable for DIY tools, robotics, automation systems, pumps, fans, and industrial projects.

Operating on a 12V DC power supply, the motor features a large rotor design, high-quality bearings, and efficient cooling vents that help maintain stable performance during extended operation. Its metal body construction provides durability and effective heat dissipation, ensuring long service life even under demanding workloads.

The 775 motor is commonly used by makers, engineers, and hobbyists for projects requiring greater power than standard hobby motors.

Key Features

  • High-power 775 series DC motor
  • Operates on 12V DC supply
  • High-speed rotation performance
  • Strong torque output
  • Durable metal body construction
  • Double ball-bearing design (varies by model)
  • Efficient cooling ventilation slots
  • Smooth and reliable operation
  • Reversible rotation direction
  • Long operational lifespan
  • Suitable for continuous-duty applications
  • Easy integration into DIY projects
  • Compatible with PWM motor speed control
  • Ideal for robotics, tools, and automation systems
