Specifications:

Product Type: Fixed Linear Voltage Regulator IC

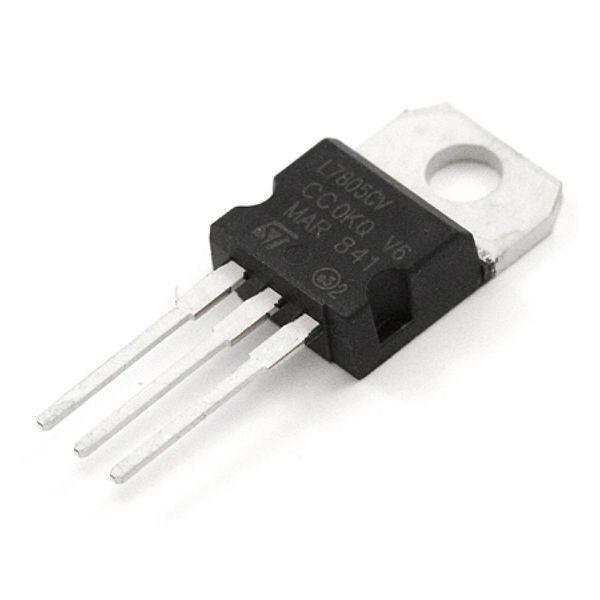

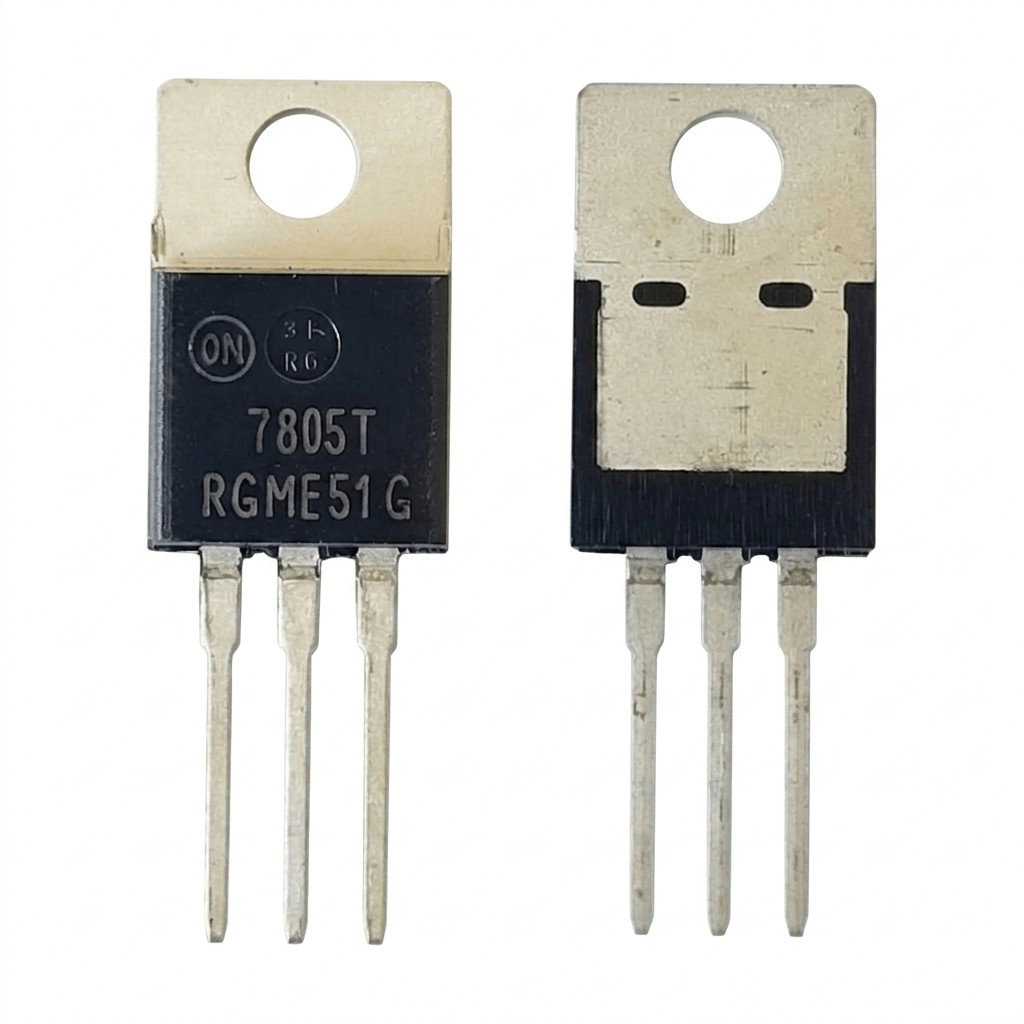

Model Number: 7805 / LM7805
Output Voltage: 5V DC
Output Current: Up to 1A (with proper heatsink)
Input Voltage Range: 7V to 35V DC

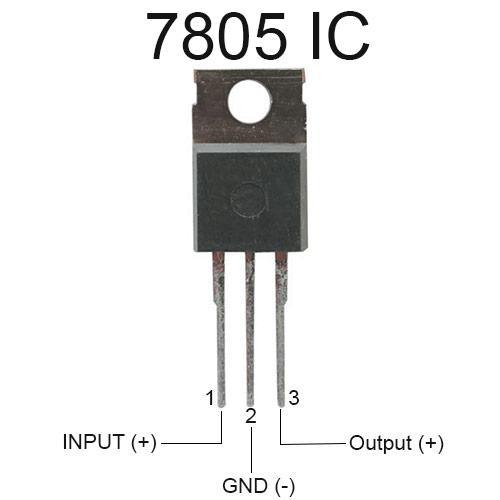

Package Type: TO-220
Number of Pins: 3
Regulation Type: Positive Fixed Voltage Regulator
Thermal Protection: Yes
Short Circuit Protection: Yes
Operating Temperature Range: Typically 0°C to +125°C
Mounting Type: Through-Hole

1. What is the 7805 Regulator IC used for?

The 7805 Regulator IC is used to provide a stable fixed 5V DC output from a higher DC input voltage in electronic circuits and power supply applications.

2. What is the input voltage range of the 7805 IC?

The 7805 regulator typically accepts an input voltage between 7V and 35V DC while maintaining a regulated 5V output.

3.What does the TO-220 package mean in the 7805 regulator?

TO-220 is a widely used transistor-style package that provides good heat dissipation and allows easy mounting of a heatsink for thermal management.

4. Can the 7805 IC supply current directly to microcontrollers and sensors?

Yes, the 7805 IC is commonly used to power microcontrollers, sensors, Arduino boards, and other 5V electronic components with a stable output voltage.

5. Why is a heatsink sometimes required with the 7805 regulator IC?

A heatsink is required when the regulator handles higher input voltages or larger output currents because excess voltage is converted into heat during operation.
