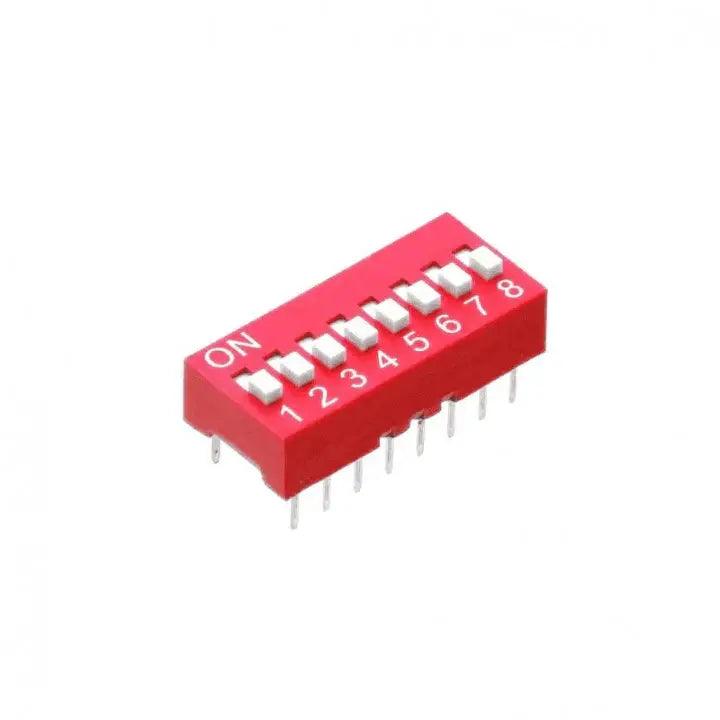

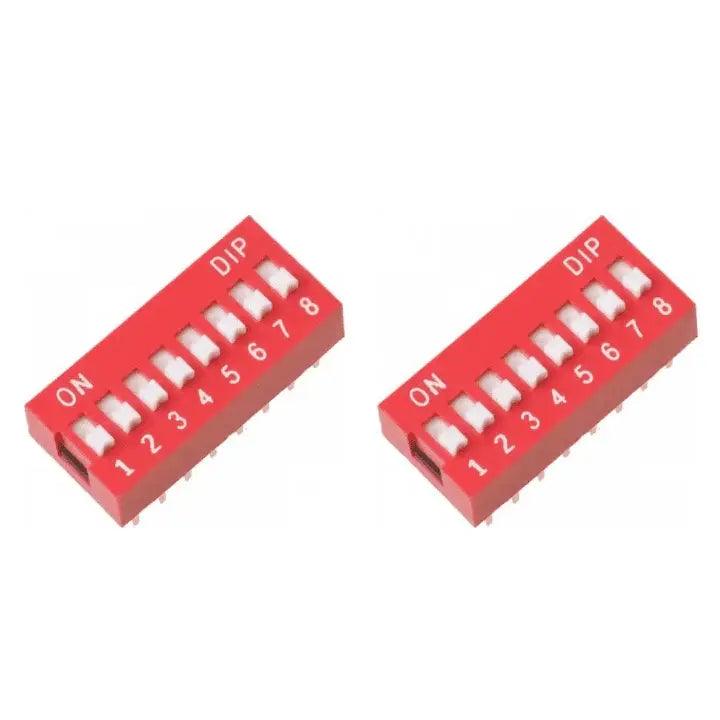

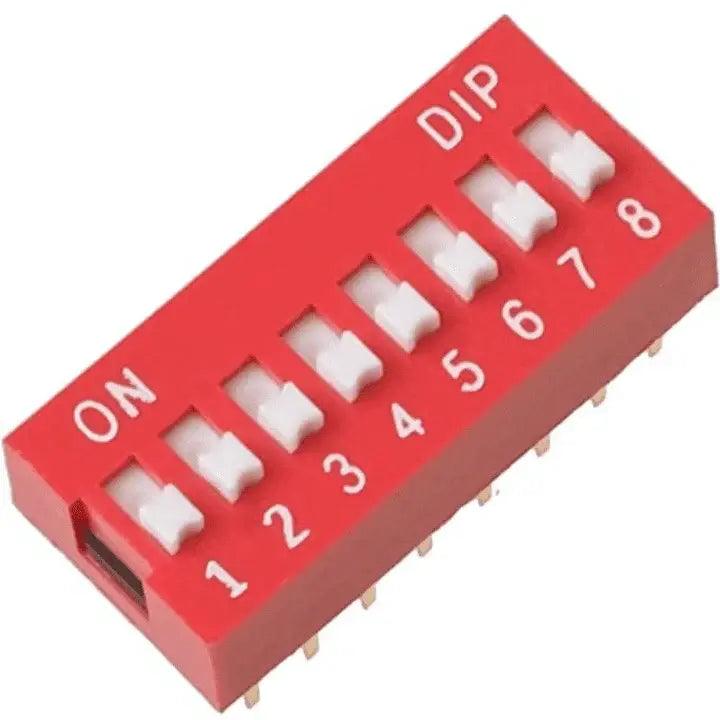

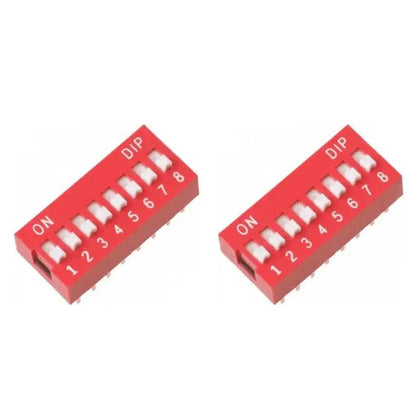

8 Way Slide Switch 2.54mm Pitch

SKU: FXJ86B74FN
The 8-way DIP switch is designed for reliable operation with a secure snap-in mechanism. It is commonly mounted on printed circuit boards (PCBs) alongside other electronic components and is used to configure or customize the behavior of electronic devices for specific applications. These switches are widely used in data processing, communication systems, remote controls, and anti-theft alarm systems, where manual...
Rs. 20.00
Rs. 29.00 Rs. 20.00
Save Rs. 9
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Rated Voltage: 30V DC
Operating Current: 0.15 A
Number of Pins: 8
Pin Pitch: 2.54 mm
Mounting Type: Through-hole
Operating Temperature Range: -40°C to 85°C
Mechanical & Electrical Life: ≥ 2000 cycles
Dimensions: 6.6 × 9.8 × 6.5 mm
Weight: Approximately 2 grams (each)

Additional Resources

8 Way Slide Switch 2.54mm Pitch.PDF

FAQ

1. What is an 8 Way Slide Switch?

An 8 Way Slide Switch is a compact DIP switch module that contains eight individual switches in a single package. Each switch can be toggled independently to control different circuit settings.

2. What does 2.54 mm pitch mean?

The 2.54 mm pitch refers to the distance between adjacent pins, making it compatible with standard PCBs and breadboards commonly used in electronics projects.

3. How does this switch operate?

Each of the eight switches can be slid to ON or OFF positions, allowing users to manually configure circuit inputs or settings as required.

4. Where is this switch commonly used?

It is widely used in:

  • PCB-based projects
  • Microcontroller configurations
  • Communication devices
  • Remote control systems
  • Industrial and embedded systems

5. What are the advantages of this DIP slide switch?

  • Compact and space-saving design
  • Easy manual configuration
  • Reliable switching performance
  • Standard 2.54 mm pin spacing
  • Convenient pack of 2 for multiple uses
View full product details

The 8-way DIP switch is designed for reliable operation with a secure snap-in mechanism. It is commonly mounted on printed circuit boards (PCBs) alongside other electronic components and is used to configure or customize the behavior of electronic devices for specific applications. These switches are widely used in data processing, communication systems, remote controls, and anti-theft alarm systems, where manual configuration or programming is required.

This component features 8 individual switches (8-position or 8-in-1) housed in a compact Dual In-Line Package (DIP). Each switch operates as an SPDT (Single Pole Double Throw) slide switch, allowing the user to select between two connections. At any given time, the switch connects to only one terminal, ensuring that both terminals are never connected simultaneously.

Designed for easy PCB mounting, the DIP switch provides a convenient way to input settings or control signals in electronic circuits. Users can quickly adjust configurations by toggling the individual switches.

Applications:

  • Used in circuit boards, breadboards, and PCB-based projects
  • Ideal for configuration settings and control inputs
  • Suitable as a toggle or ON/OFF switch in electronics projects
