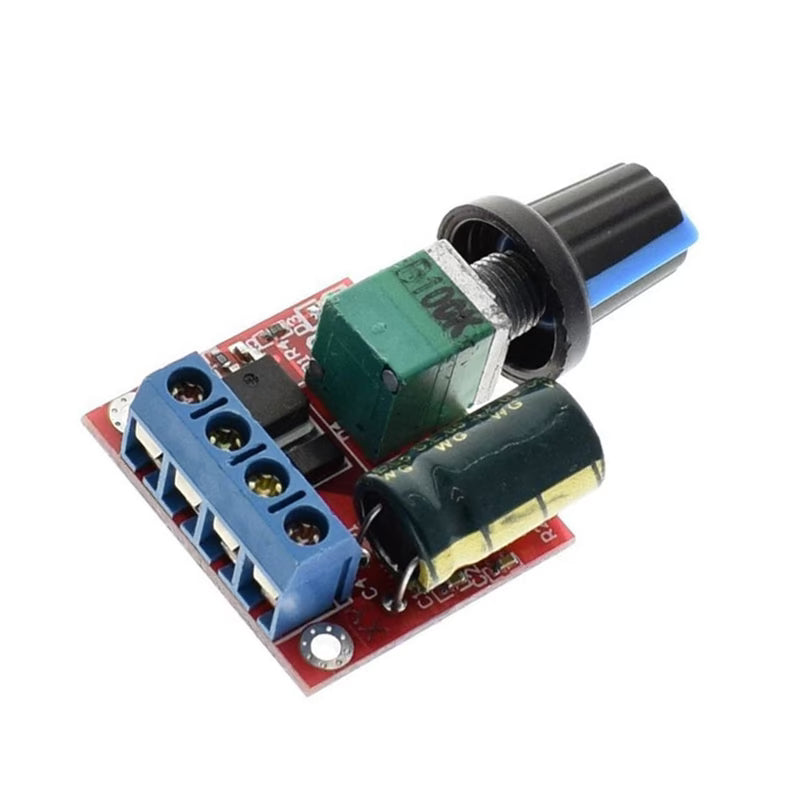

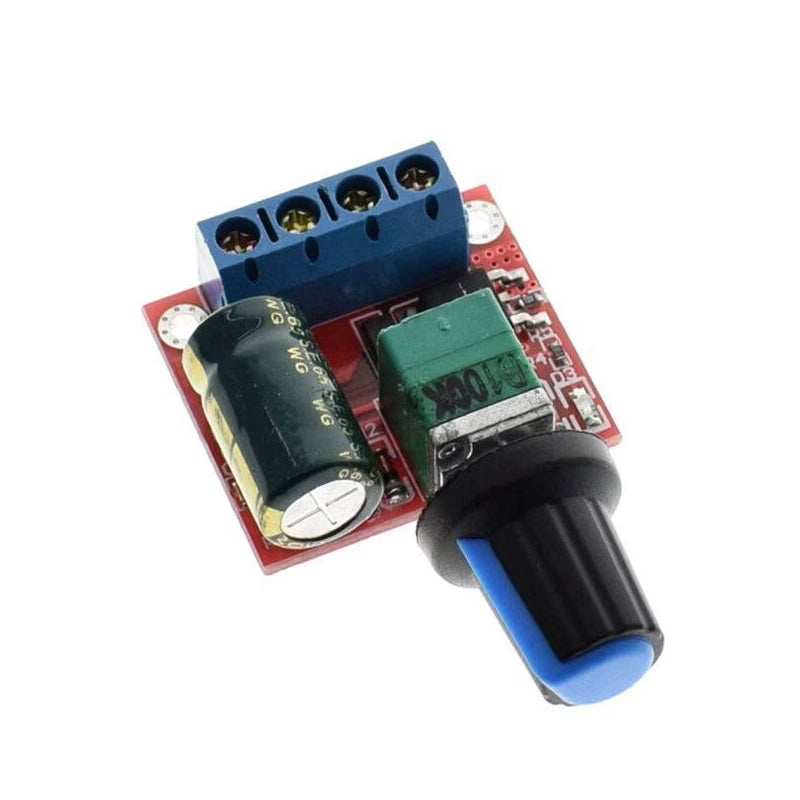

Adjustable DC Motor Speed Regulator Controller Module 6V 12V 24V 35V 5A

SKU: 6XA9ORJDX0
The 6Vā€“35V 5A Adjustable DC Motor Speed Regulator Controller Module is a versatile PWM (Pulse Width Modulation) motor controller designed to provide smooth and efficient speed control for brushed DC motors. Supporting a wide input voltage range from 6V to 35V DC and capable of handling currents up to 5A, this module is suitable for a variety of motor-driven applications,...
Rs. 75.00
Rs. 79.00 Rs. 75.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Input Voltage Range: 6V ā€“ 35V DC
Output Voltage: Adjustable (0ā€“100% of input voltage via PWM)
Maximum Continuous Current: 5A
Recommended Operating Current: Up to 3A for continuous operation without additional cooling
Control Method: PWM (Pulse Width Modulation)
PWM Frequency: Typically 10kHz ā€“ 20kHz
Speed Adjustment Range: 0% ā€“ 100%
Efficiency: Up to 90% or higher
Motor Type Supported: Brushed DC Motors
Mounting Type: PCB Module
Connection Type: Screw Terminal or Solder Pads (model dependent)
oard Material: FR4 PCB
Dimensions: Compact PCB Design

Additional Resources

Adjustable DC Motor Speed Regulator Controller Module.PDF

FAQ

1. What is a 6Vā€“35V 5A Adjustable DC Motor Speed Regulator Controller Module?

A 6Vā€“35V 5A Adjustable DC Motor Speed Regulator Controller Module is an electronic device that controls the speed of DC motors by adjusting the power delivered to the motor using PWM (Pulse Width Modulation) technology. It supports input voltages from 6V to 35V DC and can handle currents up to 5A.

2. How does the motor speed controller adjust motor speed?

The module uses PWM technology to vary the average voltage supplied to the motor. By rotating the onboard potentiometer, users can smoothly adjust the motor speed from near zero to maximum without significantly affecting motor torque.

3. What types of motors can be controlled with this module?

The controller is designed for brushed DC motors operating within the supported voltage range of 6V to 35V and drawing no more than 5A continuous current. It is commonly used with hobby motors, gear motors, pumps, fans, and small industrial DC motors.

4. What are the common applications of this speed controller module?

The module is widely used in robotics, conveyor systems, cooling fans, mini electric vehicles, DIY electronics projects, automation equipment, pumps, and motor speed control experiments.

5. What are the advantages of using a PWM motor speed controller?

PWM control provides high efficiency, low heat generation, smooth speed adjustment, better torque retention at low speeds, reduced power loss, and longer motor life compared to traditional voltage-reduction methods.

View full product details

The 6Vā€“35V 5A Adjustable DC Motor Speed Regulator Controller Module is a versatile PWM (Pulse Width Modulation) motor controller designed to provide smooth and efficient speed control for brushed DC motors. Supporting a wide input voltage range from 6V to 35V DC and capable of handling currents up to 5A, this module is suitable for a variety of motor-driven applications, including robotics, automation systems, cooling fans, pumps, conveyors, and DIY electronics projects.

Unlike traditional voltage-based speed control methods, this module uses PWM technology to regulate motor speed. PWM varies the duty cycle of the power supplied to the motor, allowing precise speed adjustment while maintaining high efficiency and minimizing power loss. As a result, the motor can operate smoothly across a wide speed range with reduced heat generation and improved torque characteristics.

The module features an onboard potentiometer that allows users to easily adjust motor speed from nearly 0% to 100%. Its compact design, simple wiring, and reliable performance make it a popular choice for hobbyists, students, and professionals.

Features

  • Wide operating voltage range of 6V to 35V DC
  • Maximum output current up to 5A
  • PWM-based motor speed control
  • Smooth and precise speed adjustment
  • High efficiency and low power loss
  • Onboard rotary potentiometer for speed control
  • Compact and lightweight design
  • Simple installation and operation
  • Suitable for brushed DC motors
  • Reliable and stable performance
