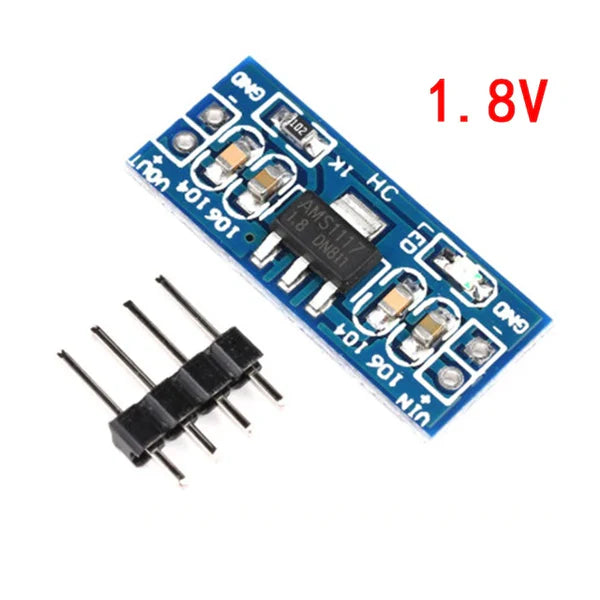

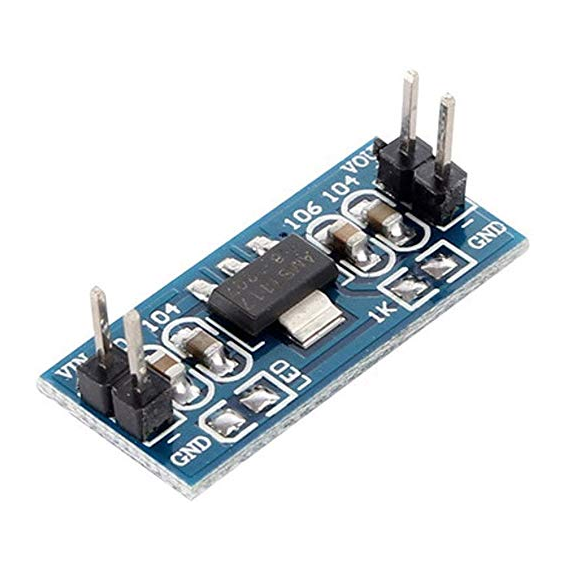

AMS1117 Step-Down Power Supply Module 1.8V

SKU: 67D0T1O1M3
The AMS1117 1.8V Step-Down Power Supply Module is a compact low-dropout (LDO) voltage regulator module designed to convert a higher DC input voltage into a stable 1.8V DC output. Based on the reliable AMS1117-1.8 voltage regulator IC, the module provides a convenient power solution for low-voltage digital circuits, microcontrollers, FPGA cores, memory devices, sensors, and embedded systems. The AMS1117 series...
Rs. 27.00
Rs. 35.00 Rs. 27.00
Save Rs. 8
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Step-Down Linear Voltage Regulator Module
Regulator IC: AMS1117-1.8
Output Voltage: 1.8V DC Fixed
Input Voltage Range: 3.3V – 12V DC
Recommended Input Voltage: 4.5V – 12V DC
Maximum Input Voltage: 15V DC
Maximum Output Current: 800mA – 1A
Dropout Voltage: Typically 1.1V – 1.3V
Output Accuracy: ±1%
Line Regulation: Typically 0.2%
Load Regulation: Typically 0.4%
Ripple Rejection (PSRR): Up to 75dB
Quiescent Current: Typically 5mA – 10mA
Protection Features:
Thermal Shutdown
Current Limiting
Power Indicator: Onboard LED

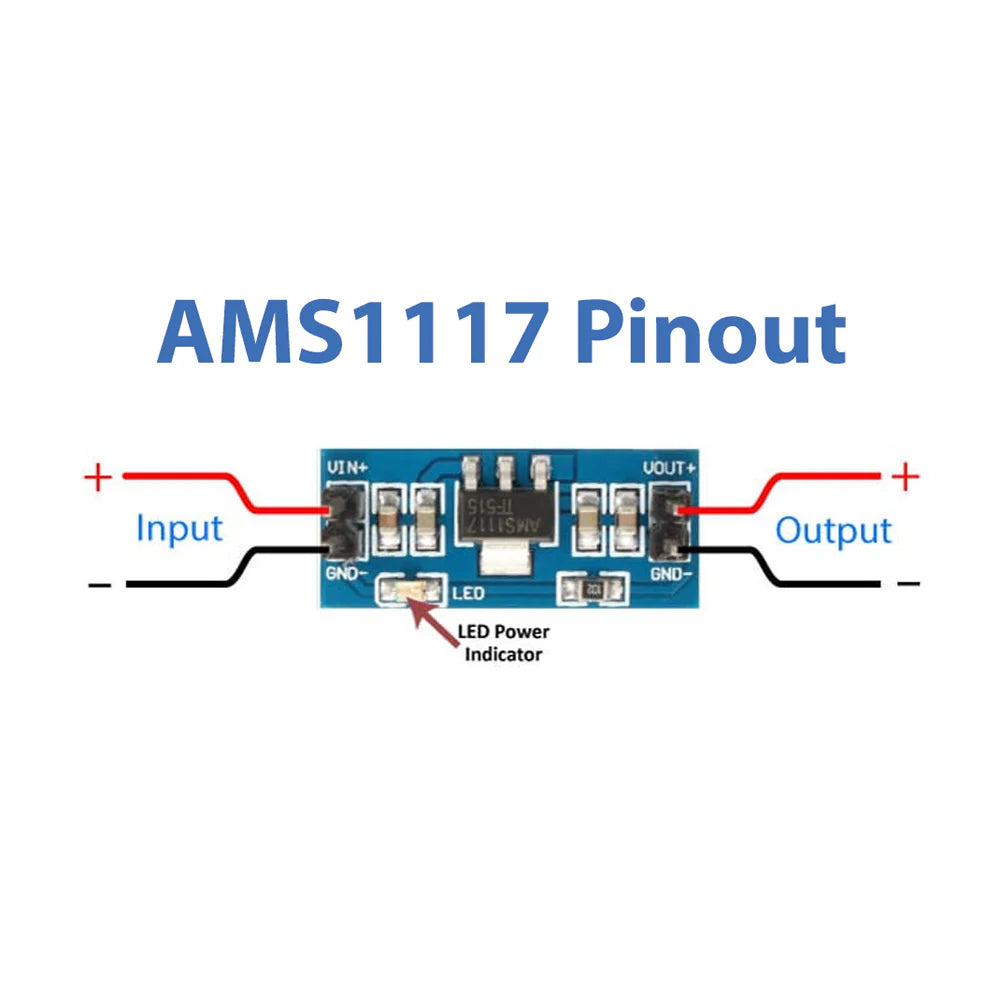

Input Interface: 2-Pin Header
Output Interface: 2-Pin Header
Mounting Holes: 2
PCB Dimensions: Approximately 26mm × 12mm
Mounting Type: Through-Hole Header Module
Operating Temperature: -40°C to +125°C

Additional Resources

AMS1117 Module.PDF

FAQ

1. What is the AMS1117 1.8V Power Supply Module used for?

The module is used to convert a higher DC voltage into a stable 1.8V output for powering processors, FPGA cores, memory devices, sensors, and embedded electronic circuits.

2. What output voltage does the AMS1117 module provide?

The module provides a fixed and regulated 1.8V DC output.

3. How much current can the AMS1117 1.8V module supply?

The module can typically deliver up to 800mA–1A output current, depending on input voltage, cooling conditions, and load requirements.

4. Does the AMS1117 power module include protection features?

Yes, it includes built-in thermal shutdown and current limiting protection to ensure safe and reliable operation.

5. Can this module be used for FPGA and embedded system projects?

Yes, the AMS1117 1.8V module is commonly used to power FPGA cores, memory devices, embedded processors, communication modules, and other low-voltage digital circuits.

View full product details

The AMS1117 1.8V Step-Down Power Supply Module is a compact low-dropout (LDO) voltage regulator module designed to convert a higher DC input voltage into a stable 1.8V DC output. Based on the reliable AMS1117-1.8 voltage regulator IC, the module provides a convenient power solution for low-voltage digital circuits, microcontrollers, FPGA cores, memory devices, sensors, and embedded systems. The AMS1117 series supports output currents up to approximately 800mA–1A while maintaining excellent voltage stability and low noise performance.

The module features onboard input/output headers, a power indicator LED, and a compact breadboard-friendly design. Built-in thermal shutdown and current limiting protection ensure safe and reliable operation, making it suitable for development, prototyping, and production applications.

Key Features

  • Based on AMS1117-1.8 LDO regulator IC
  • Fixed 1.8V regulated output
  • Low Dropout (LDO) design
  • Output current up to 800mA–1A
  • Wide DC input voltage range
  • Built-in thermal shutdown protection
  • Internal current limiting protection
  • Excellent line and load regulation
  • Low output noise and ripple
  • Onboard power indicator LED
  • Compact and breadboard-friendly design
  • Easy input and output connections
  • Suitable for embedded and digital electronics
  • Ideal for FPGA, DSP, memory, and IoT applications
