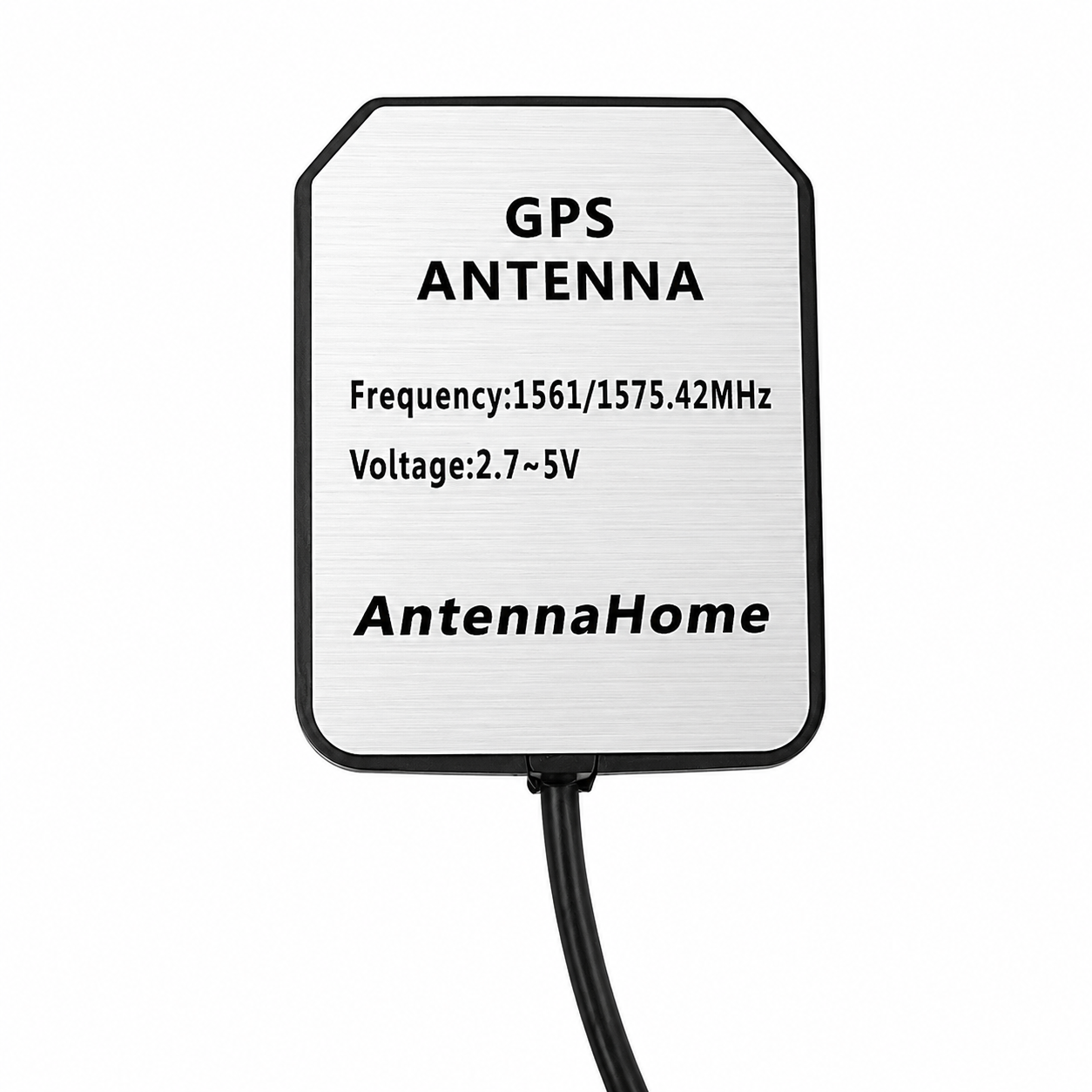

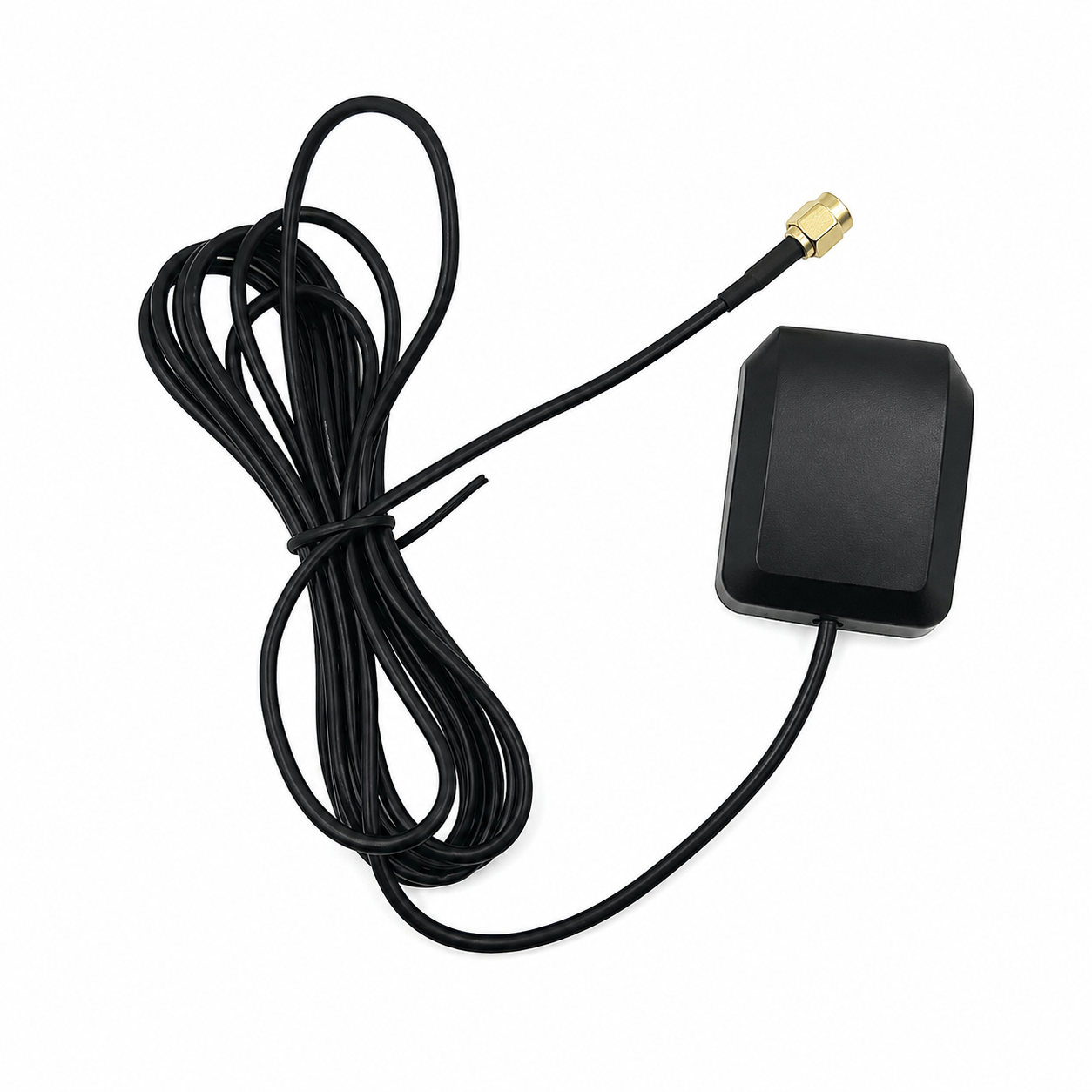

3M GPS GNSS Antenna with SMA Male Connector 1575.42mhz Receiver

SKU: Q3HSAJEJYA
The AntennaHome AHGG.101 GPS/BD GNSS 28dBi L2000 SMA-J Q48×38 Box Antenna is a high-performance active GNSS antenna designed for reliable satellite signal reception in navigation, tracking, and positioning applications. Supporting both GPS (Global Positioning System) and BeiDou (BD) satellite constellations, this antenna provides accurate positioning and improved signal availability in a wide range of environments. Equipped with a built-in 28dBi...
Rs. 450.00
Rs. 479.00 Rs. 450.00
Save Rs. 29
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model: AHGG.101
Antenna Type: Active GNSS Antenna
Supported Systems: GPS, BeiDou (BD)
Operating Frequency:
GPS L1: 1575.42 MHz
BeiDou B1: 1561.098 MHz
Amplifier Gain: 28dBi
Noise Figure: Low Noise Design
Impedance: 50Ω
Polarization: Right-Hand Circular Polarization (RHCP)
VSWR: ≤ 2.0 (Typical)
Power Supply Voltage: 3V – 5V DC
Current Consumption: Low Power Operation
Housing Type: Box Antenna
Dimensions: 48mm × 38mm
Cable Length: 2000mm (2 meters)
Connector Type: SMA-J
Mounting Method: Surface Mount / Adhesive Mounting
Color: Typically Black
Weight: Lightweight Construction

Additional Resources

AntennaHome AHGG.101 GPS/BD GNSS 28dBi L2000.PDF

FAQ

1. What is the AntennaHome AHGG.101 GPS/BD GNSS 28dBi L2000 SMA-J Q48×38 Box Antenna?

The AntennaHome AHGG.101 is a high-gain active GNSS antenna designed for receiving satellite navigation signals from GPS and BeiDou (BD) systems. It features a built-in low-noise amplifier (LNA), a 2-meter cable (L2000), and an SMA-J connector for easy integration with GNSS receivers.

2. What satellite systems are supported by the AHGG.101 antenna?

The antenna supports multiple GNSS constellations, including GPS and BeiDou (BD), providing improved positioning accuracy and signal reliability for navigation and tracking applications.

3. What does the 28dBi gain specification mean?

The 28dBi gain refers to the amplification provided by the antenna's integrated low-noise amplifier. This high gain helps improve weak satellite signal reception, especially in challenging environments where signal strength may be reduced.

4. What are the common applications of the AHGG.101 GNSS antenna?

This antenna is widely used in GPS tracking systems, vehicle navigation units, fleet management systems, surveying equipment, agricultural guidance systems, IoT positioning devices, and industrial GNSS applications.

5. What are the advantages of the AHGG.101 GPS/BD GNSS antenna?

The antenna offers high sensitivity, strong signal reception, multi-constellation GNSS support, low noise performance, weather-resistant construction, easy installation, and reliable positioning performance for both stationary and mobile applications.

View full product details

The AntennaHome AHGG.101 GPS/BD GNSS 28dBi L2000 SMA-J Q48×38 Box Antenna is a high-performance active GNSS antenna designed for reliable satellite signal reception in navigation, tracking, and positioning applications. Supporting both GPS (Global Positioning System) and BeiDou (BD) satellite constellations, this antenna provides accurate positioning and improved signal availability in a wide range of environments.

Equipped with a built-in 28dBi low-noise amplifier (LNA), the AHGG.101 enhances weak satellite signals while minimizing noise, ensuring stable and accurate GNSS performance. The antenna features a compact 48mm × 38mm box-type housing, making it suitable for vehicle tracking systems, surveying equipment, fleet management solutions, agricultural guidance systems, and IoT positioning devices.

The integrated 2-meter RF cable (L2000) and SMA-J connector simplify installation and provide compatibility with a variety of GPS and GNSS receivers. Its robust design ensures reliable operation in outdoor and industrial environments where consistent satellite reception is critical.

Features

  • Supports GPS and BeiDou (BD) satellite systems
  • Built-in 28dBi low-noise amplifier (LNA)
  • High sensitivity GNSS signal reception
  • Compact box-type antenna design
  • Integrated 2-meter cable (L2000)
  • SMA-J connector for easy connectivity
  • Low noise figure for enhanced signal quality
  • Stable and accurate positioning performance
  • Suitable for indoor and outdoor installations
  • Durable construction for long-term reliability
