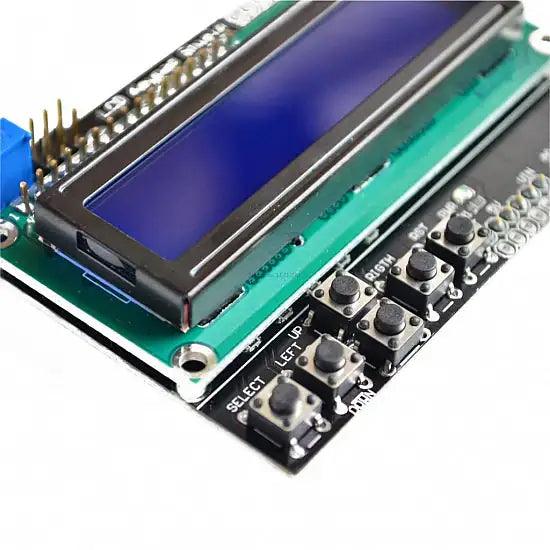

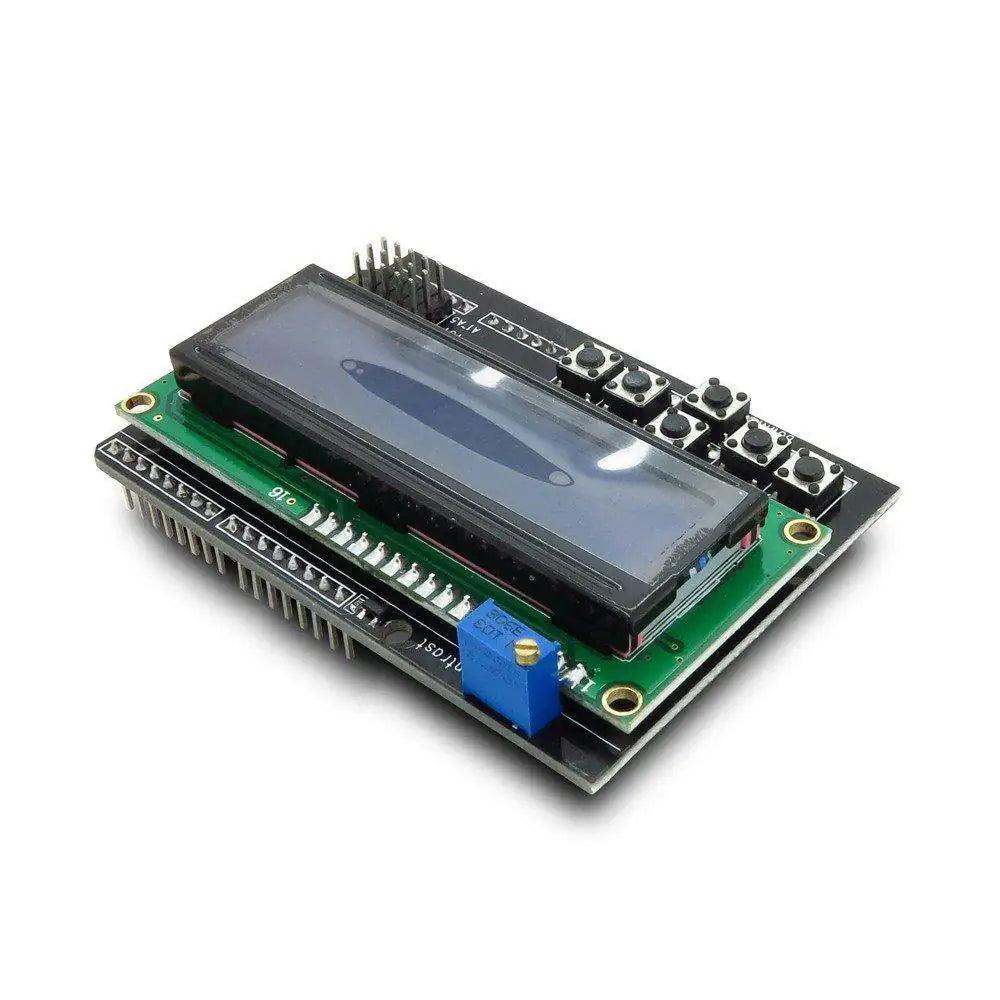

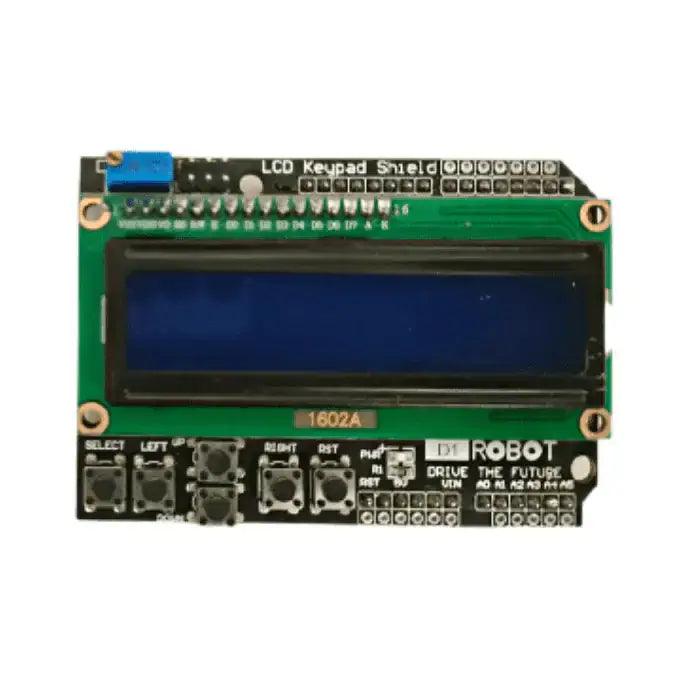

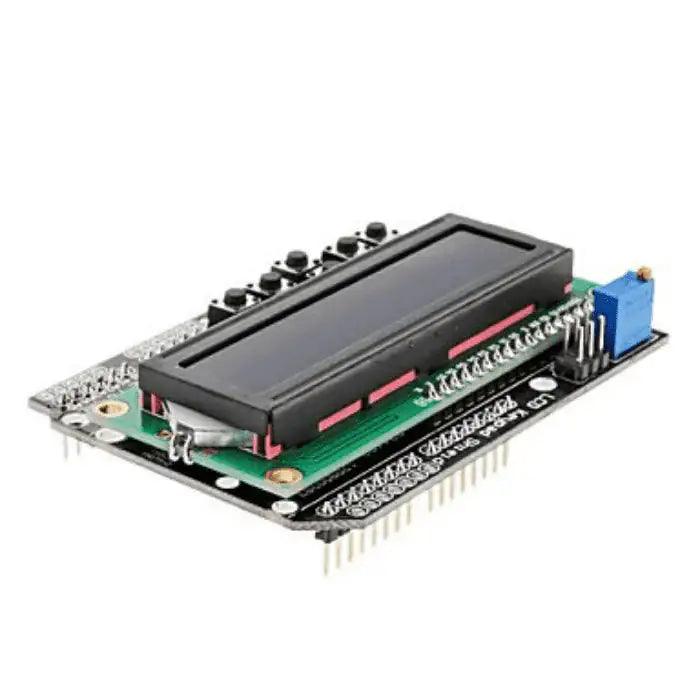

Arduino 16X2 LCD Keypad Shield

SKU: TQIV705XXU
The LCD Keypad Shield is designed for the Arduino UNO and Arduino Leonardo boards, offering full compatibility with the Arduino platform. It is commonly referred to as a navigation shield because it features six momentary push buttons that allow easy menu control and user interaction. In addition to the buttons, the shield includes a 16Ɨ2 (2-line, 16-character) LCD display. This...
Rs. 219.00
Rs. 249.00 Rs. 219.00
Save Rs. 30
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

LCD Controller: HD44780 compatible
Operating Voltage: 5V DC
Compatible Boards: Arduino UNO, Leonardo, and other UNO-form factor boards
Interface Mode: 4-bit parallel LCD interface
Digital Pins Used for LCD: D4, D5, D6, D7 (Data Pins)
Control Pins Used:D8 ā€“ RS (Register Select)D9 ā€“ Enable
Button Interface: Analog input (A0)
Push Buttons: 6 momentary tactile switches
Backlight: LED backlight with onboard control
Onboard Indicator: Power LED
Contrast Adjustment: Onboard potentiometer
Form Factor: Shield design ā€“ directly stackable onto Arduino UNO
Communication: Parallel interface (not I2C)
Application: Menu navigation, system monitoring, parameter display, embedded control panels

Additional Resources

Arduino 16X2 LCD.PDF

FAQ

1. What is a 16 X 2 LCD Keypad Shield?

The LCD keypad shield is suited for UNO board and Leonardo Board compatible with Arduino. The blue LCD Keypad Shield is sometimes called a navigation shield because it comes with 6 momentary push buttons for menu navigation. This is a very popular LCD Keypad shield compatible with Arduino and other variants. It includes a 2Ɨ16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9, and 10 are used to interface with the LCD. The onboard LED indicates power on.

2. WHY IS THE 16 X 2 LCD KEYPAD SHIELD NECESSARY?

If you're planning to build a project that isn't connected to a computer and needs to monitor what's going on while it's in place, this LCD Keypad shield will come in handy to ensure the program runs smoothly.

View full product details

The LCD Keypad Shield is designed for the Arduino UNO and Arduino Leonardo boards, offering full compatibility with the Arduino platform. It is commonly referred to as a navigation shield because it features six momentary push buttons that allow easy menu control and user interaction. In addition to the buttons, the shield includes a 16Ɨ2 (2-line, 16-character) LCD display.

This widely used LCD Keypad Shield integrates a 16Ɨ2 character display along with six tactile push buttons. The LCD communicates with the Arduino using digital pins 4, 5, 6, 7, 8, 9, and 10. An onboard LED indicator shows the power status of the shield.

The 16Ɨ2 LCD Shield is an excellent solution for embedded system applications where a compact display is required directly on the Arduino board. Its practical layout allows you to continue using the remaining pins for connecting sensors and other modules. The built-in buttons can be used for menu navigation, parameter selection, system monitoring, or even simple gaming interfaces.
