Arduino 2.4inch TFT Display for Arduino UNO board compatible

SKU: QVUBPLIGZR
★★★★ ★ ★
4.5 (146 reviews)
The Arduino 2.4 Inch TFT Display for Arduino UNO Board Compatible is a full-color 2.4-inch TFT LCD display shield designed to plug directly onto Arduino UNO and compatible development boards without additional wiring. Featuring a 240 × 320 pixel resolution and support for 65K colors, the display delivers bright, sharp graphics for creating interactive user interfaces, data visualization, games, and...
Rs. 549.00
Rs. 599.00 Rs. 549.00
Save Rs. 50 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

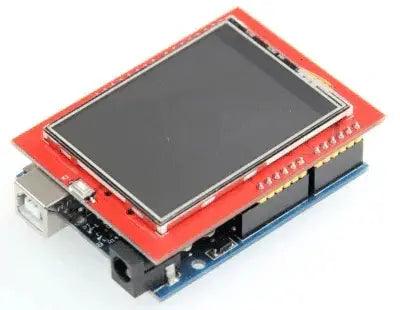

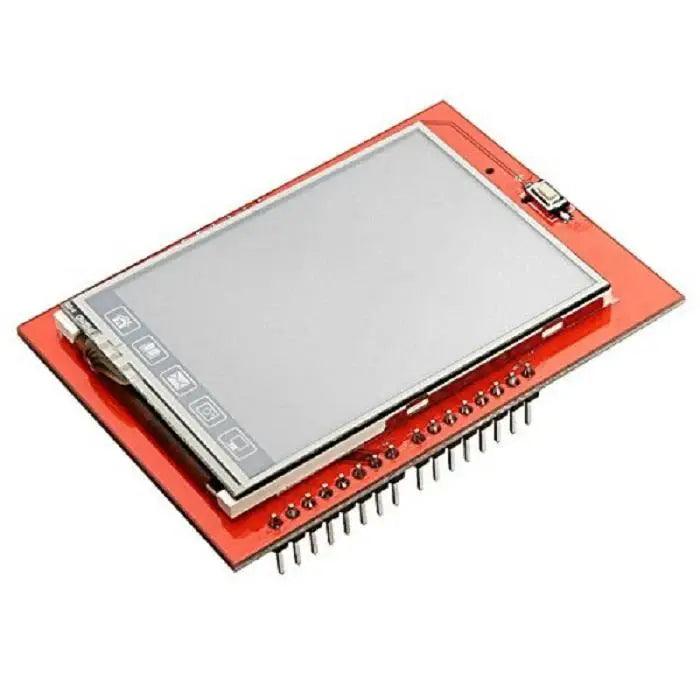

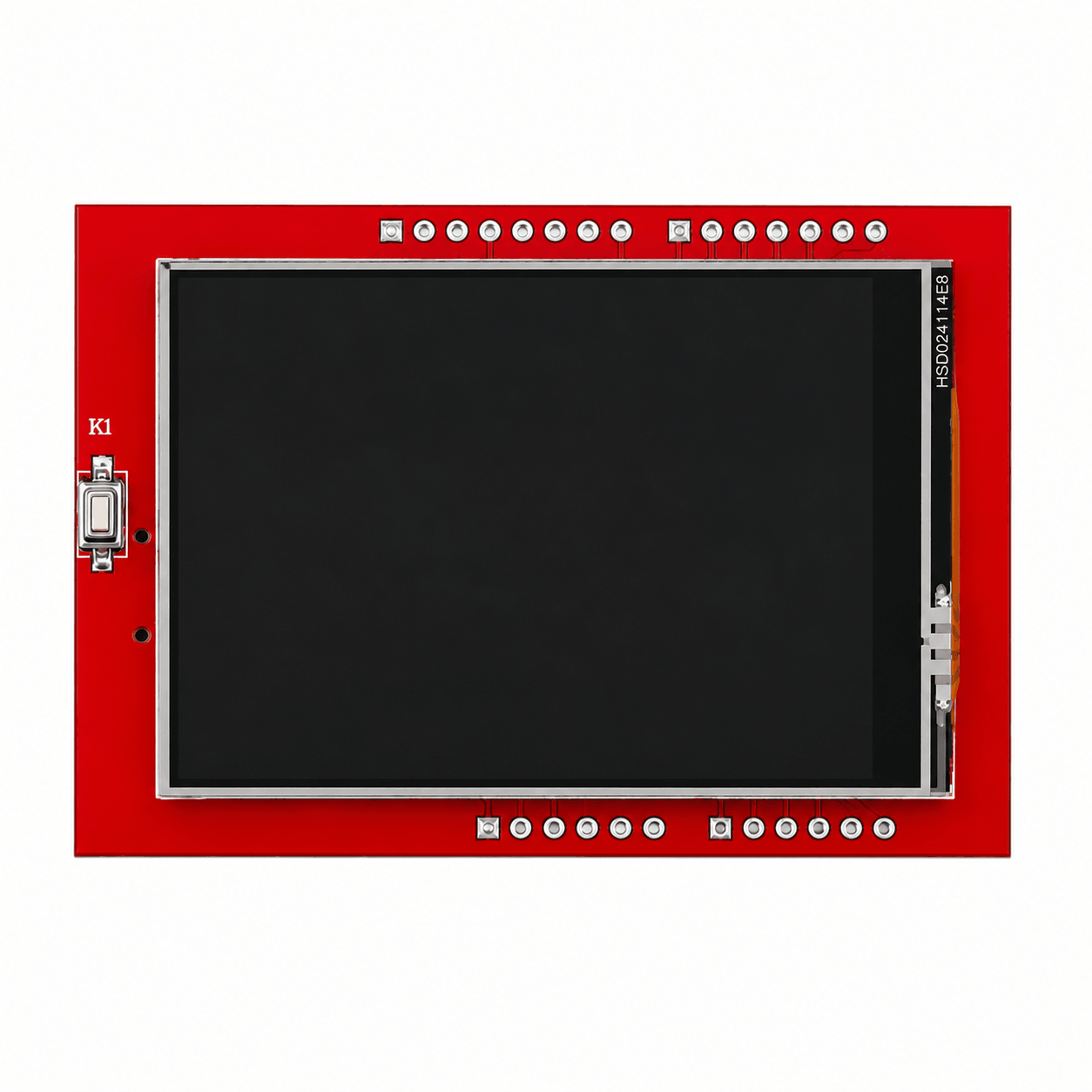

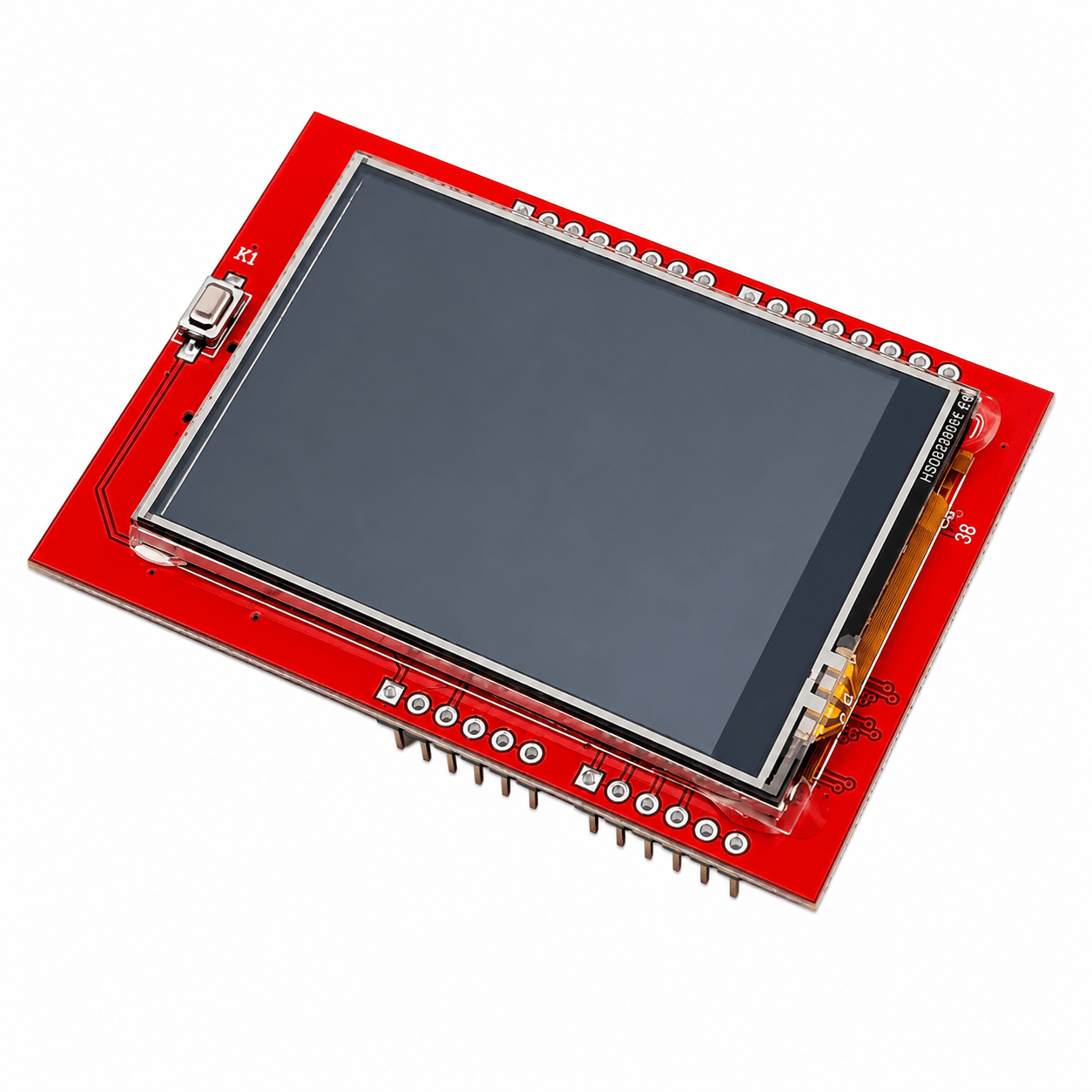

The Arduino 2.4 Inch TFT Display for Arduino UNO Board Compatible is a full-color 2.4-inch TFT LCD display shield designed to plug directly onto Arduino UNO and compatible development boards without additional wiring. Featuring a 240 × 320 pixel resolution and support for 65K colors, the display delivers bright, sharp graphics for creating interactive user interfaces, data visualization, games, and embedded control systems. Many versions also include a 4-wire resistive touch panel and a microSD card slot for touch-based applications and image storage.

The display communicates through an 8-bit parallel interface, offering faster refresh rates than SPI-based TFT modules. It is commonly built around display controller ICs such as ILI9341, HX8347, or compatible drivers, and is supported by popular Arduino libraries including MCUFRIEND_kbv, Adafruit GFX, and TFTLCD. Compatible with Arduino UNO, Mega 2560 (library dependent), and other UNO-form-factor boards, this display is ideal for HMI interfaces, instrumentation, robotics, home automation, and educational electronics projects.

Key Features

  • 2.4-inch full-color TFT LCD display
  • 240 × 320 pixel QVGA resolution
  • Supports up to 65K colors
  • Direct plug-in shield for Arduino UNO compatible boards
  • 8-bit parallel interface for fast display updates
  • 4-wire resistive touch screen (on touch-enabled versions)

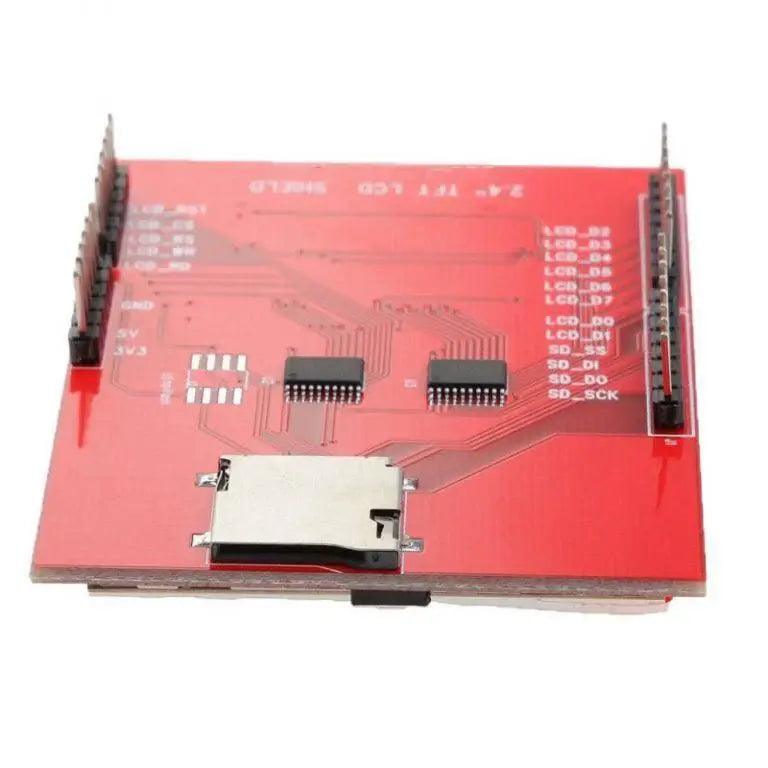

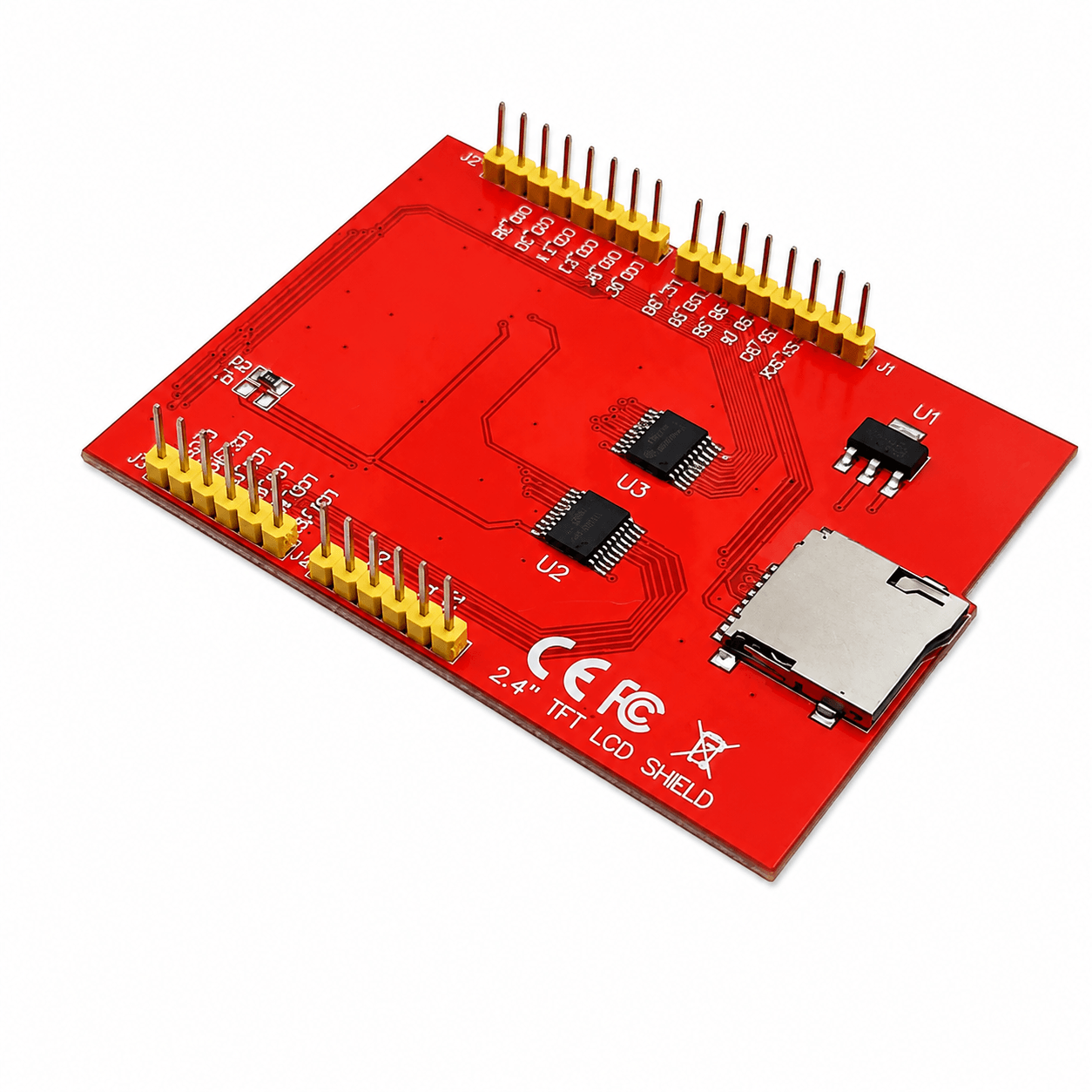

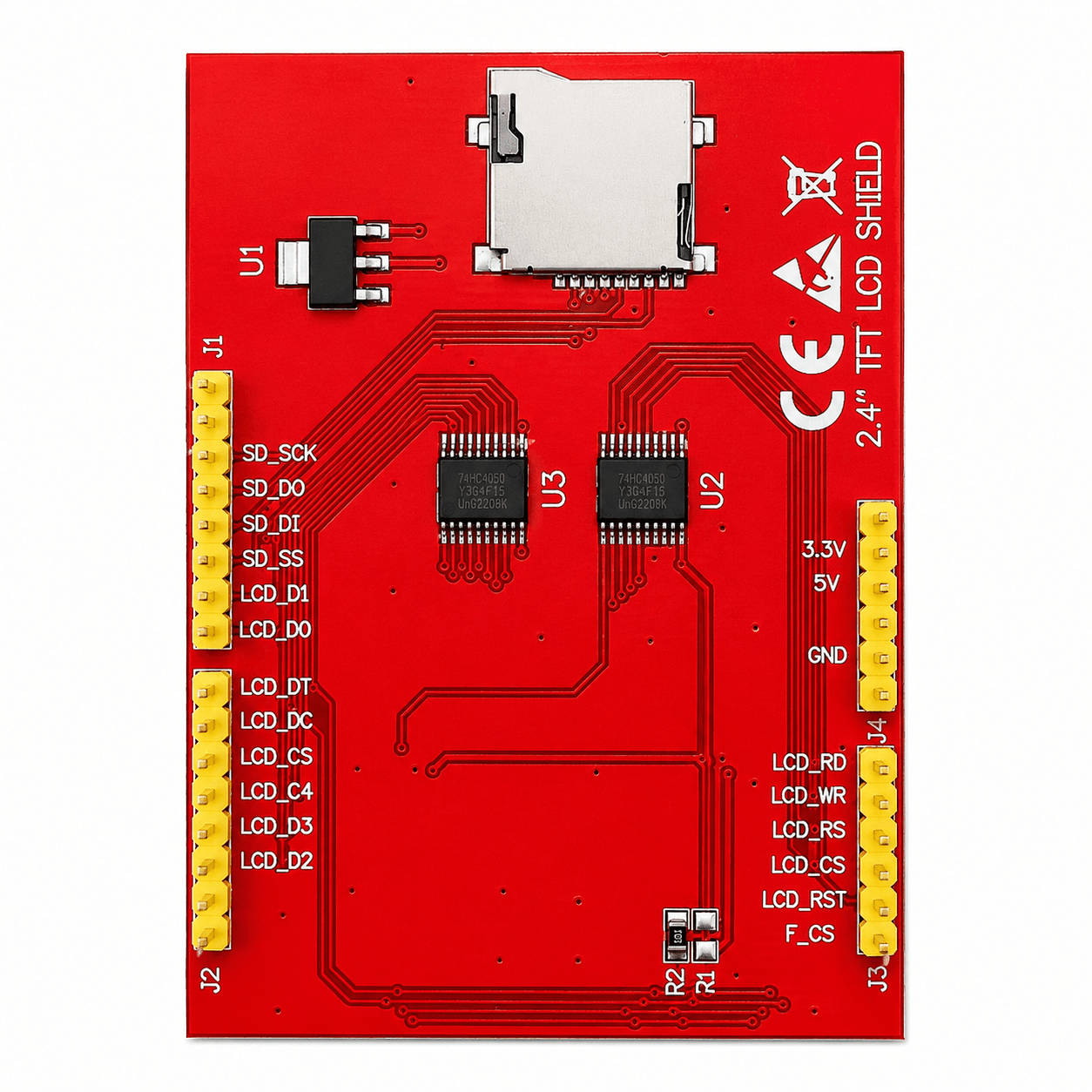

  • Built-in microSD card slot for image and data storage
  • Bright LED backlight
  • No external wiring required
  • Compatible with Arduino UNO and Mega 2560
  • Supported by MCUFRIEND_kbv, Adafruit GFX, and TFTLCD libraries
  • Suitable for graphics, text, images, and touch-based interfaces
  • Compact shield design
  • Easy integration into Arduino projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Display Type: TFT LCD Display Shield
Display Size: 2.4 Inch Diagonal
Resolution: 240 × 320 Pixels (QVGA)
Display Colors: 65K (16-bit RGB)
Touch Panel: 4-Wire Resistive (Model Dependent)
Display Driver IC: ILI9341 / HX8347 / Compatible (Variant Dependent)
Interface: 8-Bit Parallel Shield Interface
Operating Voltage: 5V DC
Logic Voltage: 5V Compatible
Backlight: White LED
Viewing Area: Approximately 36.7mm × 48.9mm
Orientation: Portrait and Landscape Supported
microSD Card Slot: Yes (Most Versions)
Communication: Parallel Bus
Refresh Rate: High-Speed Parallel Interface
Mounting Type: Arduino Shield (Direct Plug-in)
Compatible Boards: Arduino UNO, UNO R3 Compatible, Arduino Mega 2560 (Library Dependent)
Supported Libraries: MCUFRIEND_kbv, Adafruit GFX, TFTLCD Library
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C

Additional Resources

2.4inch TFT Display.PDF

FAQ

1. What is the Arduino 2.4 Inch TFT Display used for?

The display is used to create graphical user interfaces, display sensor data, build touchscreen control panels, develop robotics projects, and design embedded systems requiring a colorful visual interface.

2. Is the 2.4 Inch TFT Display compatible with Arduino UNO?

Yes. The display is designed as a shield that plugs directly onto Arduino UNO and UNO-compatible boards without requiring additional wiring. It is also compatible with Arduino Mega 2560 using supported libraries.

3. Does the display support touch input?

Most versions include a 4-wire resistive touchscreen, allowing users to create interactive menus, buttons, and touch-based interfaces. Some non-touch variants are also available, so it's important to verify the product version before purchase.

4. Can images be displayed from a memory card?

Yes. Most versions include a microSD card slot, enabling the display of bitmap images, icons, fonts, and other stored data directly from the memory card.

5. Which Arduino libraries support this TFT display?

The display is commonly supported by MCUFRIEND_kbv, Adafruit GFX, and TFTLCD libraries, making it easy to develop graphical applications with Arduino IDE.
