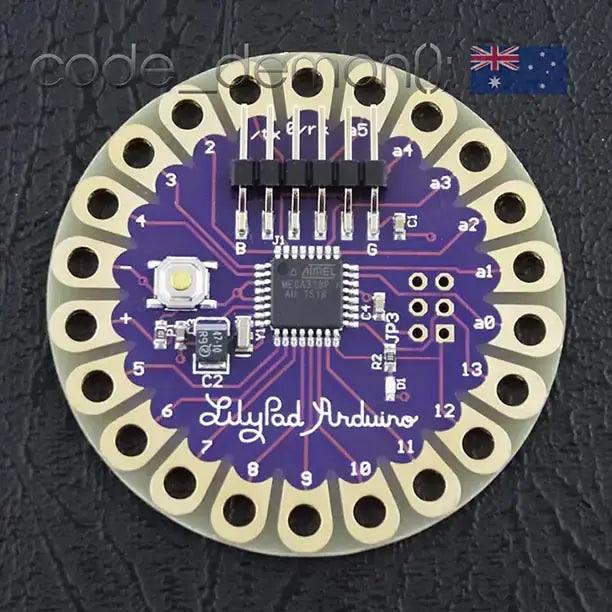

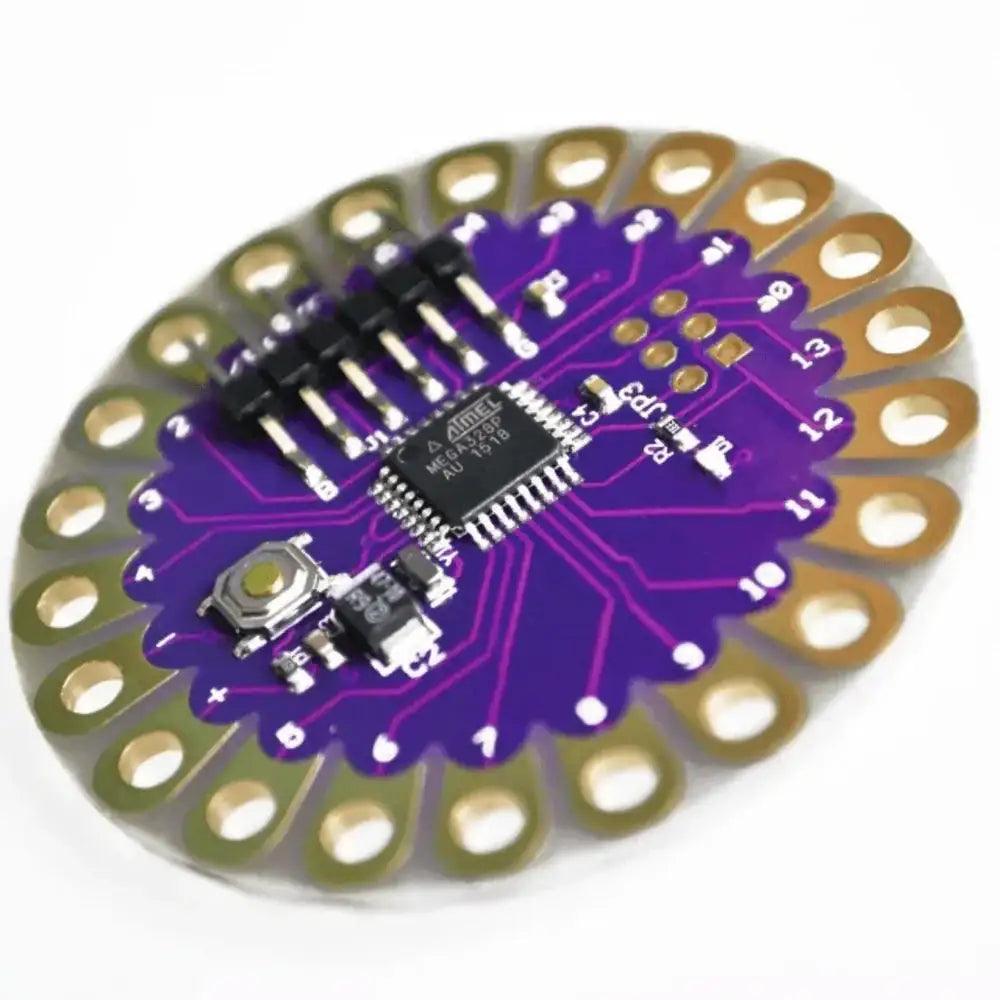

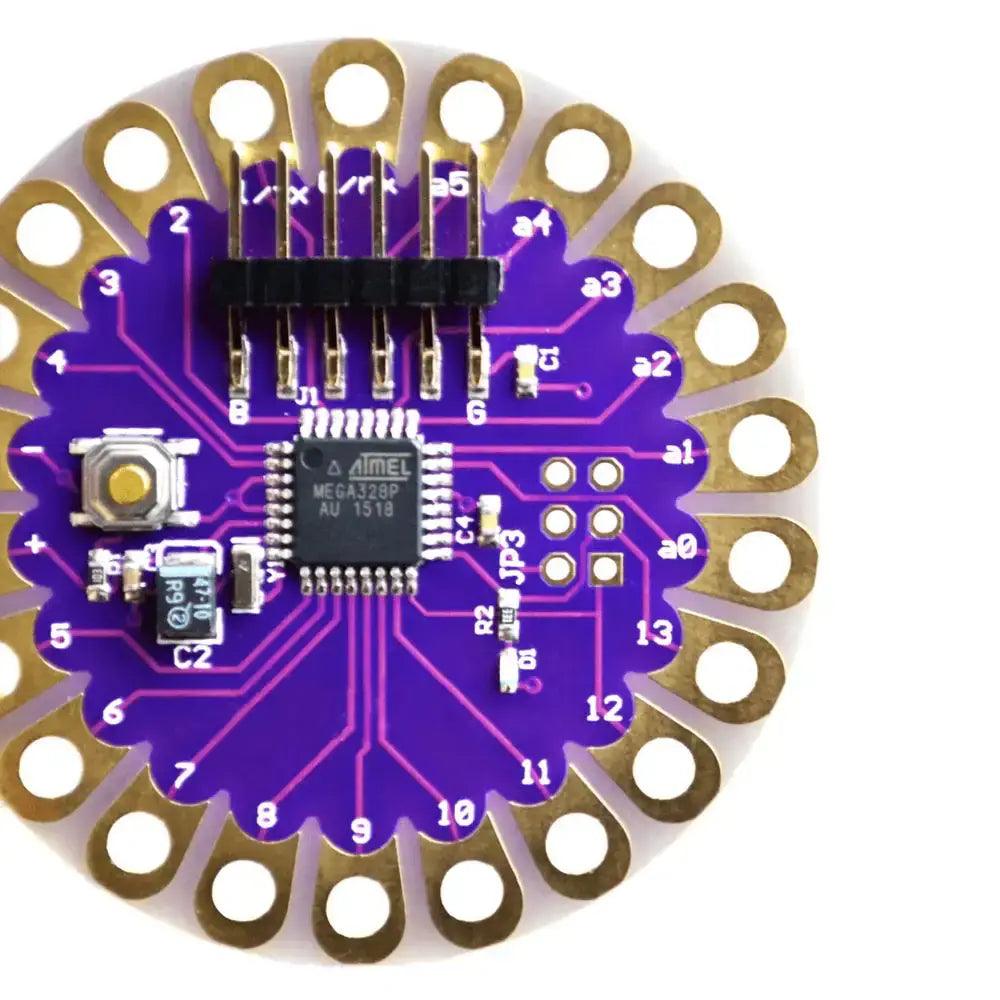

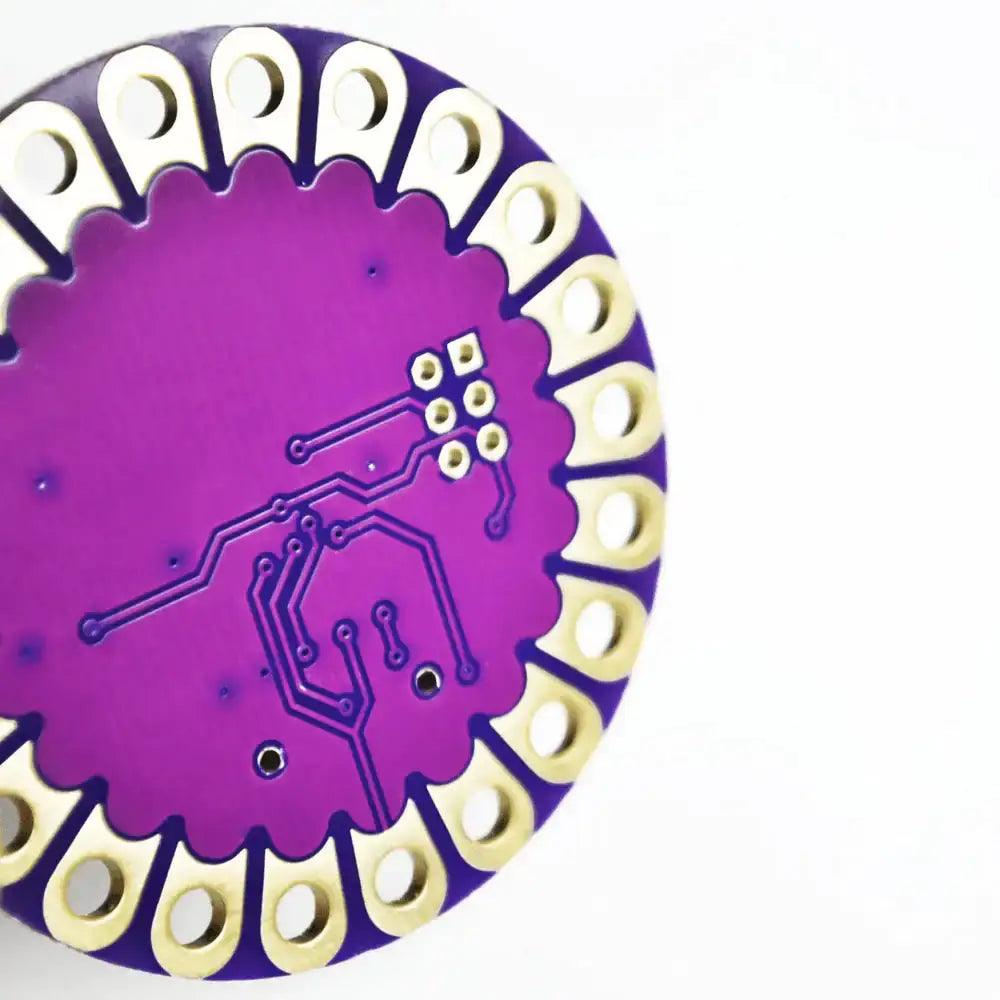

Arduino LilyPad ATmega328P compatible Board

SKU: PJDE8RTWDB
★★★★ ★ ★
4.5 (106 reviews)
The Arduino LilyPad ATmega328P Compatible Board is a lightweight, sewable microcontroller board specially designed for wearable electronics and e-textile projects. Based on the ATmega328P microcontroller, the LilyPad combines the flexibility of the Arduino platform with a unique circular design featuring large conductive sew tabs that can be stitched directly onto fabric using conductive thread. Operating at 8MHz and a voltage...
Rs. 439.00
Rs. 499.00 Rs. 439.00
Save Rs. 60 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The Arduino LilyPad ATmega328P Compatible Board is a lightweight, sewable microcontroller board specially designed for wearable electronics and e-textile projects. Based on the ATmega328P microcontroller, the LilyPad combines the flexibility of the Arduino platform with a unique circular design featuring large conductive sew tabs that can be stitched directly onto fabric using conductive thread.

Operating at 8MHz and a voltage range of 2.7V to 5.5V, the LilyPad is optimized for low-power battery-operated applications. It supports the Arduino IDE and can be programmed using an FTDI-compatible USB-to-Serial programmer. The board includes digital I/O, analog inputs, PWM outputs, UART, SPI, and I²C communication, making it suitable for interactive clothing, smart textiles, wearable sensors, LED displays, soft robotics, and educational STEM projects.

Its thin PCB, compact size, and washable design (after removing the power source) make the LilyPad an excellent choice for fashion technology, cosplay, wearable health monitoring, and creative electronic textile applications.

Key Features

  • Based on the ATmega328P microcontroller
  • Fully compatible with the Arduino IDE
  • Designed specifically for wearable electronics
  • Large sewable conductive connection pads
  • Lightweight circular PCB design
  • Operates at 8MHz for low-power applications
  • Wide operating voltage range
  • 14 digital I/O pins
  • 6 PWM output pins
  • 6 analog input channels
  • UART, SPI, and I²C communication support
  • Automatic reset support during programming
  • Low power consumption
  • Breadboard-free wearable design
  • Suitable for conductive thread connections
  • Washable after removing the power source
  • Ideal for e-textiles, fashion technology, and DIY projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Board Type: Arduino LilyPad Compatible Development Board
Microcontroller: ATmega328P
Architecture: 8-bit AVR RISC
Clock Speed: 8MHz
Operating Voltage: 2.7V to 5.5V DC
Input Voltage: 2.7V to 5.5V DC
Flash Memory: 32KB (Approximately 0.5KB Used by Bootloader)
SRAM: 2KB
EEPROM: 1KB
Digital I/O Pins: 14
PWM Channels: 6
Analog Input Channels: 6
ADC Resolution: 10-bit
UART Interfaces: 1
SPI Interface: 1
I²C (TWI) Interface: 1
External Interrupts: Supported
Programming Interface: FTDI USB-to-Serial Programmer / ICSP Header
Reset Function: Automatic Reset Supported
Operating Temperature: -40°C to +85°C
Board Diameter: Approximately 50mm
PCB Thickness: Approximately 0.8mm
Mounting Style: Sewable Circular PCB with Conductive Pads
Development Support: Arduino IDE, AVR-GCC, PlatformIO

Additional Resources

Arduino LilyPad ATmega328P.PDF

FAQ

1. What is the Arduino LilyPad ATmega328P Compatible Board used for?

The Arduino LilyPad is designed for wearable electronics and e-textile projects such as smart clothing, interactive garments, LED accessories, health monitoring devices, and textile-based embedded systems.

2. Can the LilyPad be programmed using the Arduino IDE?

Yes. The board is fully compatible with the Arduino IDE and can be programmed using an FTDI-compatible USB-to-Serial programmer or compatible programming interface.

3. What makes the LilyPad different from a standard Arduino Uno?

The LilyPad features a thin, circular PCB with large sewable conductive pads, allowing it to be stitched directly into fabric using conductive thread, making it ideal for wearable electronics.

4. How many input and output pins are available on the LilyPad?

The board provides 14 digital I/O pins (including 6 PWM outputs) and 6 analog input channels, offering ample connectivity for sensors, LEDs, switches, and other peripherals.

5. Can the Arduino LilyPad be washed after it is sewn into clothing?

Yes. The LilyPad is designed for wearable projects and can be hand washed after removing the battery or power source and allowing the board to dry completely before reuse.
