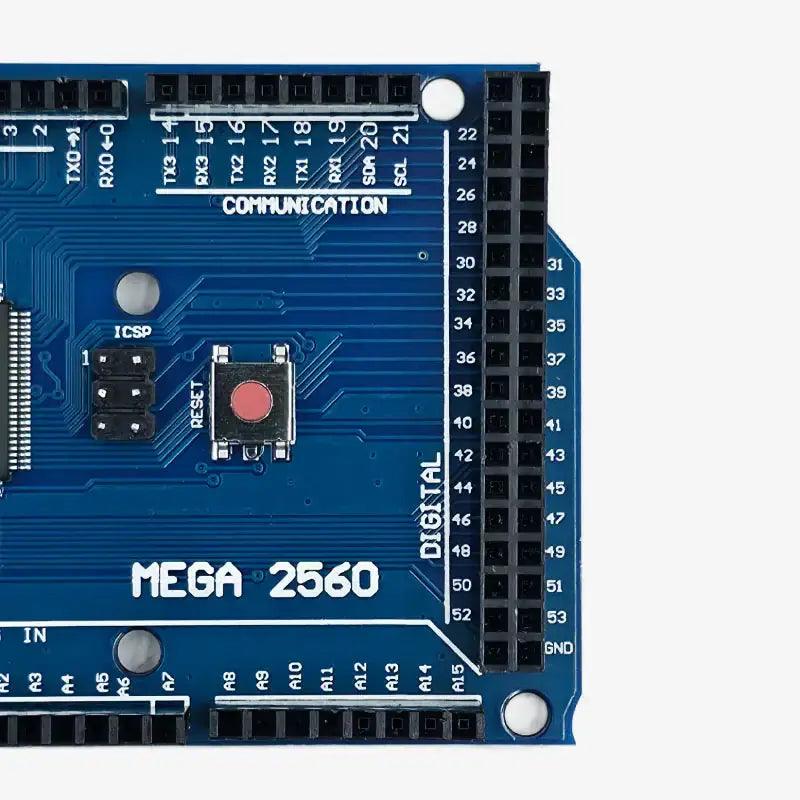

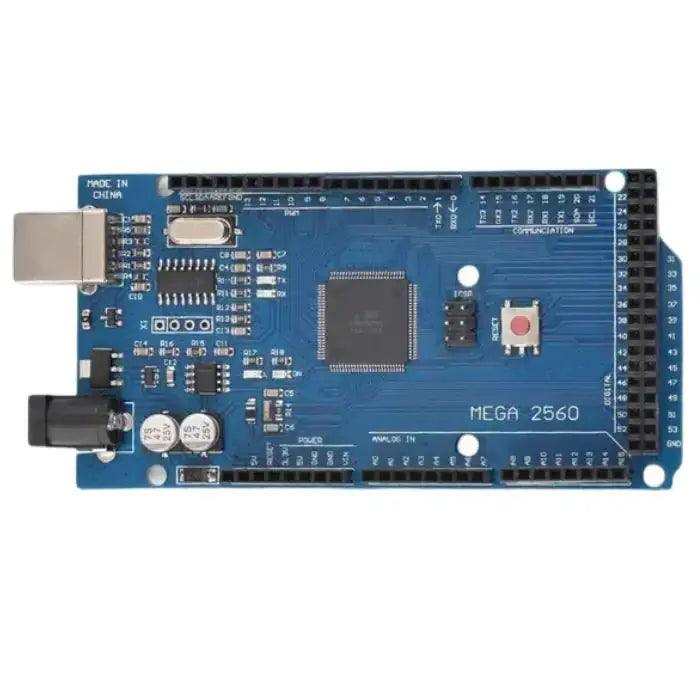

Arduino MEGA 2560 CH340 R3 Compatible Board

SKU: UBZH4J90HV
The Arduino Mega 2560 R3 is a powerful and feature-rich development board designed for electronics enthusiasts, students, and professionals. Built with premium quality and reliability, this board is powered by the ATmega2560 microcontroller and offers an impressive 54 digital I/O pins and 16 analog input pins, making it ideal for complex and large-scale projects. Suitable for beginners as well as...
Rs. 1,299.00
Rs. 1,399.00 Rs. 1,299.00
Save Rs. 100
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Microcontroller: ATmega2560
Operating Voltage: 5V
Recommended Input Voltage: 7V – 12V
Input Voltage Limits: 6V – 20V
Digital I/O Pins: 54 (including 15 PWM output pins
Analog Input Pins: 16
DC Current per I/O Pin: 20 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB (8 KB reserved for bootloader)
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
Built-in LED Pin: 13
Board Dimensions: 101.52 mm × 53.3 mm × 2 mm
Weight: 37 grams

Additional Resources

Arduino MEGA 2560.PDF

FAQ

1. What is the use of Arduino Mega 2560?

The Arduino Mega 2560 is ideal for projects that demand more input/output pins, larger program memory (sketch space), and higher RAM capacity. It features 54 digital I/O pins and 16 analog input pins, making it suitable for complex applications.

With its ability to handle multiple motors and numerous sensors simultaneously, the board is highly recommended for 3D printers, robotics, and advanced automation systems. It is perfect for projects that require several sensors and output devices working together.

2. Is Arduino Mega discontinued?

Yes, the original Arduino Mega has been discontinued. The Arduino Mega 2560 is the upgraded and improved version. It offers similar core functionality with enhanced features and improved performance compared to the earlier model.

3. How much voltage can Arduino Mega output?

The Arduino Mega provides:

  • One 3.3V output pin
  • Four 5V output pins

The board can be powered with an external supply of up to 12V (recommended limit) through the VIN or power jack. The 3.3V pin typically supports up to 50mA current output.

4. How much does an Arduino Mega 2560 cost?

In India, the price generally ranges as follows:

  • Original Arduino Mega 2560: Approximately ₹2,500 to ₹3,000
  • Clone versions: Around ₹1,500 to ₹2,000

Prices may vary depending on the seller and availability.

The Mega offers significantly more memory and I/O capability, making it better suited for large and complex projects. The Uno, on the other hand, is ideal for smaller projects and is more budget-friendly.
In summary, use the Arduino Uno for simple applications and the Arduino Mega 2560 for advanced projects requiring more pins, memory, and expandability.

View full product details

The Arduino Mega 2560 R3 is a powerful and feature-rich development board designed for electronics enthusiasts, students, and professionals.

Built with premium quality and reliability, this board is powered by the ATmega2560 microcontroller and offers an impressive 54 digital I/O pins and 16 analog input pins, making it ideal for complex and large-scale projects.

Suitable for beginners as well as advanced users, the Arduino Mega 2560 R3 encourages creativity, experimentation, and innovation. It is widely used in robotics, automation, IoT, and various embedded system applications.

The board can be powered either through a USB connection or an external power supply, with automatic power source selection. External power can be supplied using a battery or an AC-to-DC adapter connected via a 2.1mm center-positive plug to the power jack.

As part of the Android Accessory Development Kit (ADK), the Arduino Mega R3 can function as a USB host. When connected to a smartphone, the phone may draw power for charging. If powered via USB, up to 500mA total current is available for both the board and the connected device.

Engineered to support a broad range of applications, the Arduino Mega 2560 R3 is an essential tool for anyone seeking versatility and performance in their electronics projects.

Key Features of the Arduino Mega 2560 R3

  • 1.0 pinout with additional SDA and SCL pins located near the AREF pin

  • Two additional pins positioned near the RESET pin

  • Supports shields that adapt to the operating voltage of the board

  • Improved and more robust RESET circuit

  • Battery leads can be connected directly to the GND and Vin pins on the POWER header

Applications

  • Developing robotics projects

  • Designing home and industrial automation systems

  • Ideal for Internet of Things (IoT) applications

  • Collecting data from sensors and input devices

  • Prototyping advanced electronic circuits

  • Teaching electronics, programming, and engineering fundamentals

  • Controlling lighting systems, appliances, and security devices

The Arduino Mega 2560 R3 combines performance, flexibility, and expandability, making it a dependable choice for a wide range of innovative projects.
