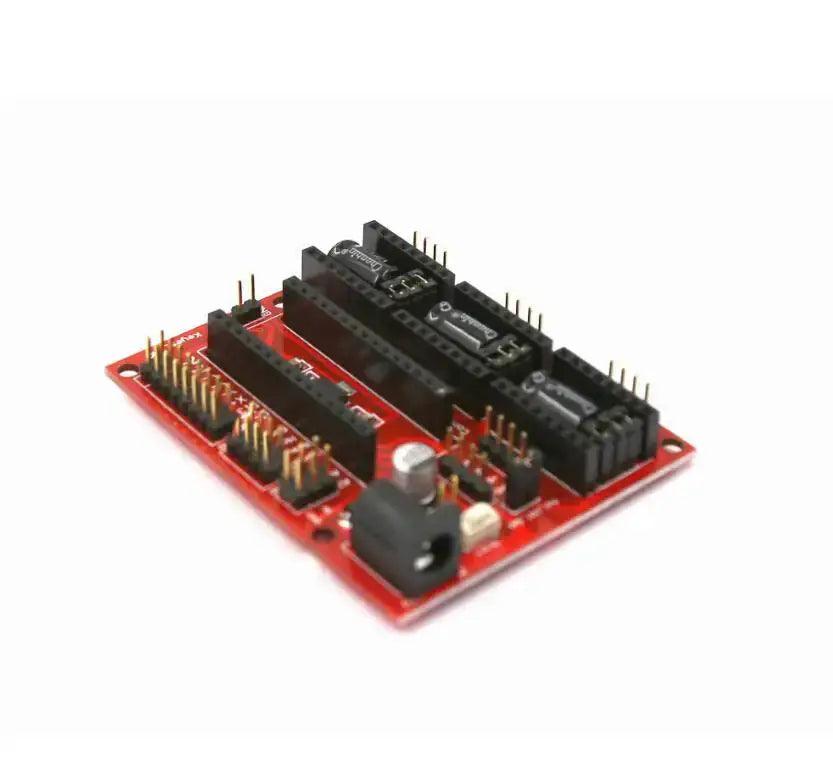

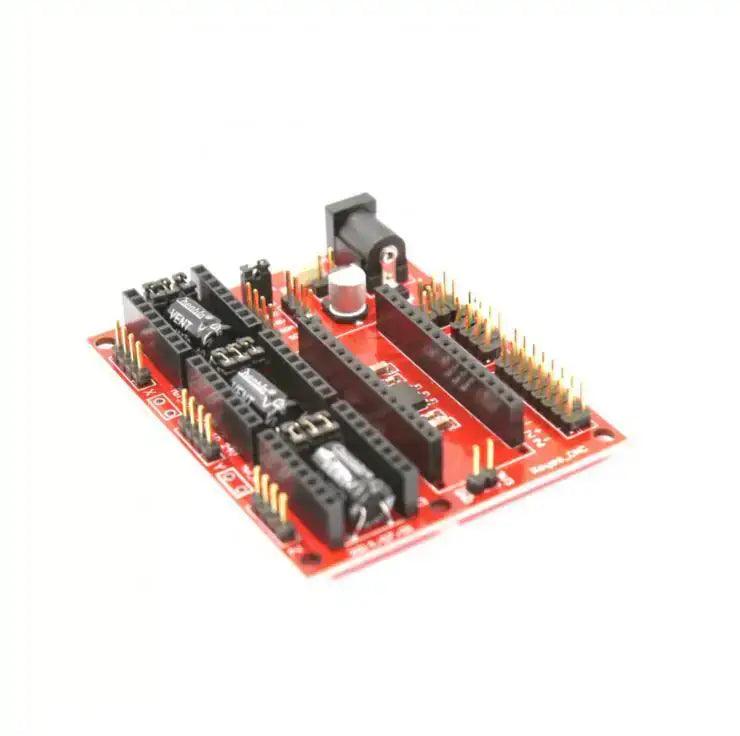

Arduino Nano 3D Printer CNC Shield V4 Expansion Board

SKU: X434Y3T1VA
★★★★ ★ ★
4.9 (86 reviews)
The CNC Shield V4 is designed to operate with the Arduino Nano board. It serves as a driver expansion board for CNC engraving machines and 3D printers. The shield features three dedicated slots for A4988 stepper motor driver modules (drivers not included), allowing control of up to three stepper motors. Each stepper motor channel requires only two I/O pins, meaning...
Rs. 179.00
Rs. 219.00 Rs. 179.00
Save Rs. 40 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The CNC Shield V4 is designed to operate with the Arduino Nano board. It serves as a driver expansion board for CNC engraving machines and 3D printers. The shield features three dedicated slots for A4988 stepper motor driver modules (drivers not included), allowing control of up to three stepper motors.

Each stepper motor channel requires only two I/O pins, meaning a total of six I/O pins is enough to control all three motors. This makes the CNC Shield V4 a simple and efficient solution for managing multiple stepper motors in your project.



Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Input Supply Voltage (V): 5V to 12V
Number of Driver Slots: Up to 3 stepper driver modules
Compatibility: Arduino Nano boards
Dimensions: 7.3 × 5.9 × 1.2 cm
Weight: 15 grams

Additional Resources

Arduino Nano 3D Printer.PDF

FAQ

1. What is CNC shield expansion board?

A CNC Shield Expansion Board is an electronic device that allows you to build an engraving machine, 3D printer, mini CNC, and other similar devices using your Arduino nano. It is designed as a shield and can plug on top of an Arduino, requiring no external connections and wiring. The CNC Shield V4.0 has four slots on the board for plugging in a stepper motor drive module, which can drive one stepper motor each.

2. What is the CNC Shield V4?

The CNC Shield V4 is an expansion board for the Arduino Nano that allows you to control stepper motors for CNC machines, laser engravers, and small 3D printers.

3. Which board is compatible with this shield?

It is designed to work with Arduino Nano (ATmega328-based) boards.

4. How many stepper motors can it control?

It can control up to 3 stepper motors (X, Y, and Z axis).

5. Which stepper motor drivers are supported?

It supports A4988 and DRV8825 stepper motor driver modules.
