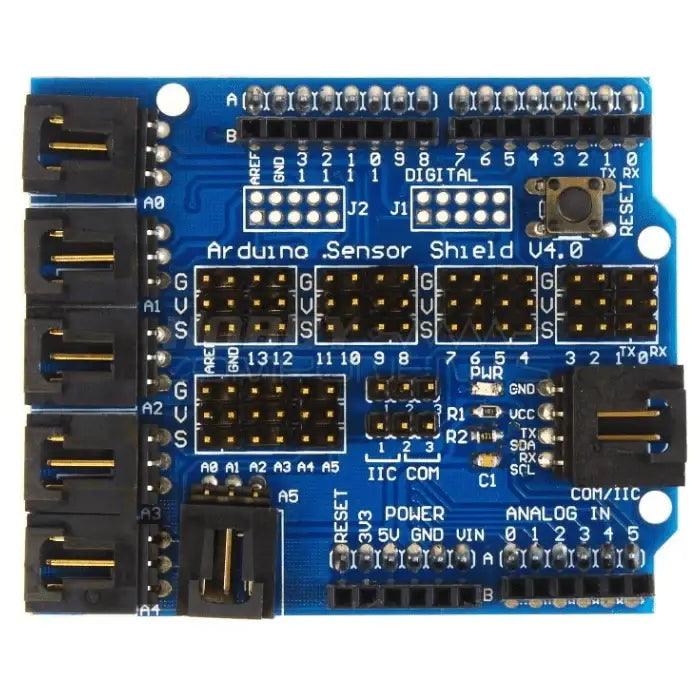

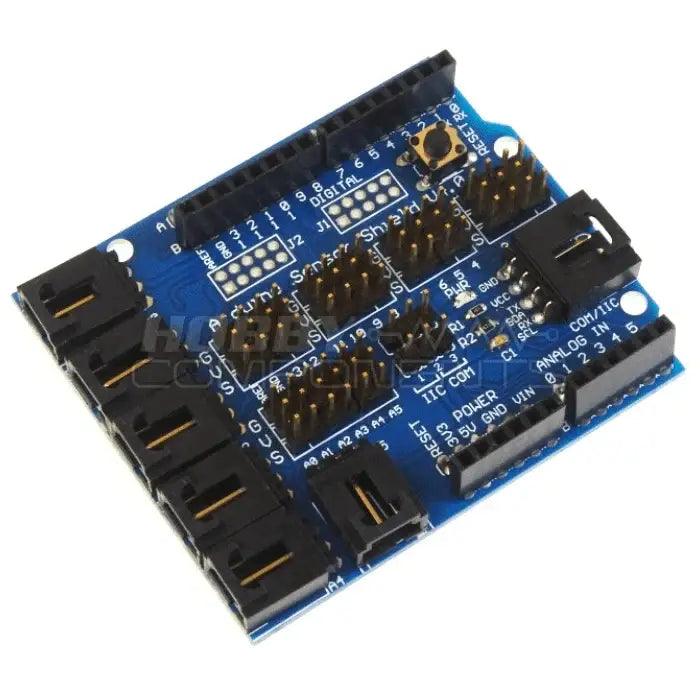

Arduino Sensor Shield V4.0 Expansion Board

SKU: JAQF4WBVM4
The Sensor Shield V4.0 is a compact expansion board that enhances the functionality of popular Arduino microcontrollers such as the Uno, Leonardo, and Mega. It allows users to conveniently connect and operate various electronic modules, including environmental sensors, servo motors, relays for high-voltage switching, push buttons for input controls, and potentiometers for adjusting analog signals. One of the key advantages...
Rs. 179.00
Rs. 199.00 Rs. 179.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Operating Voltage: 5V DC
Recommended Input Voltage: 7–12V DC
Input Voltage Range (Limits): 6–20V DC
Weight: 25 grams

Additional Resources

Sensor Shield V4.0.PDF

FAQ

1. What is the Arduino Sensor Shield V4.0?

The Sensor Shield V4.0 is an expansion board designed to simplify connections between an Arduino board and various sensors, servos, and modules. It provides organized 3-pin (VCC, GND, Signal) headers for easy plug-and-play usage.

2. Does the shield require additional programming?

No. The shield itself does not require any special programming. It simply makes wiring easier. You program your Arduino normally using the Arduino IDE.

3. Does it support I2C communication?

Yes. The shield includes a dedicated communication interface that supports I2C and UART, depending on configuration.

4. Can I power multiple servos using this shield?

Yes, but it is recommended to use an external power supply when running multiple servos, as high current draw may damage the Arduino’s onboard regulator.

5. Is external power supply required?

For small sensors, Arduino power is sufficient. For motors, servos, or relays, an external power source is strongly recommended.

View full product details

The Sensor Shield V4.0 is a compact expansion board that enhances the functionality of popular Arduino microcontrollers such as the Uno, Leonardo, and Mega. It allows users to conveniently connect and operate various electronic modules, including environmental sensors, servo motors, relays for high-voltage switching, push buttons for input controls, and potentiometers for adjusting analog signals.

One of the key advantages of this shield is its plug-and-play design. It connects directly to the Arduino board without complicated wiring or additional programming, making it perfect for beginners, students, hobbyists, and professionals working on electronics projects. The Sensor Shield V4.0 supports both digital and analog module expansion, providing flexibility for a wide variety of applications.

Features

  • Standard shield design compatible with Arduino and Arduino-compatible microcontroller boards

  • Analog and Digital input pins with VCC and GND provided

  • 13 Digital I/O ports ready for digital modules or servo connections

  • 6 Analog I/O ports prepared for analog sensor inputs

  • Dedicated communication port selectable between I2C and UART
