Arduino UNO Prototyping Shield

SKU: P3H8YA996U
★★★★ ★ ★
4.7 (92 reviews)
The UNO Prototype Shield is ideal for projects where you want to develop additional circuits without using an external breadboard. This Arduino-compatible prototyping shield expands the capabilities of the UNO board by providing extra connection points, making it perfect for embedded system development and custom circuit building. The UNO Prototyping Shield features two onboard LEDs and a built-in reset switch...
Rs. 159.00
Rs. 189.00 Rs. 159.00
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The UNO Prototype Shield is ideal for projects where you want to develop additional circuits without using an external breadboard. This Arduino-compatible prototyping shield expands the capabilities of the UNO board by providing extra connection points, making it perfect for embedded system development and custom circuit building.

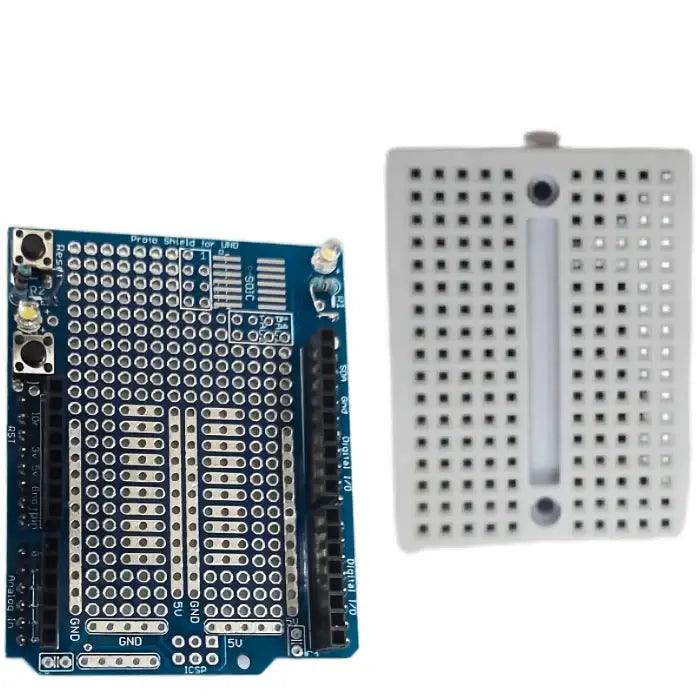

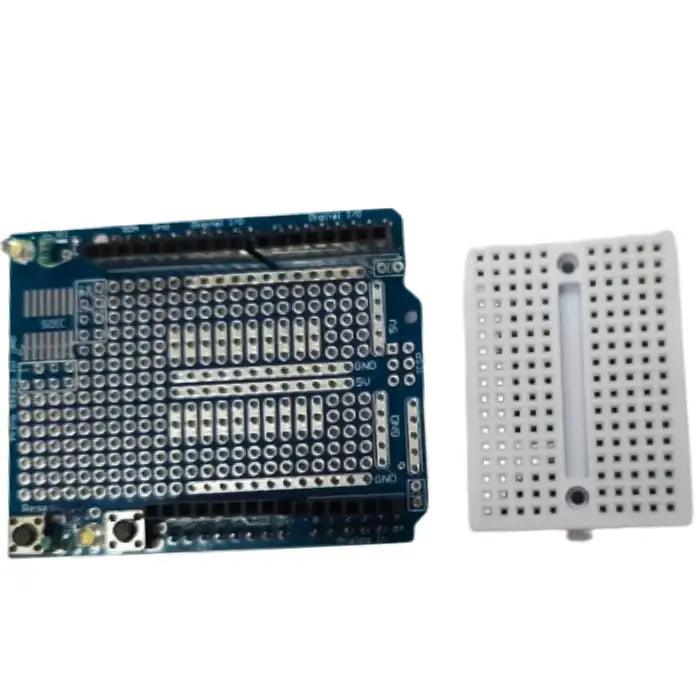

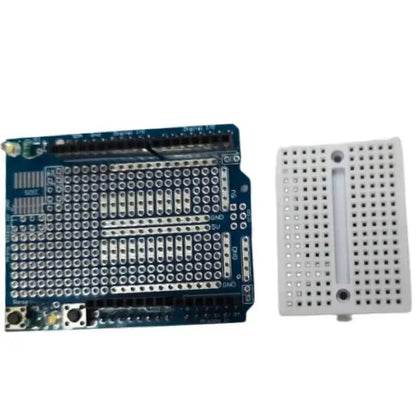

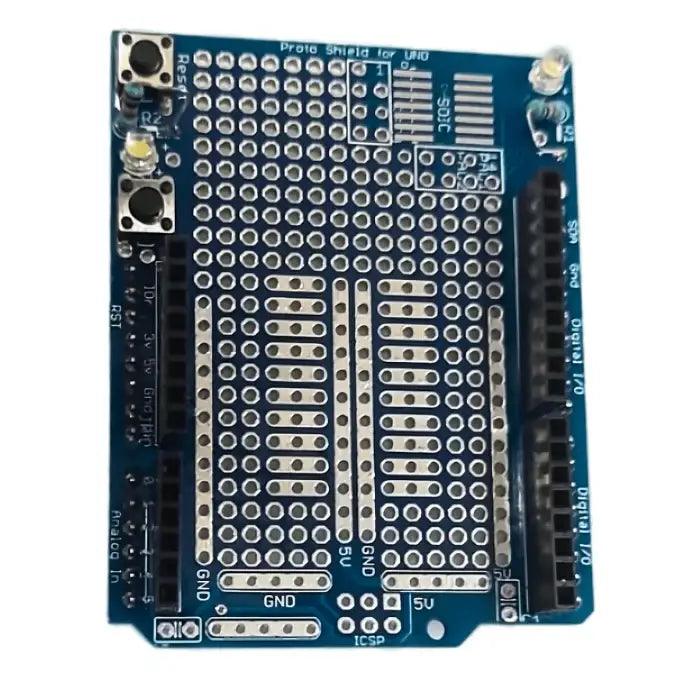

The UNO Prototyping Shield features two onboard LEDs and a built-in reset switch for convenient testing and control. It also includes a dedicated switch connected to an interrupt pin for advanced project applications. The shield is equipped with stackable headers, allowing additional shields to be mounted on top without losing functionality. A small 10 × 17 hole mini breadboard is included for quick prototyping, along with a general-purpose area that supports both DIP and SMD SOIC components, making it highly versatile for circuit development.

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Prototyping Shield
Compatibility: Designed for UNO boards compatible with Arduino
Mini Breadboard: Included
Dimensions: 5 × 4 × 1 cm
Weight: 15 grams

Additional Resources

Data Logger Shield.PDF

FAQ

1. What does Arduino prototype shield do?

An Arduino prototype shield is an expansion board that can be plugged into an Arduino microcontroller board to provide a prototyping area for building custom circuits. The shield typically includes a solderless breadboard and a set of input/output pins that are connected to the Arduino's pins, making it easy to build and test custom circuits without needing to solder any components.

The prototype shield is useful for experimenting with new circuit designs, testing sensor inputs, and developing custom projects that require additional electronic components. It can be used in combination with other Arduino shields to build more complex projects, or it can be used on its own to build simple circuits.

2. What is the Arduino UNO Prototyping Shield?

The Arduino UNO Prototyping Shield is an expansion board designed for the Arduino UNO that allows you to build and test custom circuits directly on top of the board without using an external breadboard.

3. Is it compatible with all Arduino boards?

It is specifically designed for the Arduino UNO and other UNO-compatible boards with the same pin layout.

4. Does it include a breadboard?

Yes, it comes with a small detachable mini breadboard (10 × 17 holes) for quick, solderless prototyping.

5. Does the shield have onboard LEDs?

Yes, it includes two onboard LEDs that can be used for testing, debugging, or status indication.
