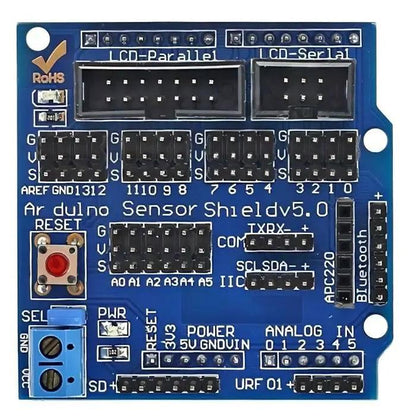

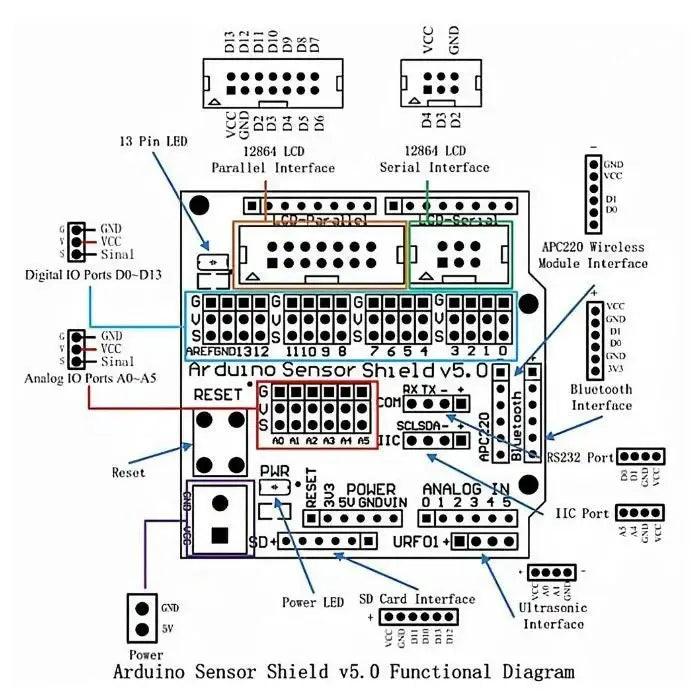

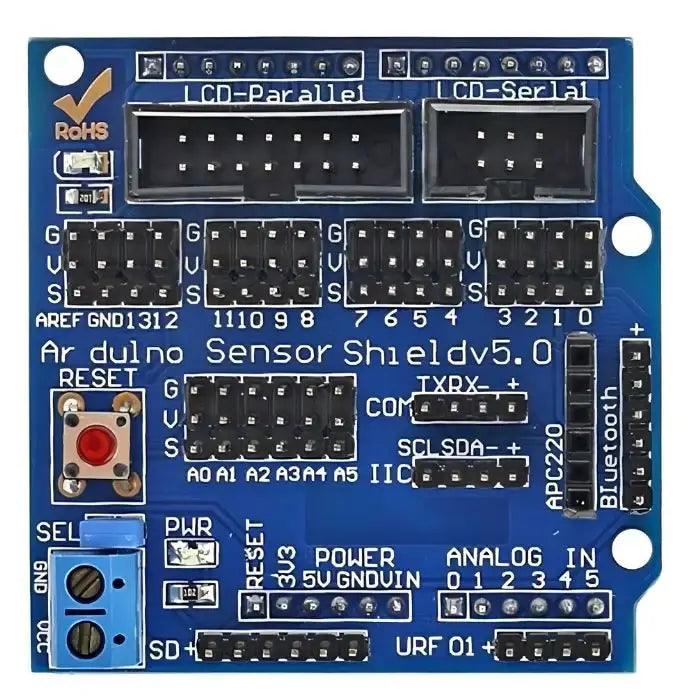

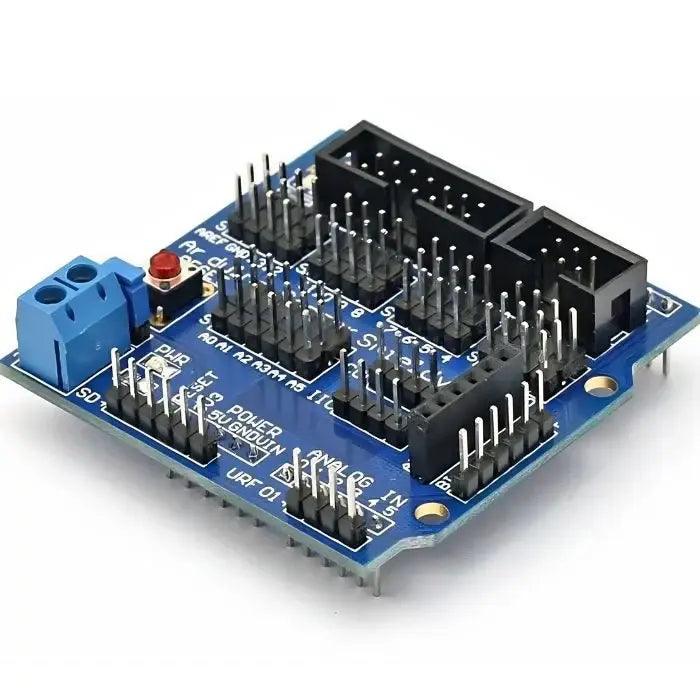

Specifications:

Compatibility: Designed for Arduino UNO boards
Interface: I2C (IIC)
Communication Support: Bluetooth module and SD card interface

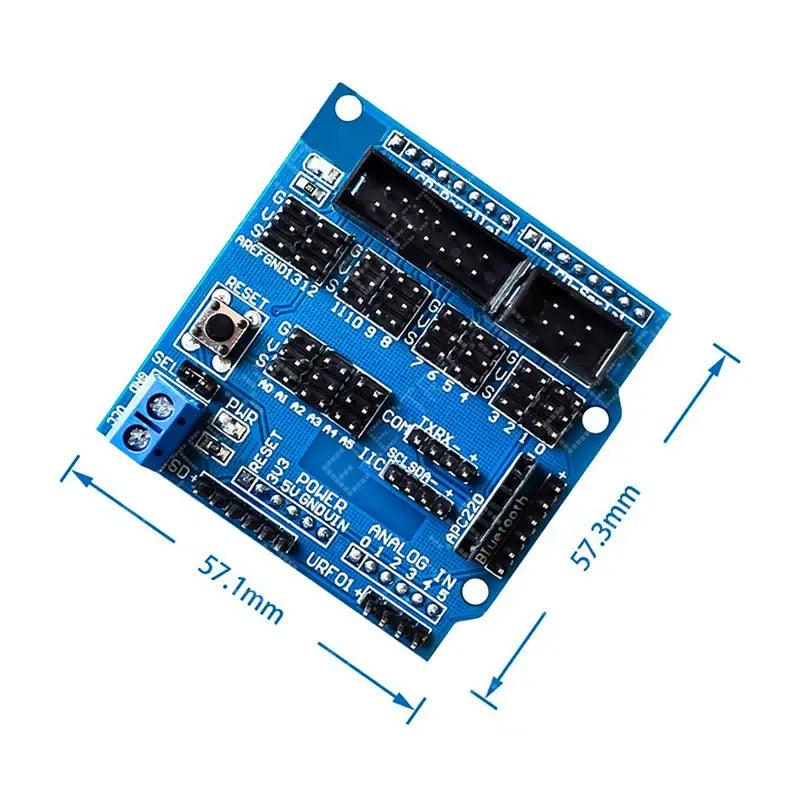

RF Module Support: APC220 wireless moduleDimensions: 5 × 4 × 1 cm
Weight: 15 grams

1. What is Arduino sensor shield?

An Arduino sensor shield is a type of expansion board for the Arduino microcontroller that allows you to easily connect sensors and other electronic components to your Arduino project. The shield typically includes a variety of input and output pins that can be used to interface with sensors, motors, and other devices. There are many different types of Arduino sensor shields available, each designed for specific types of projects or applications. Some sensor shields are designed to interface with specific types of sensors, such as temperature or humidity sensors, while others are more general-purpose and can be used with a wide range of sensors and devices. Sensor shields can be a convenient and easy-to-use way to add sensing capabilities to your Arduino projects. They allow you to easily connect sensors and other electronic components to your Arduino without having to solder or use breadboards. With a sensor shield, you can quickly prototype and test your project ideas without having to spend a lot of time on wiring and connections.

2. Why do we need Arduino shield?

There are several reasons why you might want to use an Arduino shield in your project:

Convenience: Arduino shields make it easy to connect sensors, motors, and other electronic components to your Arduino without having to spend a lot of time on wiring and connections. This can be especially useful if you are new to electronics and want to get up and running quickly.

Compatibility: Arduino shields are designed to be compatible with the Arduino microcontroller, which means they will work with a wide range of Arduino boards and projects. This can be especially useful if you are using multiple Arduino boards or if you are working on a project that requires a specific type of shield.

Functionality: Arduino shields can add a wide range of functionality to your Arduino projects. For example, you can use a sensor shield to connect temperature, humidity, or other types of sensors to your Arduino, or use a motor shield to control motors or other actuators.

Customization: Arduino shields can be customized to meet your specific project needs. You can use multiple shields together to create a more complex system, or use a combination of different shields to add more functionality to your project.

3. What makes V5 different from earlier versions?

Version 5 offers improved PCB quality, immersion gold finishing, additional communication interfaces, and better-organized pin layouts for stable and professional connections.

4. Does this shield require soldering?

No. The board is ready to use. Simply plug it onto the Arduino UNO and connect modules using 2.54mm jumper cables.

5. Can I power multiple servos directly from the shield?

While the shield provides servo ports, it is recommended to use an external power supply when operating multiple servos to avoid overloading the Arduino’s 5V regulator.
