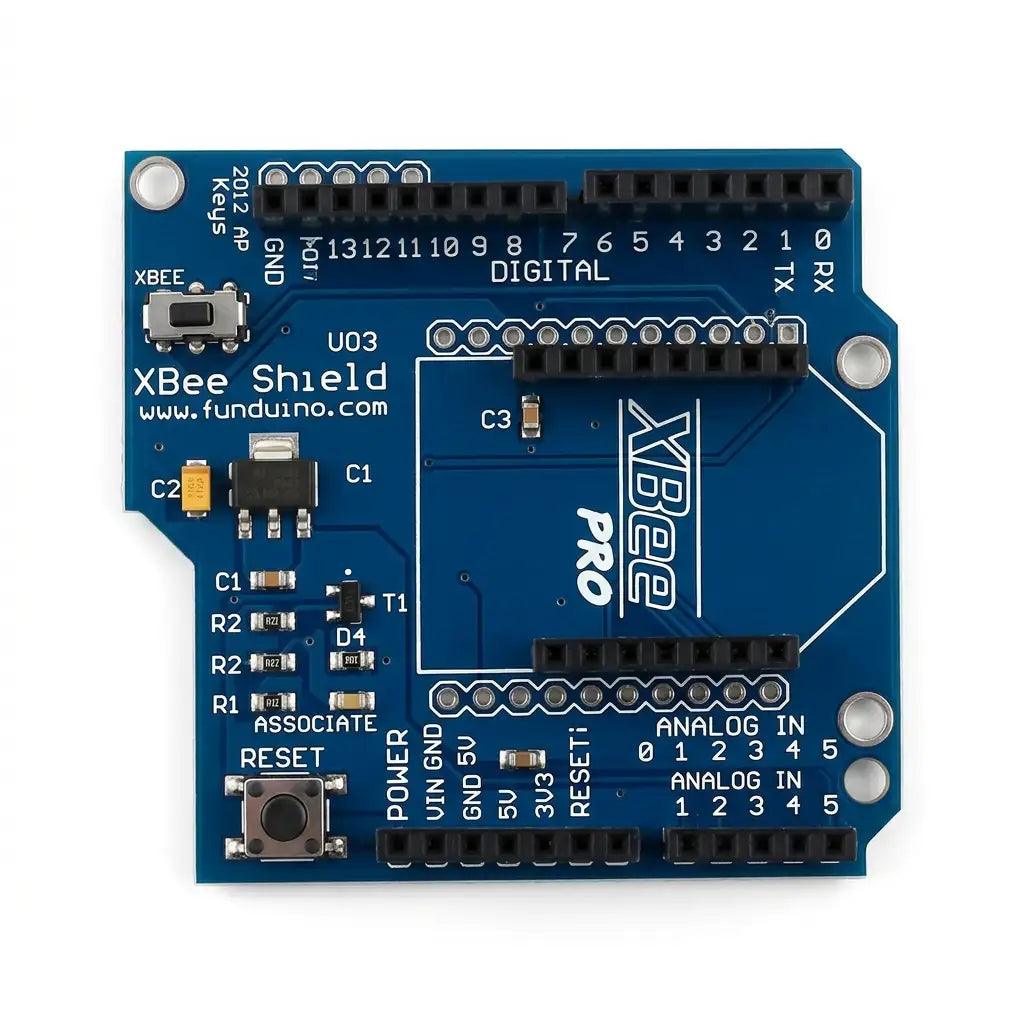

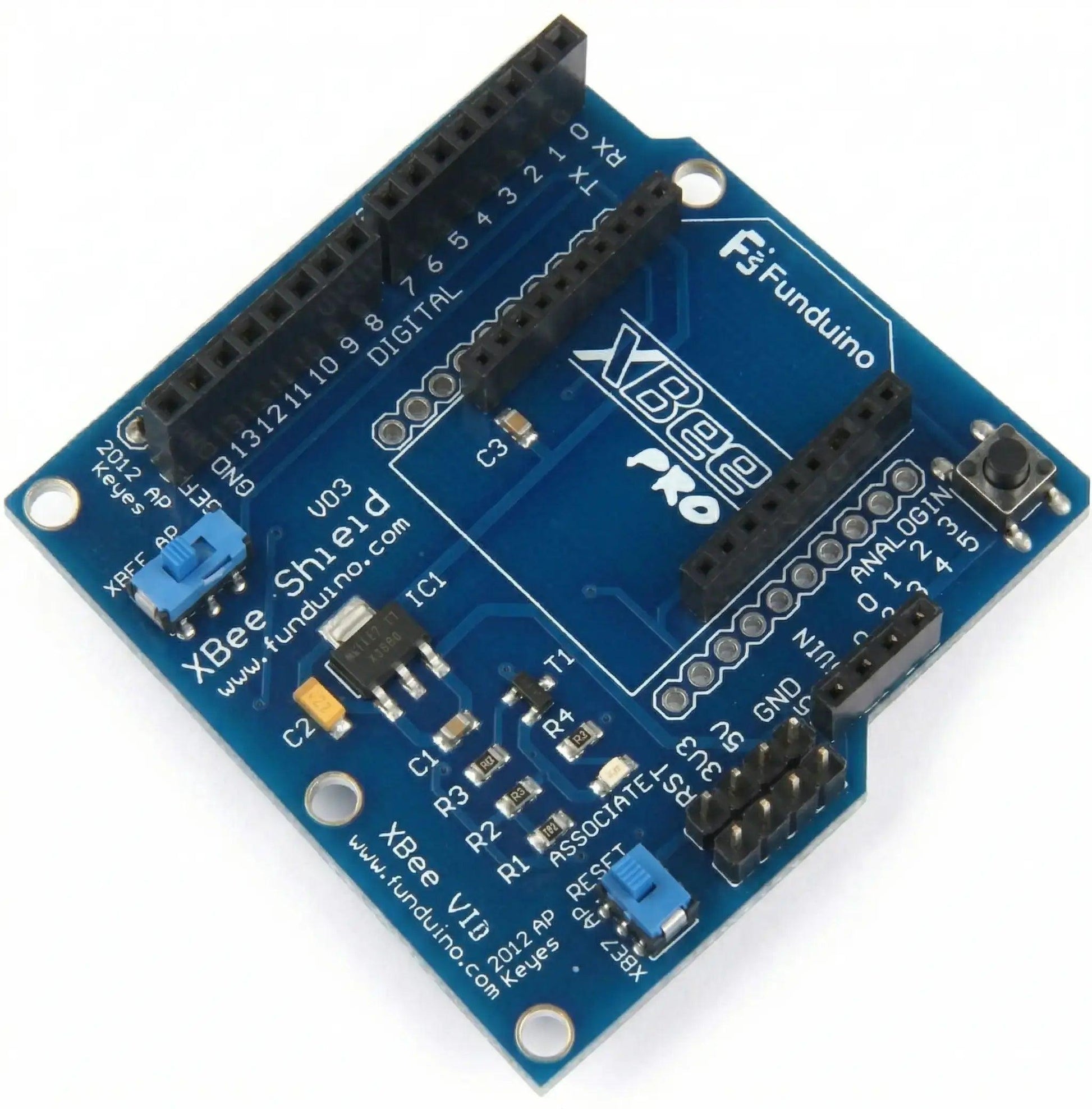

Arduino xBee Shield

SKU: VVKXZT32F1
XBee shield modules are ideal for long-range wireless communication and building advanced mesh networks. However, integrating them into projects can be challenging due to their unique pin spacing, voltage regulation needs, and level shifting requirements. This shield eliminates those difficulties and makes using XBee modules simple and almost plug-and-play. With this shield, you just need to insert the XBee module...
Rs. 189.00
Rs. 249.00 Rs. 189.00
Save Rs. 60
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Power Output: 3.3V and 5V
I/O Compatibility: Supports both 3.3V and 5V logic levels
USB Interface: USB 2.0 protocol
Dimensions: 5 × 3 cm
Weight: 15 grams

Additional Resources

Arduino xBee.PDF

FAQ

1. What does an XBee shield do?

The XBee shield is an add-on board tailored to Arduino microcontrollers. Its primary purpose is to allow wireless communication between the Arduino and other devices via the XBee radio module. The shield accommodates the XBee module through a socket and conveniently exposes the essential Arduino pins for easy connectivity. As a result, the Arduino can seamlessly establish a wireless connection with other gadgets such as sensors, Arduinos, or a computer. Generally, the XBee shield is a popular component in projects requiring wireless communication and remote control.

2. What is the difference between Zigbee and XBee?

Zigbee and XBee are two distinct entities, although they share a connection.

Zigbee is a wireless communication protocol that utilizes low-power digital radio signals to establish connections between devices over small distances. Its primary purpose is to facilitate low data rates and conserve energy, making it particularly suitable for domains such as home automation, industrial control, and healthcare.

XBee, conversely, is a trademarked collection of wireless communication modules that utilize the Zigbee protocol. These modules are produced by Digi International and are extensively utilized in wireless sensor networks, industrial control systems, and other domains that necessitate dependable wireless communication.

3. How does XBee communicate?

The mode of communication adopted by XBee is the Zigbee protocol, which is a wireless communication protocol that uses low-power digital radio signals to connect devices situated in close proximity.

The XBee module is equipped with a radio transceiver that facilitates the transmission and reception of data wirelessly by employing the Zigbee protocol. Furthermore, the module communicates with other devices using a unique address, which enables it to establish a wireless connection with other devices that share the same address.

In the course of transmitting data, the XBee module dispatches a packet of information that encapsulates the destination address, source address, and the data payload. After that, the packet is transmitted wirelessly by utilizing the Zigbee protocol. In the event of receiving data, the XBee module monitors for incoming packets and leverages the destination address to decipher whether the packet is targeted towards it. If the packet is intended for the XBee module, it extracts the data payload and forwards it to the microcontroller or computer that is attached to it.

 4.What is the Arduino XBee Shield?

The Arduino XBee Shield is an expansion board that allows you to easily connect XBee wireless modules to Arduino-compatible boards for wireless communication.

5.Arduino boards are compatible with this shield?

It is commonly designed for Arduino UNO and other UNO-compatible boards with the same pin layout.

View full product details

XBee shield modules are ideal for long-range wireless communication and building advanced mesh networks. However, integrating them into projects can be challenging due to their unique pin spacing, voltage regulation needs, and level shifting requirements. This shield eliminates those difficulties and makes using XBee modules simple and almost plug-and-play.

With this shield, you just need to insert the XBee module into the provided socket and mount the shield onto your Arduino UNO compatible board. No additional circuits or wiring are required, allowing you to quickly start working with your XBee module.

The XBee Shield enables Arduino-compatible boards to communicate wirelessly using Zigbee technology. It supports all XBee modules, including Zigbee Series 1, Zigbee Series 2, XBee Pro versions, and even Bluetooth Bee modules.

An onboard slide switch allows you to route the XBee DIN and DOUT pins either to the Arduino microcontroller or to the USB interface. This lets you communicate directly with the Arduino or connect to a computer to configure and program the XBee module using XCTU software.

Features:

  • Enables easy use of XBee modules with Arduino-compatible boards without extra components

  • Provides a simple plug-and-play interface

  • Compatible with all XBee modules

  • Supports Bluetooth Bee modules

You can also explore the XBee USB Explorer, a convenient board designed to connect XBee modules directly to a computer. It features an FT231X USB-to-Serial converter for smooth communication between the PC and the XBee module. The board includes four indicator LEDs (RX, TX, RSSI, and Power), a reset button, and breadboard-friendly headers for easy prototyping.
