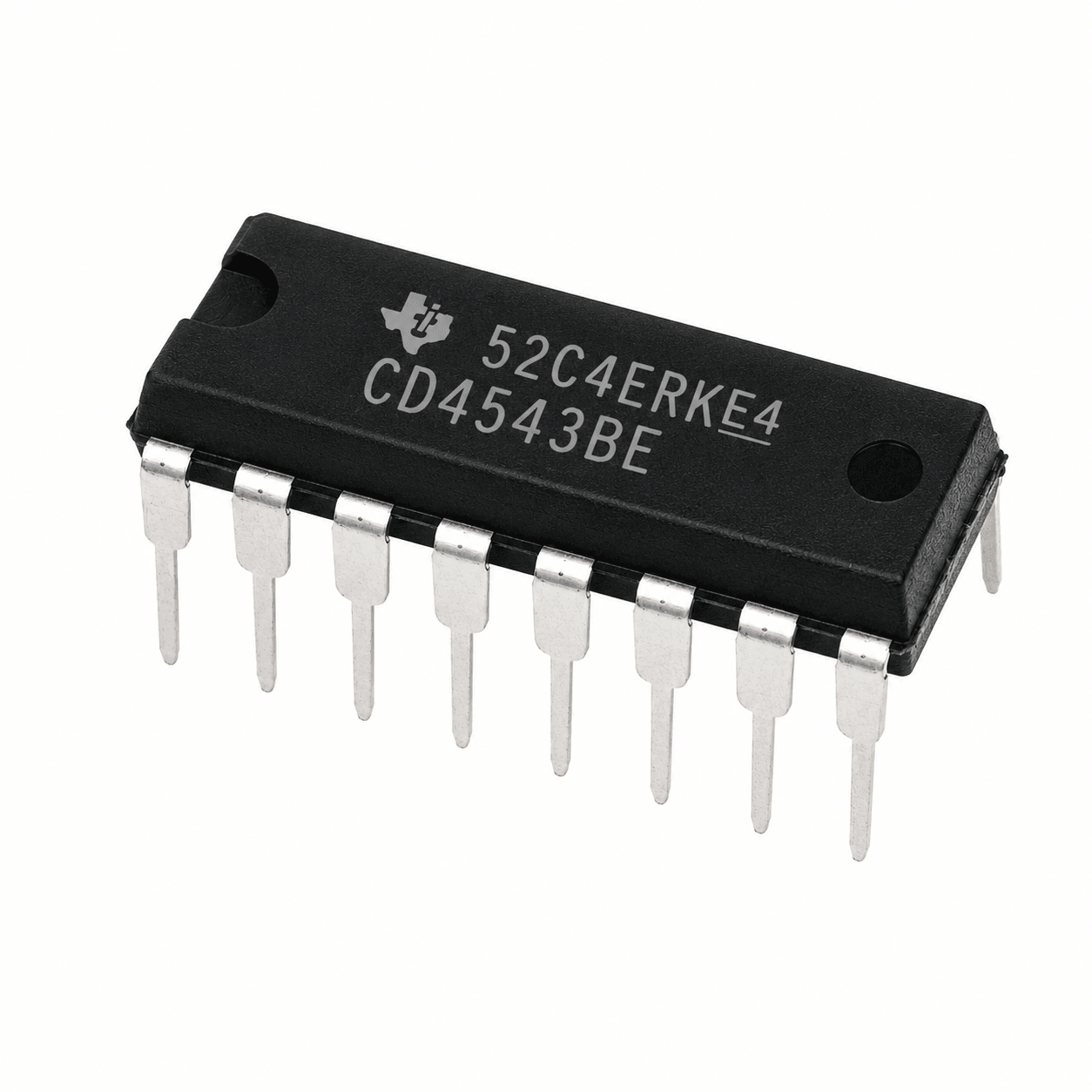

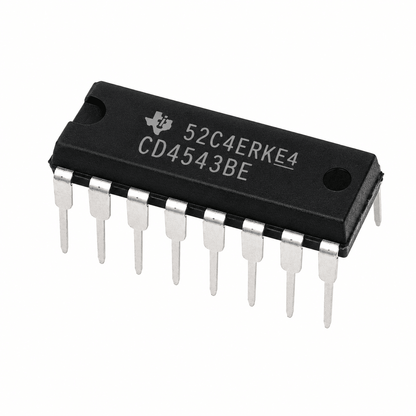

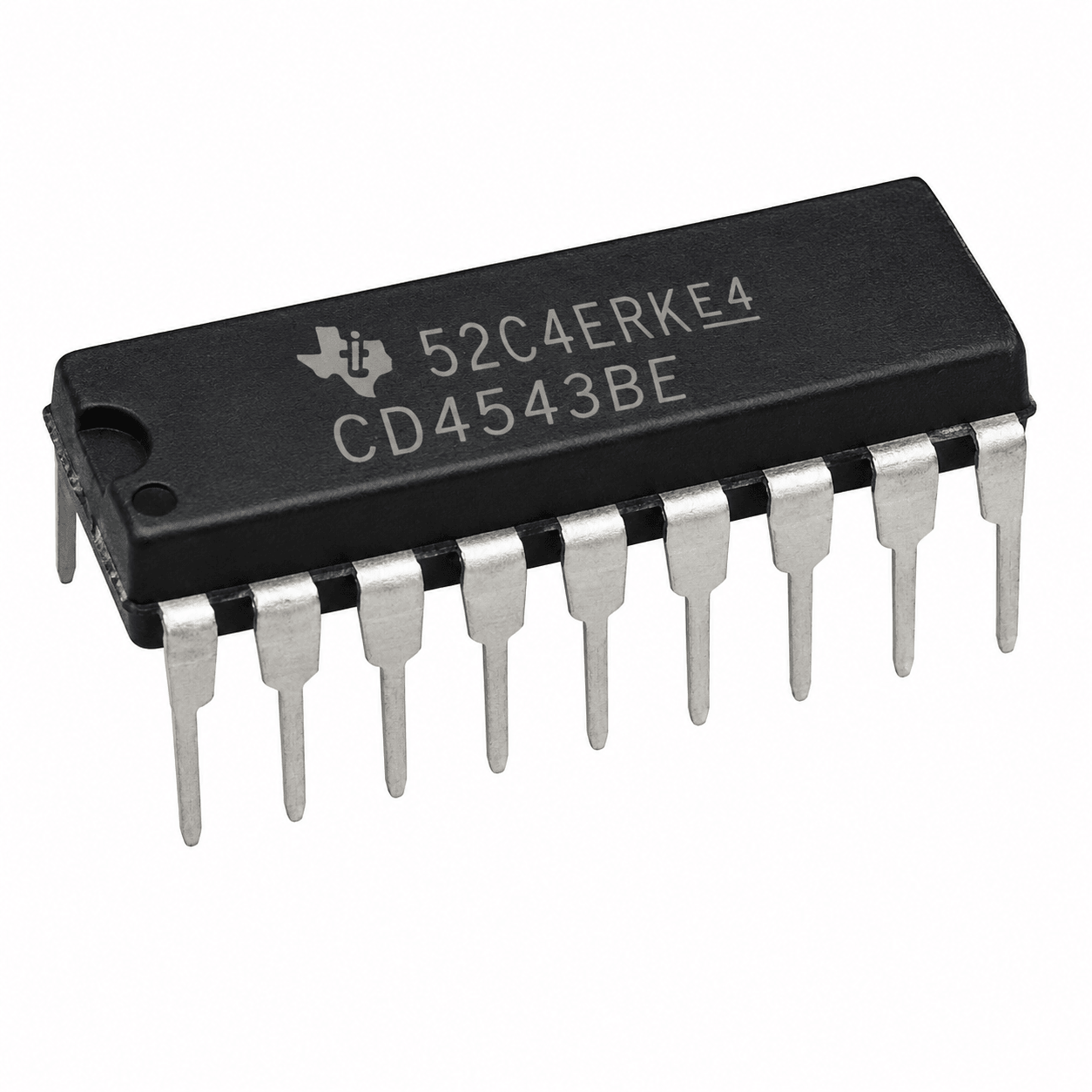

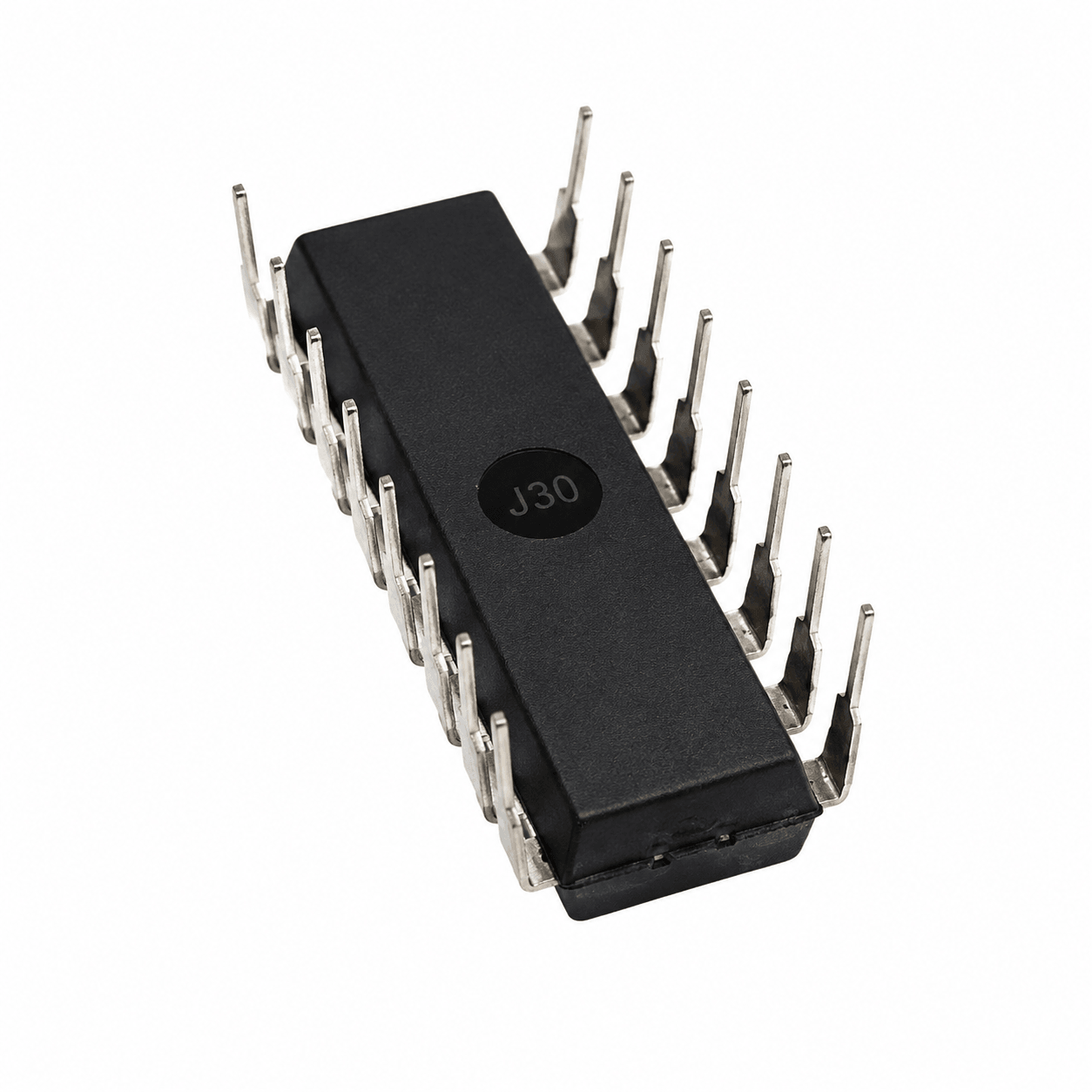

BCD to 7 Segment Decoder IC - CD4543

SKU: R0LEF5IAQF
★★★★ ★ ★
4.1 (84 reviews)
The CD4543 is a CMOS BCD-to-7 Segment Latch/Decoder/Driver IC designed to convert a 4-bit Binary Coded Decimal (BCD) input into the corresponding seven-segment display outputs. Originally developed for LCD applications, the IC can also drive LED, incandescent, gas-discharge, and fluorescent displays, making it a versatile display driver for digital electronics. The IC integrates a 4-bit input latch, BCD-to-7 segment decoder,...
Rs. 19.00
Rs. 25.00 Rs. 19.00
Save Rs. 6
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The CD4543 is a CMOS BCD-to-7 Segment Latch/Decoder/Driver IC designed to convert a 4-bit Binary Coded Decimal (BCD) input into the corresponding seven-segment display outputs. Originally developed for LCD applications, the IC can also drive LED, incandescent, gas-discharge, and fluorescent displays, making it a versatile display driver for digital electronics.

The IC integrates a 4-bit input latch, BCD-to-7 segment decoder, and display driver into a single package, reducing external circuitry and simplifying display interfacing. It features a display blanking function, a PHASE input that allows operation with both common-anode and common-cathode LED displays, and compatibility with CMOS, NMOS, and TTL logic families.

Operating over a wide supply voltage range of 3V to 18V, the CD4543 is widely used in digital clocks, counters, measurement instruments, industrial control systems, calculators, panel meters, and educational electronics projects.

Key Features

  • BCD-to-7 segment latch/decoder/driver
  • Converts 4-bit BCD input into seven-segment outputs
  • Integrated 4-bit input latch
  • Supports both common-anode and common-cathode LED displays
  • Designed primarily for LCD displays
  • Can drive LED, LCD, incandescent, fluorescent, and gas-discharge displays
  • Display blanking function
  • PHASE control input for display type selection
  • Wide operating voltage range
  • High-speed CMOS technology
  • Low power consumption
  • High noise immunity
  • CMOS, NMOS, and TTL compatible
  • Standard DIP-16 package
  • Ideal for digital display applications

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

IC Type: BCD to 7 Segment Latch/Decoder/Driver
Part Number: CD4543
Logic Family: CMOS 4000 Series
Package Type: DIP-16 / SOIC-16 (Variant Dependent)
Function: BCD-to-7 Segment Decoder with Latch and Driver
Input Type: 4-Bit BCD Input
Output Type: Seven Segment Driver Outputs
Operating Voltage: 3V to 18V DC
Recommended Operating Voltage: 5V to 15V DC
Display Compatibility: LCD, LED, Incandescent, Fluorescent, Gas-Discharge Displays
Display Type Support: Common Anode and Common Cathode (Using PHASE Input)
Input Latch: Built-In
Display Blanking: Supported
Propagation Delay: Approximately 200ns (Typical at 10V)
Logic Compatibility: CMOS, NMOS, TTL
Operating Temperature: -55°C to +125°C (Device Variant Dependent)
Storage Temperature: -65°C to +150°C
Mounting Type: Through-Hole / Surface Mount
Package Dimensions: Standard DIP-16
Applications: Digital Counters, Panel Meters, Clocks, Instrumentation, Display Controllers

Additional Resources

CD4543.PDF

FAQ

1. What is the CD4543 IC used for?

The CD4543 is used to convert a 4-bit BCD input into seven-segment display signals. It is commonly used in digital clocks, counters, panel meters, calculators, and display control circuits.

2. Can the CD4543 drive both common-anode and common-cathode displays?

Yes. By configuring the PHASE input appropriately, the CD4543 can drive both common-anode and common-cathode LED displays, as well as LCD displays.

3. What is the purpose of the latch function in the CD4543?

The built-in latch stores the BCD input data, allowing the display to remain stable even if the input signals change until the latch is updated.

4. What is the operating voltage range of the CD4543?

The CD4543 operates from 3V to 18V DC, making it suitable for a wide range of CMOS-based digital display applications.

5. What types of displays can the CD4543 drive?

The CD4543 is capable of driving LCD, LED, incandescent, fluorescent, and gas-discharge seven-segment displays, making it suitable for various electronic display systems.
