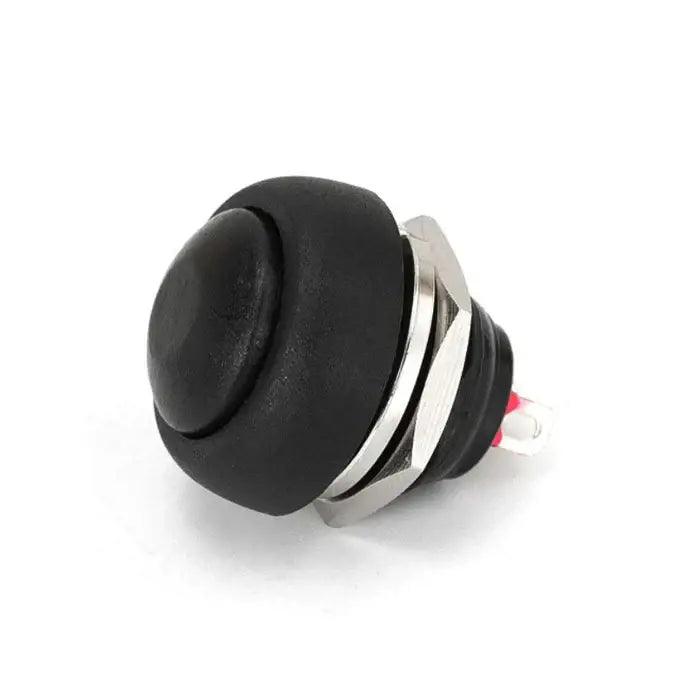

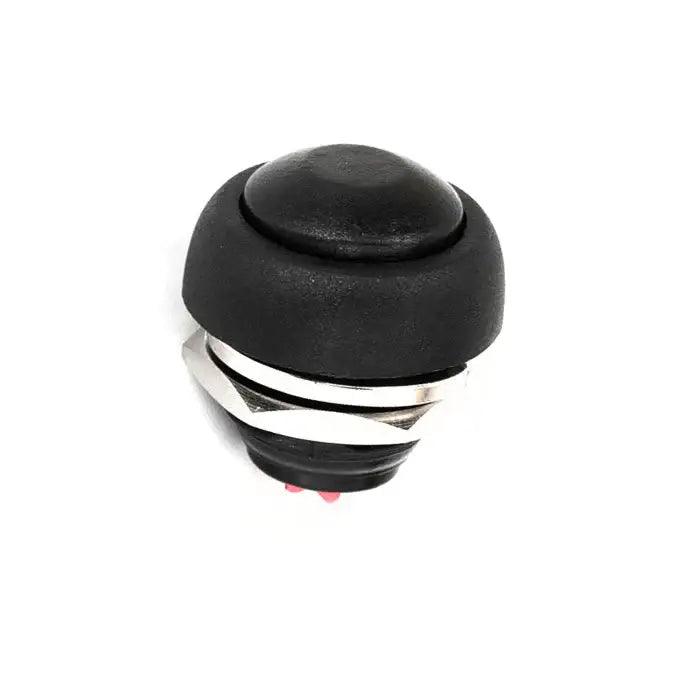

Black R13-507 12mm No Lock Push, Button Momentary Switch 3A, 250V

SKU: CMZ0BNHL09
This product is a Black R13-507 12mm Push Button Momentary Switch, rated at 3A, 250V AC. It features an SPST (Single Pole Single Throw) configuration and is designed for 12mm panel mounting holes. The switch includes a self-reset mechanism, meaning it automatically returns to its original state after being pressed. It is widely used for circuit control applications such as...
Rs. 59.00
Rs. 69.00 Rs. 59.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications :

  • Model: R13-507-M-5S
  • Material: Plastic and Metal Construction
  • Number of Terminals: 2 Pins
  • Operation Type: Momentary (Press and Hold – ON, Release – OFF)
  • Rated Voltage & Current: 6A at 125V AC / 3A at 250V AC
  • Overall Dimensions: 24.4 × 20 mm (Length × Diameter)

Additional Resources

Black R13-507 12mm No Lock Push, Button Momentary Switch 3A, 250V.PDF

FAQ

1. What type of switch is the R13-507 push button?

The R13-507 is a momentary push button switch, meaning it only stays ON while being pressed and automatically returns to its original OFF state when released.

2. What does “No Lock” or self-reset mean in this switch?

“No Lock” indicates that the switch does not stay in the pressed position. It has a spring-loaded mechanism that resets the button immediately after release.

3. What are the electrical ratings of this push button switch?

This switch is rated for 3A current at 250V AC, making it suitable for low to moderate power electrical applications.

4. Where can this switch be commonly used?

It is widely used in:

  • Electromagnetic starters
  • Contactors
  • Control panels
  • DIY electronics projects
  • Industrial and household electrical circuits

5. How is this switch mounted and installed?

The switch is designed for a 12mm panel mounting hole and comes with a nut and washer (rubber ring) for secure installation. It is also dustproof and water-resistant, making it suitable for various environments.

View full product details

This product is a Black R13-507 12mm Push Button Momentary Switch, rated at 3A, 250V AC. It features an SPST (Single Pole Single Throw) configuration and is designed for 12mm panel mounting holes. The switch includes a self-reset mechanism, meaning it automatically returns to its original state after being pressed.

It is widely used for circuit control applications such as electromagnetic starters, contactors, and various electrical systems.

Key Features

  • Single Pole Configuration: Supports push-to-make and push-to-break operations
  • Reliable Conductivity: Ensures stable electrical performance
  • Momentary Operation: Returns to OFF state when released
  • Durable Design: Equipped with a rubber sealing ring and hex nut for secure installation
  • Waterproof & Dustproof: Suitable for rugged environments
  • Versatile Use: Commonly used in control circuits, starters, and contactor systems
