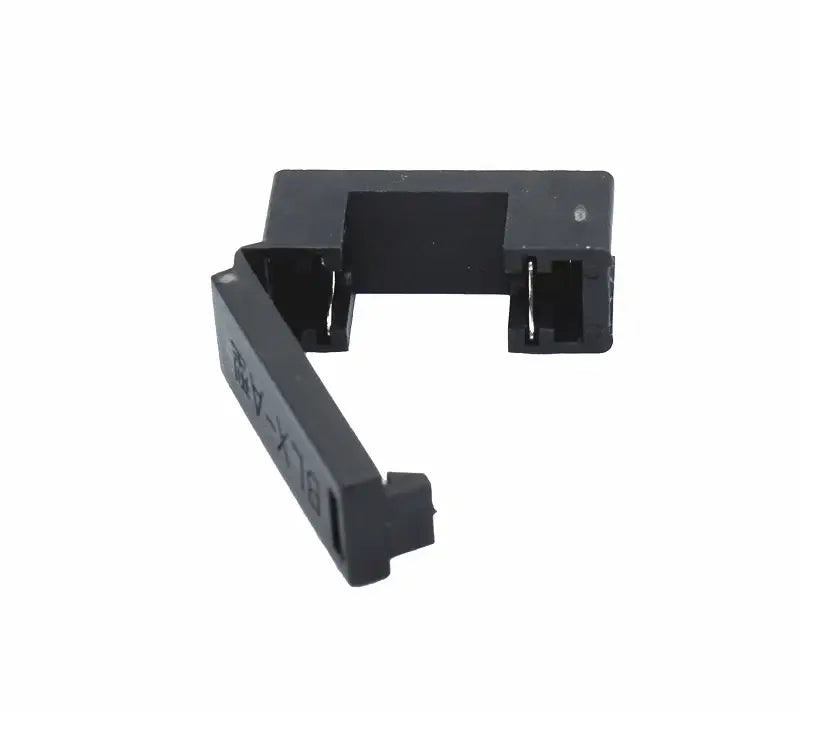

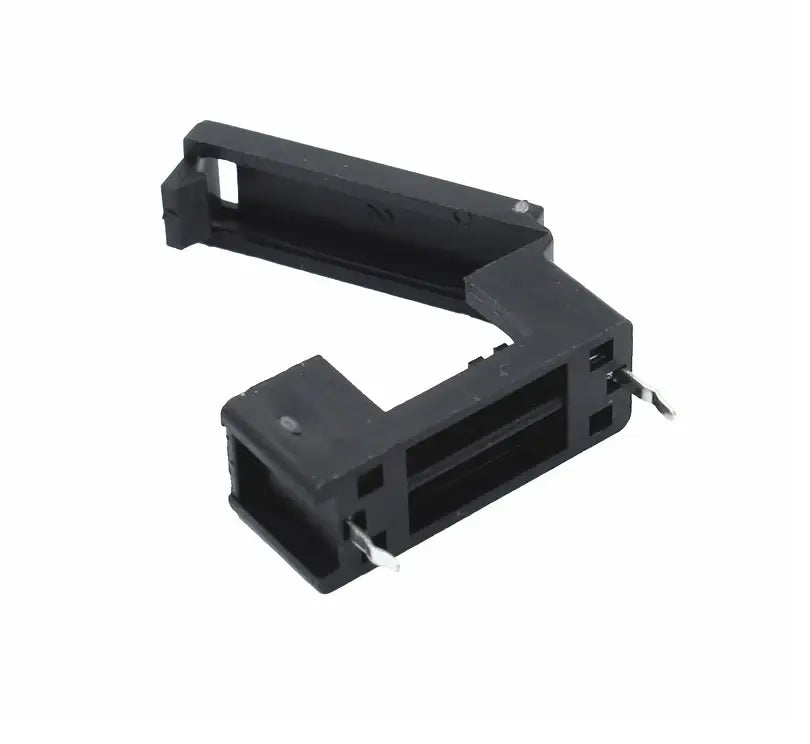

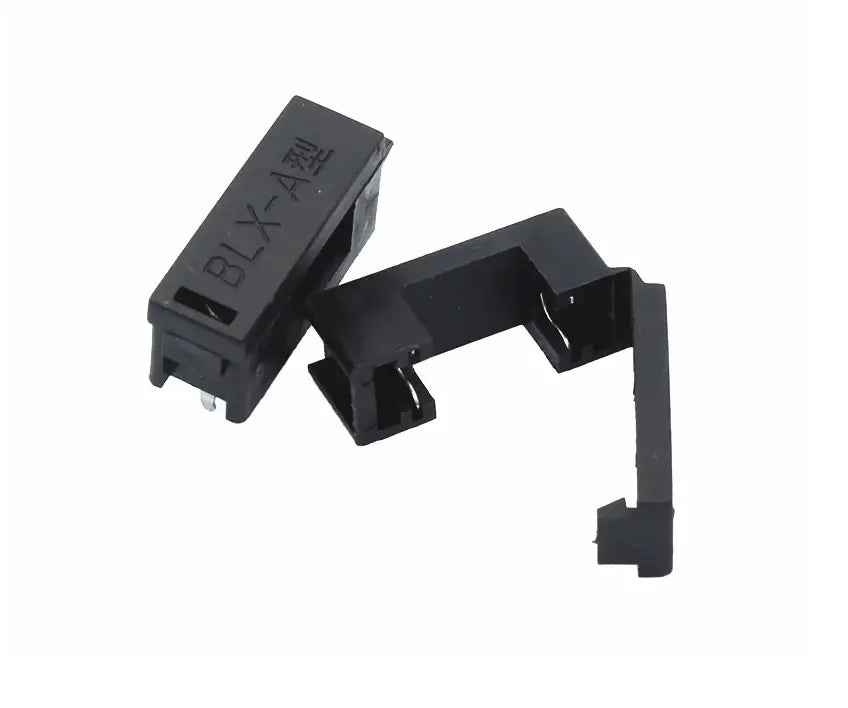

BLX-A Fuse Holder -20mm – PCB Mount

SKU: 99FWWDPDOF
A fuse holder is mounted in the equipment and is designed to hold the fuse.  Designed to eliminate the possibility of electrical shock. 5*20mm Mount BLX-A type FUSE HOLDER 5MM X 20MM 15A/125V SOLDER HOLDERS Insurance header Fuse 5×20 mm 5*20 mm Features: Part No: BLX-A Rated Current: 6.3A Rated Voltage: 250VAC Fuse Size: 5x20mm  Material: Nylon Mounting Type: Through...
Rs. 8.00
Rs. 9.00 Rs. 8.00
Save Rs. 1
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Fuse Size Supported: 5mm × 20mm
Mounting Type: PCB (through-hole)
Rated Voltage: Up to 250V AC (typical)
Rated Current: Up to 6.3A (depending on design)
Material: Flame-retardant plastic body with metal contacts
Contact Resistance: Low for efficient current flow

Additional Resources

BLX-A Fuse Holder -20mm – PCB Mount.PDF

FAQ

1. What is a BLX-A Fuse Holder?

It is a PCB-mounted fuse holder designed to securely hold a 5×20mm cylindrical fuse. It is used in electronic circuits to provide protection against overcurrent and short circuits.

2. What type of fuse does the BLX-A holder support?

The BLX-A fuse holder is specifically designed for 5mm × 20mm glass or ceramic fuses, which are commonly used in power supply and electronic protection circuits.

3. What are the typical electrical ratings of this fuse holder?

It generally supports up to 6.3A current and 250V AC voltage, making it suitable for low to medium power electronic applications.

4. Where is the BLX-A PCB mount fuse holder commonly used?

It is widely used in:
Power supply circuits
Consumer electronics
Industrial control systems
DIY and prototyping projects
Electronic repair applications

5. What are the advantages of using a PCB mount fuse holder like BLX-A?

Easy direct mounting on PCB (through-hole type)
Provides secure and stable fuse placement
Enhances circuit safety and protection
Compact and durable design
Allows easy fuse replacement when needed

View full product details

A fuse holder is mounted in the equipment and is designed to hold the fuse.  Designed to eliminate the possibility of electrical shock. 5*20mm Mount BLX-A type FUSE HOLDER 5MM X 20MM 15A/125V SOLDER HOLDERS Insurance header Fuse 5×20 mm 5*20 mm

Features:

  • Part No: BLX-A
  • Rated Current: 6.3A
  • Rated Voltage: 250VAC
  • Fuse Size: 5x20mm
  •  Material: Nylon
  • Mounting Type: Through Hole PCB mount
  • Color: Black
  • Fits for: 5mm x 20mm fuse.
  • Size:(LxWxH) 28.0×9.7×18.2mm
