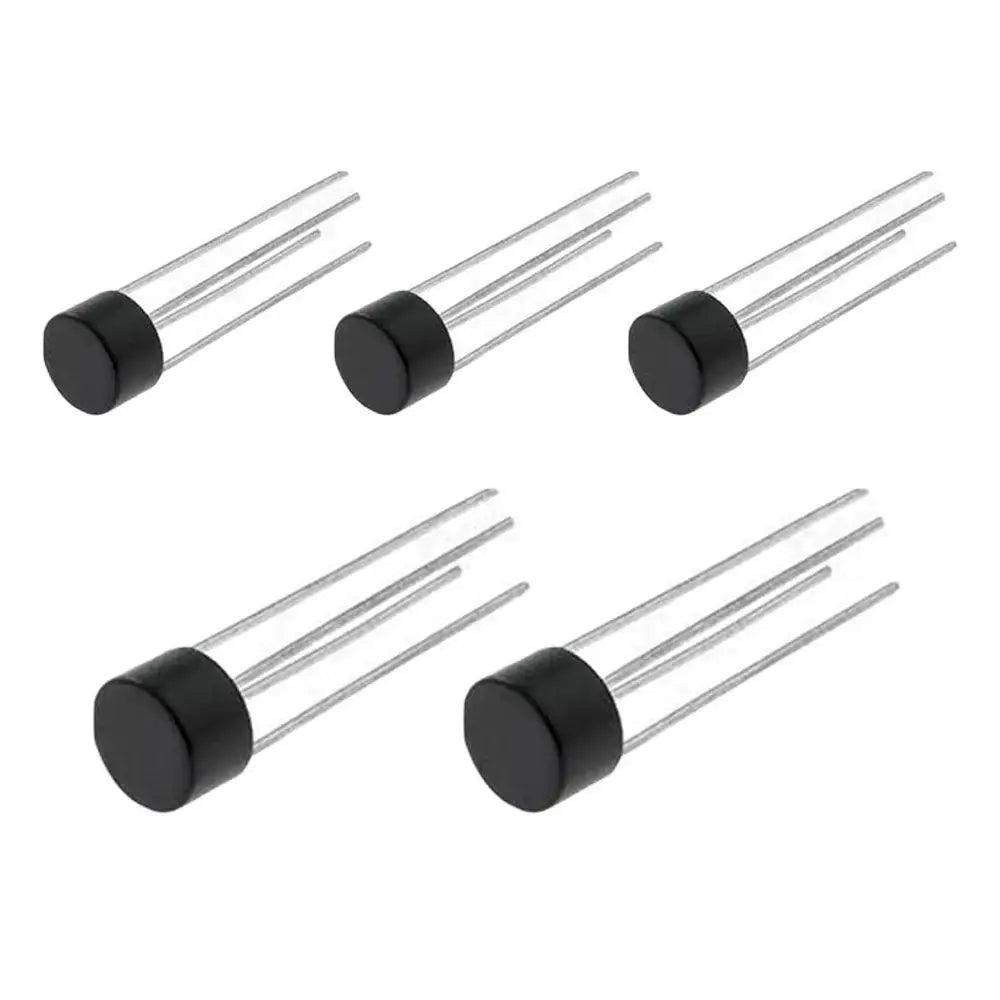

Bridge Rectifier

SKU: 8Q4K2OOA38
A diode bridge consists of four diodes arranged in a bridge configuration that ensures a consistent output polarity regardless of the input polarity. It is most commonly used to convert alternating current (AC) into direct current (DC), in which case it is referred to as a bridge rectifier. Features Maximum Average Forward Current: 2A Peak Repetitive Reverse Voltage: 1000V Maximum...
Rs. 13.00
Rs. 18.00 Rs. 13.00
Save Rs. 5
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Dimensions: 1 × 1 × 1 cm
Weight: 5 g
Maximum Average Forward Current: 2A
Peak Repetitive Reverse Voltage: 1000V
Maximum RMS Input Voltage: 700V
Maximum DC Blocking Voltage: 1000V
Operating Temperature Range: -55°C to +125°C

Additional Resources

Bridge Rectifier.PDF

FAQ

1. What is a bridge rectifier?

A bridge rectifier is an electronic component made of four diodes arranged in a bridge configuration, used to convert AC (alternating current) into DC (direct current).

2. How does a bridge rectifier work?

It allows current to flow in such a way that both halves of the AC waveform are converted into a unidirectional (DC) output, ensuring a consistent polarity at the output terminals.

3. What are the typical applications of a bridge rectifier?

Bridge rectifiers are commonly used in:

  • Power supply circuits
  • Battery chargers
  • Adapters and SMPS circuits
  • Industrial and consumer electronics

4. What are the key advantages of using a bridge rectifier?

  • Efficient full-wave rectification
  • No need for a center-tapped transformer
  • Provides smoother DC output compared to half-wave rectifiers
  • Compact and easy to use

5. What is included in this pack?

The product includes 5 bridge rectifiers, making it suitable for multiple projects, repairs, or bulk usage in electronic circuits.

View full product details

A diode bridge consists of four diodes arranged in a bridge configuration that ensures a consistent output polarity regardless of the input polarity. It is most commonly used to convert alternating current (AC) into direct current (DC), in which case it is referred to as a bridge rectifier.

Features

  • Maximum Average Forward Current: 2A

  • Peak Repetitive Reverse Voltage: 1000V

  • Maximum RMS Input Voltage: 700V

  • Maximum DC Blocking Voltage: 1000V

  • Operating Temperature Range: -55°C to +125°C
