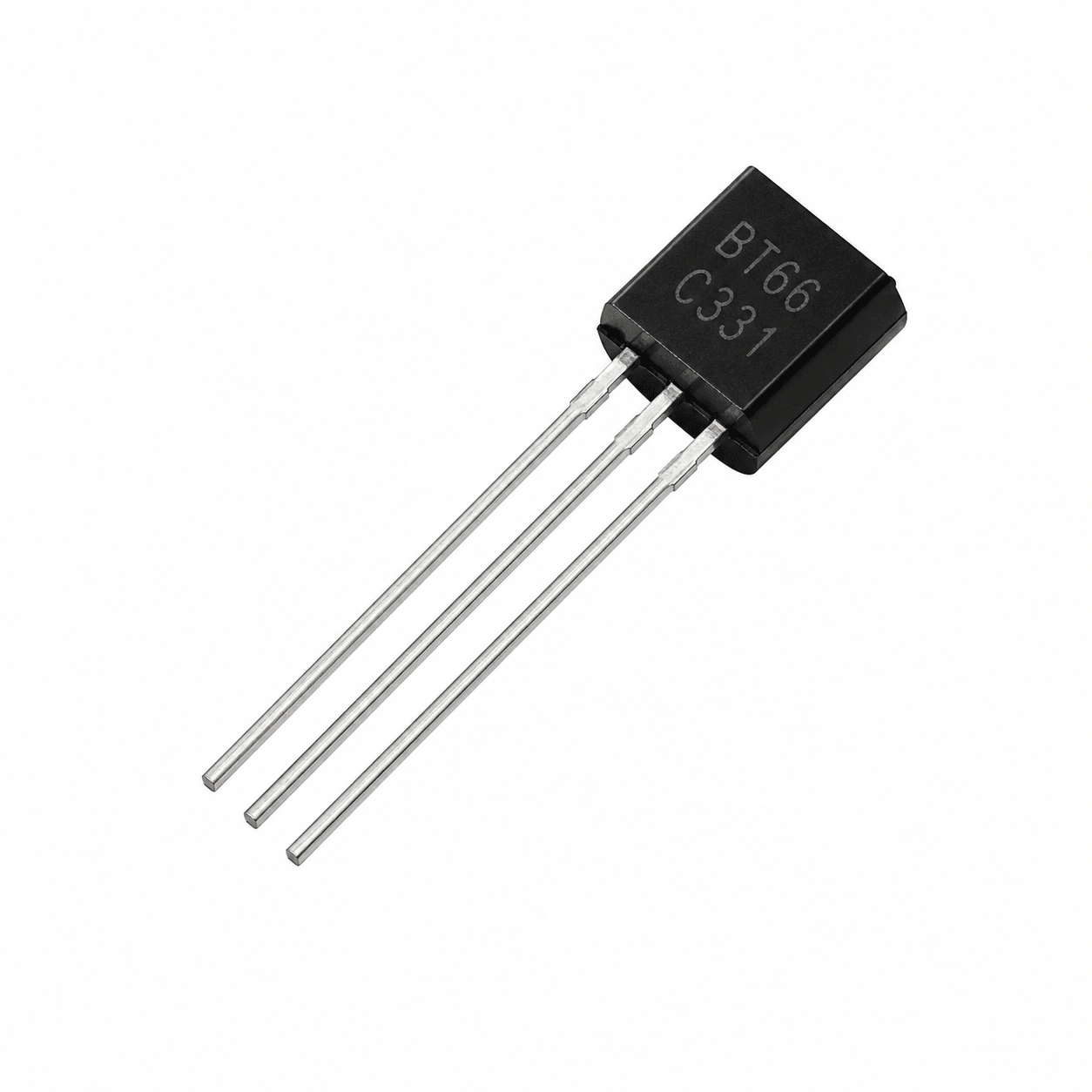

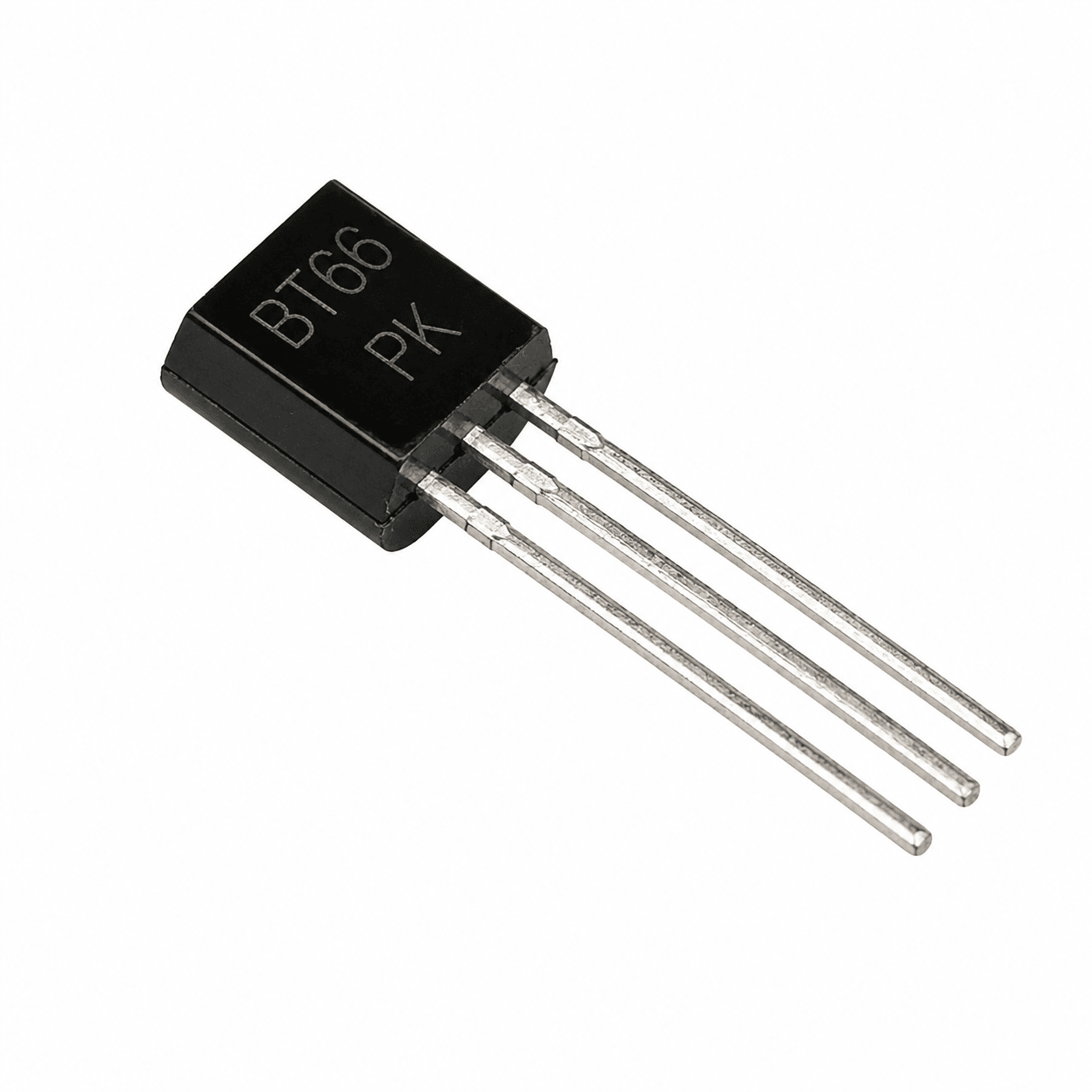

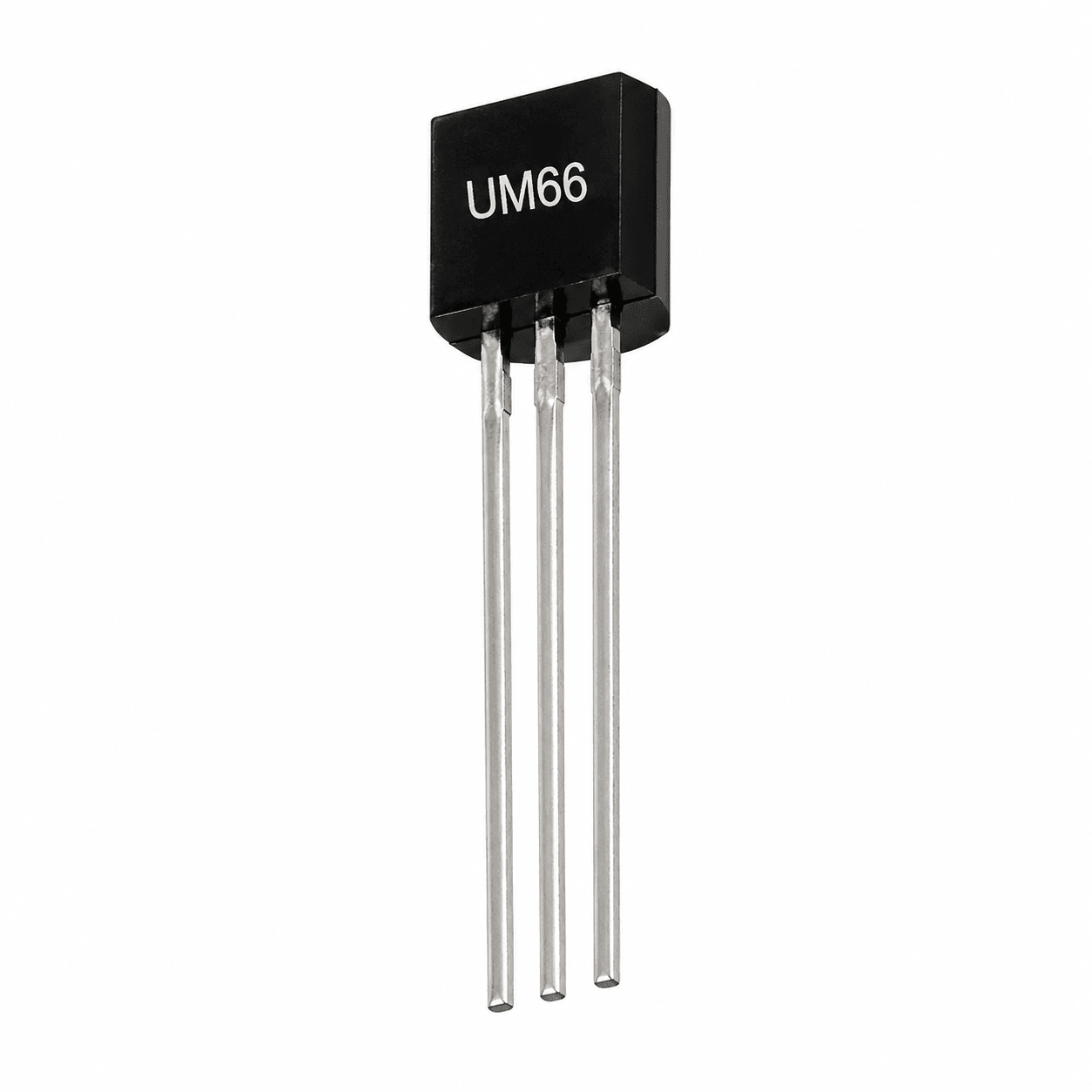

BT66/UM66 Musical IC

SKU: UTZ1AA5E10
★★★★ ★ ★
4.9 (140 reviews)
The BT66/UM66 Musical IC is a compact CMOS melody generator integrated circuit designed to generate pre-programmed musical tunes for electronic devices. It contains an internal ROM that stores a fixed melody consisting of 64 musical notes, eliminating the need for external programming or memory. When powered, the IC automatically begins playing the stored melody through a piezo buzzer or a...
Rs. 22.00
Rs. 25.00 Rs. 22.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The BT66/UM66 Musical IC is a compact CMOS melody generator integrated circuit designed to generate pre-programmed musical tunes for electronic devices. It contains an internal ROM that stores a fixed melody consisting of 64 musical notes, eliminating the need for external programming or memory. When powered, the IC automatically begins playing the stored melody through a piezo buzzer or a speaker (using an external transistor for higher sound output).

The BT66/UM66 operates at very low voltage and consumes extremely little current, making it ideal for battery-powered applications. It is widely used in musical greeting cards, electronic toys, doorbells, alarm systems, timers, novelty gadgets, and DIY electronics projects.

Available in a compact TO-92 package, the BT66/UM66 is easy to integrate into Arduino-compatible projects, embedded systems, and educational electronics where simple musical notifications are required.

Key Features

  • Pre-programmed melody generator IC
  • Built-in 64-note ROM memory
  • Low power CMOS technology
  • Ultra-low current consumption
  • Operates from a low supply voltage
  • Automatic melody playback on power-up
  • Can directly drive a piezo buzzer
  • Supports external transistor for speaker drive
  • Compact TO-92 package
  • No external programming required
  • Stable and reliable operation
  • Simple three-pin connection
  • Ideal for battery-powered devices
  • Suitable for DIY and educational electronics projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

IC Type: Musical Melody Generator IC
Part Number: BT66 / UM66
Technology: CMOS
Package Type: TO-92 Through-Hole
Function: Pre-Programmed Melody Generator
Melody Storage: Internal 64-Note ROM
Number of Melodies: Single Melody (Variant Dependent)
Operating Voltage: 0.3V to 3.5V DC
Typical Operating Voltage: 1.5V to 3.3V DC
Standby Current: Approximately 1µA
Operating Current: Approximately 60µA to 100µA
Output Type: Audio Output
Output Drive: Piezo Buzzer Directly or Dynamic Speaker via External NPN Transistor
Reset Function: Automatic Power-On Reset
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +85°C
Mounting Type: Through-Hole
Package Dimensions: Standard TO-92
Compatibility: Piezo Buzzers, BC547/2N2222 Driver Circuits, Arduino Projects, DIY Electronics

Additional Resources

BT66/UM66.PDF

FAQ

1. What is the BT66/UM66 Musical IC used for?

The BT66/UM66 Musical IC is used to generate pre-programmed melodies in applications such as greeting cards, electronic toys, doorbells, alarms, timers, and notification devices.

2. Does the BT66/UM66 require programming?

No. The IC contains an internal ROM with a pre-programmed melody, so it automatically plays the stored tune when power is applied.

3. Can the BT66/UM66 drive a speaker directly?

The IC can directly drive a piezo buzzer. To drive an 8Ω speaker or achieve higher sound output, an external NPN transistor such as a BC547 is typically used.

4. What is the operating voltage of the BT66/UM66 Musical IC?

The IC operates over a supply voltage range of approximately 0.3V to 3.5V DC, with typical operation at 1.5V to 3.3V.

5. Can different BT66/UM66 ICs play different melodies?

Yes. Different versions of the BT66/UM66 are available with different pre-programmed melodies. The melody depends on the specific part number or manufacturer variant.
