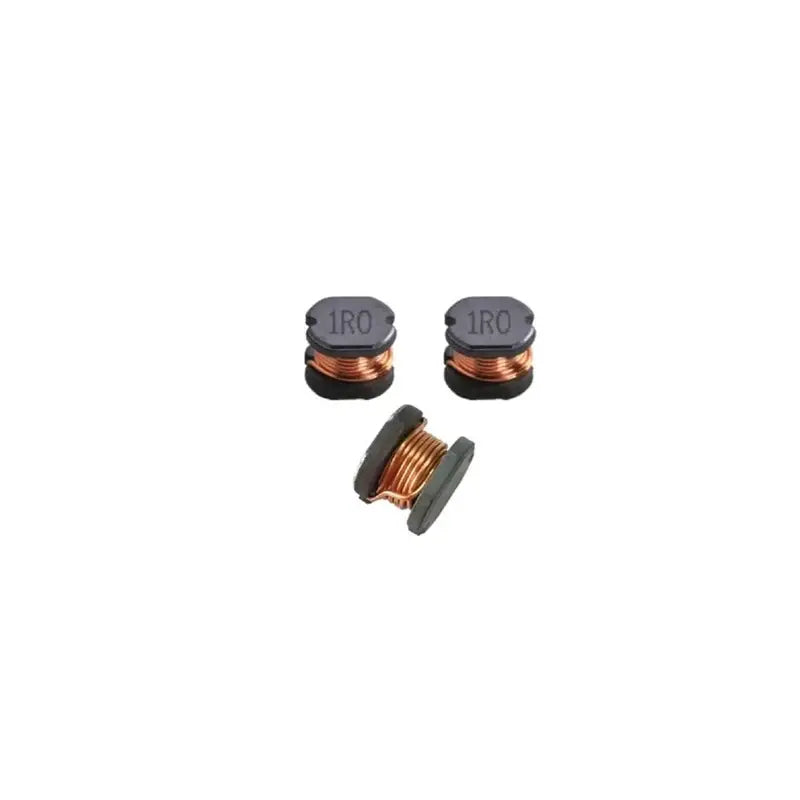

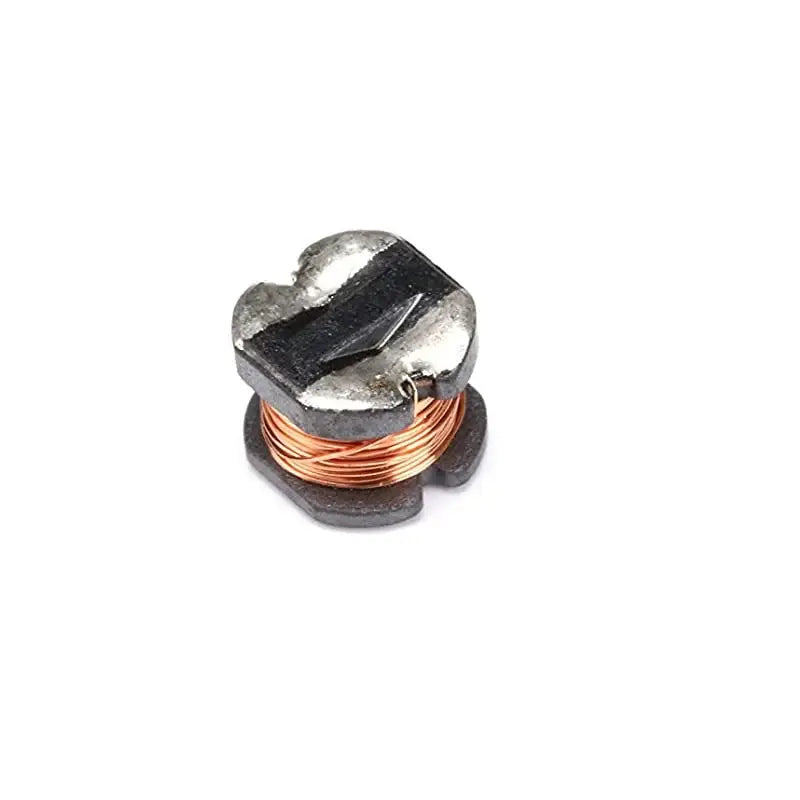

CD54-1R0M – 1uH SMD Power Inductor

SKU: GDIAS8GX09
★★★★ ★ ★
4.3 (106 reviews)
CD54 1μH Surface Mount Power Inductor ( 1 micro H) 1µH 5.9A SMD power inductor is a surface mount device. It has a ferrite drum as the core on which a wire is wound. This inductor has a magnetic shield. Featured by Sharvi Electronics The power inductor has a moisture sensitivity level of 1 i.e. this power inductor has high...
Rs. 15.00
Rs. 19.00 Rs. 15.00
Save Rs. 4 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

CD54 1μH Surface Mount Power Inductor ( 1 micro H) 1µH 5.9A SMD power inductor is a surface mount device. It has a ferrite drum as the core on which a wire is wound. This inductor has a magnetic shield. Featured by Sharvi Electronics The power inductor has a moisture sensitivity level of 1 i.e. this power inductor has high moisture resistance. This type of inductor has pads for surface mounting.CD54 1μHPower Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding. Sharvielectronics Tags, CD54 1uH (1R0) SMD Power Inductor, SMD Power Inductors CD54 1uH 5.9A, 1uh High Power Inductors, CD54 1uH Power Inductor Surface Mount SMD.

Applications:

  • Ideally used in electronics Devices
  • P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors
  • Ideally, this inductor finds its use in notebook PCs
  • Game Machines, etc

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Manufacturer Part Number: CD54-1R0M
Manufacturer: SHUOXING ELECTRONICS CO. LTD
Core Material: Ferrite
Inductance: 1 µH
Tolerance: ±20%
Rated Current: 5.9 A
Operating Frequency: 100 kHz
Maximum DC Resistance: 15 mΩ
Construction: Ferrite core drum type
Shielding: Magnetically shielded design
Moisture Sensitivity Level (MSL): 1
Operating Temperature Range: -40°C to +125°C
Mounting Type: Surface Mount (SMD)
Weight: Approximately 2 grams

Additional Resources

CD54-1R0M – 1uH SMD Power Inductor.PDF

FAQ

1. What is the CD54-1R0M inductor?

The CD54-1R0M is a 1µH surface-mount (SMD) power inductor designed for energy storage, filtering, and smoothing in electronic circuits, especially in power supply applications.

2. What does “1R0” indicate in the part number?

The marking “1R0” represents the inductance value of 1.0 µH, where the letter “R” acts as a decimal point in component labeling.

3. Where is the CD54-1R0M inductor commonly used?

It is widely used in DC-DC converters, voltage regulators, switching power supplies, LED drivers, and filtering circuits in compact electronic devices.

4. What are the advantages of using an SMD power inductor like CD54-1R0M?

SMD inductors offer compact size, easy PCB mounting, good efficiency, low electromagnetic interference (EMI), and suitability for automated assembly processes.

5. What is the function of a power inductor in a circuit?

A power inductor stores energy in a magnetic field when current flows through it and releases it when needed. It helps smooth current, reduce noise, and maintain stable voltage in power circuits.
