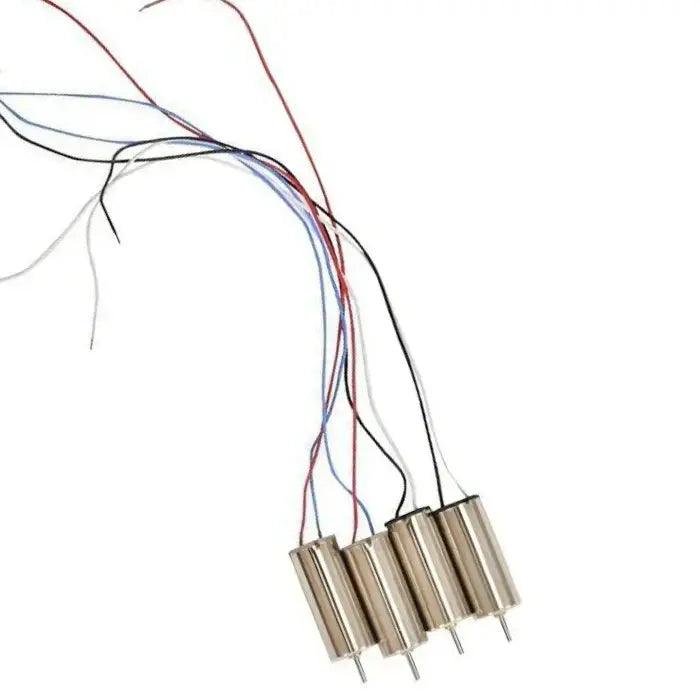

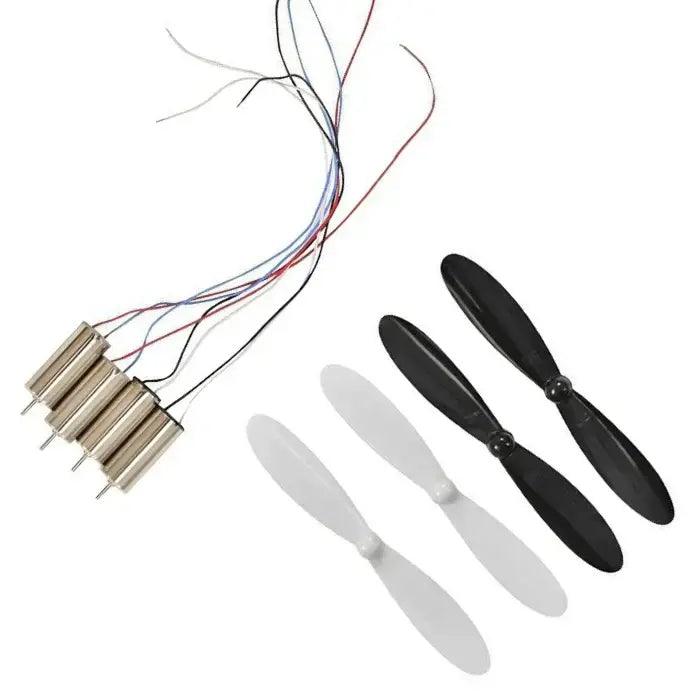

Coreless Motor and Propeller(8x20mm)(Pack of 4)

SKU: IVG0LG402P
These are Coreless motors with propellers, These coreless motors are exactly what you need if you want to build your own small-scale Quadcopters, Drones. helicopters, and RC planes. It is very small in size and in terms of producing thrust to lift your flying object chassis into the air. It's a great motor for a beginner to start with because it's much...
Rs. 599.00
Rs. 699.00 Rs. 599.00
Save Rs. 100
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Motor Type: Coreless DC Motor
Motor Size: 8 mm (Diameter) × 20 mm (Length)
Operating Voltage: 3.7V DC (typical)
No-Load Speed: ~40,000 – 60,000 RPM
Current Consumption (No Load): 100 – 300 mA
Load Current: 500 – 800 mA (approx.)
Shaft Diameter: ~0.8 mm – 1 mm
Shaft Length: ~5 – 7 mm
Propeller Type: Plastic, push-fit compatible
Rotation Type: CW / CCW (depends on set)
Material: Metal body with plastic propeller
Weight (Per Motor): ~5 – 7 grams
Quantity: 4 Motors with Propellers


Additional Resources

Coreless Motor and Propeller.PDF

FAQ

1. What is a Coreless Motor with Propeller (8x20mm) used for?

This motor is commonly used in mini drones, quadcopters, small flying toys, and lightweight DIY projects where fast rotation and low weight are essential.

2. What does the size “8x20mm” represent?

The size 8x20mm refers to the motor’s physical dimensions—approximately 8 mm in diameter and 20 mm in length.

3. What is the advantage of a coreless motor?

Coreless motors have no iron core, which makes them lighter, more efficient, and capable of higher speeds with faster response compared to traditional motors.

4. Why is a propeller included with the motor?

The propeller converts the motor’s rotational motion into thrust, making it suitable for aerial applications like drones and flying models.

5. What are the key benefits of this pack of 4 motors?

The pack provides multiple motors for building quadcopters or multi-motor systems, offers high-speed performance, lightweight design, and is ideal for hobbyists and beginners in drone projects.

View full product details

These are Coreless motors with propellers, These coreless motors are exactly what you need if you want to build your own small-scale Quadcopters, Drones. helicopters, and RC planes. It is very small in size and in terms of producing thrust to lift your flying object chassis into the air. It's a great motor for a beginner to start with because it's much cheaper than a BLDC drone motor, so this motor is the best option if you want to get started.

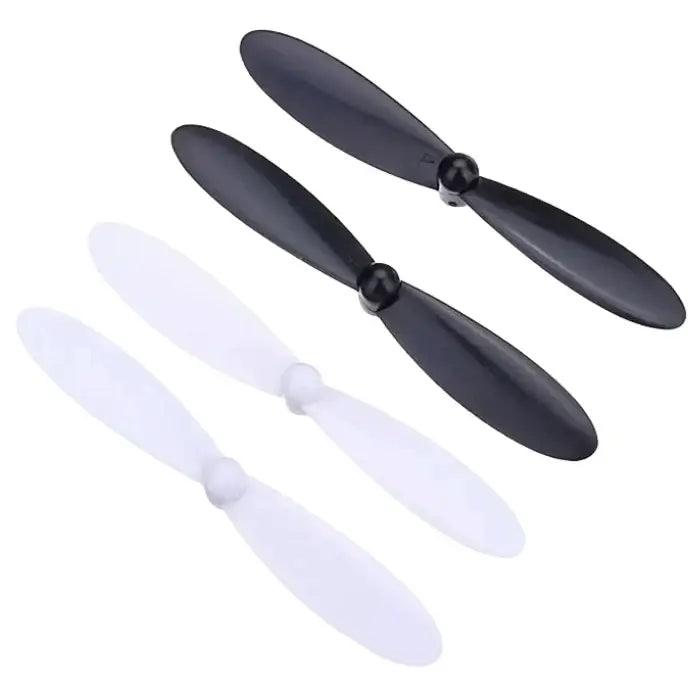

This pack includes a high-quality propeller, Their smooth surface can significantly reduce wind resistance during flight. As a result, when the propellers are securely mounted on the quadcopter, they can easily rotate at high speeds. The propellers are made of high-tensile material, so they can withstand crashes. As a result, this propeller with micro Coreless motors is an ideal match for your multirotor. Only Plug and Play.

Features:

  • The coreless motor is a high-speed, low-torque motor.
  • Operation is less noisy.
  • Provides little resistance.
  • They come with high-quality magnets.
