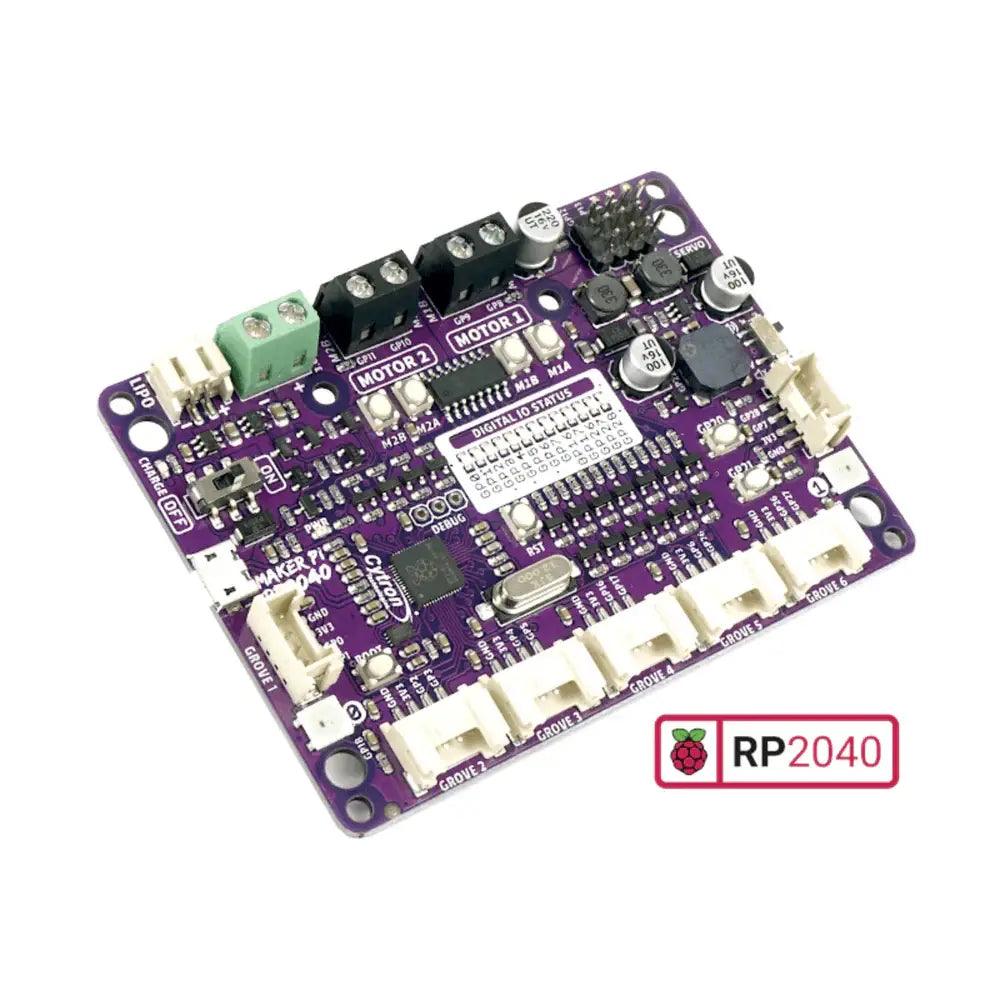

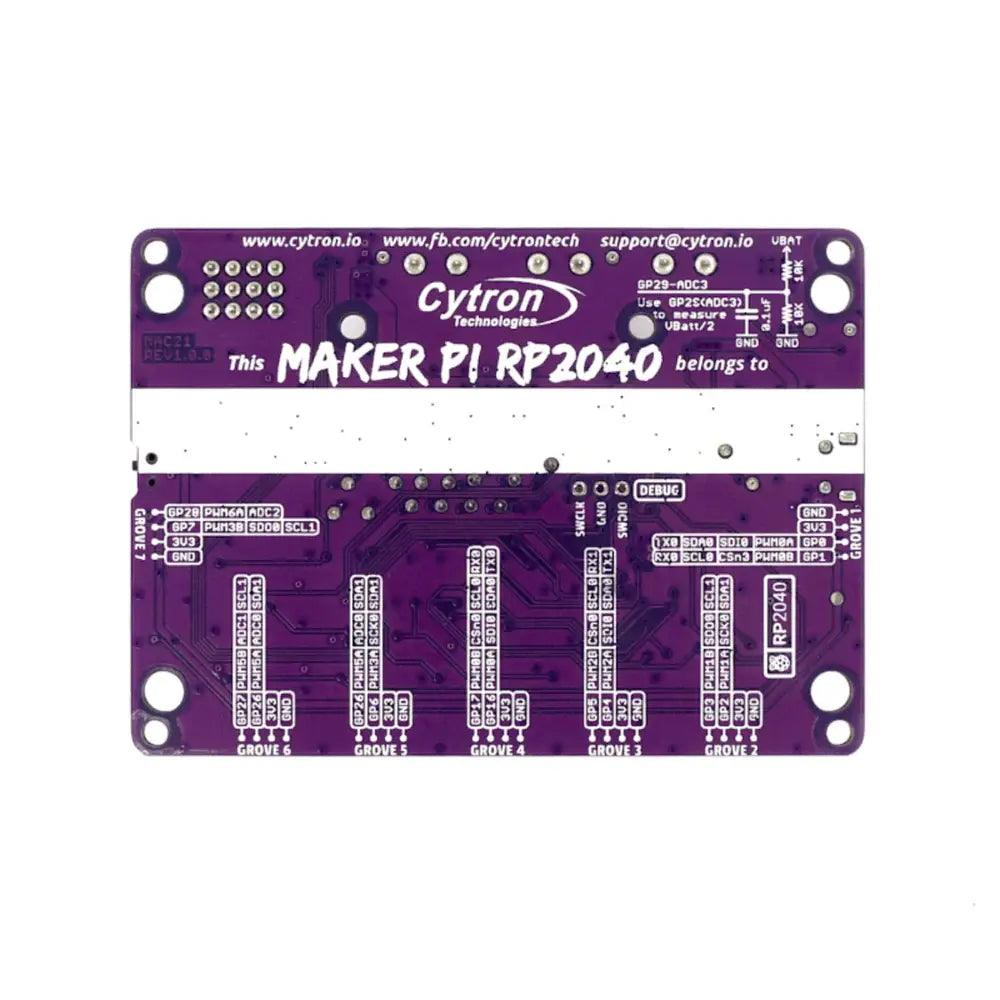

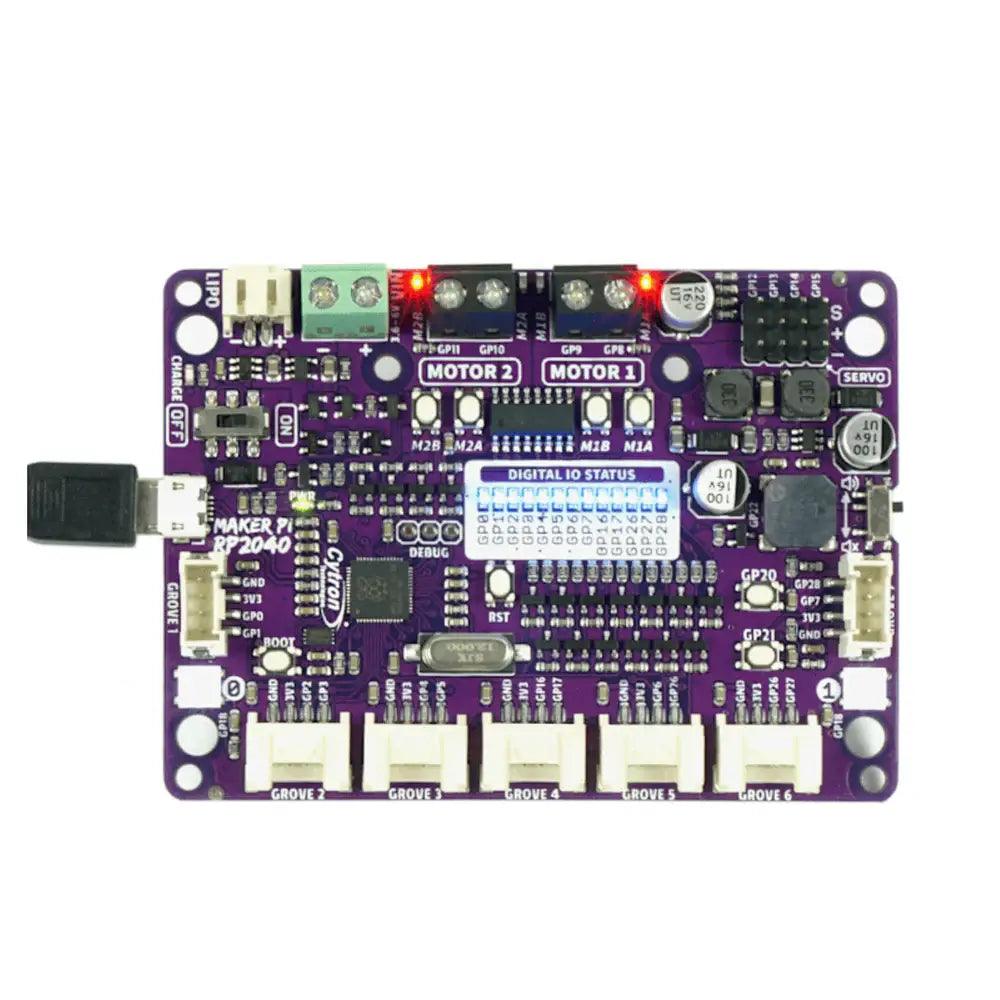

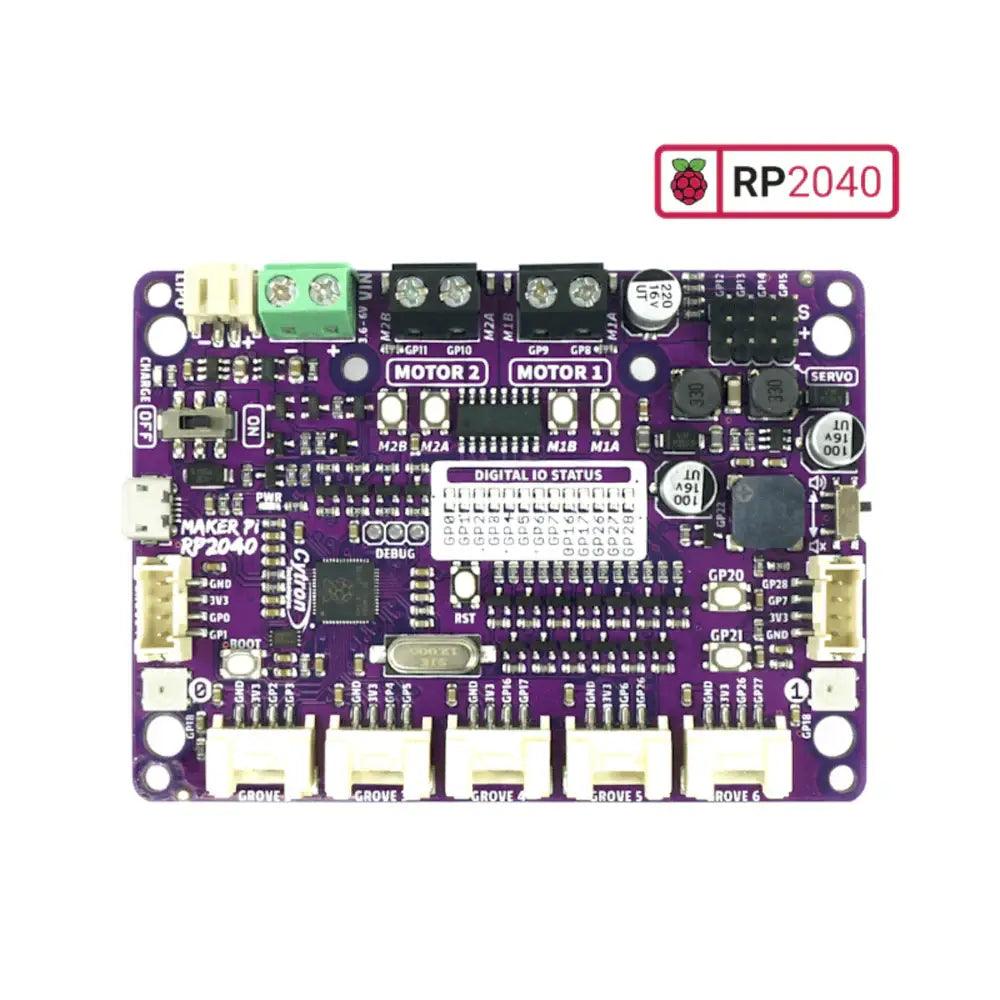

Cytron Maker Pi RP2040 – Robotics Controller Board with Raspberry Pi

SKU: 7O089D3YNS
The Cytron Maker Pi RP2040 is a compact, beginner-friendly robotics controller built around the Raspberry Pi RP2040 microcontroller. Perfect for DIY robotics, automation, and motion-control projects, it integrates a dual-channel DC motor driver, four servo ports, and seven Grove connectors, providing everything you need to build robots without messy wiring. Compatible with CircuitPython, MicroPython, C/C++, and the Arduino ecosystem, this...
Rs. 1,049.00
Rs. 1,199.00 Rs. 1,049.00
Save Rs. 150
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Brand: Cytron
Microcontroller: Raspberry Pi RP2040 (Dual-core ARM Cortex-M0
Flash Memory: 2 MBRAM: 264 KB
Motor Support: 2× DC motors or 1× stepper motor (3.6–6 V, 1 A per channel)
Servo Ports: 4× servo motor ports
Grove Ports: 7× Grove I/O ports supporting Digital, Analog, I2C, SPI, and UART
Power Input: USB 5 V, 1-cell LiPo, or VIN (3.6–6 V)
Charging Circuit: Built-in LiPo charger with overcharge and discharge protection
Onboard Components: Piezo buzzer, 13× GPIO LEDs, 2× RGB LEDs, 2× push buttons
Programming Support: CircuitPython (preloaded), MicroPython, C/C++, Arduino core
Dimensions: 88 × 64 × 13 mm
Mounting: 4× LEGO-compatible holes and 6× M3 screw holes

Additional Resources

Cytron Maker Pi RP2040 – Robotics Controller Board.PDF

FAQ

1. What is the Cytron Maker Pi RP2040?

The Maker Pi RP2040 is a compact, beginner-friendly robotics controller powered by the Raspberry Pi RP2040 dual-core Cortex-M0+ processor. It’s designed for DIY robotics, automation, and motion-control projects, combining motor drivers, servo ports, and Grove connectors in one board.

2. What kind of motors and devices can I connect?

It includes a dual-channel DC motor driver, four servo ports, and seven Grove ports (digital, analog, I2C, SPI, UART), allowing you to connect motors, sensors, and actuators with minimal wiring.

3. Which programming languages and platforms does it support?

The board is compatible with CircuitPython, MicroPython, C/C++, and the Arduino ecosystem, making it flexible for both beginners and experienced developers.

4. How do I power the Maker Pi RP2040?

It supports USB 5V, 1-cell LiPo battery, or 3.6–6V VIN input, with automatic switching. It also features a built-in LiPo charging circuit with safety protections.

5. What features help with debugging and testing?

The board includes status LEDs, GPIO test LEDs, a piezo buzzer, push buttons, and quick-test motor buttons, allowing you to debug and test your robotics projects easily.

View full product details

The Cytron Maker Pi RP2040 is a compact, beginner-friendly robotics controller built around the Raspberry Pi RP2040 microcontroller. Perfect for DIY robotics, automation, and motion-control projects, it integrates a dual-channel DC motor driver, four servo ports, and seven Grove connectors, providing everything you need to build robots without messy wiring.

Compatible with CircuitPython, MicroPython, C/C++, and the Arduino ecosystem, this board is ideal for students, hobbyists, and educators looking for a versatile RP2040-based robotics controller.

Designed for convenience, the Maker Pi RP2040 supports multiple power options (USB, LiPo battery, or VIN), comes with onboard functional test buttons, and features status LEDs for easy debugging. Preloaded demo code allows you to control motors, play melodies, and test GPIOs right out of the box.

Whether you’re exploring the RP2040 ecosystem or building an advanced robot, the Cytron Maker Pi RP2040 delivers versatility, ease of use, and reliable motor-driving performance.

Features:

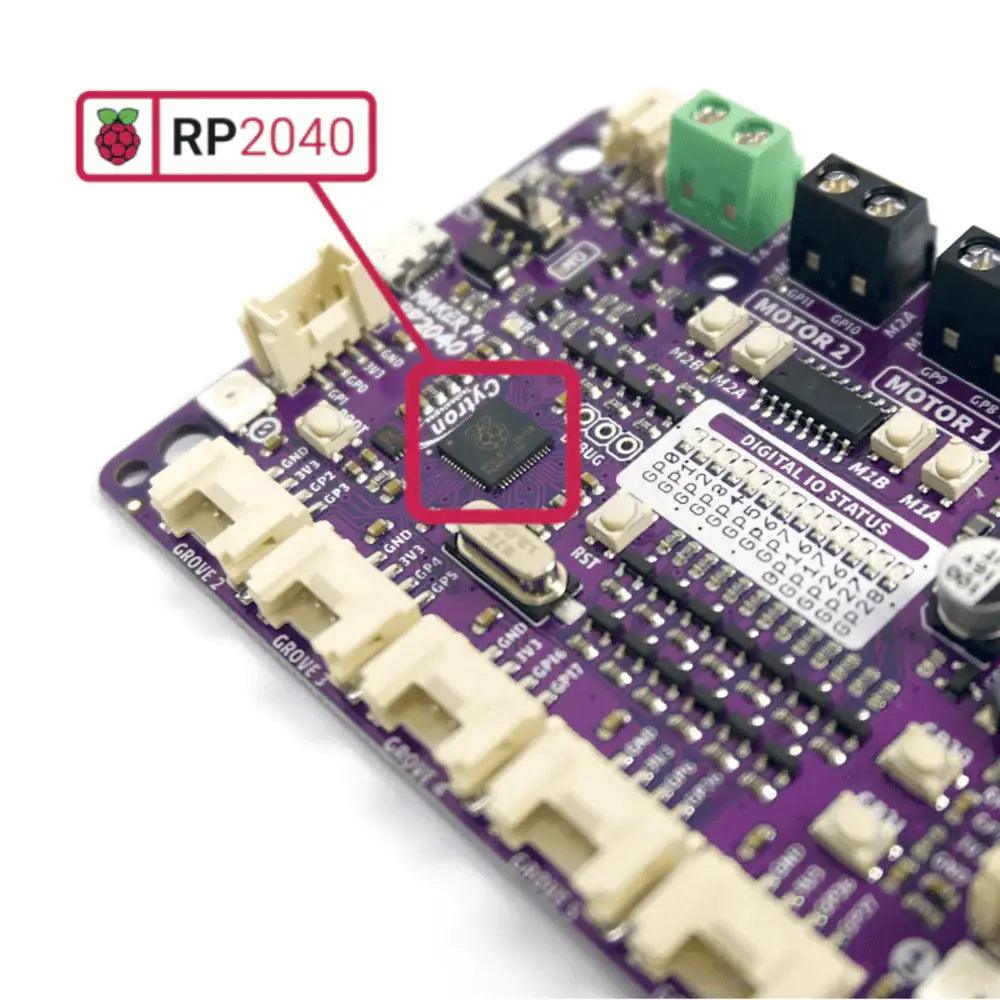

  • Powered by the RP2040 dual-core ARM Cortex-M0+ processor

  • Dual-channel DC motor driver and four servo ports for robotics applications

  • Seven Grove ports supporting digital, analog, I2C, SPI, and UART expansion

  • Preloaded with CircuitPython for plug-and-play coding

  • Supports USB 5V, 1-cell LiPo battery, or 3.6–6V VIN input with automatic switching

  • Built-in LiPo charging circuit with safety protections

  • Onboard piezo buzzer, RGB LEDs, GPIO test LEDs, and push buttons

  • Quick-test buttons and motor output LEDs for immediate motor testing

  • Fully compatible with Raspberry Pi Pico ecosystem, MicroPython, C/C++, and Arduino cores

  • LEGO-compatible mounting holes and M3 mounting points for easy integration
