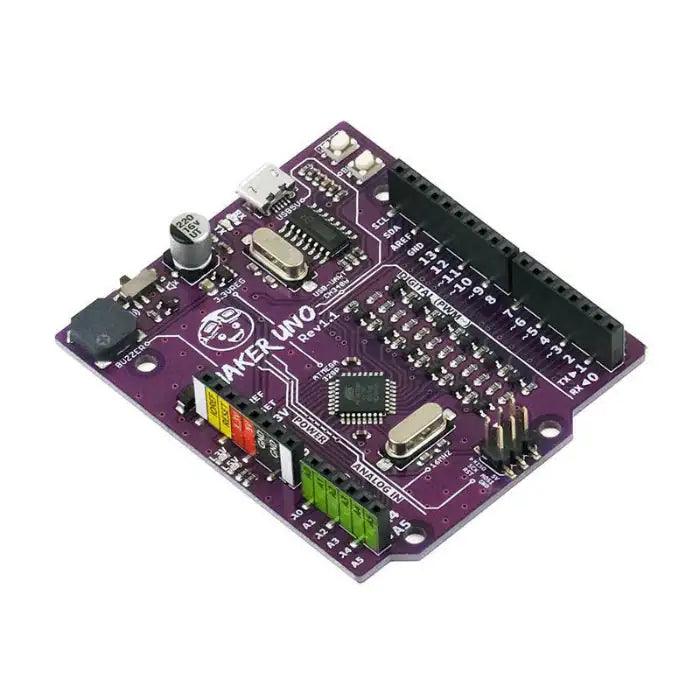

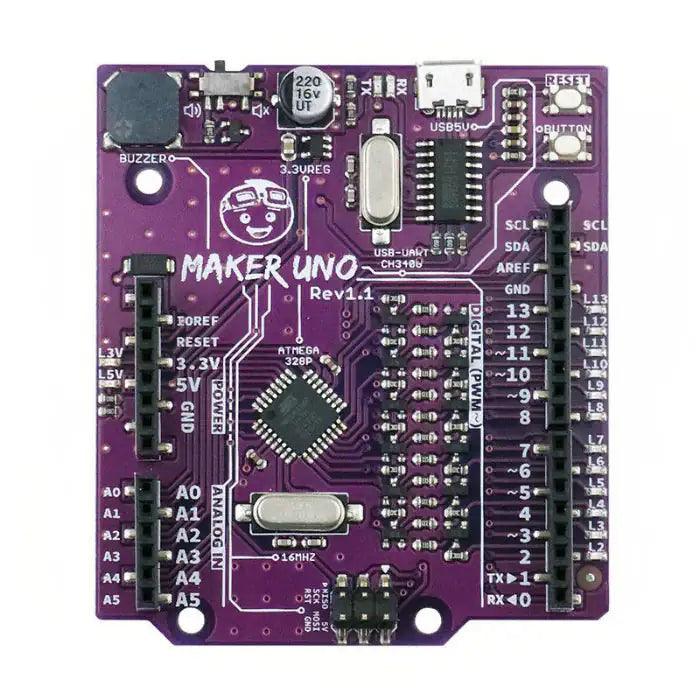

Cytron Maker UNO Microcontroller Board for Arduino Education

SKU: SRVKO2EUJ3
The Cytron Maker UNO is an Arduino-compatible board designed especially for educational use, making it perfect for students, teachers, and makers. Built to simplify the learning journey, this microcontroller development board includes 12 built-in LEDs, a piezo buzzer, and a push button—so you can start experimenting with coding and electronics straight away, without additional components. Unlike standard Arduino boards, the...
Rs. 999.00
Rs. 1,199.00 Rs. 999.00
Save Rs. 200
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model: Maker UNO
Microcontroller: ATmega328P
Operating Voltage: 5V DC
Recommended Input Voltage: 5V
Maximum Input Voltage: 5V
Analog Input/Output Pins: 6
Digital Input/Output Pins: 14
PWM Digital I/O Pins: 6
Clock Frequency: 16 MHz
Flash Memory: 32 KB
SRAM: 2 KB
EEPROM: 1 KB
3.3V Voltage Regulator Output: Up to 500 mA
Maximum DC Current (3.3V Pin): 500 mA
Maximum DC Current per I/O Pin: 20 mA
Power Supply Interface: Micro-B USB
Integrated LEDs: Yes
Operating Temperature Range: -40°C to +90°C

Additional Resources

Cytron Maker UNO.PDF

FAQ

1. What is Cytron Maker UNO?

Cytron Maker UNO is an Arduino-compatible microcontroller board designed especially for students, beginners, and STEM education. It is based on the ATmega328P and works like an Arduino Uno, with additional beginner-friendly built-in features.

2. Is Maker UNO compatible with Arduino IDE?

Yes. It is fully compatible with the Arduino IDE. Simply select Arduino Uno as the board and upload your program.

3. Which microcontroller is used on Maker UNO?

It uses the ATmega328P microcontroller, the same chip used in the Arduino Uno.

4. What are the main technical specifications?

  • Microcontroller: ATmega328P
  • Operating Voltage: 5V
  • Recommended Input Voltage: 7–12V
  • Digital I/O Pins: 14 (6 PWM)
  • Analog Input Pins: 6
  • Flash Memory: 32KB
  • SRAM: 2KB
  • EEPROM: 1KB
  • Clock Speed: 16 MHz

5. What makes Maker UNO suitable for education?

It includes built-in LEDs on every digital pin, an onboard buzzer, a push button, clear pin labels, and simplified USB programming. These features reduce wiring mistakes and make debugging easier for beginners.

View full product details

The Cytron Maker UNO is an Arduino-compatible board designed especially for educational use, making it perfect for students, teachers, and makers. Built to simplify the learning journey, this microcontroller development board includes 12 built-in LEDs, a piezo buzzer, and a push button—so you can start experimenting with coding and electronics straight away, without additional components.

Unlike standard Arduino boards, the Maker UNO removes the need for external circuit assembly, allowing beginners to focus on understanding concepts and building projects with confidence rather than managing complex wiring.

Fully compatible with the Arduino UNO R3 platform, it can be programmed using the Arduino IDE and supports existing example codes and libraries. Onboard LED indicators for every pin make troubleshooting quick and intuitive.

The Cytron Maker UNO isn’t just another development board—it’s a powerful, beginner-friendly tool designed to spark creativity and empower users to build with confidence.

Features:

  • SMD ATmega328P microcontroller (the same chip used in the Arduino UNO) with Optiboot (UNO) bootloader
  • CH340 USB-to-serial chip for easy USB programming
  • 5V input via USB (computer, power bank, or standard USB adapter)
  • Built-in piezo buzzer for simple audio output
  • 6-pin ISP header
  • R3 shield compatibility
  • LED indicators for 5V, 3.3V, TX, RX, and all digital pins
  • Micro USB (Micro-B) connector
  • Distinctive purple PCB

Additional Highlights:

  • Includes pin header label stickers—similar to those on the official Arduino Uno—to make wiring faster and more convenient (stickers must be applied manually).

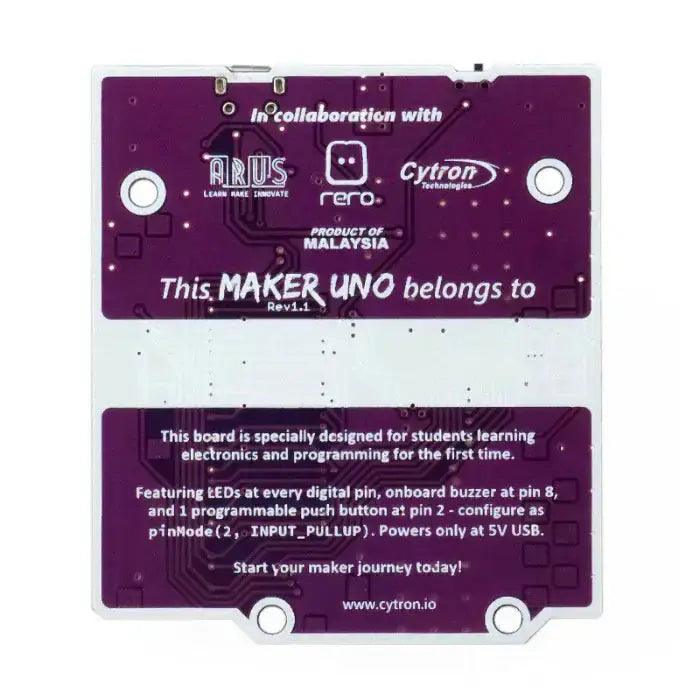

  • Dedicated space to write your name on the board, helping students easily identify their own device.
  • Smart packaging design with a USB cable opening, allowing you to use and store the Maker UNO safely in its original box without needing an extra case.
