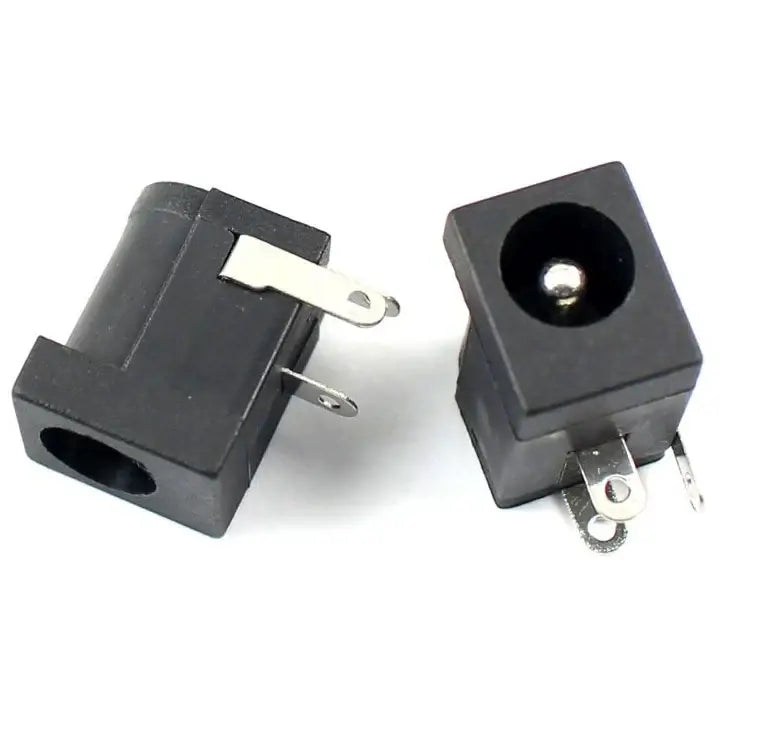

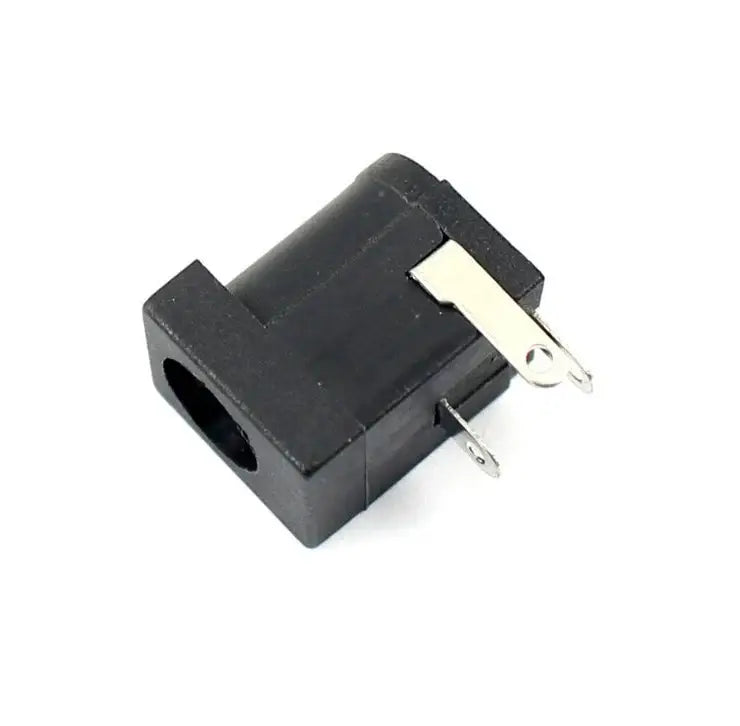

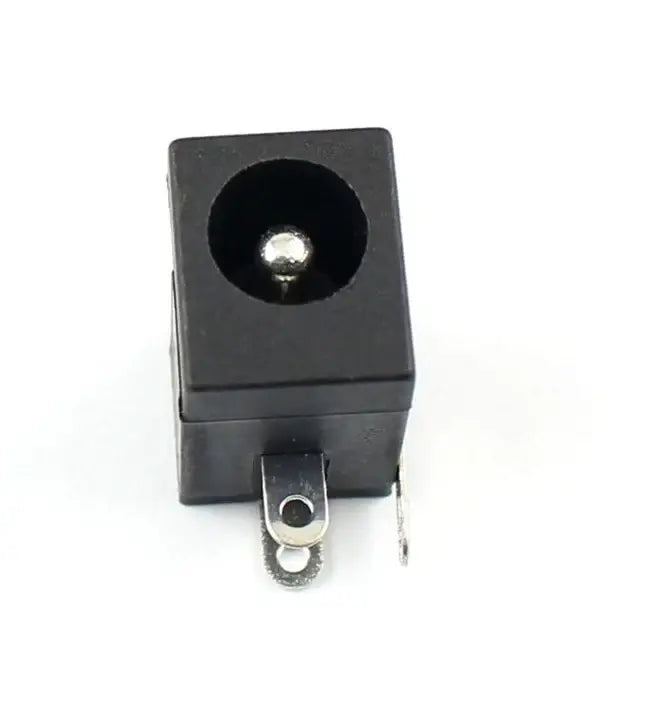

DC-005 Female DC Power Jack 5.5×2.1 mm 3Pin -PCB Mount

SKU: 5VROHLOCDQ
★★★★ ★ ★
4.7 (52 reviews)
DC Power Jack Supply Socket 5.5×2.1mm is a good quality power connector compatible with all 5.5 male power jack from different sources. It is a 2.1×5.5mm PCB mountable jack widely used in DIY hobby projects as well as in many robotics applications for DC supply voltage connection up to 30 V. Feature: Rated load voltage: 30VDC Rated load Current: 1A Plug...
Rs. 12.00
Rs. 15.00 Rs. 12.00
Save Rs. 3 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

DC Power Jack Supply Socket 5.5×2.1mm is a good quality power connector compatible with all 5.5 male power jack from different sources. It is a 2.1×5.5mm PCB mountable jack widely used in DIY hobby projects as well as in many robotics applications for DC supply voltage connection up to 30 V.

Feature:

  • Rated load voltage: 30VDC
  • Rated load Current: 1A
  • Plug Type: 5.5 x 2.1 mm
  • No. of Pin: 3
  • Operating Temperature: -40 ~ +70℃
  • Contact resistance: ≤0.03
  • Insulation Resistance: ≥100MΩ
  • Center Pole Diameter: 2.1mm
  • Compatible with: 5.5 mm jack
  • Withstand voltage: AC 500V (50Hz)/min.
  • Actuating force: 3N – 20N.
  • Weight: 2gm
  • Mount Style: PCB Mount
