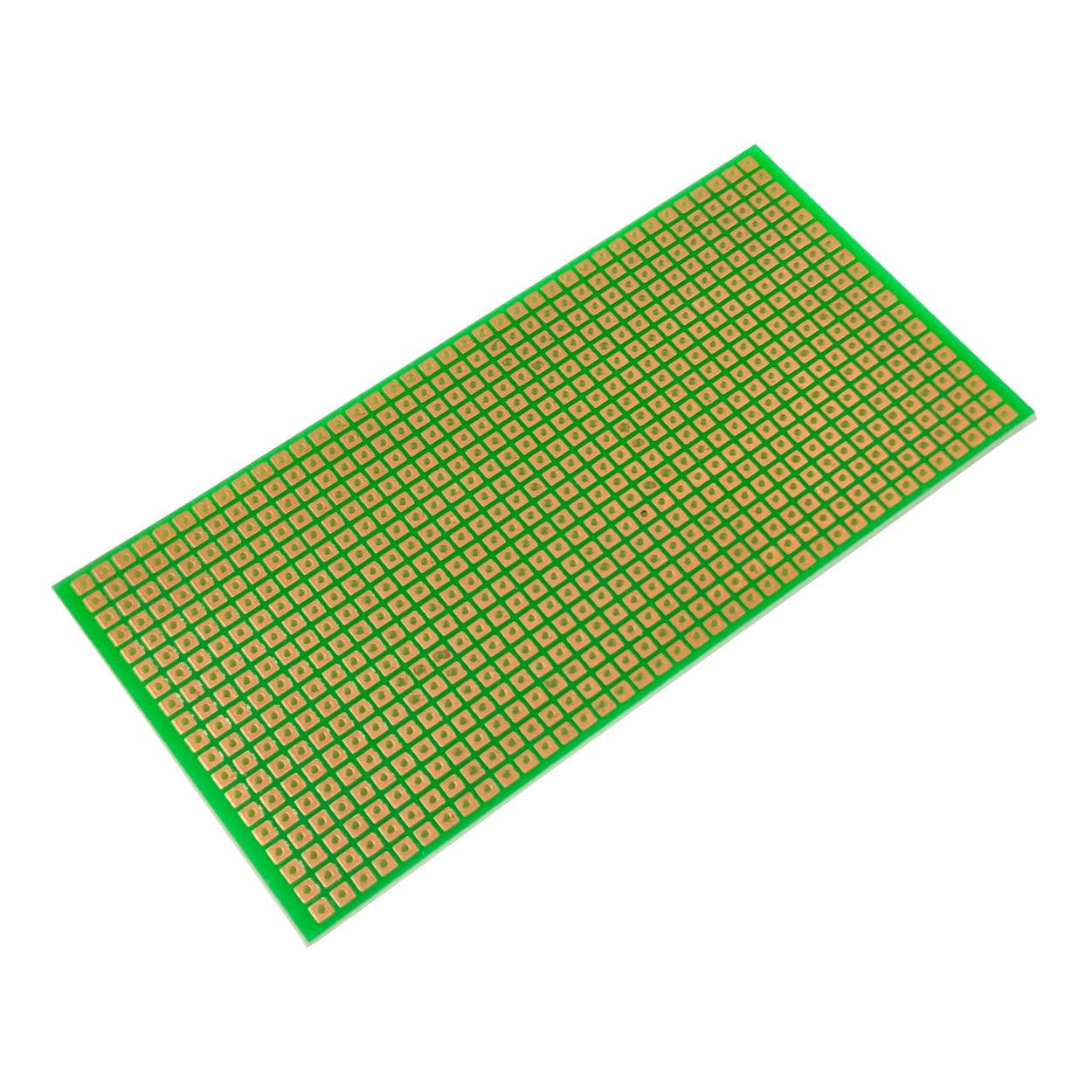

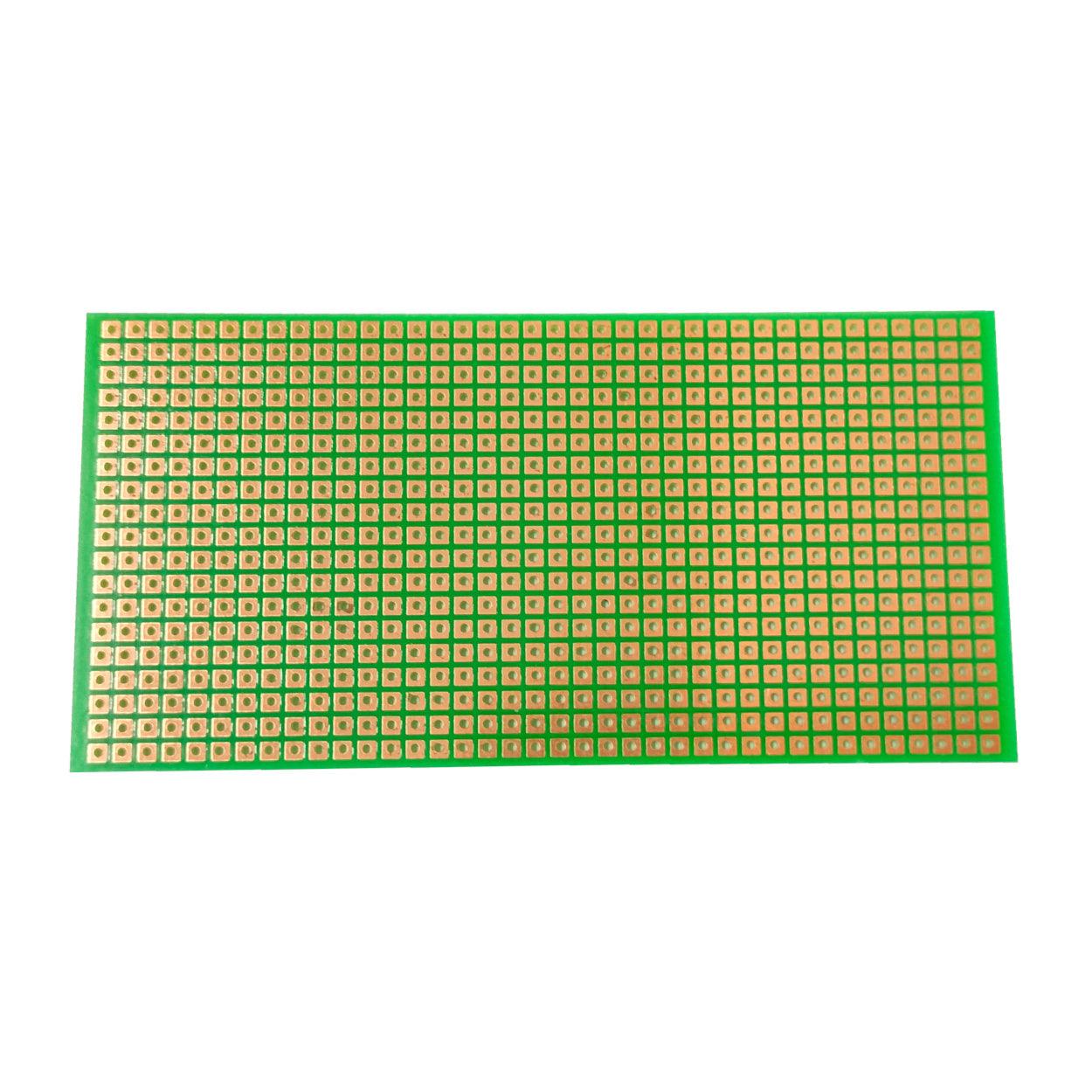

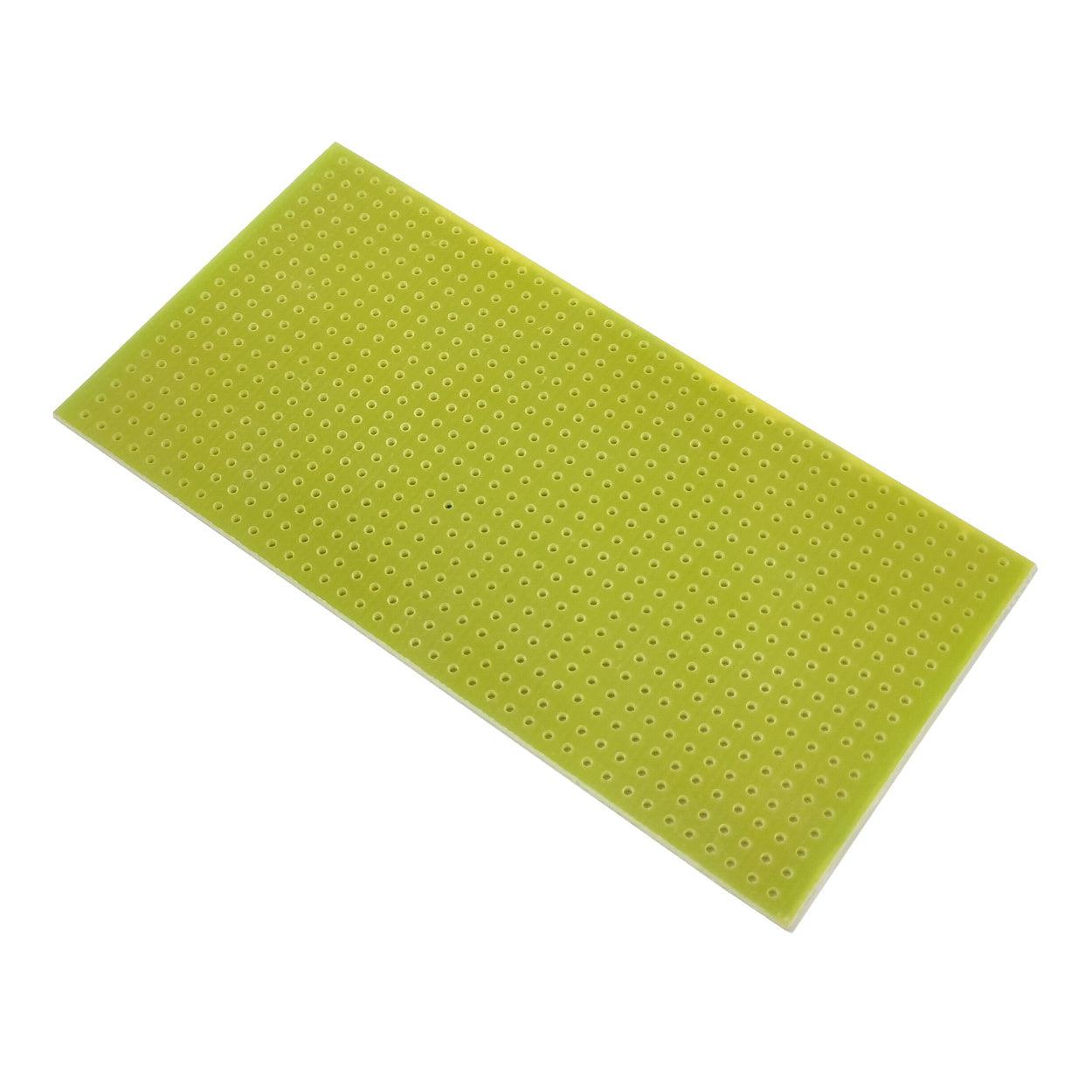

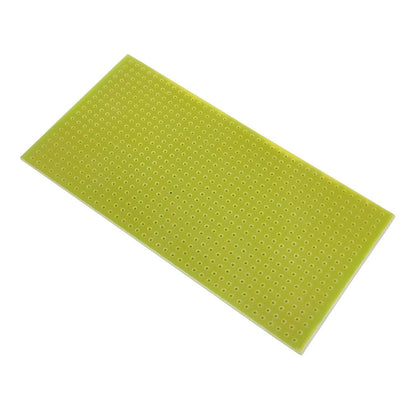

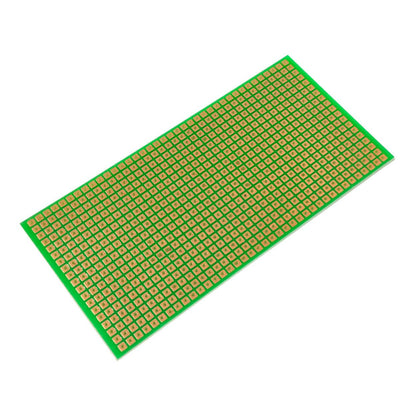

Dot PCB Prototyping Board with Glass Epoxy 5X10 cm

SKU: 1FHIPHX9XT
This is 2 inch by 4 inch high quality single sided Universal PCB Prototyping Board with standard 0.1" spacing through Holes. This board can be used to build Small sized circuits. Its made of High quality  glass epoxy material. The advantage of this over the other conventional boards is that this can withstand Heat and can be soldered multiple times...
Rs. 49.00
Rs. 55.00 Rs. 49.00
Save Rs. 6
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Dot PCB / Perfboard (Prototyping Board)
Board Material: Glass Epoxy (FR4)
Board Dimensions: 2 inch × 4 inch (approx. 50 mm × 100 mm)
Thickness: ~1.6 mm (standard PCB thickness)
Hole Type: Through-hole (plated or non-plated, depending on variant)
Hole Pitch (Spacing): 2.54 mm (0.1 inch standard grid)
Hole Diameter: ~0.8 mm – 1.0 mm (typical)
Pad Type: Isolated copper pads (dot matrix)
Copper Layer: Single-sided
Copper Thickness: ~35 µm (1 oz/ft² typical)
Surface Finish: HASL (Hot Air Solder Leveling) or bare copper (varies)
Board Color: Typically Green (may vary by manufacturer)

Additional Resources

Dot PCB Prototyping Board with Glass Epoxy 2" x 4".PDF

FAQ

1. What is a 2" × 4" Dot PCB Prototyping Board used for?

A 2" × 4" dot PCB is used for building medium to slightly elongated electronic circuits. Its rectangular shape makes it ideal for projects where components need to be arranged in a linear or modular layout, such as sensor arrays or interface circuits.

2. Why is FR4 glass epoxy material used in this board?

FR4 glass epoxy is used because it provides high durability, excellent heat resistance, and strong electrical insulation. It ensures the board can handle soldering temperatures and maintains long-term reliability.

3. How are circuits created on a dot PCB?

Each hole has an isolated copper pad, so users must manually create connections. Components are inserted and soldered, and connections are made using jumper wires, solder bridges, or component leads.

4. What are the advantages of the 2" × 4" size?

The elongated size allows better organization of components in rows, making it easier to design circuits with connectors, displays, or modules aligned in sequence. It also provides more space than smaller boards without being too bulky.

5. Is this PCB suitable for permanent circuits?

Yes, once components are soldered, the connections are strong and reliable, making it suitable for permanent or long-term circuit applications compared to temporary breadboard setups.

View full product details

This is 2 inch by 4 inch high quality single sided Universal PCB Prototyping Board with standard 0.1" spacing through Holes. This board can be used to build Small sized circuits.

Its made of High quality  glass epoxy material. The advantage of this over the other conventional boards is that this can withstand Heat and can be soldered multiple times without damaging the PCB bed.

This PCB board is best suited for hobby enthusiastic or Beginners who solder multiple times.

Note: The colour of the PCB (Printed Circuit Board) you receive may vary from the image shown based on Stock.  But the functionality and quality of the board are the same.
