Specifications:

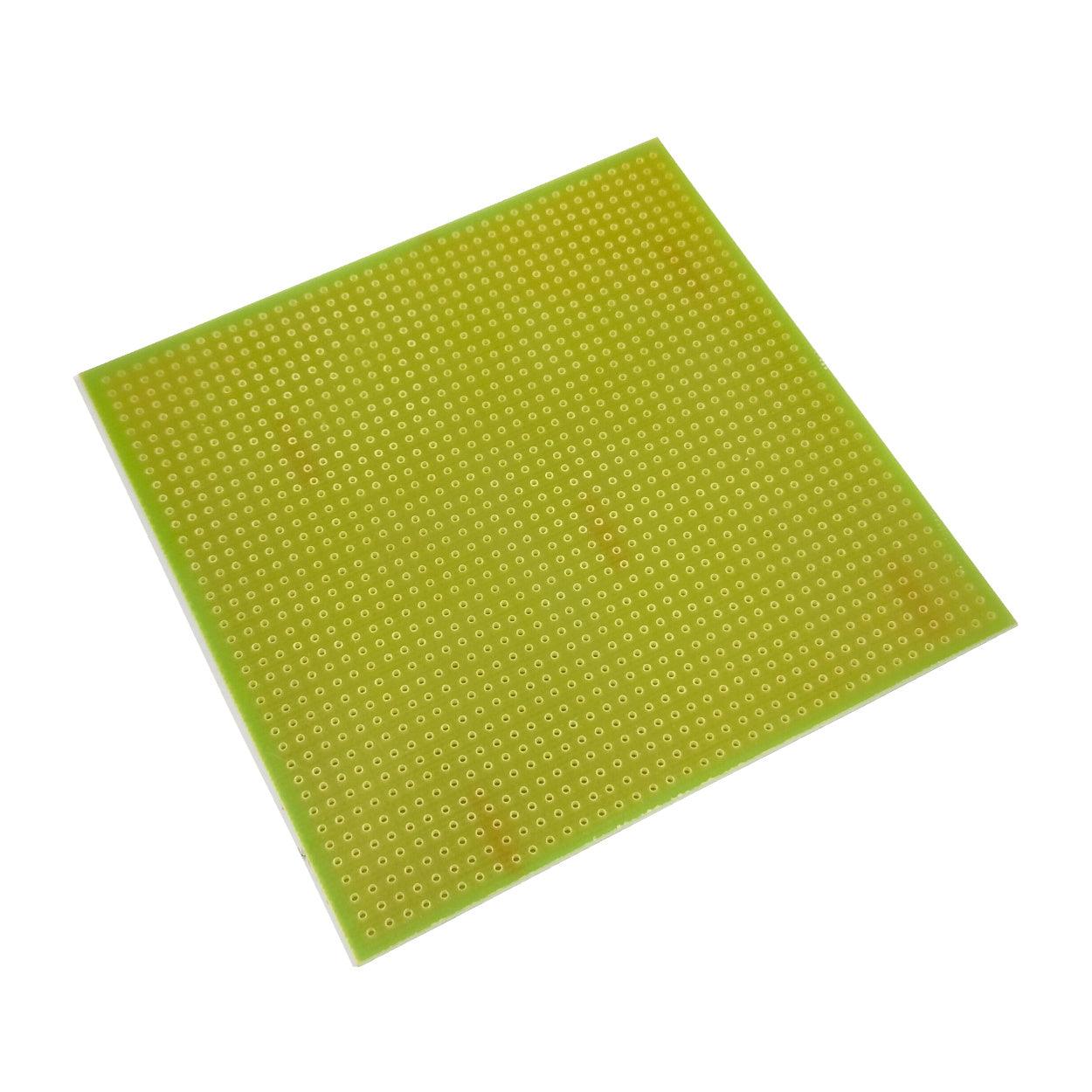

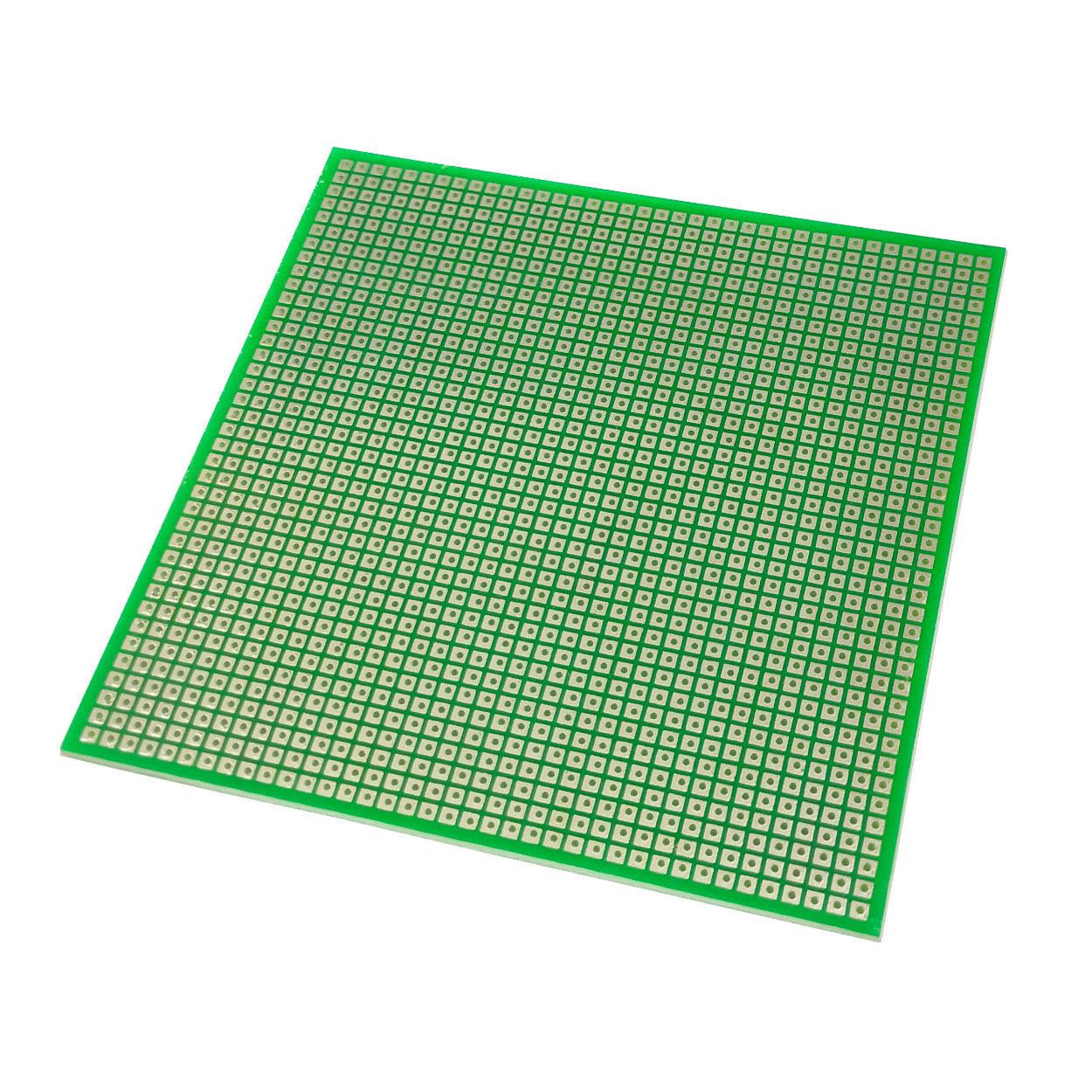

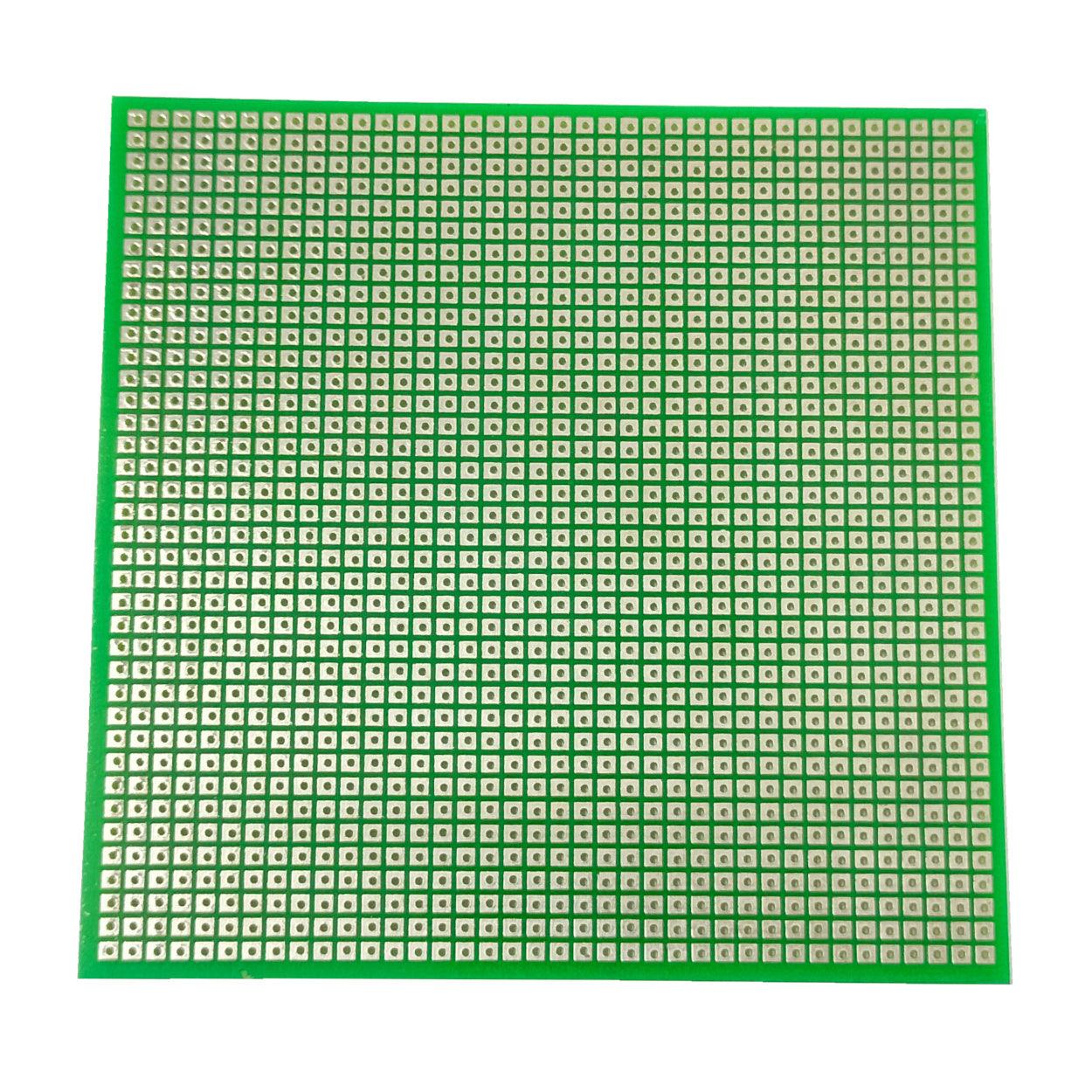

Product Type: Dot PCB / Perfboard (Prototyping Board)
Board Material: Glass Epoxy (FR4)
Board Dimensions: 4 inch × 4 inch (approx. 100 mm × 100 mm)
Thickness: ~1.6 mm (standard PCB thickness)
Hole Type: Through-hole (plated or non-plated, depending on variant)
Hole Pitch (Spacing): 2.54 mm (0.1 inch standard grid)
Hole Diameter: ~0.8 mm – 1.0 mm (typical)
Pad Type: Isolated copper pads (dot matrix)
Copper Layer: Single-sided
Copper Thickness: ~35 µm (1 oz/ft² typical)
Surface Finish: HASL (Hot Air Solder Leveling) or bare copper (varies)
Board Color: Typically Green (may vary by manufacturer)

1. What is a 4" × 4" Dot PCB Prototyping Board used for?

A 4" × 4" dot PCB is used for building larger and more complex electronic circuits. Its increased surface area allows more components, making it ideal for advanced prototyping, multi-module integration, and permanent circuit assembly.

2. Why is FR4 glass epoxy material preferred for this board?

FR4 glass epoxy is preferred because it offers high mechanical strength, excellent heat resistance, and reliable electrical insulation. It ensures durability during soldering and long-term stability of the circuit.

3. How does a dot PCB differ from a stripboard (veroboard)?

A dot PCB has isolated copper pads for each hole, requiring manual connections, while a stripboard has pre-connected copper strips. Dot PCBs provide greater flexibility, whereas stripboards allow quicker assembly for simpler circuits.

4. What types of projects is a 4" × 4" board suitable for?

It is suitable for projects like microcontroller systems, robotics circuits, power management modules, educational kits, and complex DIY electronics where multiple components and connections are required.

5. What are the main advantages of using a larger 4" × 4" prototyping board?

The larger size provides better component spacing, easier circuit layout, improved heat dissipation, and the ability to handle more complex designs without crowding, making assembly and troubleshooting easier.
