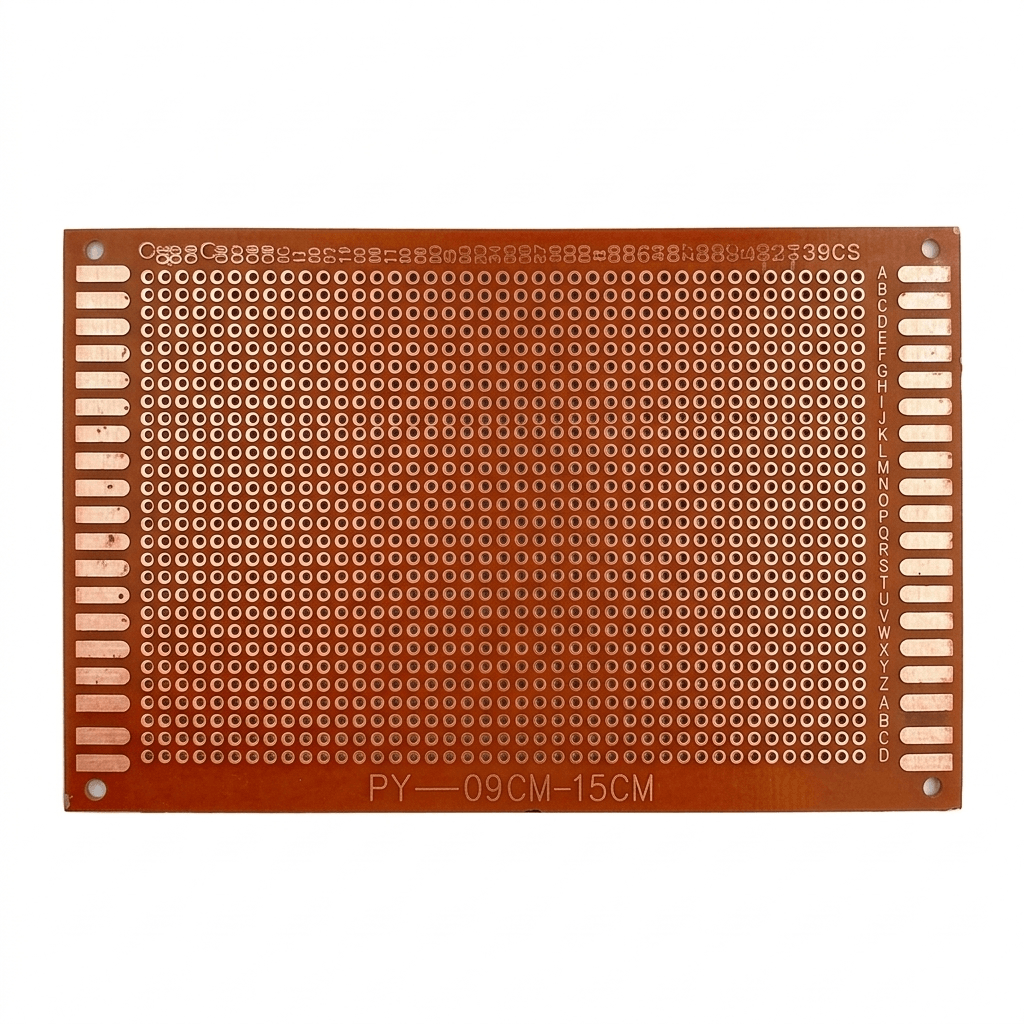

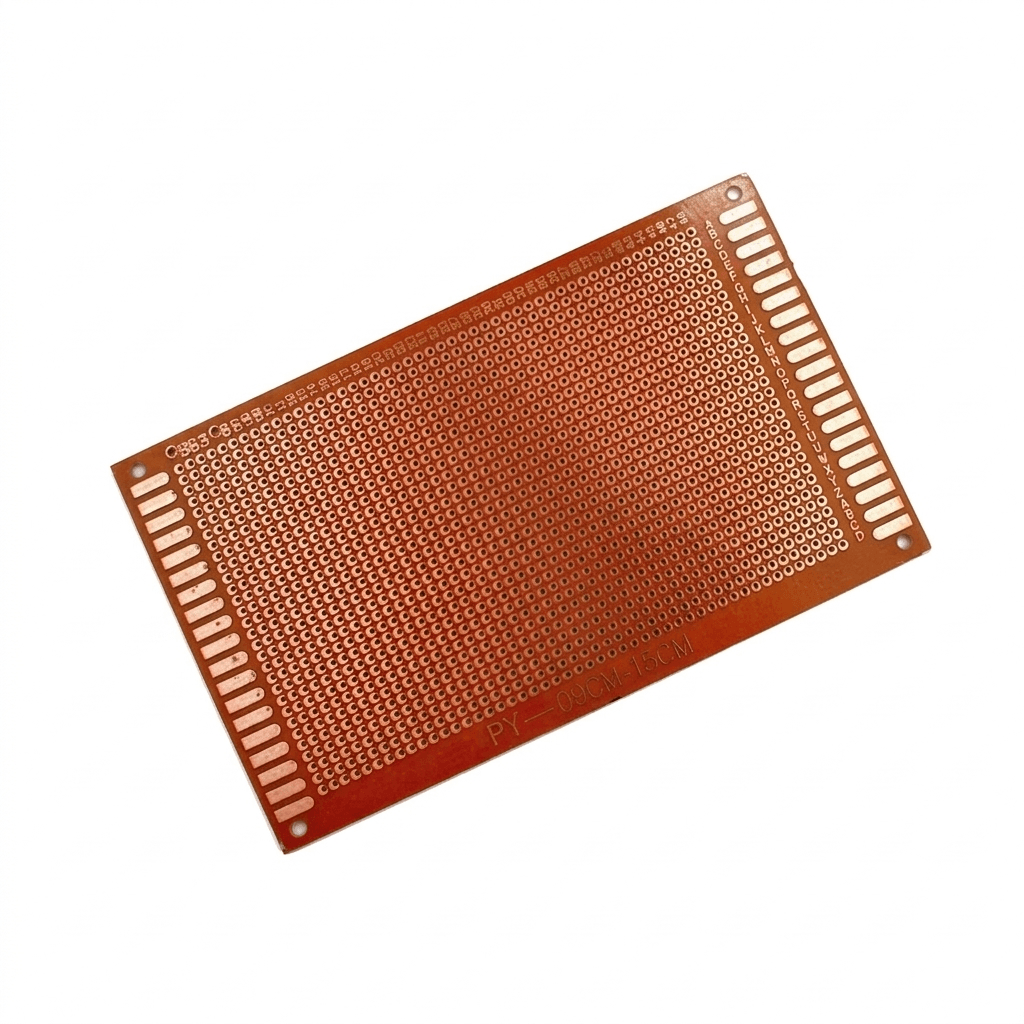

Dot PCB Prototyping Board with Glass Epoxy 9X15 cm

SKU: S93MV1WG0X
Rs. 69.00
Rs. 79.00 Rs. 69.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Hole Type: Through-hole
Hole Pitch (Spacing): 2.54 mm (0.1 inch standard)
Hole Diameter: ~0.8 mm – 1.0 mm
Pad Diameter: ~1.5 mm – 2.0 mm
Board Thickness: ~1.6 mm

Additional Resources

Dot PCB Prototyping Board with Glass Epoxy 19 *15.PDF

FAQ

Q1. What is a Dot PCB Prototyping Board with Glass Epoxy 9 × 15 used for?

 It is used for building and testing electronic circuits by manually soldering components on a durable board without needing a custom PCB design.

Q2. What material is used in this prototyping board?

 The board is made from glass epoxy (FR4), which provides high strength, heat resistance, and good electrical insulation.

Q3. What does the size 9 × 15 indicate?

 It refers to the grid layout of holes on the board, typically 9 columns by 15 rows, allowing multiple components to be placed and connected.

Q4. Are the holes on the Dot PCB electrically connected?

 No, each hole is isolated with its own copper pad, so connections must be made manually using wires or solder bridges.

Q5. What are the advantages of using a glass epoxy dot PCB over general boards?

 Glass epoxy boards are more durable, heat-resistant, and reliable compared to phenolic boards, making them suitable for long-term and professional projects.
