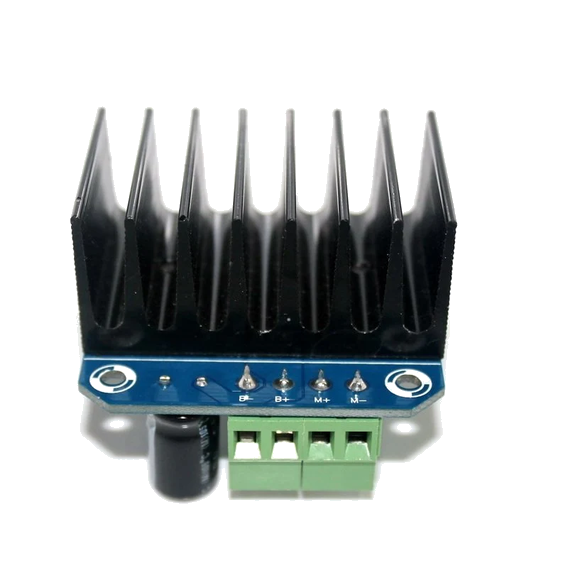

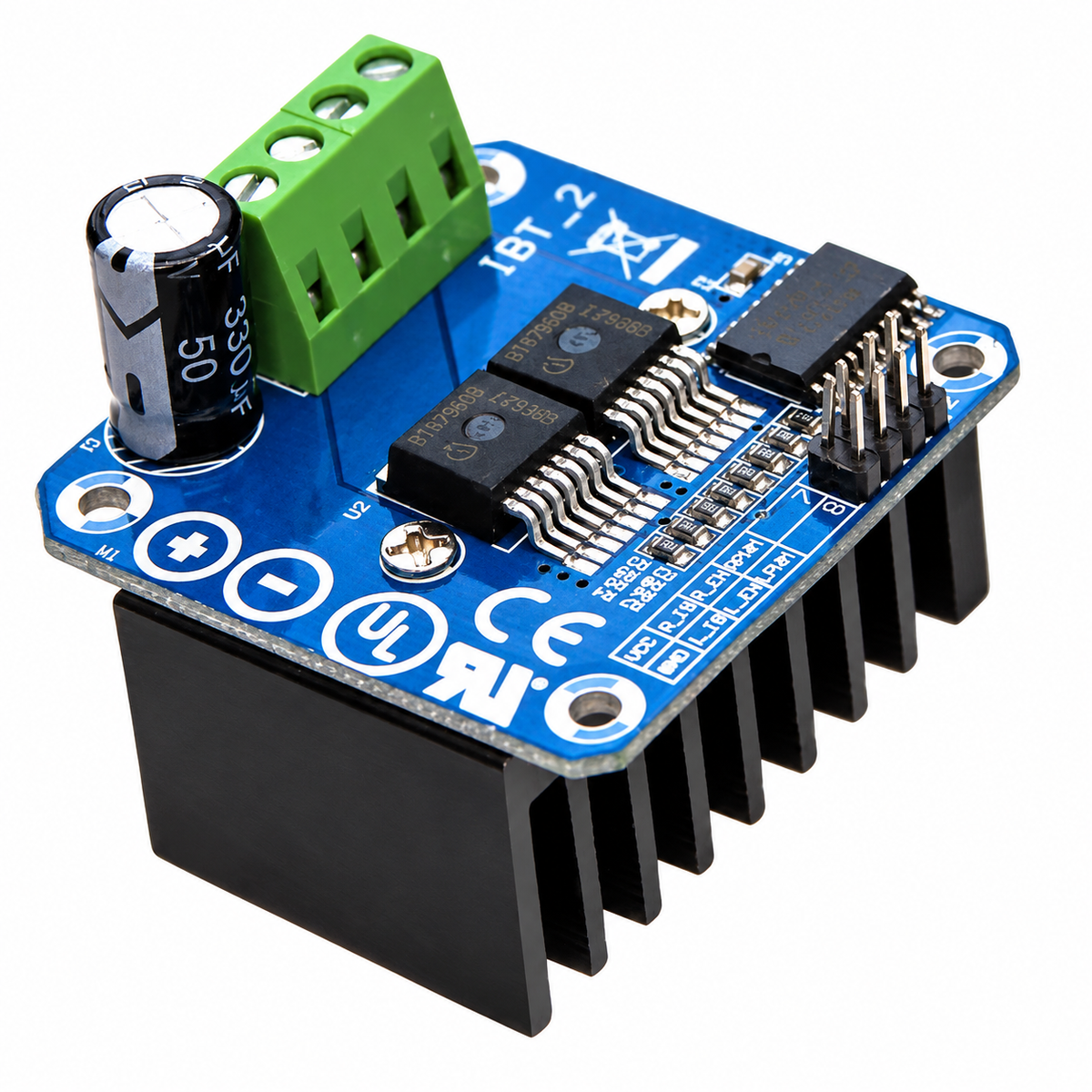

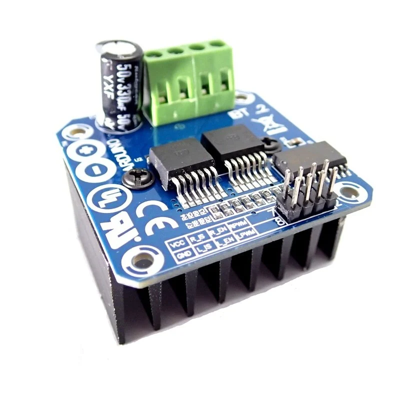

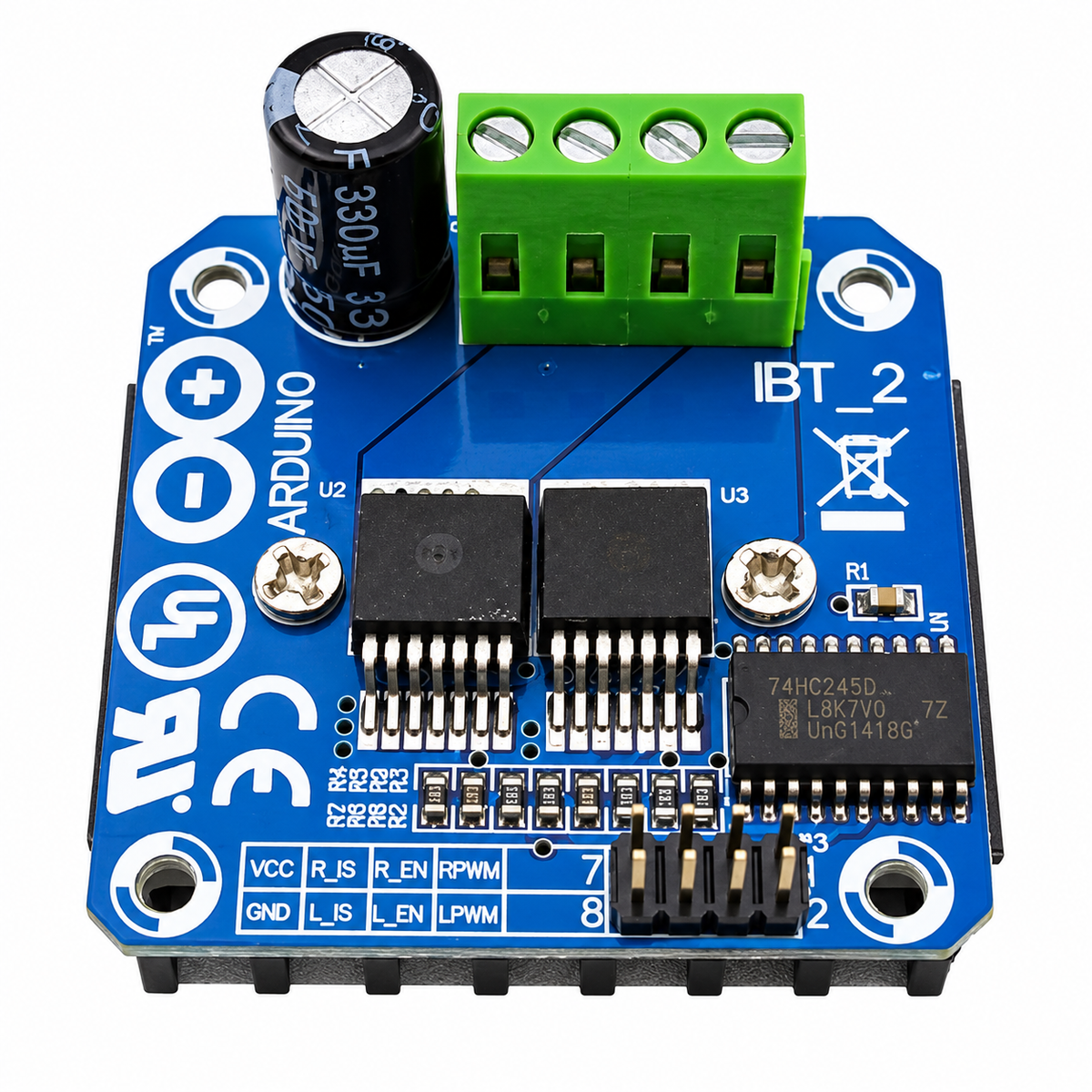

The Double BTS7960 43A H-Bridge High-Power Motor Driver Module is a high-current motor control module designed for driving compatible brushed DC motors in robotics, automation, and other demanding electronic applications. Built around BTS7960 half-bridge driver ICs, the module provides an H-bridge configuration that enables bidirectional motor rotation and electronic speed control using suitable control signals from a microcontroller.
The module is commonly used with Arduino, ESP32, and other compatible controllers for applications requiring forward and reverse motor operation, variable speed control, and high-current switching. Its control interface typically uses PWM signals and direction inputs, allowing the connected controller to adjust motor speed and change rotation direction according to the project requirements.
With a dual-driver architecture, this module is suitable for high-power DC motor control projects such as mobile robots, electric mechanisms, actuator systems, and experimental motor-control platforms. Despite sometimes being marketed as a stepper motor driver, the BTS7960-based H-bridge is primarily intended for brushed DC motors. It is not a dedicated stepper motor driver, and driving a bipolar stepper motor requires an appropriate control arrangement and suitable current regulation.
The Double BTS7960 motor driver module is a practical option for projects that need a robust interface between a low-voltage controller and a higher-current DC motor. Actual current capability depends on cooling, PCB layout, power supply, wiring, and operating conditions. Proper heat dissipation, overcurrent protection, and suitable power connections are essential for reliable operation.
Dual BTS7960-based H-bridge motor driver architecture
Designed primarily for high-current brushed DC motor control
Supports forward and reverse motor rotation
PWM input for motor speed control
Compatible with Arduino, ESP32, and other suitable microcontrollers
Logic-level control interface for embedded motor-control projects
Suitable for robotics, automation, and actuator applications
Supports high-current switching when operated within thermal limits
Useful for motor testing and DIY motion-control systems
Requires adequate heat dissipation and correctly rated wiring
Not a dedicated stepper motor driver with built-in microstepping control
