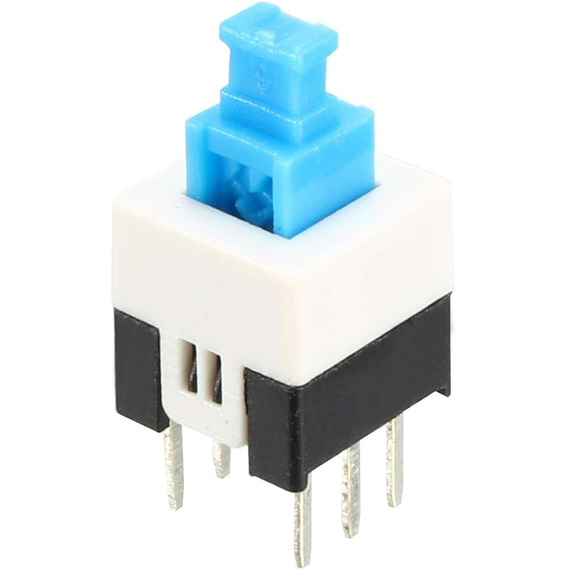

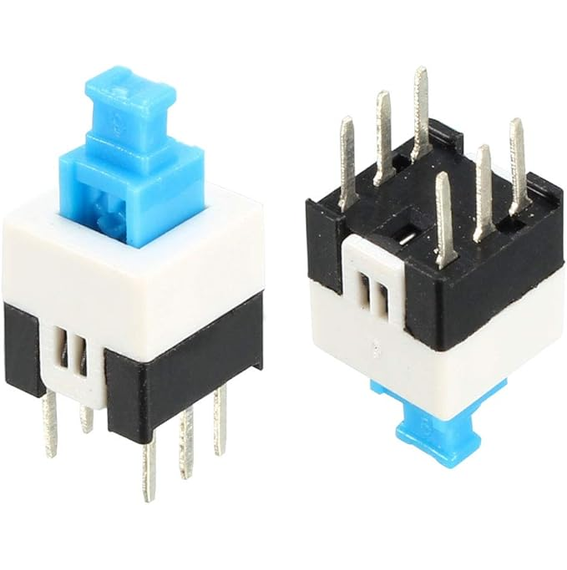

DPDT Mini Push Button 7mmx7mm Self-Locking Switch

SKU: X38V6E0WT4
The 6-Pin Square 7×7mm DPDT Mini Push Button Self-Locking Switch is a compact latching type switch designed for reliable ON/OFF control in electronic circuits. Unlike momentary switches, this self-locking switch maintains its state after being pressed, making it ideal for power control and mode selection applications. With a DPDT (Double Pole Double Throw) configuration, it can independently control two separate...
Rs. 6.00
Rs. 8.00 Rs. 6.00
Save Rs. 2
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Mini Push Button Switch
Switch Type: DPDT (Double Pole Double Throw)
Operation Type: Self-locking / Latching
Body Size: 7mm × 7mm
Number of Pins: 6
Mounting Type: Through-Hole PCB Mount
Electrical Rating: Low-voltage signal switching (varies by model, typically <12V applications)

Additional Resources

DPDT Switch.PDF

FAQ

1. What is a self-locking switch?

The switch stays in its ON or OFF position after being pressed until it is pressed again.

2. What does DPDT mean?

DPDT stands for Double Pole Double Throw, meaning it can control two separate circuits simultaneously.

3. Can this switch be used for power ON/OFF control?

Yes, it is commonly used for power control in low-voltage electronic circuits.

4. Is this switch momentary or latching?

It is a latching (self-locking) type switch, not momentary.

5. Where is this switch commonly used?

It is used in embedded systems, DIY electronics, control panels, and compact PCB designs.

View full product details

The 6-Pin Square 7×7mm DPDT Mini Push Button Self-Locking Switch is a compact latching type switch designed for reliable ON/OFF control in electronic circuits. Unlike momentary switches, this self-locking switch maintains its state after being pressed, making it ideal for power control and mode selection applications.

With a DPDT (Double Pole Double Throw) configuration, it can independently control two separate circuits at the same time, offering greater flexibility in circuit design. Its small 7×7mm footprint makes it suitable for high-density PCB layouts, embedded systems, consumer electronics, and DIY projects.

The switch provides smooth actuation with a clear mechanical lock, ensuring stable electrical contact and long operational life.

Key Features

  • Compact 7×7mm square body design
  • DPDT (Double Pole Double Throw) switching
  • Self-locking (latching) ON/OFF mechanism
  • 6-pin through-hole PCB mounting
  • Suitable for low-voltage electronic circuits
  • High reliability and stable contact performance
  • Ideal for compact and dense PCB designs
  • Easy integration in embedded and DIY projects
