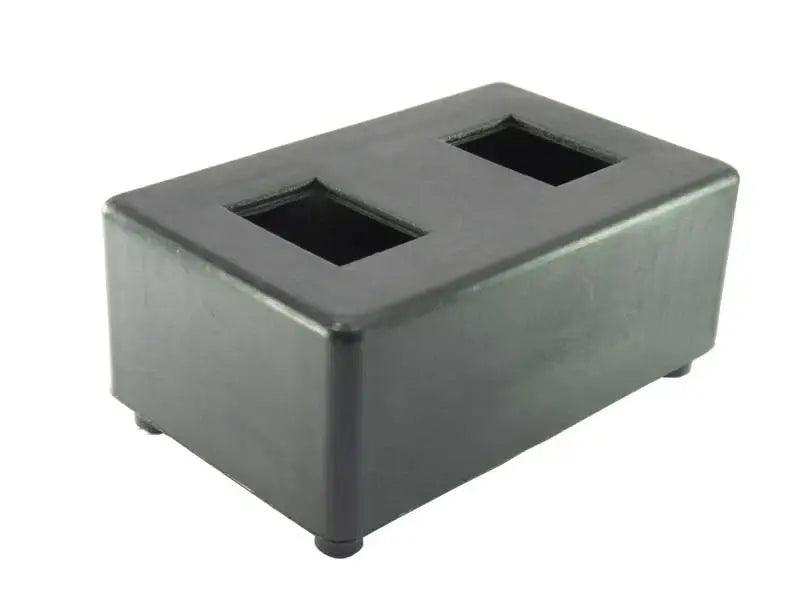

DPDT Switch box

SKU: VY5P7P5H94

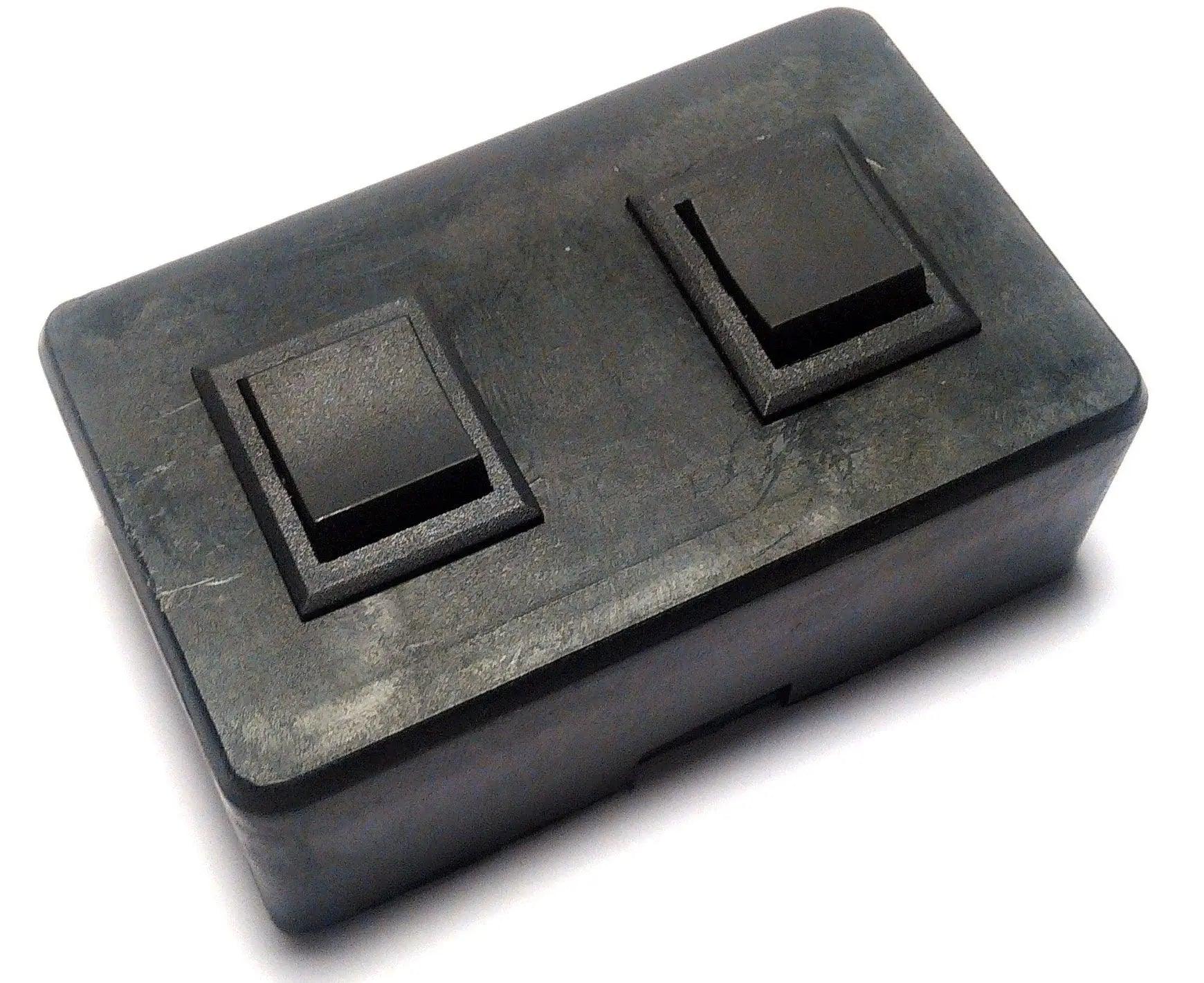

This is a Robotics Switch Box Enclosure designed without DPDT switches. It can hold two DPDT rocker switches, making it an ideal makeshift remote for controlling your robot. This enclosure serves as a wired remote control box for hobby robotics projects. To reverse the motor’s direction (for anti-clockwise motion), the polarity of the supply must be inverted, which is typically...
Rs. 49.00
Rs. 59.00 Rs. 49.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Number of Switches: 2
Color: Black
Material: Homopolymer
Overall Dimensions (L × W × H): 9.3 cm × 6.7 cm × 4 cm
Switch Cutout Dimensions (L × W): 2.8 cm × 2 cm

Additional Resources

DPDT Switch box.PDF

FAQ

1. What is a DPDT switch box ?

A DPDT (Double Pole Double Throw) switch box is an enclosure designed to hold DPDT rocker switches, allowing you to control two separate circuits simultaneously. It is commonly used in robotics and motor control projects.

2. How many switches can this DPDT switch box hold ?

This particular switch box can accommodate two DPDT rocker switches, making it suitable for controlling multiple motors or circuits independently.

3. What material and color is the DPDT switch box made of ?

The box is made from durable homopolymer plastic and comes in black, providing both strength and a sleek look for your electronics project.

4. What are the dimensions of the DPDT switch box ?

The overall dimensions of the box are 9.3 cm × 6.7 cm × 4 cm, and the switch cutout dimensions are 2.8 cm × 2 cm to fit standard DPDT rocker switches.

5. What are the typical applications of a DPDT switch box ?

It is widely used in:

  • Remote-controlled robots
  • AVR, ARM, PIC, or Arduino-based robotics projects
  • Raspberry Pi and Android-controlled robotic projects
  • Hobby electronics projects requiring polarity reversal or motor direction control
View full product details

This is a Robotics Switch Box Enclosure designed without DPDT switches. It can hold two DPDT rocker switches, making it an ideal makeshift remote for controlling your robot.

This enclosure serves as a wired remote control box for hobby robotics projects. To reverse the motor’s direction (for anti-clockwise motion), the polarity of the supply must be inverted, which is typically achieved using DPDT switches for “polarity reversal.”

A Double Pole Double Throw (DPDT) switch is an electromechanical switch featuring 2 inputs and 4 outputs, where each input can connect to two corresponding outputs, allowing easy control of motor direction.

Applications:

  • Remote-controlled robots
  • AVR-based robotics projects
  • ARM-based robotics projects
  • PIC-based robotics projects
  • Arduino-based robotics projects
  • Raspberry Pi-based robotics projects
  • Android-controlled robotic projects
