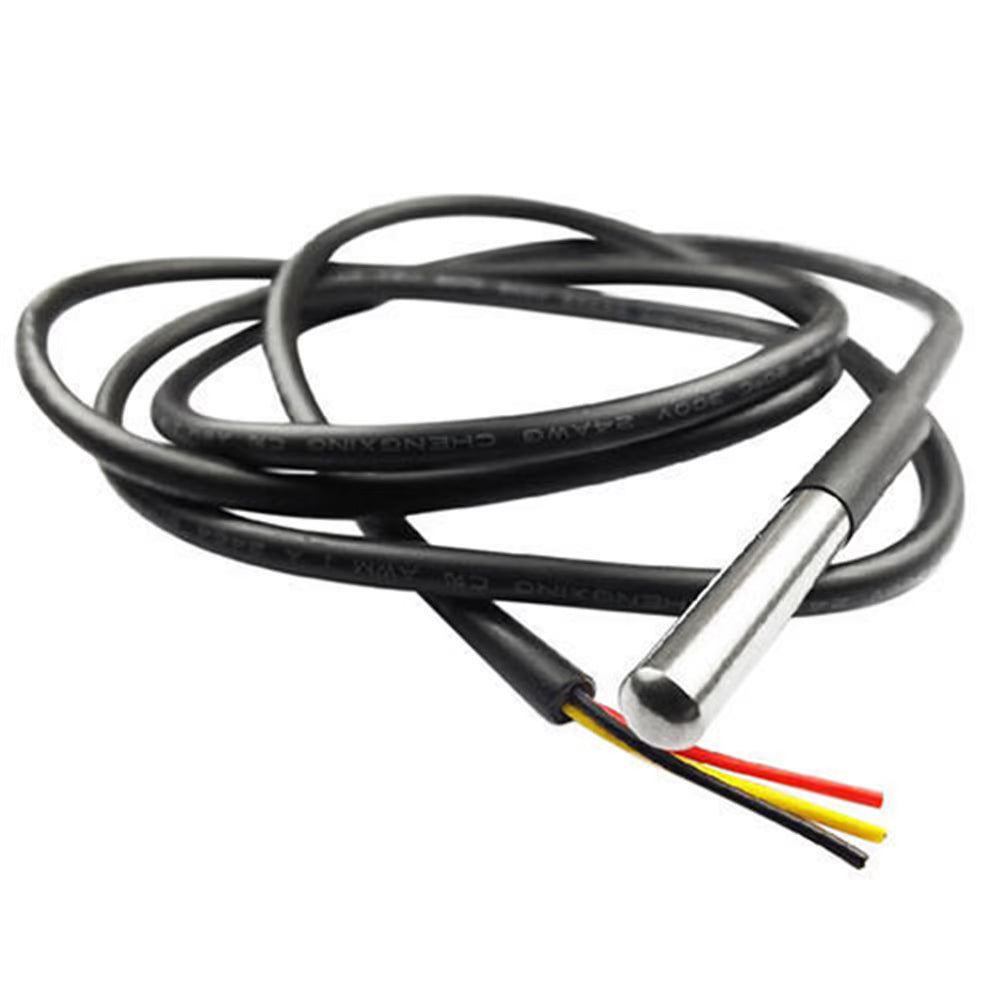

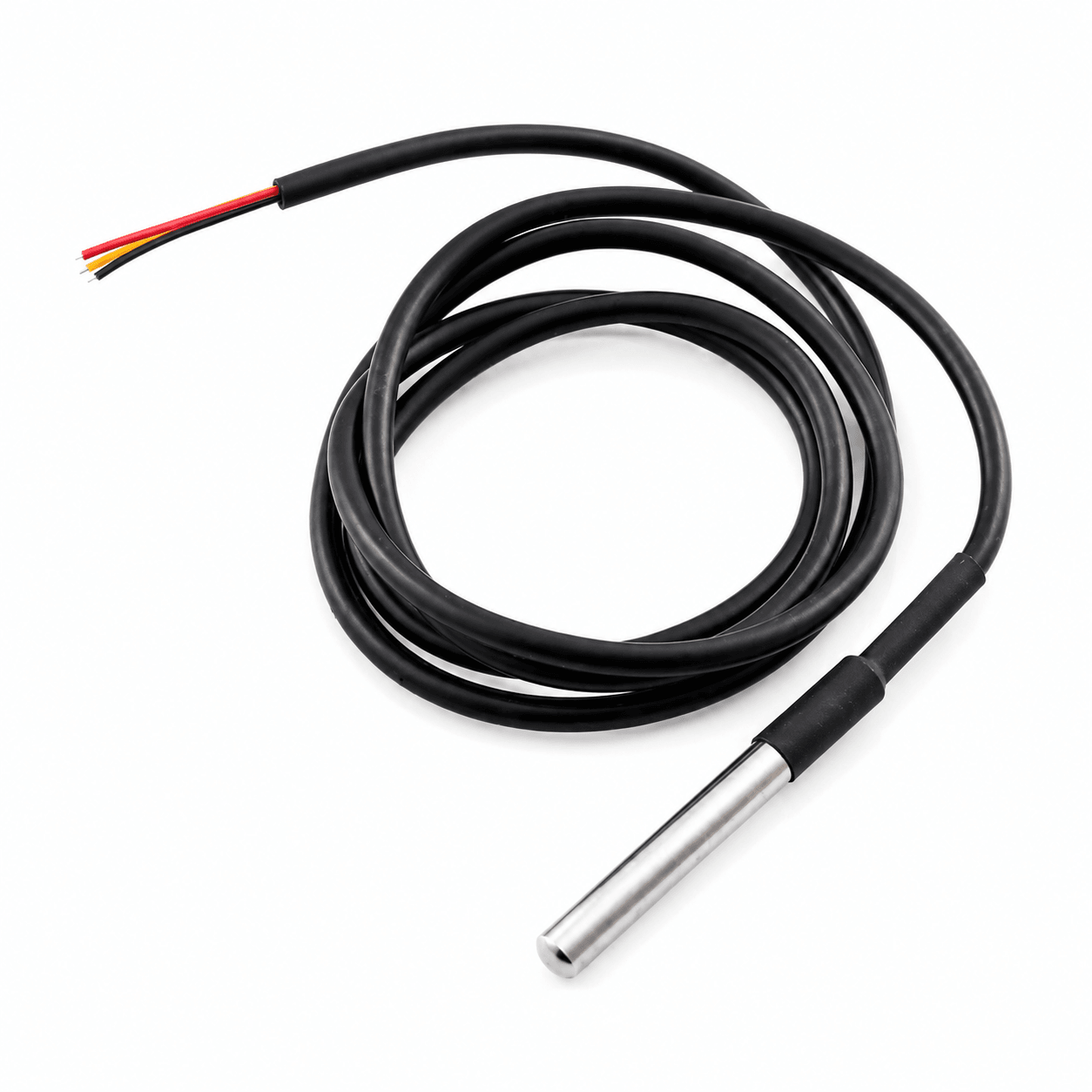

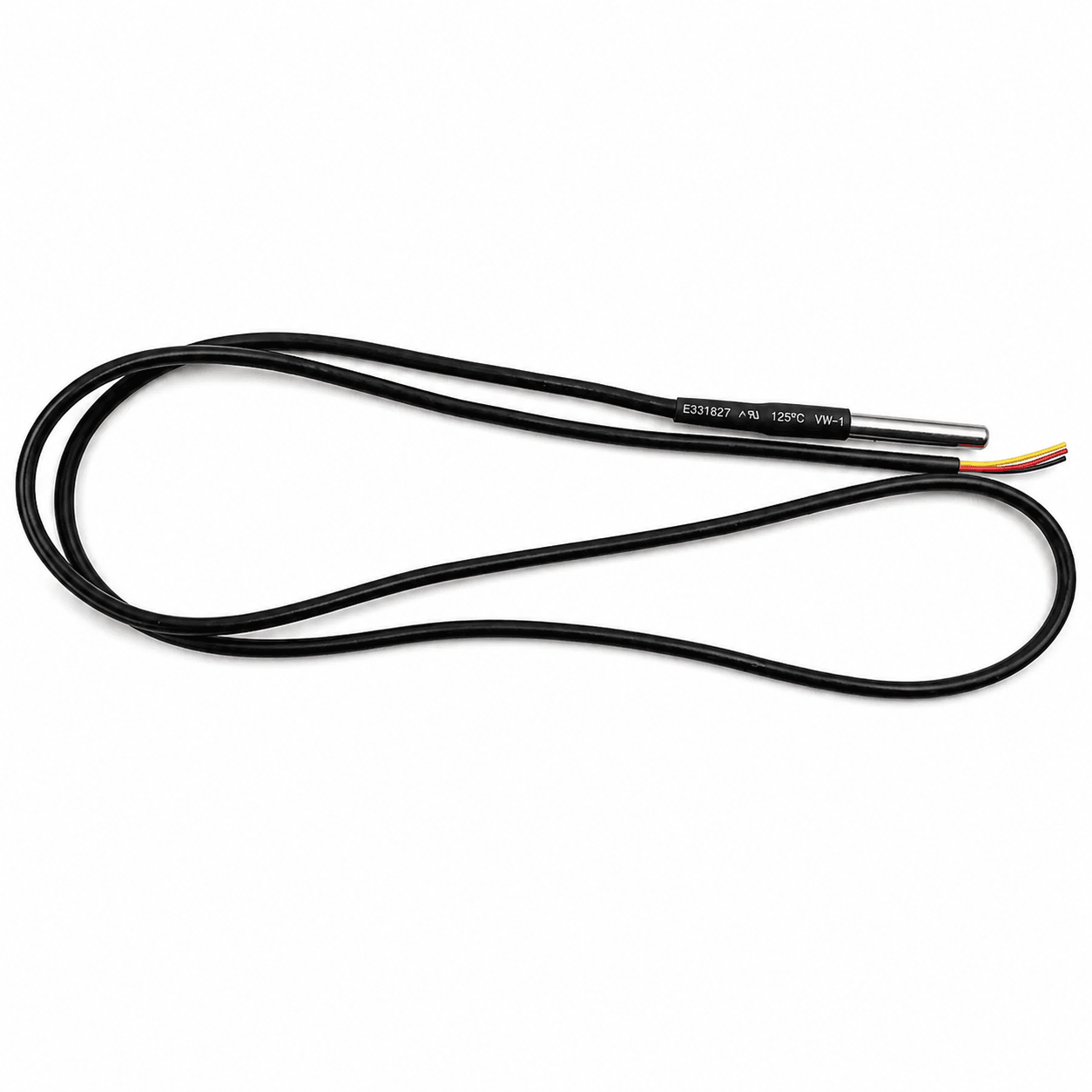

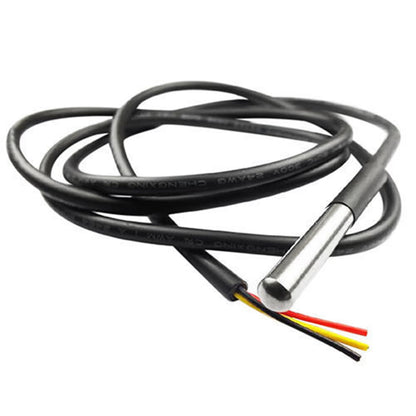

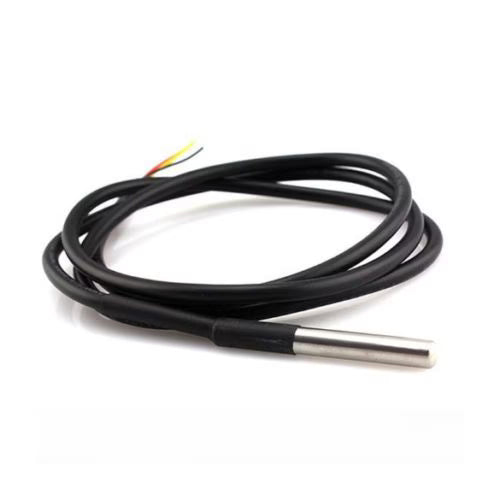

DS18B20 Waterproof Temperature Sensor Probe

SKU: 1WWI5QZA38
★★★★ ★ ★
4.3 (118 reviews)
The DS18B20 Waterproof Temperature Sensor Probe is a digital temperature sensor designed for accurate temperature measurement in liquids, wet environments, outdoor installations, tanks, aquariums, and industrial systems. The sensor is enclosed inside a sealed stainless-steel probe and connected through an insulated cable, allowing the sensing probe to be placed in water or other suitable non-corrosive liquids while keeping the electronic...
Rs. 99.00
Rs. 110.00 Rs. 99.00
Save Rs. 11
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The DS18B20 Waterproof Temperature Sensor Probe is a digital temperature sensor designed for accurate temperature measurement in liquids, wet environments, outdoor installations, tanks, aquariums, and industrial systems. The sensor is enclosed inside a sealed stainless-steel probe and connected through an insulated cable, allowing the sensing probe to be placed in water or other suitable non-corrosive liquids while keeping the electronic connections away from moisture.

Based on the DS18B20 digital temperature sensor, the probe communicates using the 1-Wire communication protocol, requiring only one microcontroller data pin for communication. Each sensor has a unique 64-bit serial code, allowing multiple DS18B20 sensors to be connected to the same 1-Wire bus and individually identified. This makes the sensor especially useful for multi-point temperature monitoring systems.

The sensor operates from 3.0V to 5.5V DC and provides a measurement range of -55°C to +125°C, with an accuracy of ±0.5°C from -10°C to +85°C for genuine DS18B20 devices. It supports programmable 9-bit to 12-bit resolution and can be easily interfaced with Arduino, ESP32, STM32, Raspberry Pi, PIC, AVR, and other development platforms.

Key Features

  • DS18B20-based digital temperature sensor probe
  • Waterproof stainless-steel probe construction
  • Suitable for liquid and wet-environment temperature measurement
  • 1-Wire digital communication interface
  • Wide temperature measurement range
  • Accuracy of ±0.5°C over the specified central temperature range
  • Programmable 9-bit to 12-bit resolution
  • Unique 64-bit serial code for each sensor
  • Supports multiple sensors on a single data line
  • No external ADC required
  • Supports parasite power operation
  • Digital output reduces analog noise problems
  • Long insulated connecting cable
  • Simple three-wire connection
  • Compatible with popular microcontrollers and development boards
  • Suitable for indoor and outdoor monitoring applications

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Sensor Type: Waterproof Digital Temperature Sensor Probe
Sensor IC: DS18B20 or Compatible
Measurement Type: Temperature
Communication Protocol: 1-Wire Digital Interface
Operating Voltage: 3.0V to 5.5V DC
Temperature Measurement Range: -55°C to +125°C
Accuracy: ±0.5°C from -10°C to +85°C for genuine DS18B20 devices
Resolution: Programmable 9-bit, 10-bit, 11-bit, or 12-bit
Temperature Increment at 12-bit Resolution: 0.0625°C
Maximum Conversion Time at 12-bit Resolution: 750ms
Output Type: Digital
Unique Device Address: 64-Bit Factory-Programmed ROM Code
Power Modes: External Power or Parasite Power
Alarm Function: Programmable High and Low Temperature Alarms
Probe Material: Stainless Steel
Probe Type: Sealed Waterproof Probe
Typical Probe Size: Approximately 6mm Diameter × 50mm Length
Cable Type: Insulated 3-Wire Cable
Typical Cable Length: Approximately 1 Meter, depending on product variant
Typical Wire Colors: Red, Black, and Yellow/White
Pull-Up Resistor: 4.7kΩ Recommended on Data Line
Compatibility: Arduino UNO, Nano, Mega, ESP32, STM32, Raspberry Pi, PIC, AVR, 8051 and other 1-Wire-compatible controllers

Additional Resources

DS18B20 Probe.PDF

FAQ

1. What is the DS18B20 Waterproof Temperature Sensor Probe used for?

The sensor is used to measure temperature in applications such as aquariums, water tanks, hydroponic systems, swimming pools, greenhouses, refrigeration systems, weather stations, and industrial monitoring projects.

2. Can the DS18B20 waterproof probe be submerged in water?

The sealed stainless-steel sensing probe is designed for use in water and wet environments. However, the cable joint, connector end, and exposed electrical connections should be kept protected from water unless the specific product is rated for full-cable immersion.

3. Can multiple DS18B20 sensors be connected to one microcontroller pin?

Yes. Each DS18B20 has a unique 64-bit identification code, allowing multiple sensors to share a single 1-Wire data line while still being individually addressed.

4. Is the DS18B20 waterproof sensor compatible with Arduino and ESP32?

Yes. The sensor can be used with Arduino, ESP32, STM32, Raspberry Pi, PIC, AVR, and other platforms that support the 1-Wire communication protocol.

5. Does the DS18B20 sensor require a pull-up resistor?

Yes. A 4.7kΩ pull-up resistor is commonly connected between the data wire and VCC to ensure reliable 1-Wire communication.
