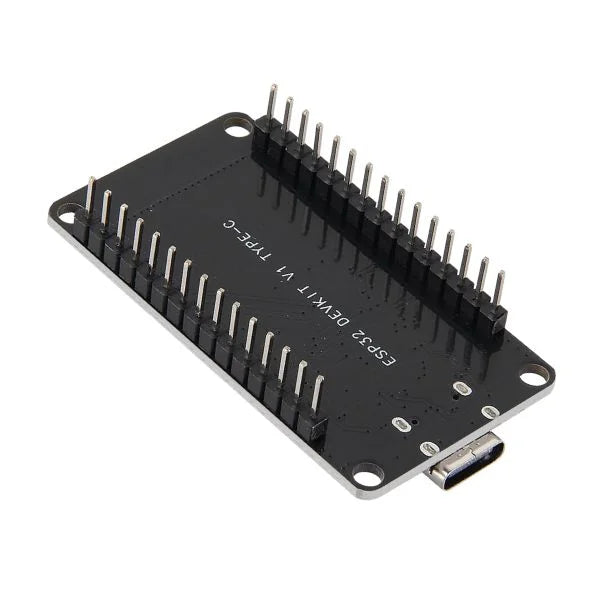

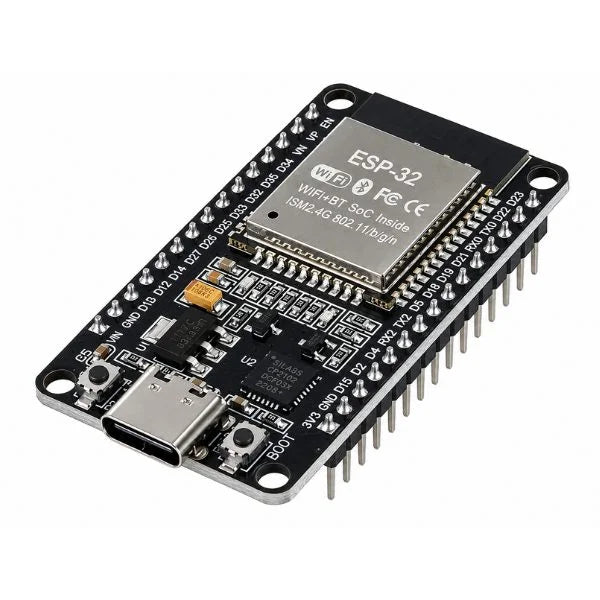

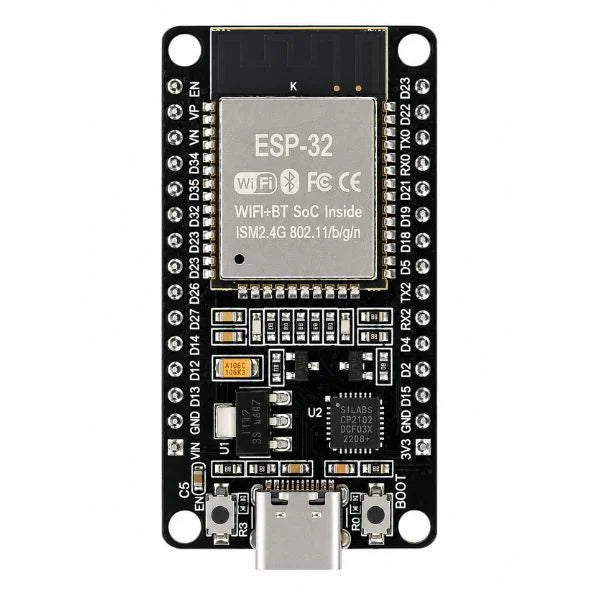

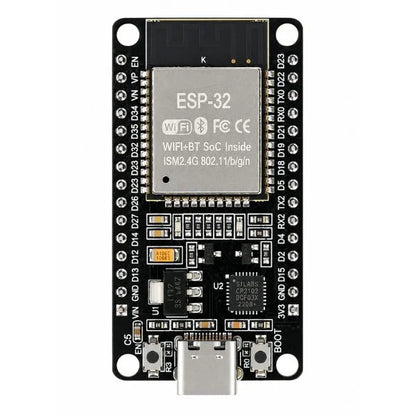

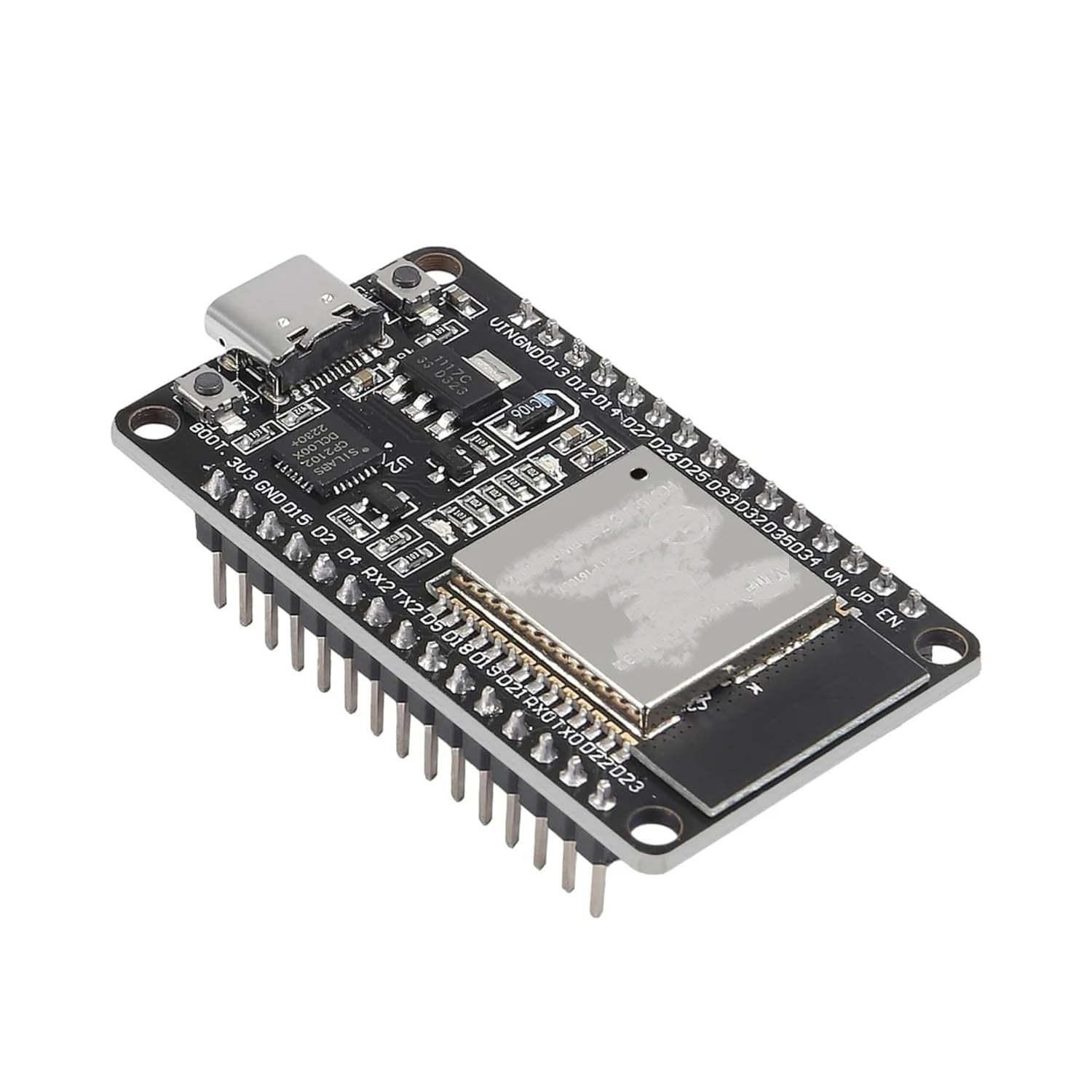

The ESP-32S Development Board WiFi + Bluetooth 30 Pin CP2102 Type-C is a high-performance wireless microcontroller development board based on the ESP32-WROOM-32 module from Espressif Systems. Designed for Internet of Things (IoT), robotics, home automation, industrial automation, embedded systems, smart devices, wireless communication, and AIoT applications, this development board combines powerful processing performance with integrated Wi-Fi and Bluetooth connectivity. Equipped with a CP2102 USB-to-UART converter, a modern USB Type-C interface, and a compact 30-pin layout, it provides an excellent platform for students, hobbyists, engineers, researchers, and professional developers developing next-generation connected devices.
Powered by the ESP32-WROOM-32 module, the board features the Espressif ESP32-D0WDQ6 SoC with a dual-core 32-bit Tensilica Xtensa LX6 processor operating at up to 240MHz. It integrates 520KB SRAM and typically 4MB SPI Flash memory, delivering exceptional performance for multitasking, cloud connectivity, wireless communication, edge computing, and real-time embedded applications. The ESP32-WROOM-32 module also incorporates integrated RF circuitry, an onboard PCB antenna, hardware encryption, secure boot support, an ultra-low-power co-processor, capacitive touch sensing, ADCs, DACs, timers, watchdog timers, and multiple communication interfaces for advanced embedded system development.
The ESP-32S Development Board provides 30 GPIO pins with support for UART, SPI, I²C, I²S, PWM, ADC, DAC, CAN (TWAI), SDIO, and RTC GPIO functions. The onboard CP2102 USB-to-UART converter enables reliable programming and serial communication through the USB Type-C connector, while automatic reset and boot circuitry simplifies firmware uploading. Its compact breadboard-friendly design makes it easy to integrate with sensors, displays, relays, motors, communication modules, and expansion boards for rapid prototyping, educational projects, and commercial product development.
Designed for students, makers, educators, engineers, researchers, and product developers, the ESP-32S Development Board supports Arduino IDE, ESP-IDF, PlatformIO, MicroPython, Lua, and FreeRTOS development environments. It is compatible with Windows, Linux, and macOS operating systems and supports thousands of open-source libraries for IoT, robotics, automation, wireless communication, cloud platforms, and embedded systems. Powered by the trusted ESP32-WROOM-32 module, this board delivers outstanding performance, reliability, and flexibility for both learning and professional development.
ESP32-WROOM-32 Module
Espressif ESP32-D0WDQ6 SoC
Dual-Core 32-bit Xtensa LX6 Processor
Up to 240MHz CPU Clock Speed
Integrated 2.4GHz Wi-Fi
Bluetooth 4.2 BR/EDR Support
Bluetooth Low Energy (BLE)
30-Pin Development Board
CP2102 USB-to-UART Converter
USB Type-C Interface
520KB SRAM
4MB SPI Flash Memory
30 Accessible GPIO Pins
12-bit Analog-to-Digital Converter (ADC)
Dual 8-bit Digital-to-Analog Converter (DAC)
Multiple PWM Output Channels
Capacitive Touch Sensor Support
UART Communication Interface
SPI Communication Interface
I²C Communication Interface
I²S Audio Interface
CAN (TWAI) Support
RTC GPIO Support
Ultra-Low Power Co-Processor
Hardware Encryption Engine
Secure Boot Support
Automatic Reset and Boot Circuit
EN and BOOT Buttons
Breadboard Friendly Design
Compatible with Arduino IDE
Supports ESP-IDF Framework
MicroPython Compatible
Supports FreeRTOS
Ideal for IoT Applications
Suitable for Robotics Projects
Perfect for Home Automation
Excellent for Industrial Automation
Ideal for Embedded Systems Development
